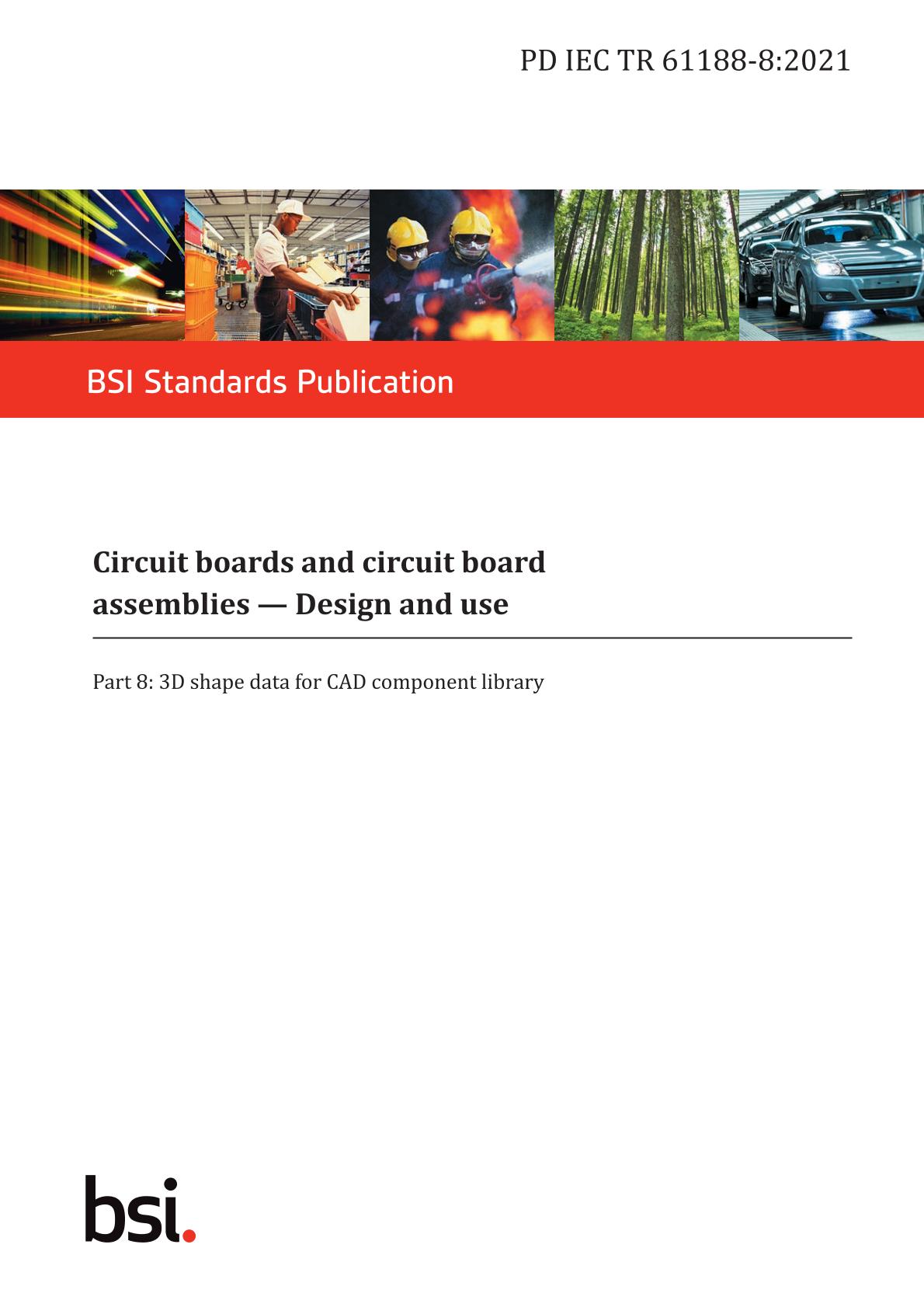

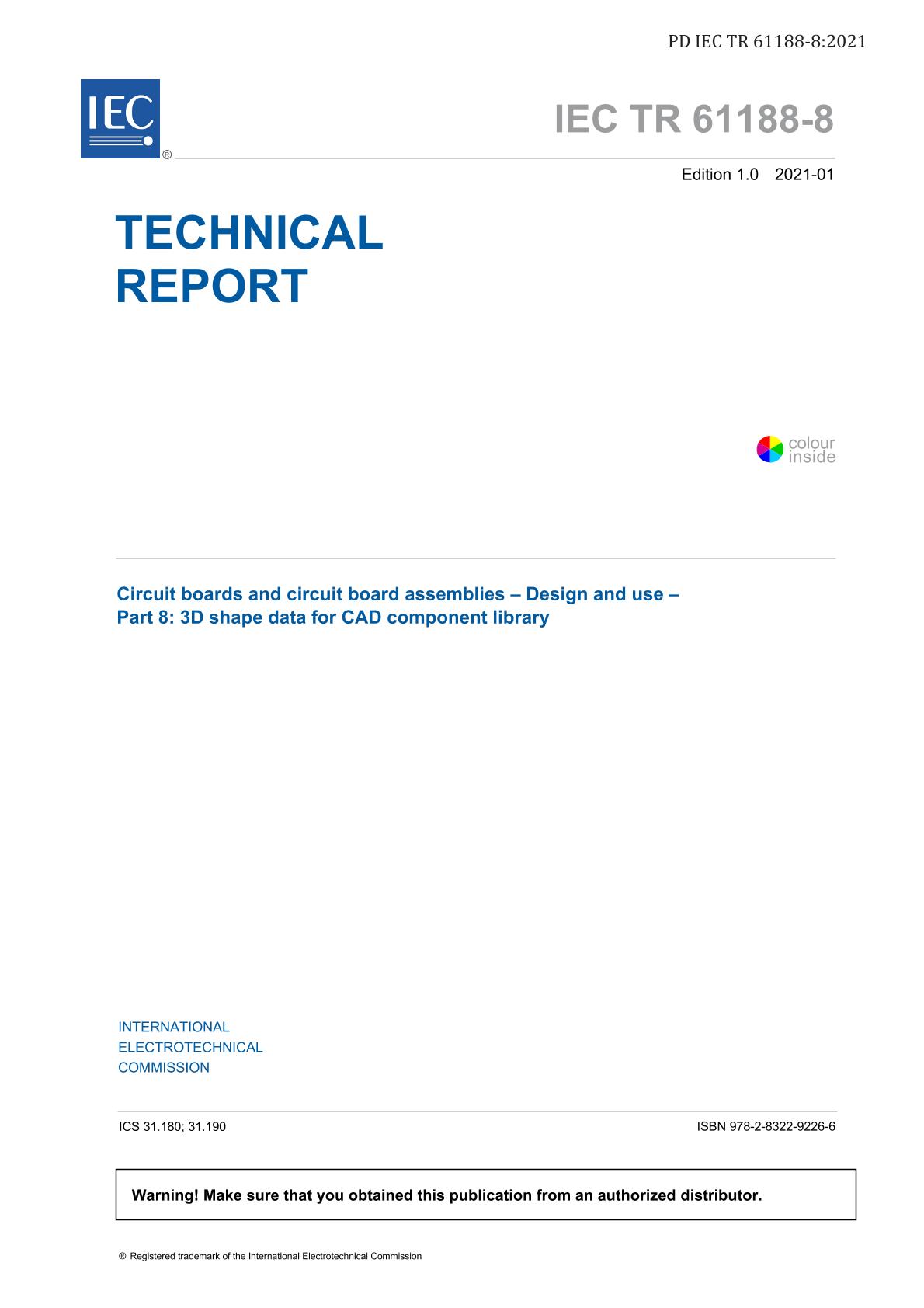

BS PD IEC TR 61188-8:2021

Circuit boards and circuit board assemblies. Design and use-3D shape data for CAD component library

BSI Group, 01/22/2021

Publisher: BS

File Format: PDF

$90.00$180.34

Description

Published:22/01/2021

Pages:20

File Size:1 file , 1.6 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

This part of IEC 61188 describes the configuration of part shape data of semiconductor devices and electrical components registered in the CAD library.

This document mainly describes the configuration of 2D and 3D parts shape data.

All current amendments available at time of purchase are included with the purchase of this document.
