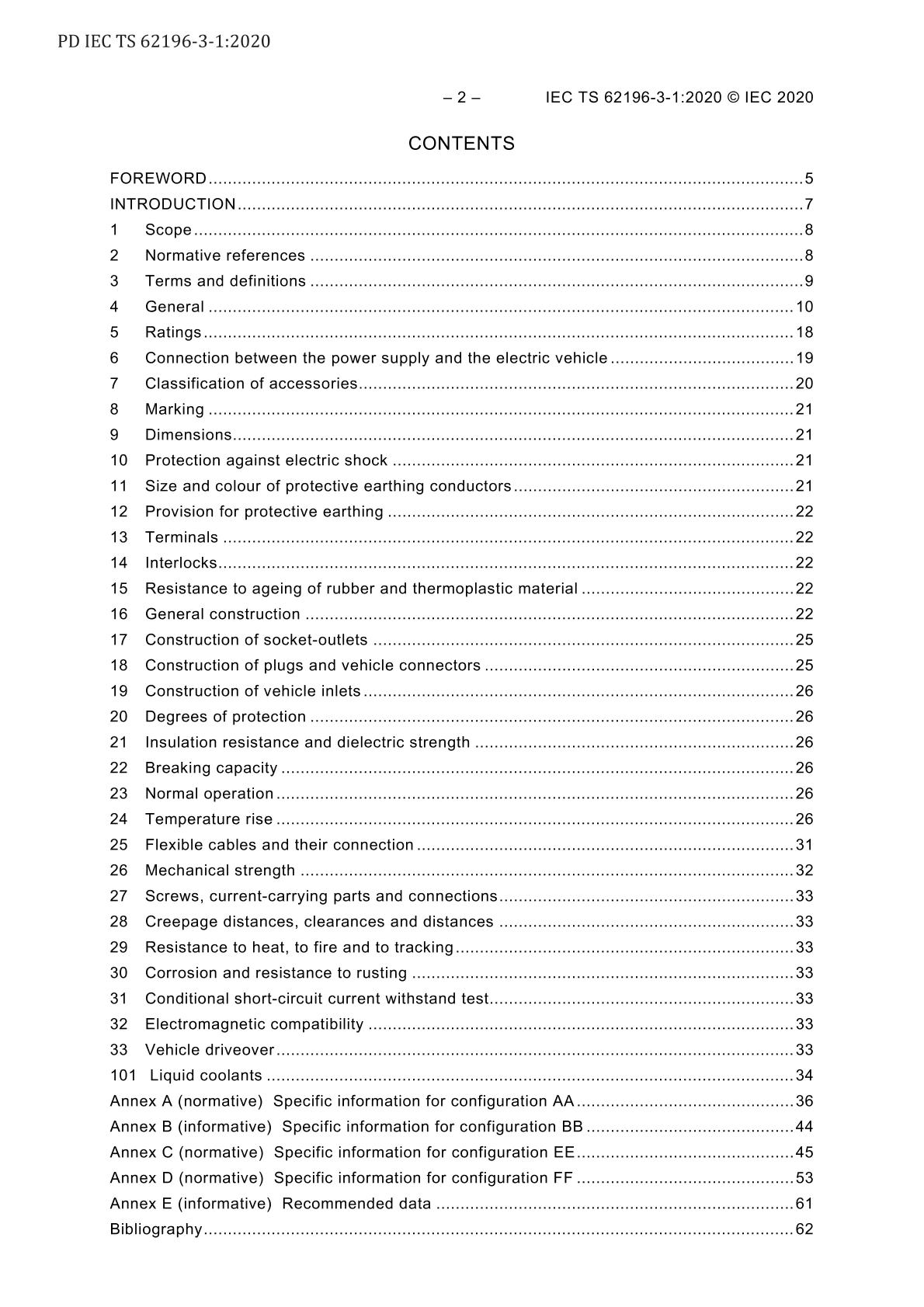

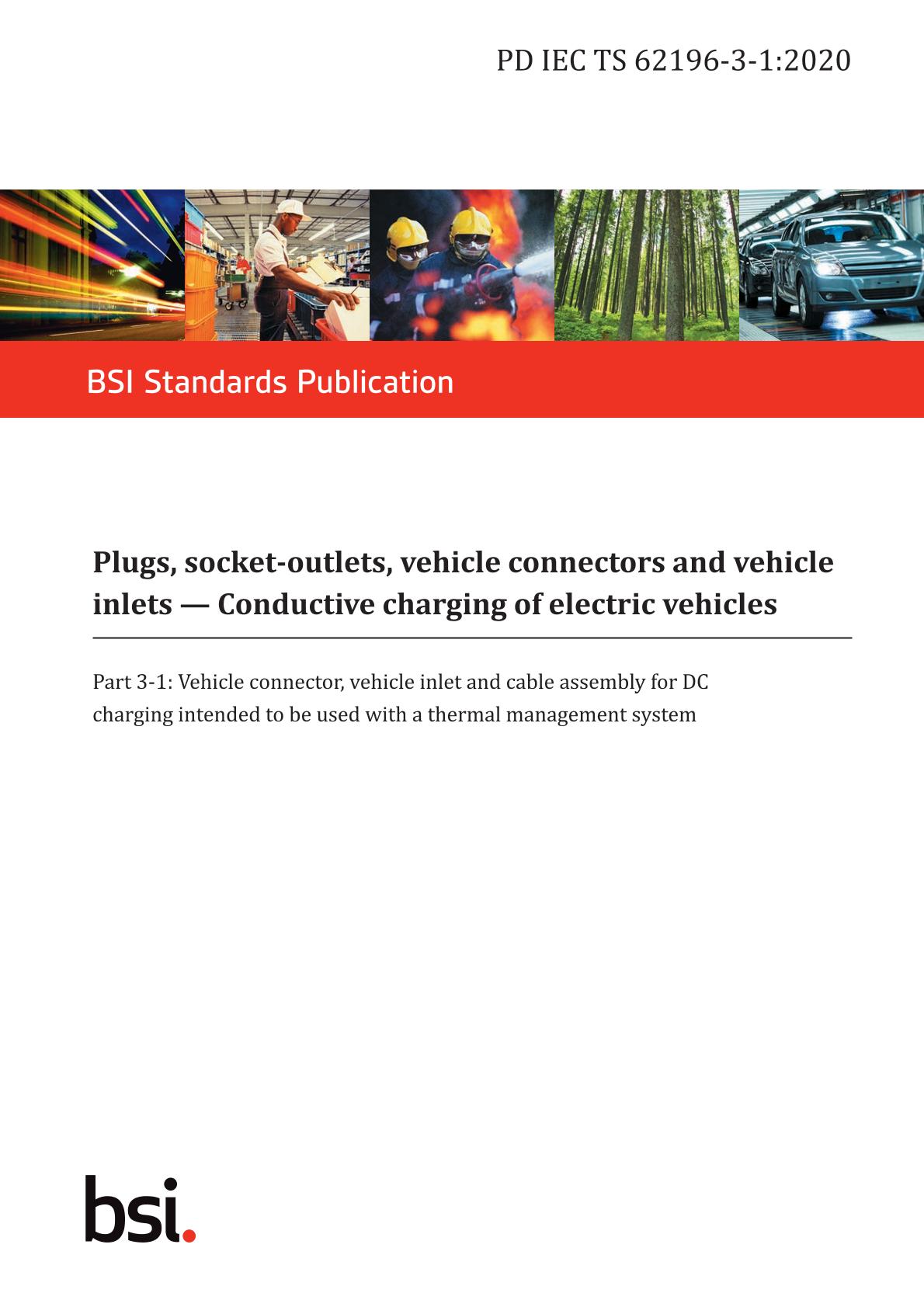

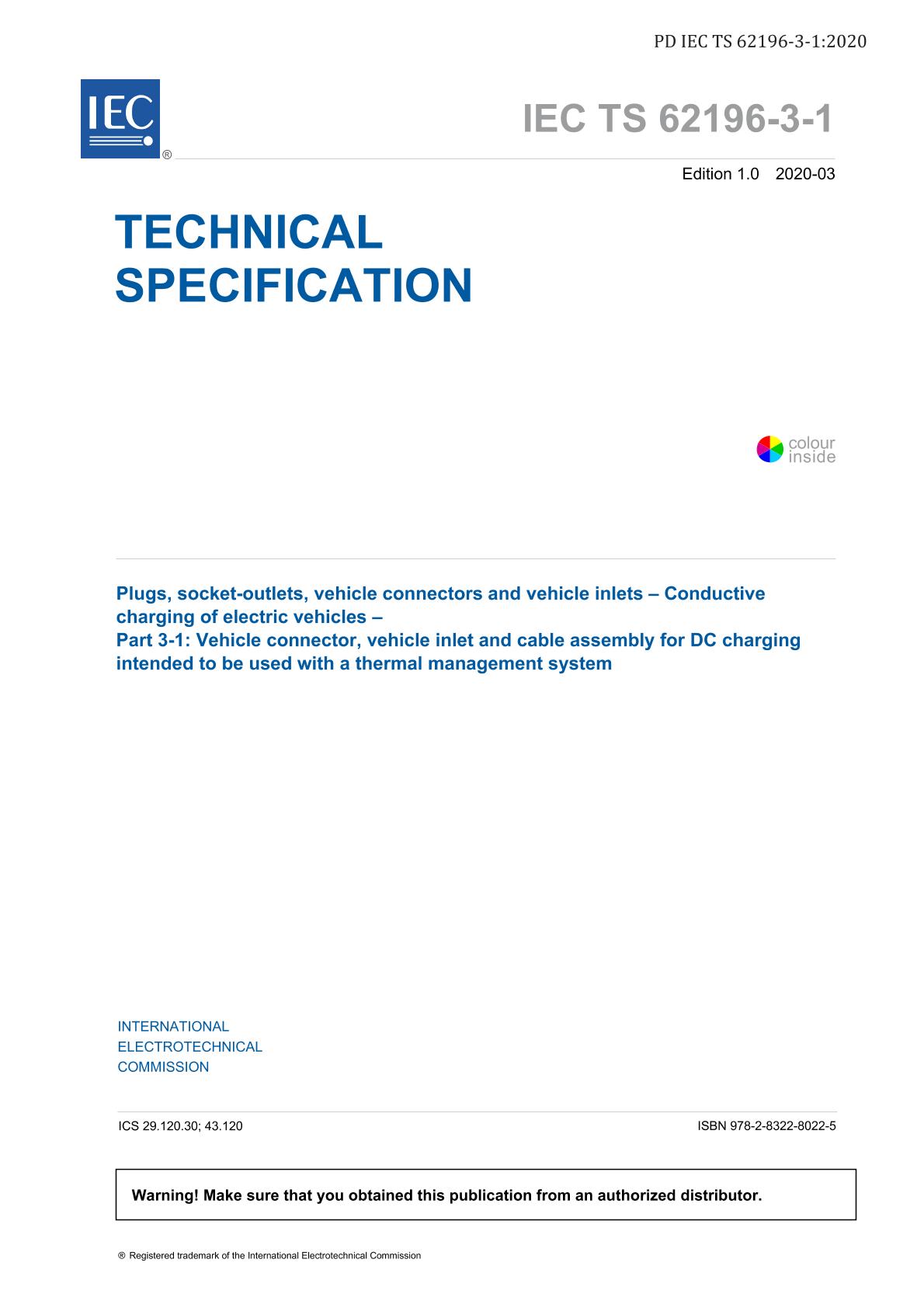

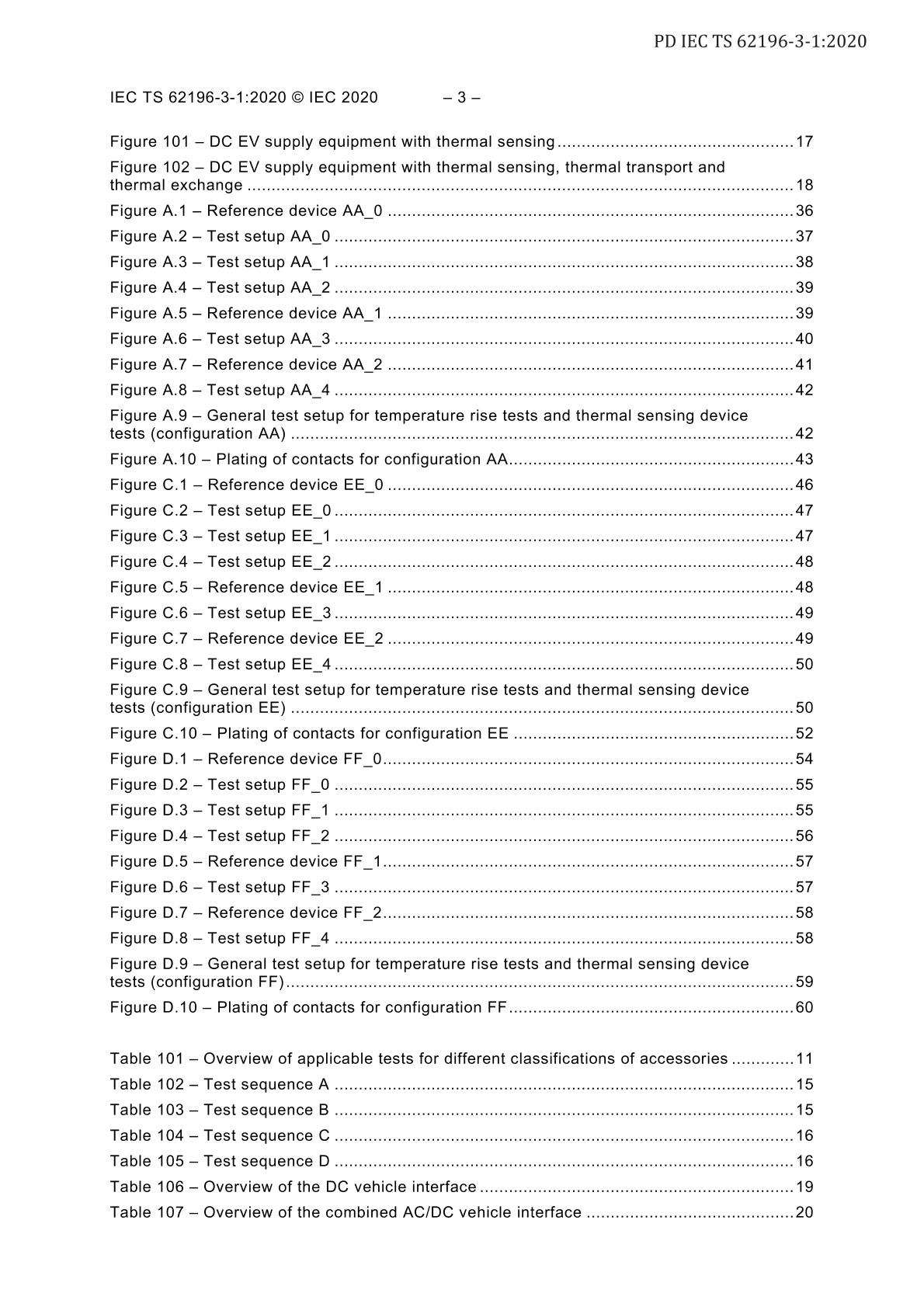

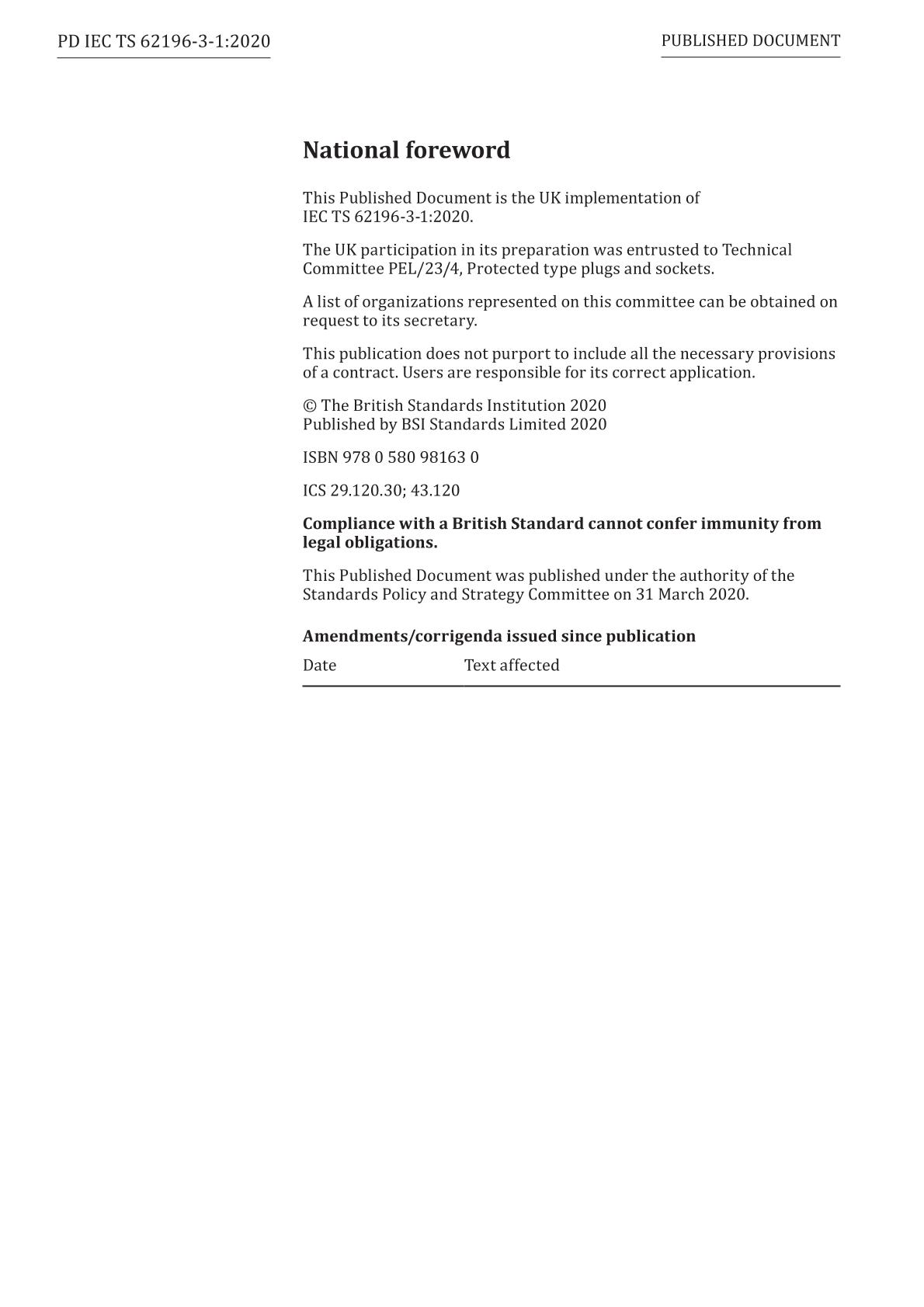

PDF Preview

BS PD IEC TS 62196-3-1:2020

Plugs, socket-outlets, vehicle connectors and vehicle inlets. Conductive charging of electric vehicles-Vehicle connector, vehicle inlet and cable assembly for DC charging intended to be used with a thermal management system

BSI Group, 03/31/2020

Publisher: BS

File Format: PDF

$175.00$350.52


Published:31/03/2020

Pages:66

File Size:1 file , 3.7 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

This document applies to accessories and cable assemblies with the same configuration as specified in IEC 62196-3:2014 with rated operating voltage not exceeding 1 500 V DC and a rated current not exceeding 500 A that employ

— thermal sensing, or
— thermal transport and thermal sensing

with the system architecture described in 4.101.

These accessories and cable assemblies are intended to be used in conductive charging systems for circuits specified in IEC 61851-23.

Cross References:
IEC 62196-1:2014
ISO 2719:2016
ISO 25178-1:2016
IEC 62196-2:2016
IEC 60364-5-54:2011
ISO 17409:2020
IEC 62196-3:2014
IEC 62893-4-1
IEC 60811-501
IEC 61851-23
IEC 62893-1:2017
IEC 62893-2:2017
IEC 62893-4-2
IEC 61851-24


All current amendments available at time of purchase are included with the purchase of this document.
