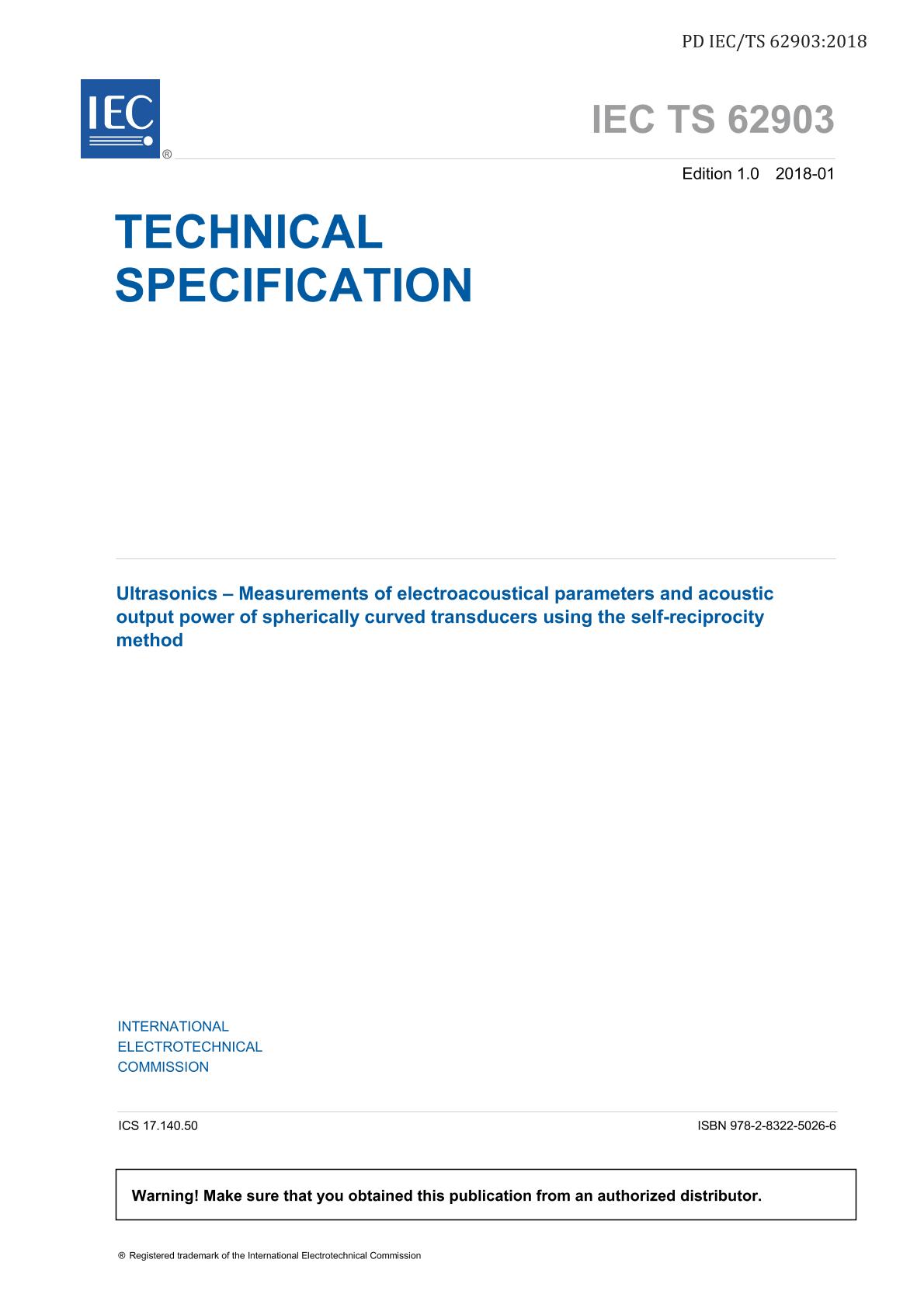

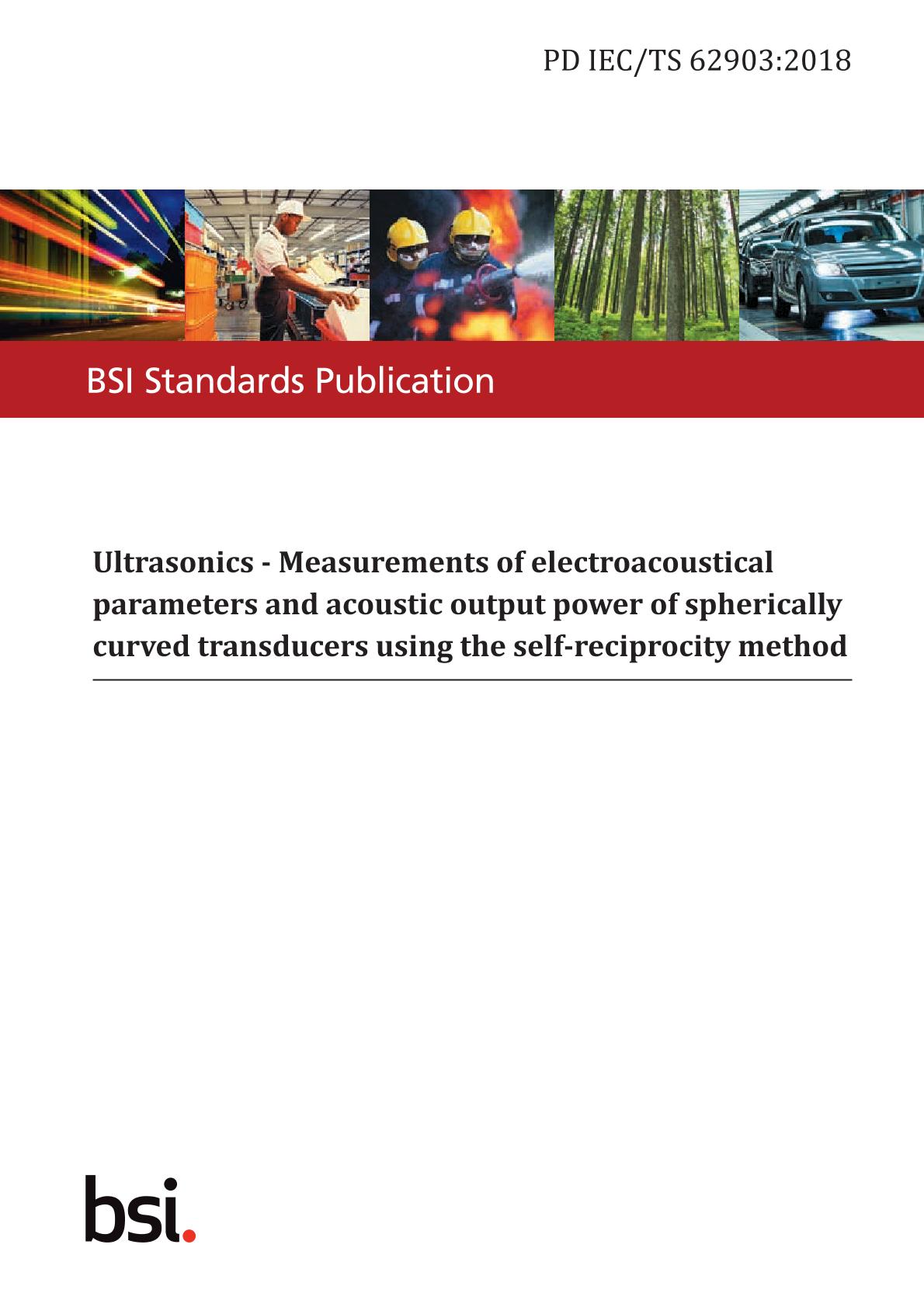

BS PD IEC/TS 62903:2018

Ultrasonics. Measurements of electroacoustical parameters and acoustic output power of spherically curved transducers using the self-reciprocity method

BSI Group, 01/29/2018

Publisher: BS

File Format: PDF

$166.00$332.74

Description

Published:29/01/2018

Pages:50

File Size:1 file , 1.8 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

BS PD IEC/TS 62903:2018, which is a Technical Specification,

a) establishes the free-field convergent spherical wave self-reciprocity method for ultrasonic transducer calibration,
b) establishes the measurement conditions and experimental procedure required to determine the transducer's electroacoustic parameters and acoustic output power using the self-reciprocity method,
c) establishes the criteria for checking the reciprocity of these transducers and the linear range of the focused field, and
d) provides guiding information for the assessment of the overall measurement uncertainties for radiation conductance.

Cross References:
IEC 60050-801:1994
IEC 62127-2:2007/AMD1:2013
IEC 60866:1987
ISO/IEC GUIDE 98-3:2008 Ed 1
IEC 62127-2:2007
IEC 60565:2006
GB/T 32522:2016
GUM:1995
IEC 61161
IEC 61828:2006

All current amendments available at time of purchase are included with the purchase of this document.
