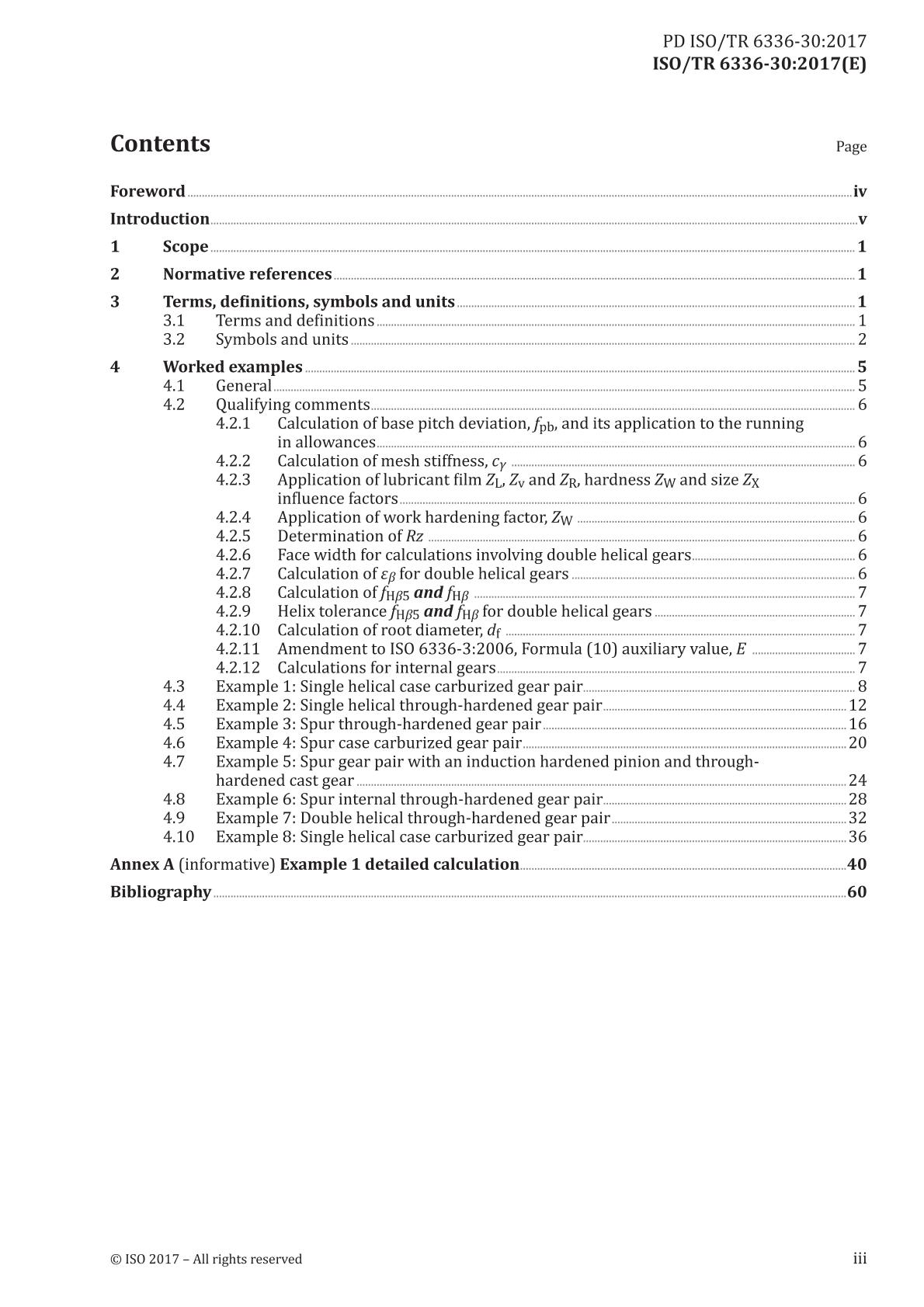

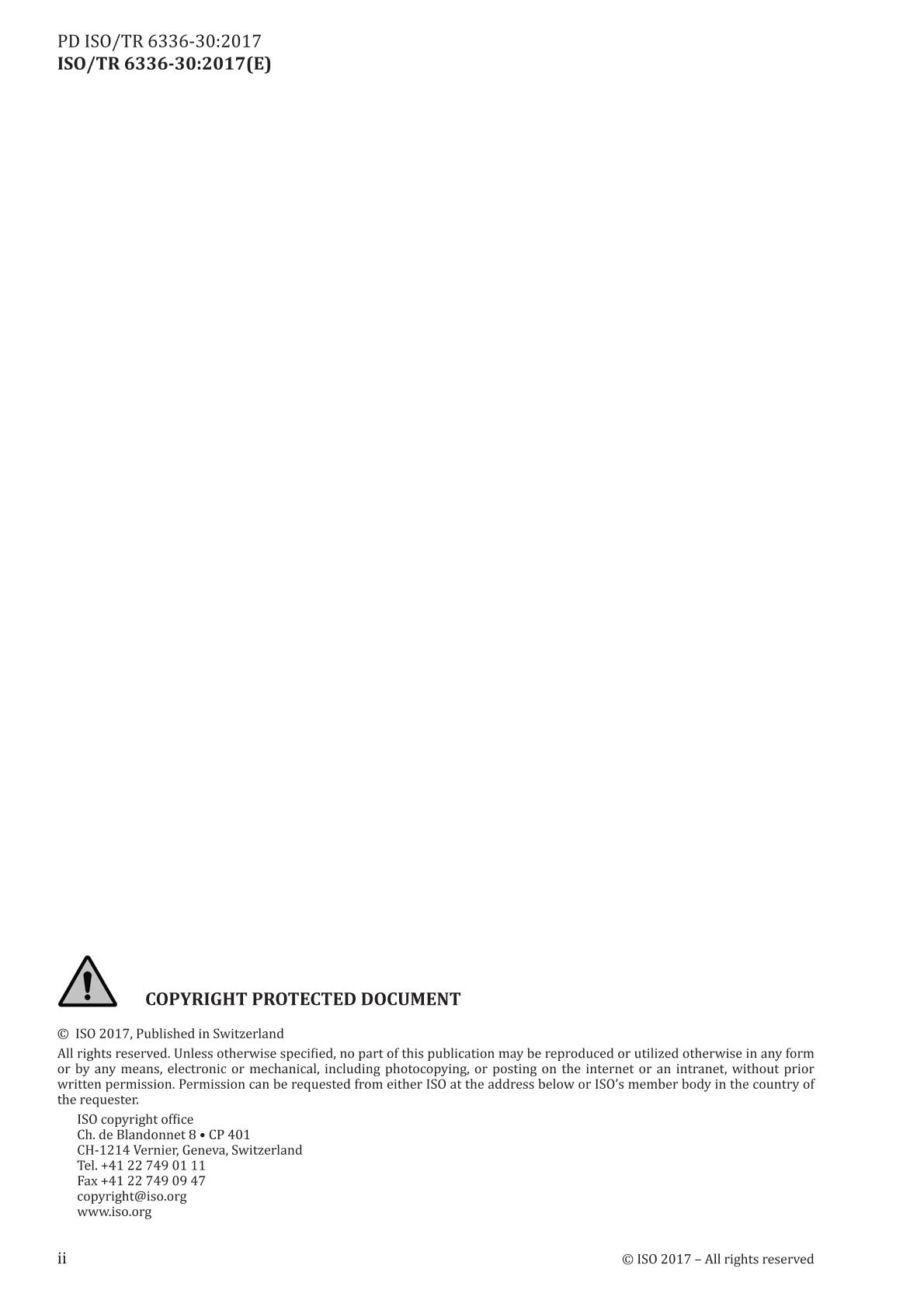

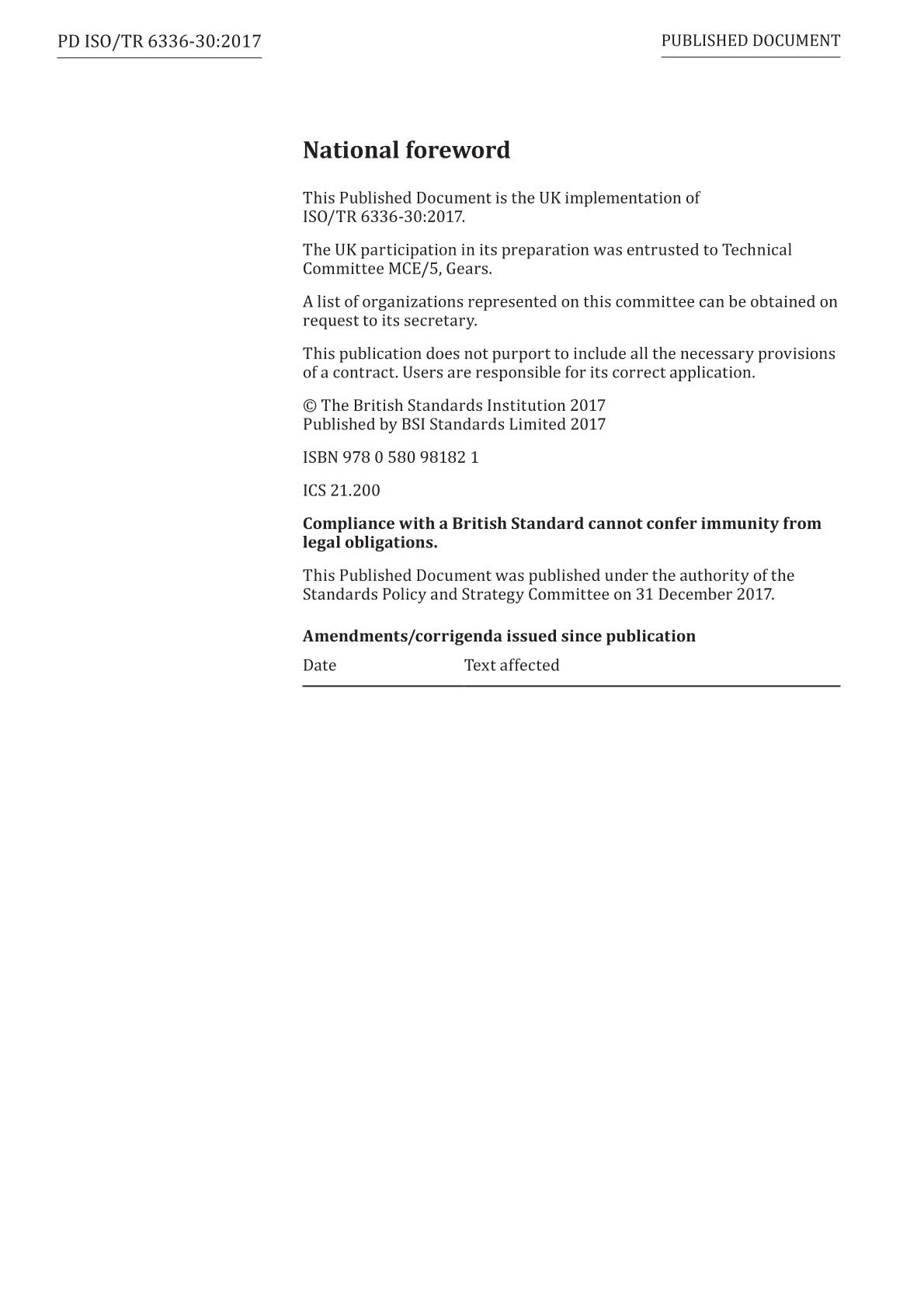

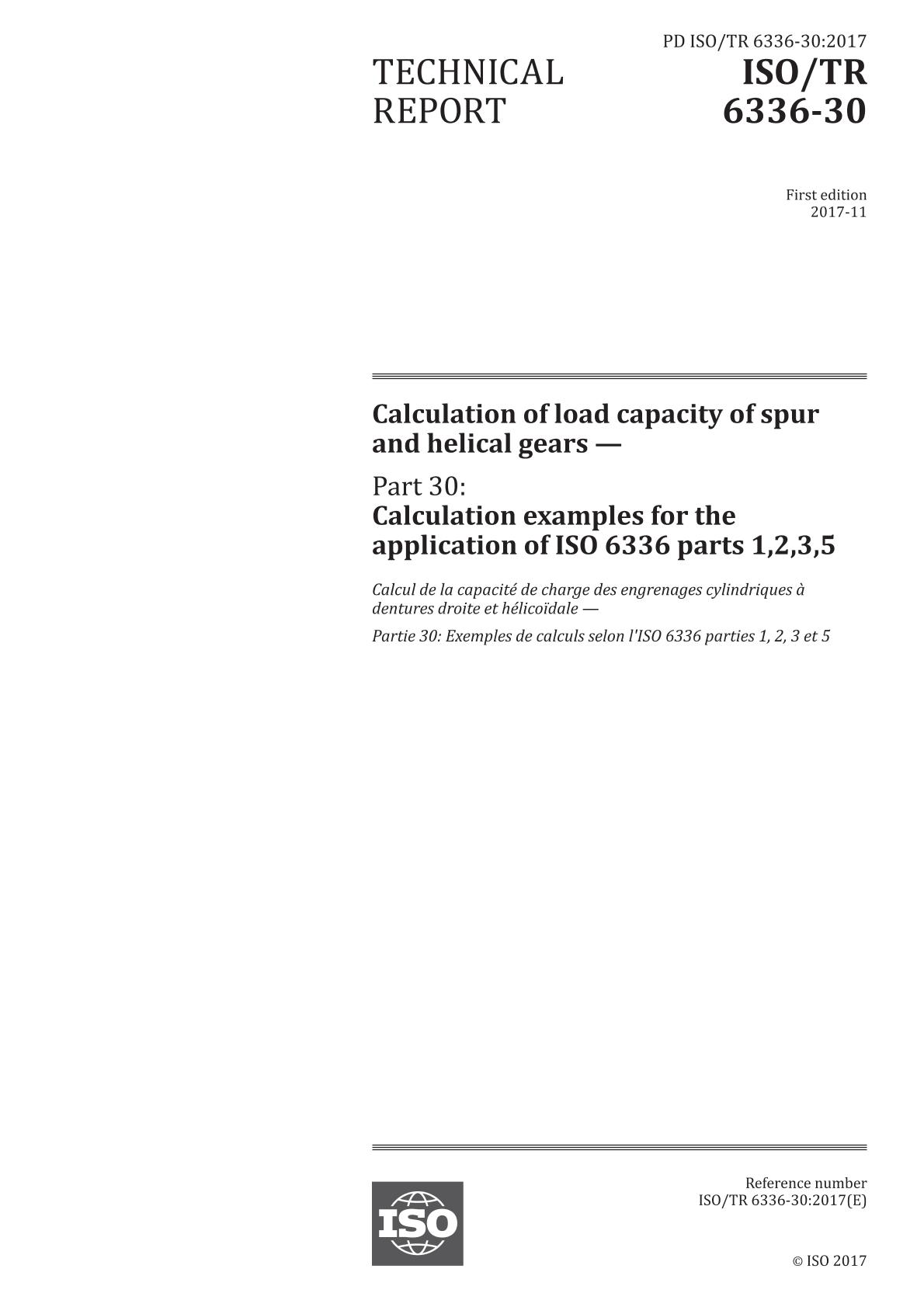

PDF Preview

BS PD ISO/TR 6336-30:2017

Calculation of load capacity of spur and helical gears-Part 30: Calculation examples for the application of ISO 6336 parts 1,2,3,5

BSI Group, 12/07/2017

Publisher: BS

File Format: PDF

$175.00$350.52


Published:07/12/2017

Pages:68

File Size:1 file , 1.8 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

BS PD ISO/TR 6336-30:2017 presents worked examples that apply exclusively the approximation methods for the determination of specific influential factors, such as the dynamic factor, Kv, and the load distributions factors KHα, KHβ, etc., where full analytical calculation procedures are provided within the referenced parts of ISO 6336.

Worked examples covering the more advanced analysis techniques and methods are outside the scope of this document.

The example calculations presented in this document are provided for guidance on the application of ISO 6336-1, ISO 6336-2, ISO 6336-3 and ISO 6336-5. Any of the values, safety factors or the data presented are not to be taken as recommended criteria for real gearing. Data presented within this document are for the purpose of aiding the application of the calculation procedures of ISO 6336-1, ISO 6336-2, ISO 6336-3 and ISO 6336-5.


Cross References:
ISO 6336
ISO 1122-1
ISO 1328-1:1995
ISO 4288
ISO 4287
ISO 53
ISO 21771


All current amendments available at time of purchase are included with the purchase of this document.
