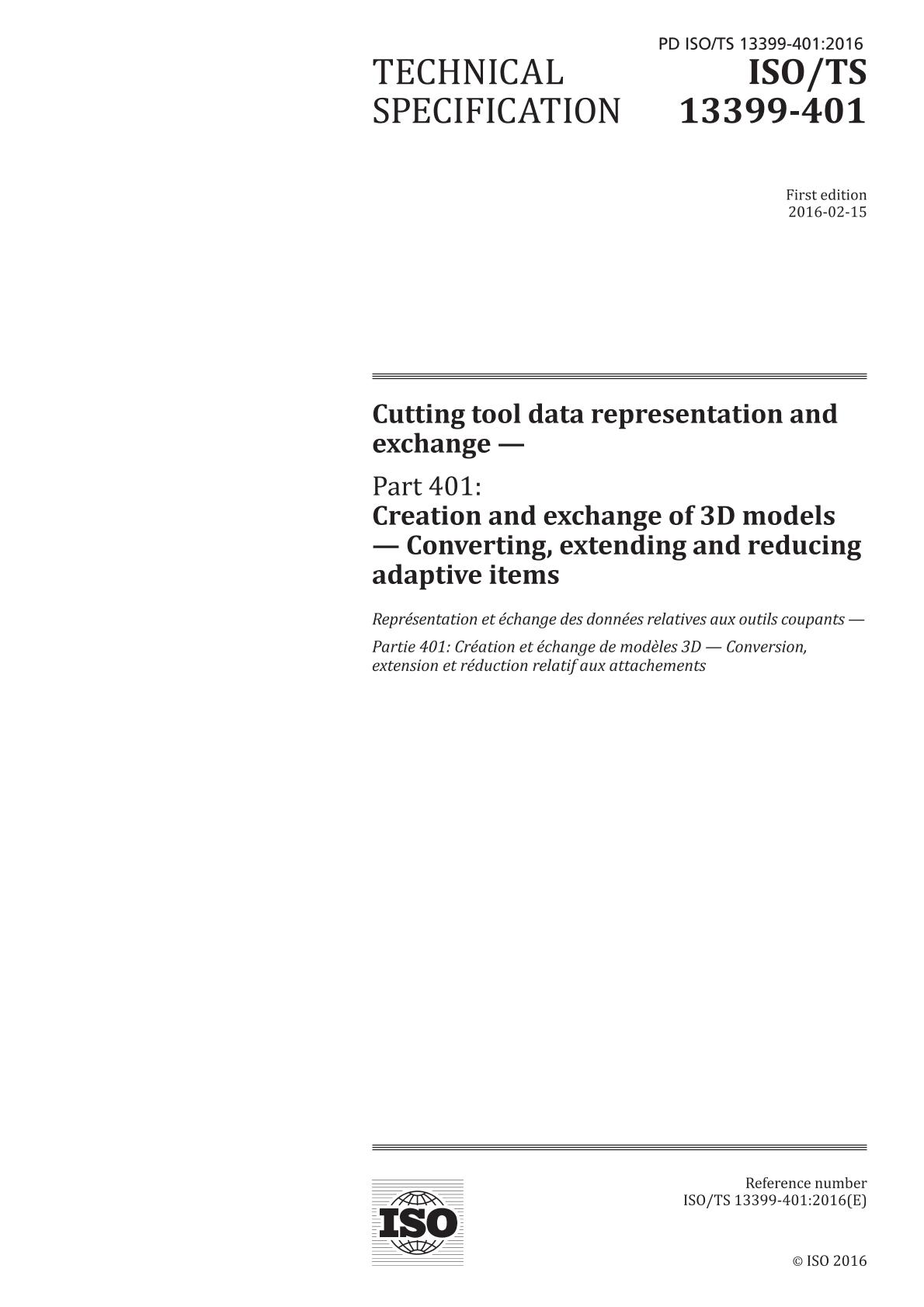

BS PD ISO/TS 13399-401:2016

BS PD ISO/TS 13399-401:2016 specifies a concept for the design of adaptive items, limited to any kind of converters, extenders and reducers, together with the usage of the related properties and domains of values.

This part of ISO/TS 13399 specifies a common way of designing simplified models that contain the following:

• definitions and identifications of the design features of converting, extending and reducing adaptors, with an association to the used properties;
• definitions and identifications of the internal structure of the 3D model that represents the features and the properties of converting, extending and reducing adaptors.

The following are outside the scope of this part of ISO/TS 13399:

• applications where these standard data may be stored or referenced;
• concept of 3D models for cutting tools;
• concept of 3D models for cutting items;
• concept of 3D models for tool items;
• concept of 3D models for other adaptive items not described in the scope of this part of ISO/TS 13399;
• concept of 3D models for assembly items and auxiliary items.

Cross References:
ISO 10889-1
ISO 12164-1
ISO/TS 13399-3
ISO/TS 13399-4
ISO/TS 13399-50
ISO/TS 13399-60
ISO/TS 13399-80
ISO 26622-1
ISO 26623-1
ISO 26623-2
ISO 5414-1
ISO 7388-1
ISO 10889-3
ISO 12164-2
ISO 13399-1
ISO/TS 13399-2
ISO/TS 13399-5
ISO 13584-24
ISO 13584-25


All current amendments available at time of purchase are included with the purchase of this document.
