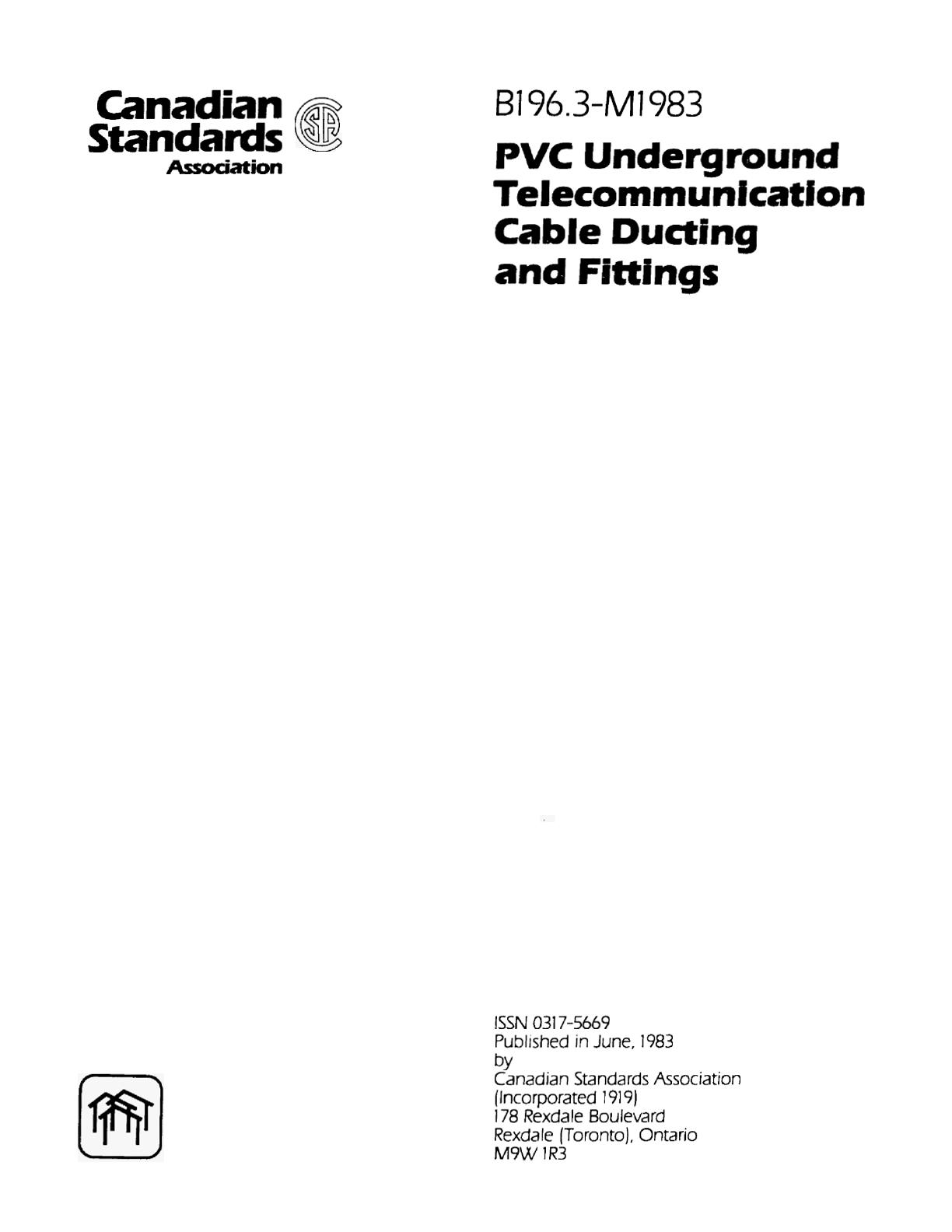

CSA B196.3-M1983 (R2021)

Preface:

This is the second edition of CSA Standard 81 96.3, PVC Underground Telecommunication Cable Ducting and Fittings, and it supersedes the first edition published in 1975. The major change in this edition is the use of SI (metric) units.

The metric values in this Standard are either exact conversions or technically tolerable rounded values of those shown in the previous edition. They do not represent any appreciable change in the dimensions or the properties of the product.

This Standard was prepared by the Subcommittee on Telecommunication Cable Ducting under the jurisdiction of the Technical Committee on Plastic Pipe and the Standards Steering Committee on Plumbing Products and Materials and was formally approved by these Committees.

Scope:

1.1
This Standard covers PVC duct and fittings that are used as a raceway for telecommunication cables. Such ducting may be encased in concrete or directly buried in the ground, depending on type.

1.2
Fittings covered by this Standard include sweeps, straight couplings, 5° couplings, caps, plugs, split sleeves, and bell ends for duct termination. Duct may also have bell ends. Adaptor fittings for transition to ducts made of different materials or of the same material with different dimensions are also covered.

1.3
This Standard includes requirements for materials, workmanship, dimensions and tolerances, strength, thermal resistance, chemical resistance, solvent cement, joint tightness, and marking.
