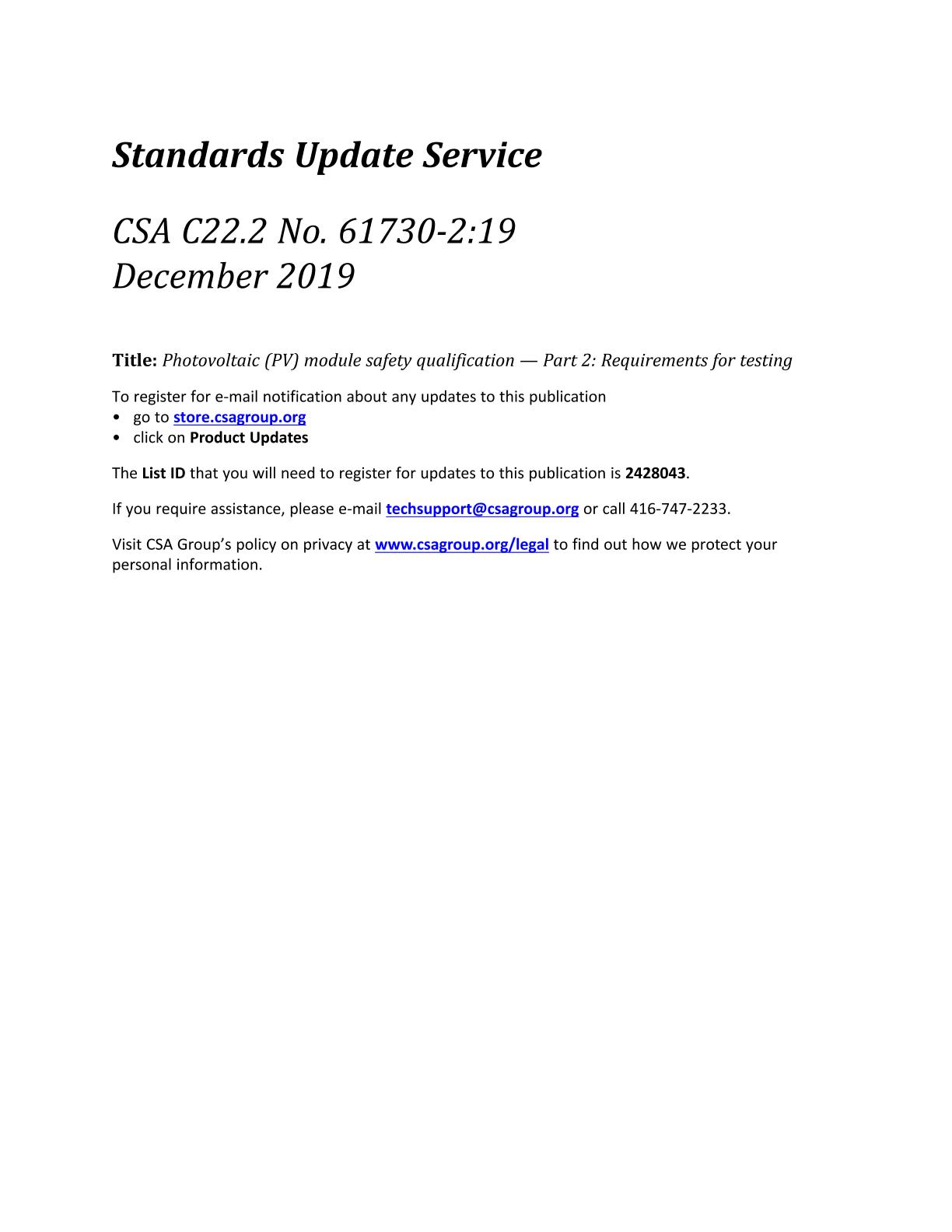

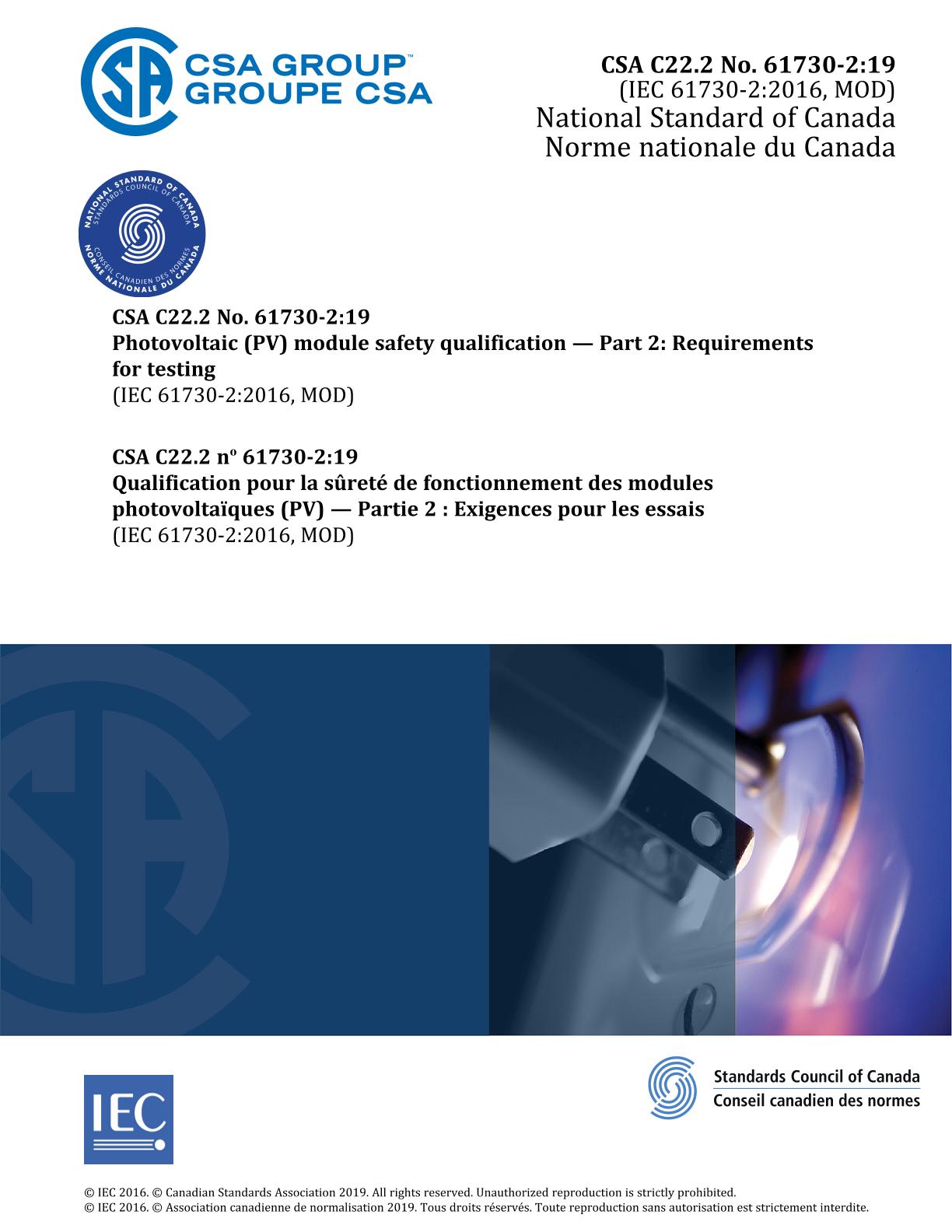

CSA C22.2 NO. 61730-2:19

Preface:

This is the second edition of CSA C22.2 No. 61730-2, Photovoltaic (PV) module safety qualification — Part 2: Requirements for testing, which is an adoption, with Canadian deviations, of the identically titled IEC (International Electrotechnical Commission) Standard 61730-2 (second edition, 2016-08). It supersedes the previous edition, published in 2011 as CAN/CSA-C22.2 No. 61730-2 (adopted IEC 61730-2:2004). It is one in a series of Standards issued by CSA Group under Part II of the Canadian Electrical Code.

This Standard is intended to be used in conjunction with CSA C22.2 No. 61730-1:19, Photovoltaic (PV) module safety qualification — Part 1: Requirements for construction (adopted IEC 61730-1:2016, with Canadian deviations).

This Standard has been developed in compliance with Standards Council of Canada requirements for National Standards of Canada. It has been published as a National Standard of Canada by CSA Group.

Scope:

The scope of IEC 61730-1 is also applicable to this part of IEC 61730. While IEC 61730-1 outlines the requirements of construction, this part of the standard lists the tests a PV module is required to fulfill for safety qualification. IEC 61730-2 is applied for safety qualification only in conjunction with IEC 61730-1.

The sequence of tests required in this standard may not test for all possible safety aspects associated with the use of PV modules in all possible applications. This standard utilizes the best sequence of tests available at the time of its writing. There are some issues – such as the potential danger of electric shock posed by a broken PV module in a high voltage system – that should be addressed by the system design, location, restrictions on access and maintenance procedures.

The objective of this standard is to provide the testing sequence intended to verify the safety of PV modules whose construction has been assessed by IEC 61730-1. The test sequence and pass criteria are designed to detect the potential breakdown of internal and external components of PV modules that would result in fire, electric shock, and/or personal injury. The standard defines the basic safety test requirements and additional tests that are a function of the PV module end-use applications. Test categories include general inspection, electrical shock hazard, fire hazard, mechanical stress, and environmental stress.

The additional testing requirements outlined in relevant ISO standards, or the national or local codes which govern the installation and use of these PV modules in their intended locations, should be considered in addition to the requirements contained within this standard.
