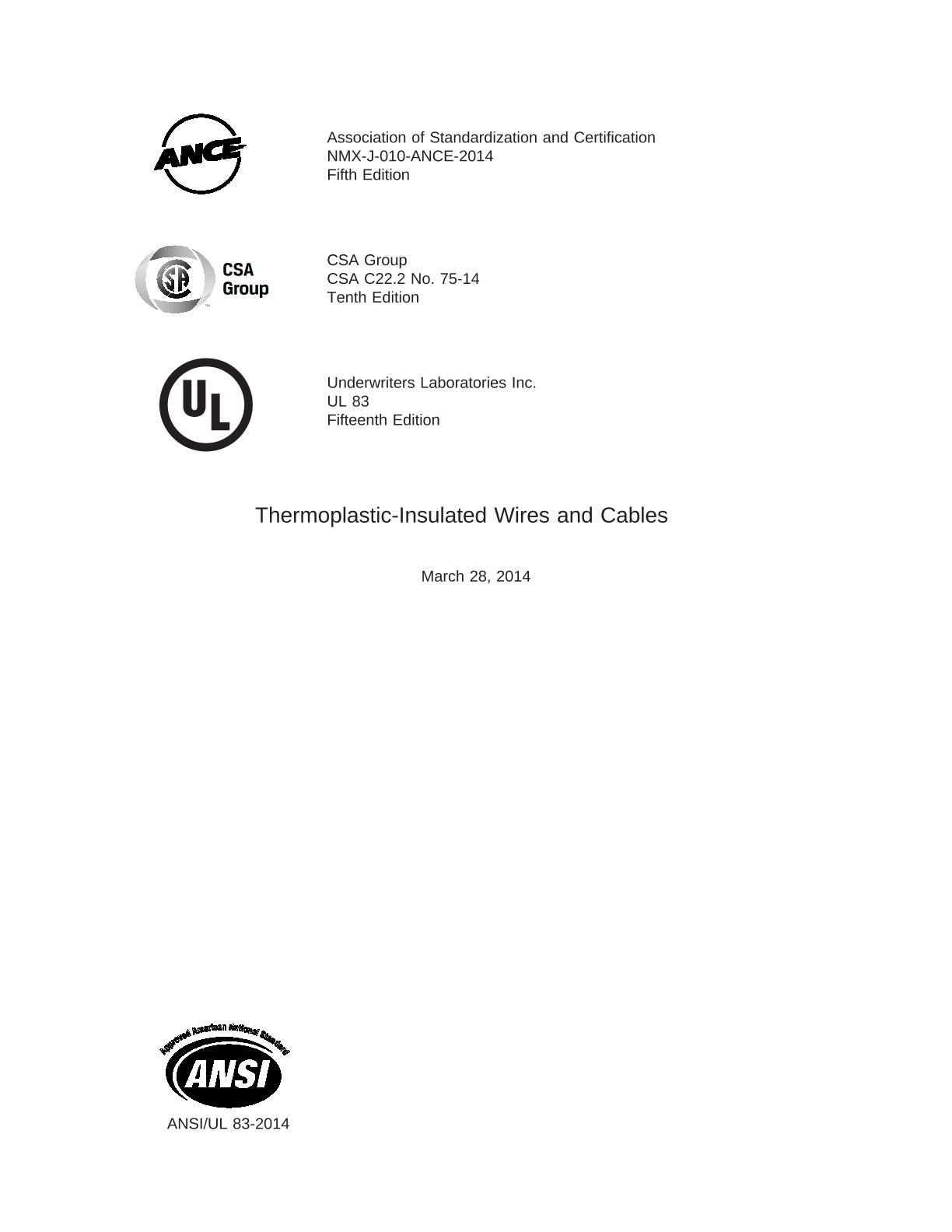

CSA C22.2 NO. 75-14

Thermoplastic-Insulated Wires and Cables (Tri-National standard, with UL 83 and NMX-J-010-ANCE-2008)

CSA Group, 03/01/2014

Publisher: CSA

File Format: PDF

$125.00$251.46


Published:01/03/2014

Pages:98

Preface

This is the harmonized ANCE, CSA Group, and UL Standard for Thermoplastic-Insulated Wires and Cables. It is the Fifth edition of NMX-J-010-ANCE, the Tenth edition of CSA-C22.2 No. 75, and the Fifteenth edition of UL 83. This edition of NMX-J-010-ANCE supersedes the previous edition published in 2008. This edition of CSA-C22.2 No. 75 supersedes the previous edition published in 2008. This edition of UL 83 supersedes the previous edition published in 2008.

Scope

1.1
This Standard specifies the requirements for 600 V, single-conductor, thermoplastic-insulated wires and cables, for use as follows:

a) In Canada, in accordance with CSA C22.1, Canadian Electrical Code (CEC), Part I;

b) In Mexico, in accordance with NOM-001-SEDE, Standard for Electrical Installations; and

c) In the United States, in accordance with ANSI/NFPA 70, National Electrical Code (NEC).

Note: See Annex A for the complete list of wire types covered by this Standard and the specific electrical codes for which they are intended.

1.2
This Standard also specifies the requirements for submersible-pump cables, with or without jackets (see Clause 7). No type-letter designations are assigned to these cables.

1.3
In Mexico, the requirements for multiple-conductor thermoplastic-insulated and -jacketed cables rated 600 V are specified in Annex B.

In Canada and the United States, requirements for multiple-conductor thermoplastic-insulated and -jacketed cables rated 600 V are covered in other standards.

1.4
Products for which this Standard provides requirements might have applications not described in the electrical codes listed in Clause 1.1.
