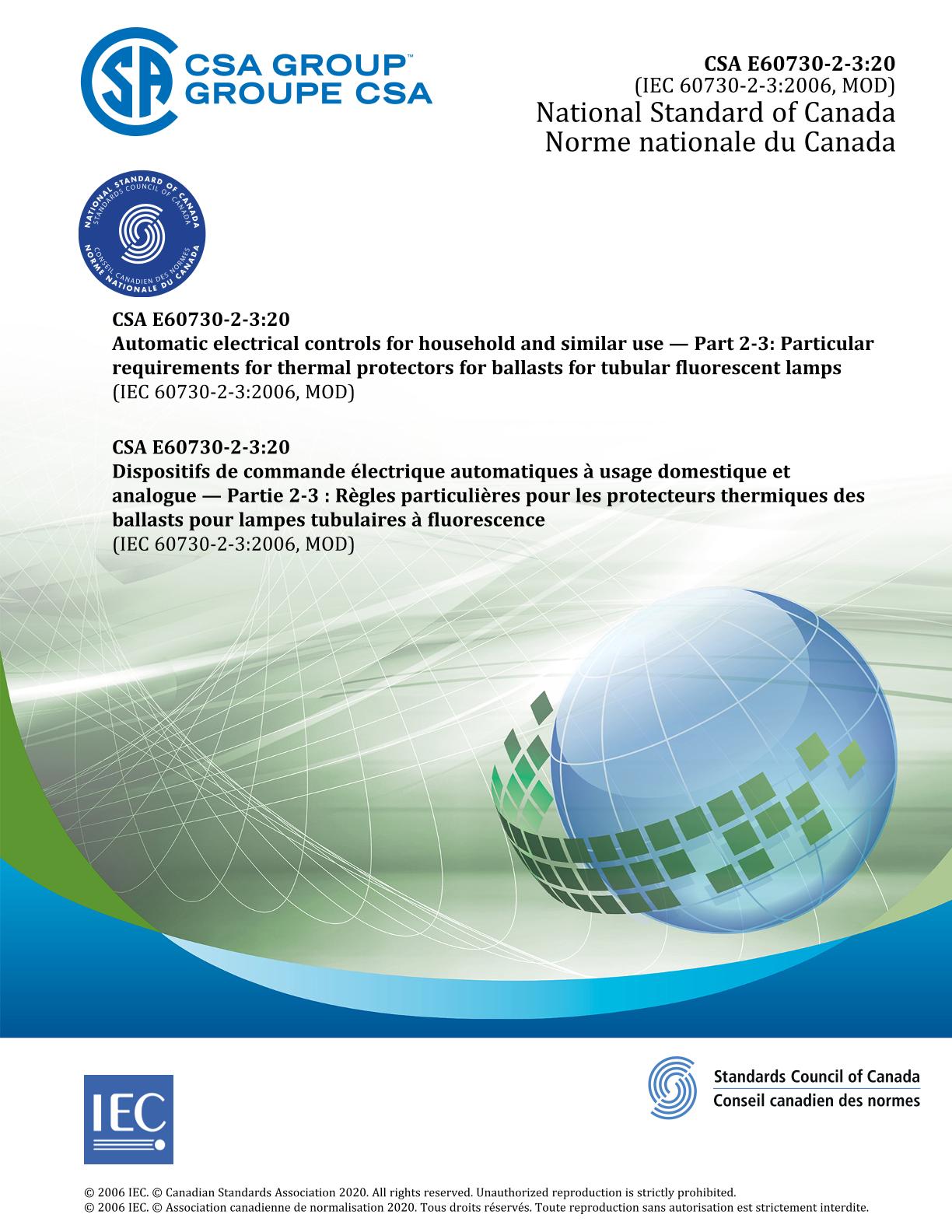

CSA E60730-2-3:20

Preface:

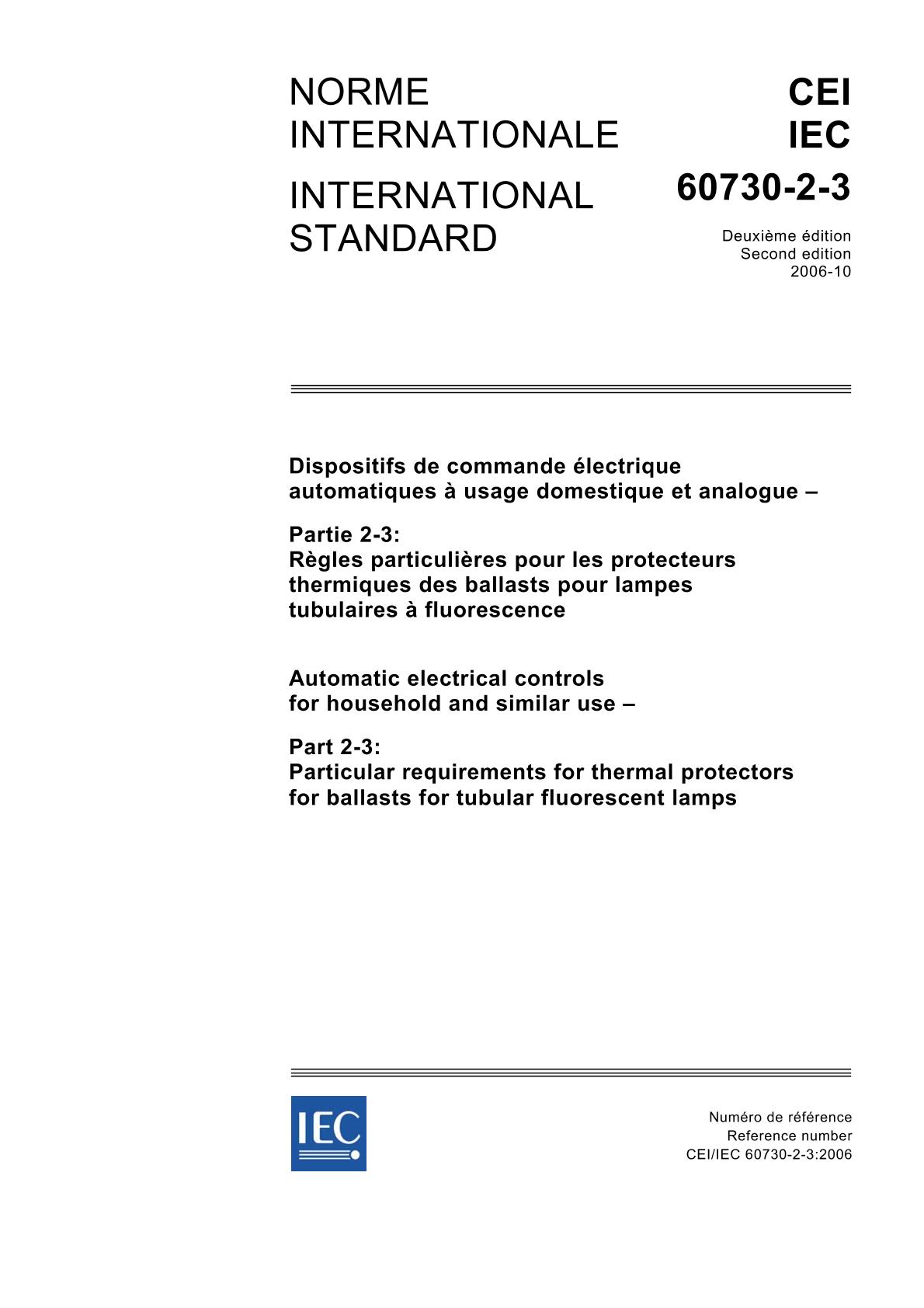

This is the second edition of CSA E60730-2-3, Automatic electrical controls for household and similar use — Part 2-3: Particular requirements for thermal protectors for ballasts for tubular fluorescent lamps, which is an adoption, with Canadian deviations, of the identically titled IEC (International Electrotechnical Commission) Standard 60730-2-3 (second edition, 2006-10). It supersedes the previous edition published in 1994 as CAN/CSA-E730-2-3 (adopted IEC 730-2-3:1990).

This Standard is intended to be used in conjunction with CAN/CSA-E60730-1:02, Automatic electrical controls for household and similar use — Part 1: General requirements (adopted IEC 60730-1:1999, with Canadian deviations); and Amendment 1:2007 to CAN/CSA-E60730-1:02 (adopted IEC Amendment 1:2003, with Canadian deviations).

This Standard has been developed in compliance with Standards Council of Canada requirements for National Standards of Canada. It has been published as a National Standard of Canada by CSA Group.

Scope:

1.1
This part of IEC 60730 applies to the evaluation of thermal protectors for ballasts for tubular fluorescent lamps.

This standard applies to thermal protectors using NTC or PTC thermistors, additional requirements for which are contained in Annex J.

Requirements concerning the testing of the combination of ballasts and thermal protectors are given in IEC 61347-1.

1.1.1
This standard applies to the inherent safety, to the operating values, operating times, and operating sequences where such are associated with equipment safety, and to the testing of thermal protectors used to protect ballasts for tubular lamps from overheating.

This standard applies to thermal protectors for ballasts within the scope of IEC 61347-2-8.

Thermal protectors covered by this standard may be suitable for ballasts for other discharge lamps such as ballasts under the scope of IEC 61347-2-9.

Throughout this standard, the word "protector" means "self-resetting thermal ballast protector".

1.1.2
This standard is not applicable to other means used to protect ballasts.

1.1.3
This standard does not apply to a manual device for opening the circuit.

1.2
This standard applies to protectors for use with ballasts for use on a.c. supplies up to 690 V at 50 Hz or 60 Hz.

1.3
This standard does not take into account the response value of an automatic action of a control, if such a response value is dependent upon the method of mounting the control in the equipment. Where a response value is of significant purpose for the protection of the user or surroundings, the value defined in the appropriate household equipment standard or as determined by the manufacturer applies.
