CSA Z9170-1:19

Terminal units for medical gas pipeline systems - Part 1: Terminal units for use with compressed medical gases, vacuum, and anaesthetic gas scavenging systems (Adopted ISO 9170-1:2017, third edition, 2017-07, with Canadian deviations)

CSA Group, 10/01/2019

Publisher: CSA

File Format: PDF

$52.00$105.00


Published:01/10/2019

Pages:50

File Size:1 file , 1.7 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

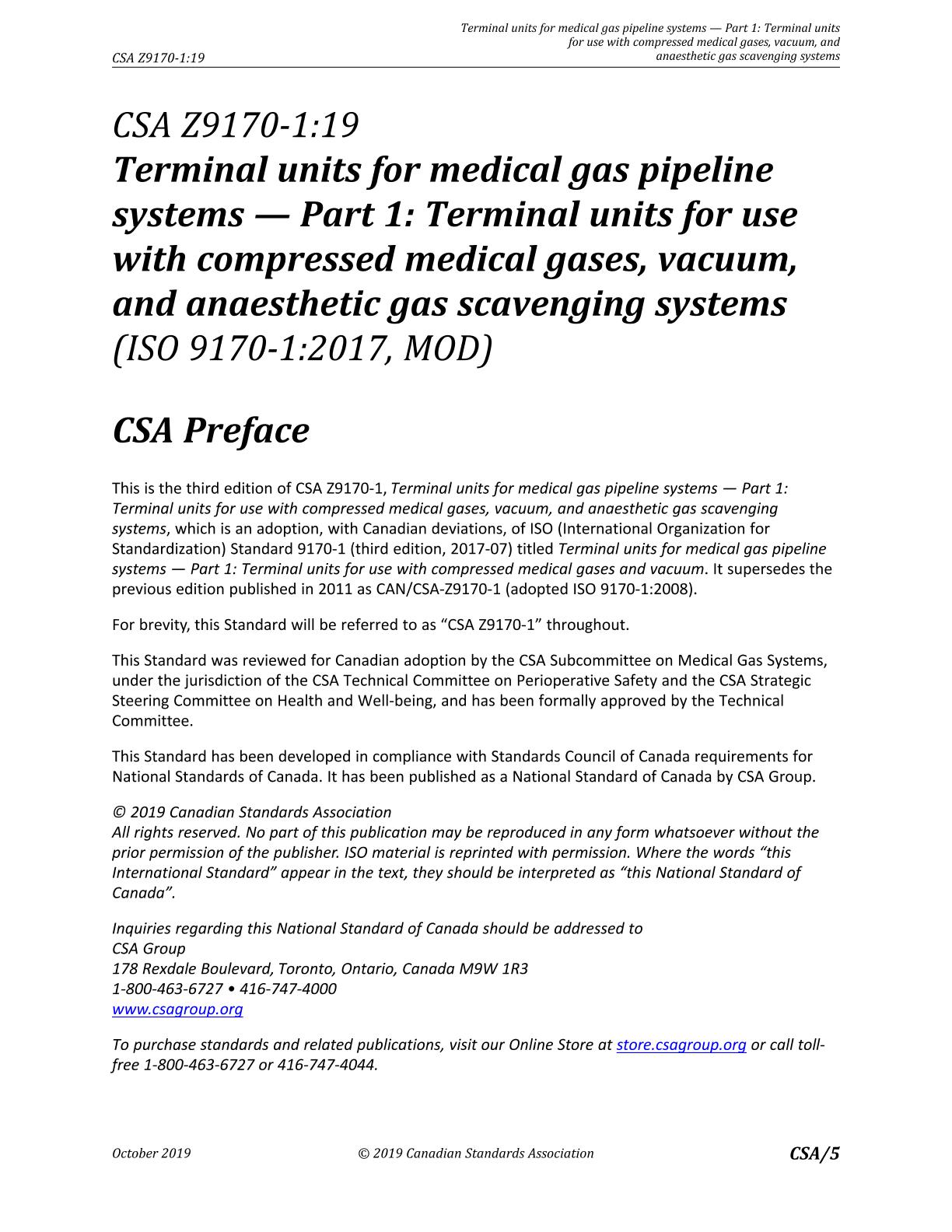

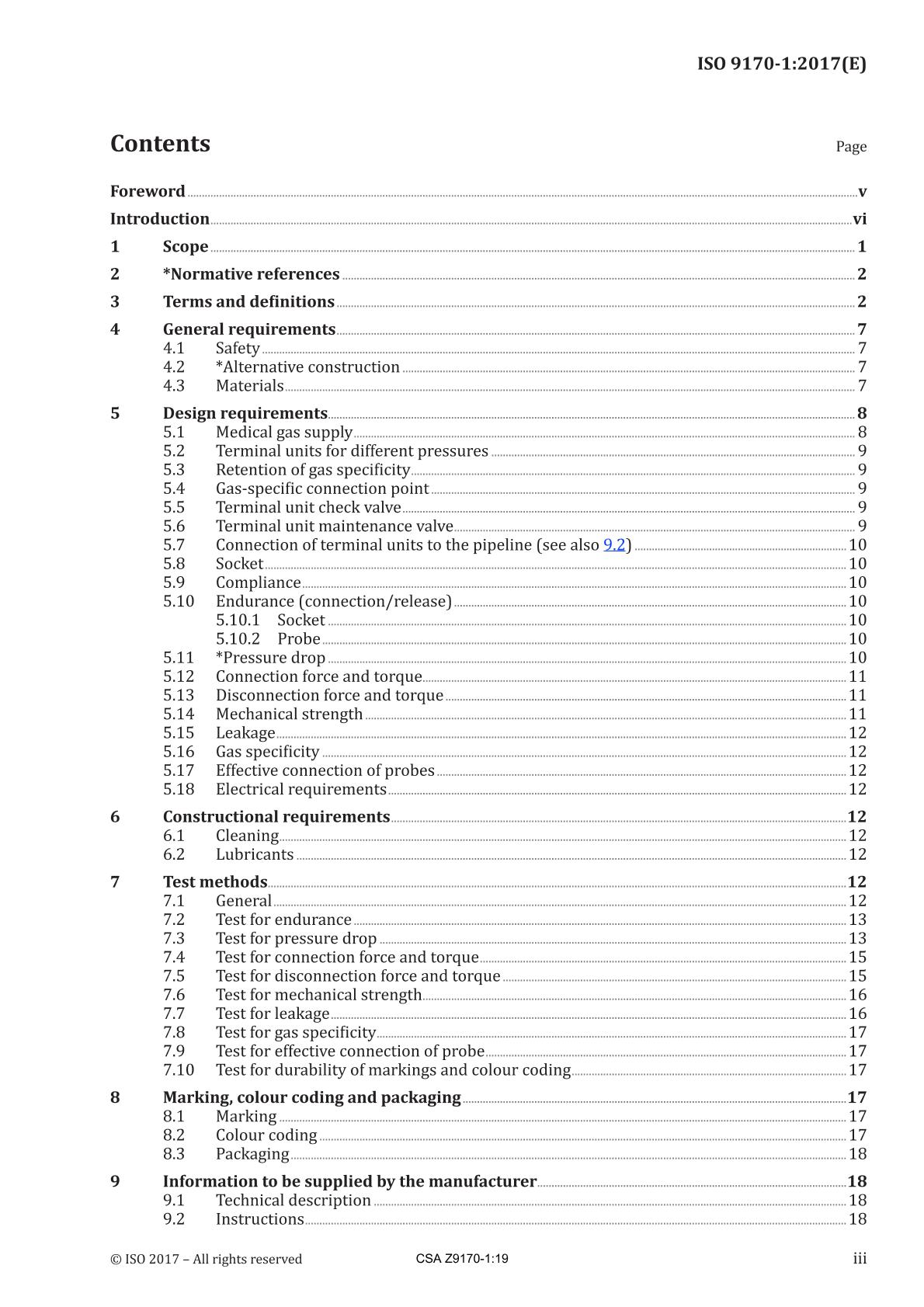

Preface:

This is the third edition of CSA Z9170-1, Terminal units for medical gas pipeline systems — Part 1: Terminal units for use with compressed medical gases, vacuum, and anaesthetic gas scavenging systems, which is an adoption, with Canadian deviations, of ISO (International Organization for Standardization) Standard 9170-1 (third edition, 2017-07) titled Terminal units for medical gas pipeline systems — Part 1: Terminal units for use with compressed medical gases and vacuum. It supersedes the previous edition published in 2011 as CAN/CSA-Z9170-1 (adopted ISO 9170-1:2008).

This Standard has been developed in compliance with Standards Council of Canada requirements for National Standards of Canada. It has been published as a National Standard of Canada by CSA Group.

Scope:

This document is intended especially to ensure the gas-specific assembly, mechanical resistance, flow, leakage and pressure drop of terminal units and to prevent their interchange between different gases and services and applies to terminal units:
a) intended for use in medical gas pipeline systems in accordance with ISO 7396-1;
b) used as pressure outlets on pressure regulators in accordance with ISO 10524-1;
c) used as pressure outlets on pressure regulators integrated with cylinder valves (VIPR) in accordance with ISO 10524-3.

This document applies to terminal units for use with the following gases for administration to patients or for medical uses (A):
  • oxygen (A);
  • nitrous oxide (A);
  • medical air (A);
  • carbon dioxide (A);
  • oxygen/nitrous oxide mixture (A);
  • helium/oxygen mixtures (A);
  • oxygen 93 (A);
  • gases and gas mixtures classified as medical device (A);
  • gases delivered to medical devices or intended for medical purposes (A);
  • gases and gas mixtures for medicinal use not specified above (A).
This document applies to terminal units for use with the following gases (B):
  • air for driving surgical tools (B);
  • nitrogen for driving surgical tools (B).
This document applies to terminal units for use with vacuum systems (C).

NOTE The requirements of this document can be used as guidelines for terminal units for other gases. These other gases will be considered for inclusion in this document when they come into general use.

This document specifies requirements for terminal units for supply and disposal of nitrogen and air for driving surgical tools.

This document specifies requirements for probes intended to be connected to the gas-specific connection point.

This document does not specify the dimensions of probes or of the gas-specific connection points.

NOTE Regional or national standards specifying dimensions of probes and gas-specific connection points are given in the Bibliography.

Other connection systems in national use may be acceptable under this document. Dimensioning for such connections will be specified by their respective national standards.

This document does not specify the requirements for terminal units for anaesthetic gas scavenging systems (AGSS), which are specified in ISO 9170-2.
