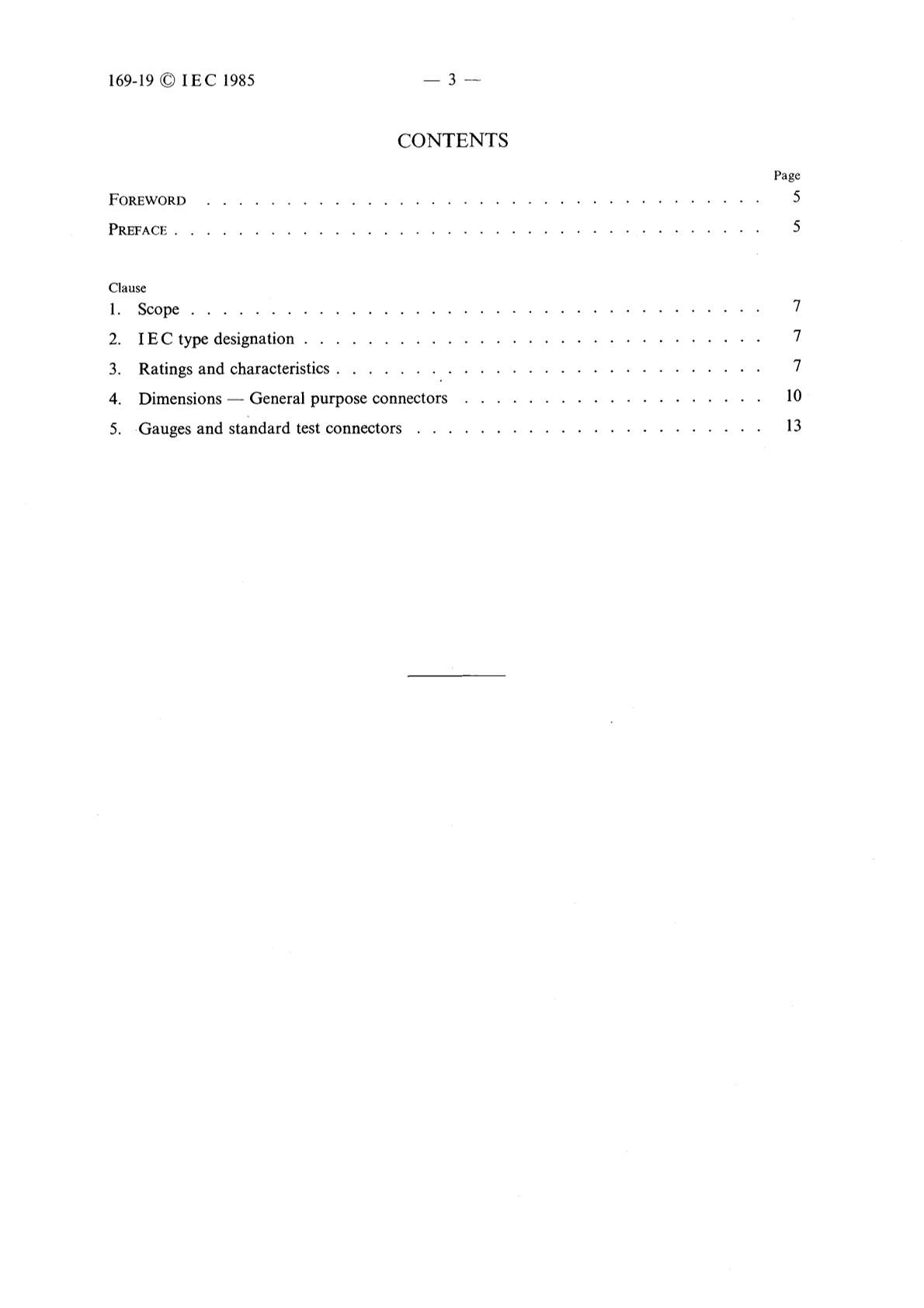

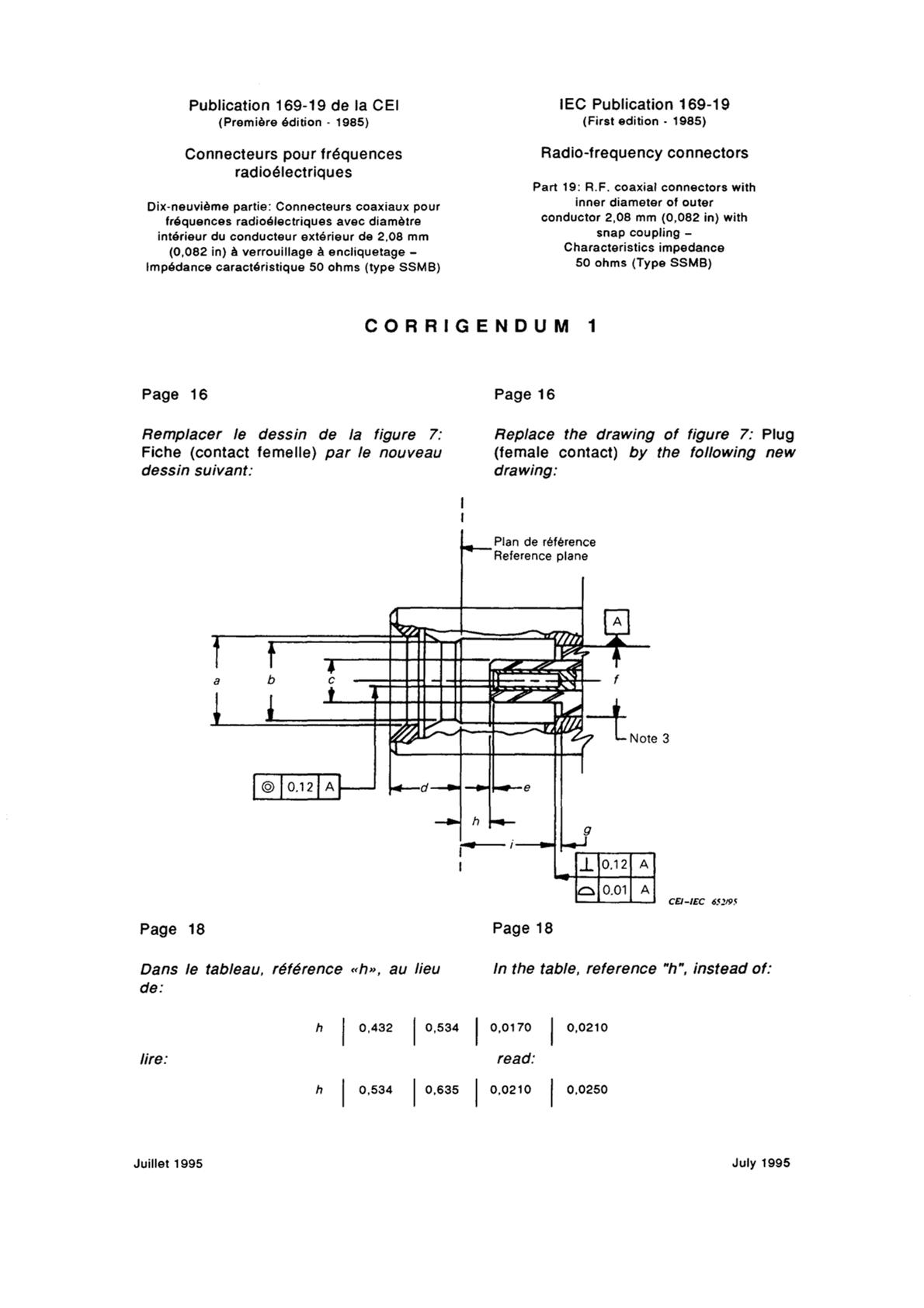

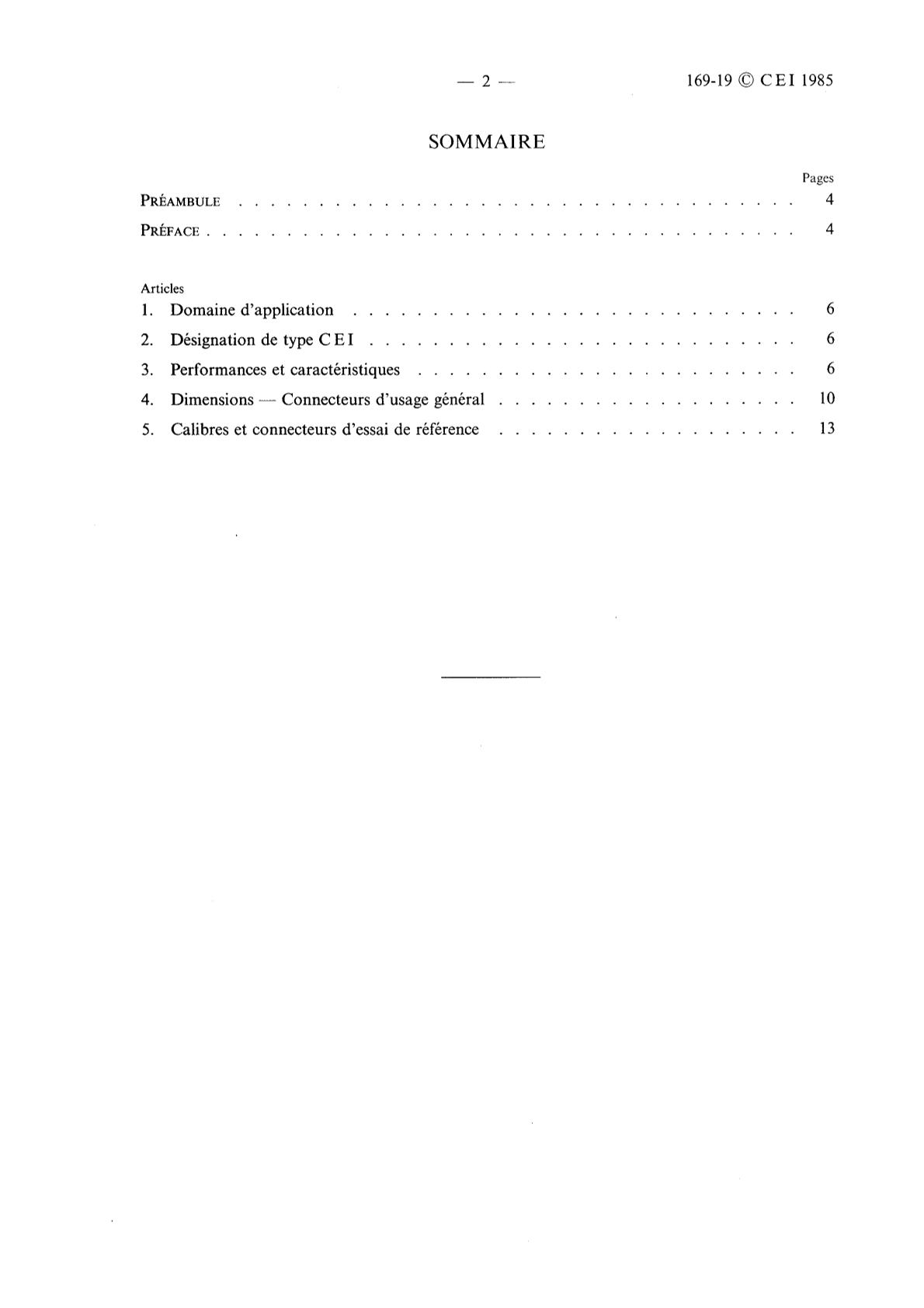

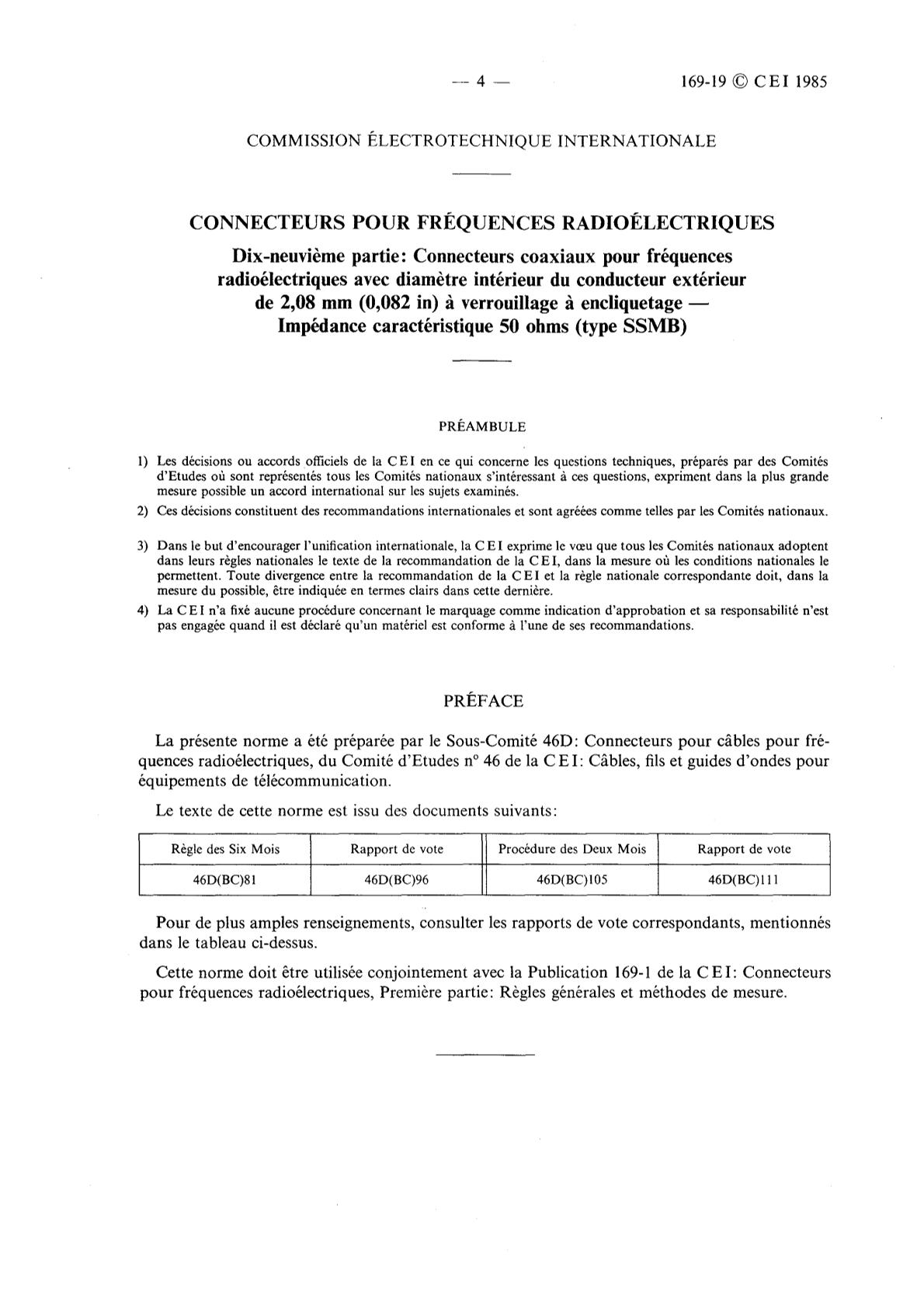

PDF Preview

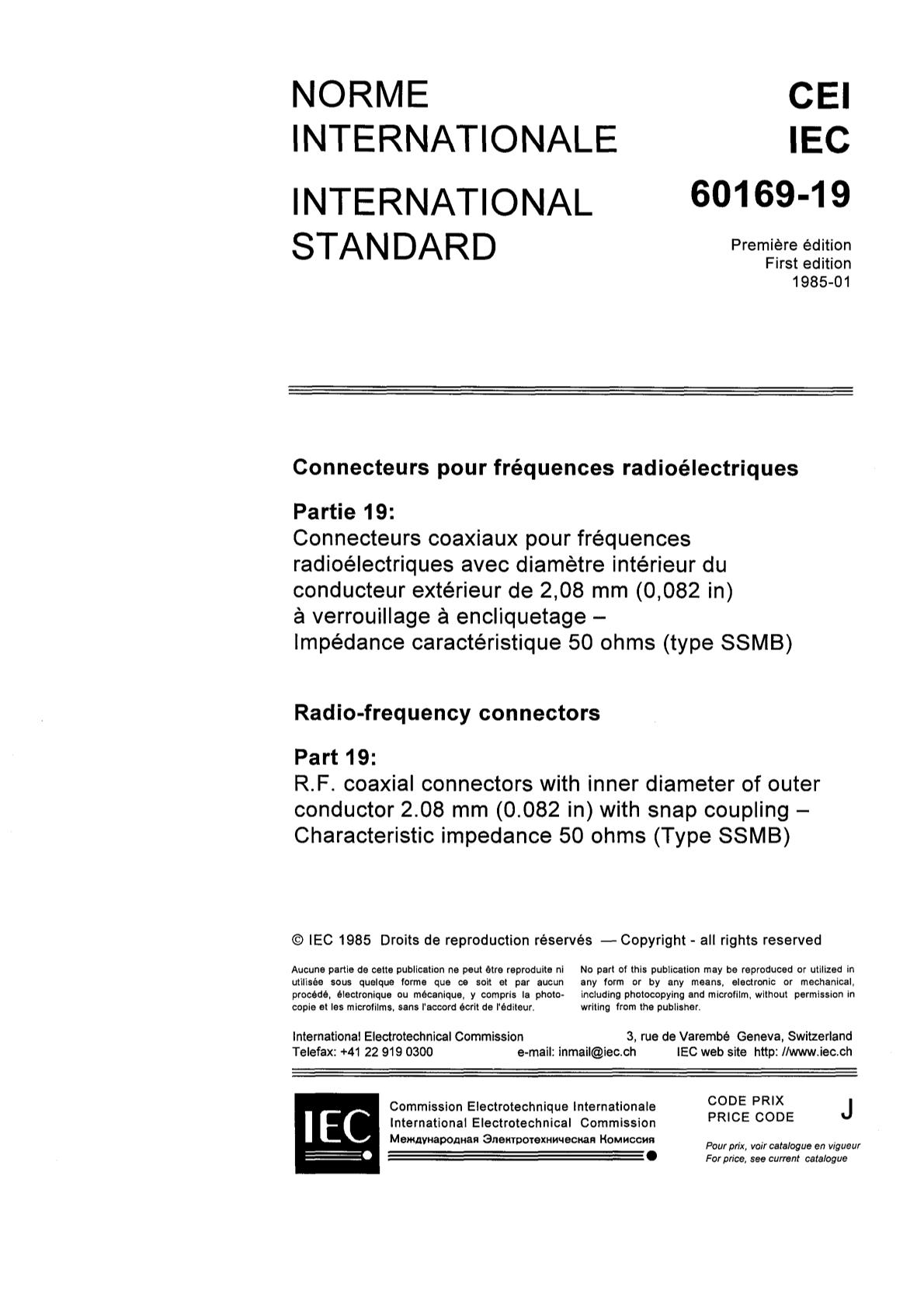

IEC 60169-19 Ed. 1.0 b:1985

Radio-frequency connectors. Part 19: R.F. coaxial connectors with inner diameter of outer conductor of 2.08 mm (0.082 in) with snap coupling. Characteristic impedance 50 ohms (Type SSMB)

International Electrotechnical Commission, 01/01/1985

Publisher: IEC

File Format: PDF

$27.00$55.00


Published:01/01/1985

Pages:18

File Size:1 file , 580 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

Provides basic mating and performance information for subminiature coaxial connectors with overlapping polytetrafluoroethylene (PTFE) dielectric interface for use with flexible and semi-rigid r.f. cables. The connectors are usable up to a frequency of 3 GHz. Only the interface dimensions are standardized. Other technical data are supplied for guidance only.
