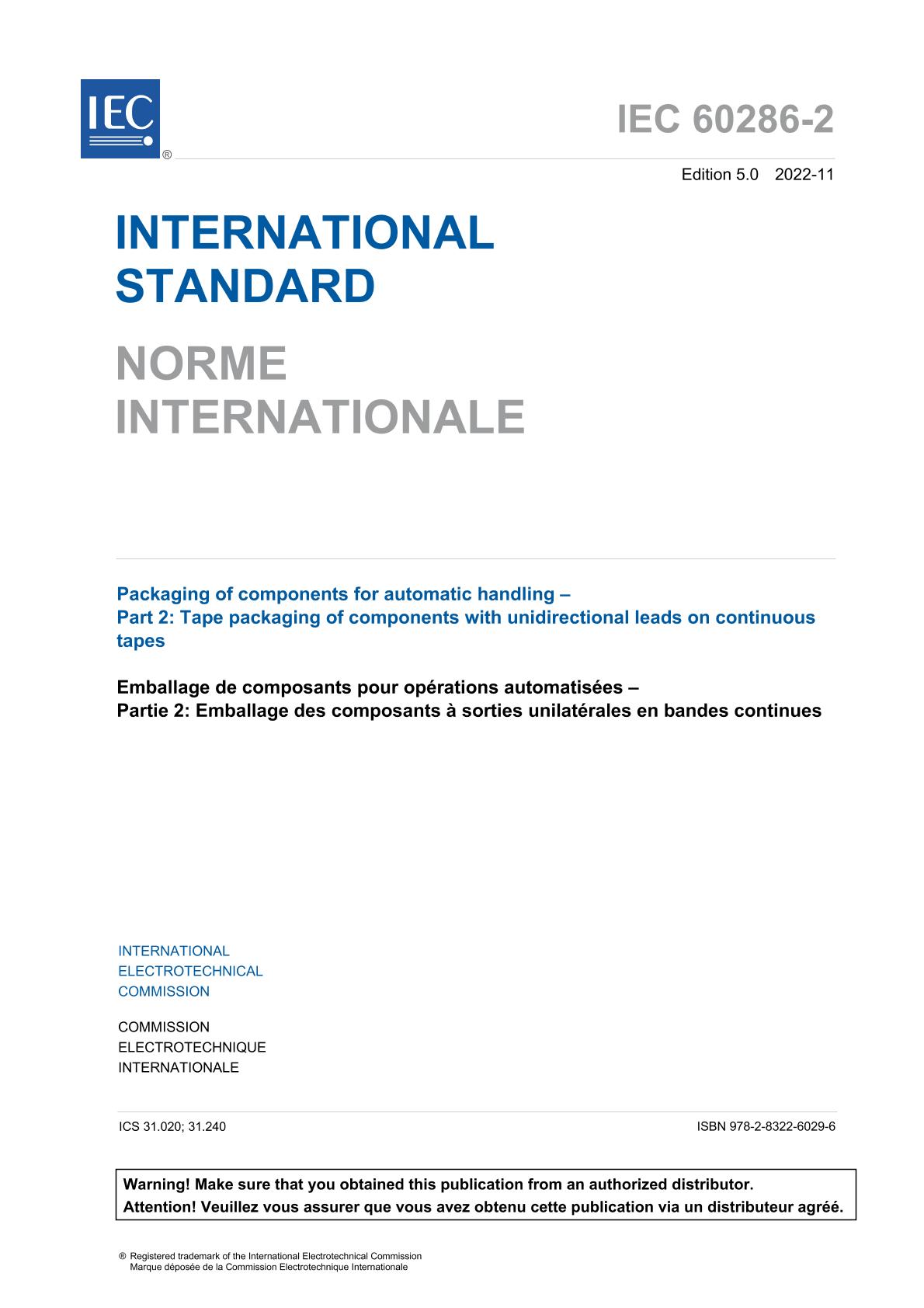

IEC 60286-2 Ed. 5.0 b:2022

Packaging of components for automatic handling - Part 2: Tape packaging of components with unidirectional leads on continuous tapes

International Electrotechnical Commission, 11/01/2022

Publisher: IEC

File Format: PDF

$139.00$278.00


Published:01/11/2022

Pages:74

File Size:1 file , 3.1 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

This part of IEC 60286 applies to the tape packaging of components with two or more unidirectional leads for use in electronic equipment. It provides dimensions and tolerances necessary to tape components with unidirectional leads. In general, the tape is applied to the component leads.

It covers requirements for taping techniques used with equipment for automatic handling, preforming of leads, insertion and other operations and includes only those dimensions which are essential to the taping of components intended for the above-mentioned purposes.
