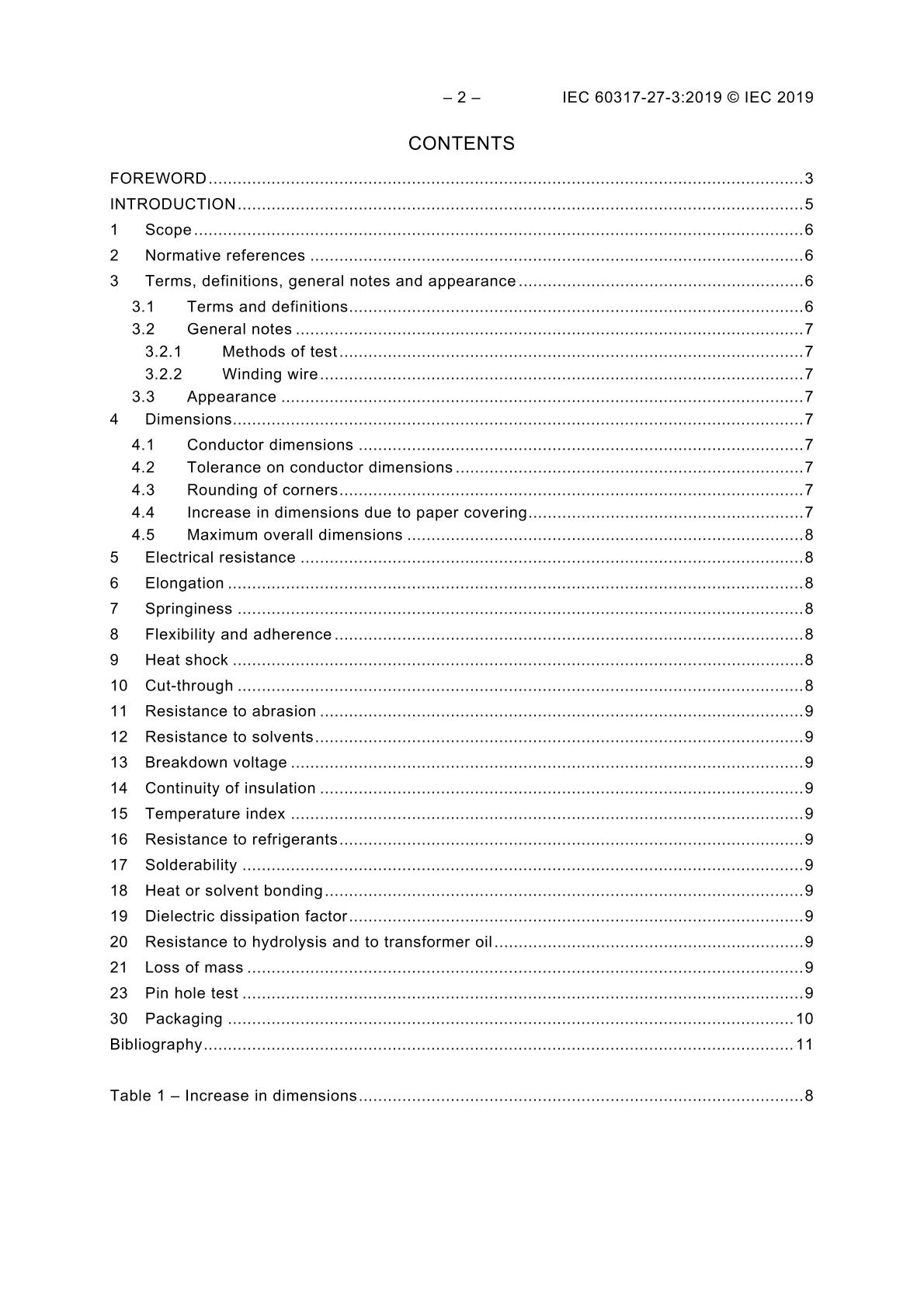

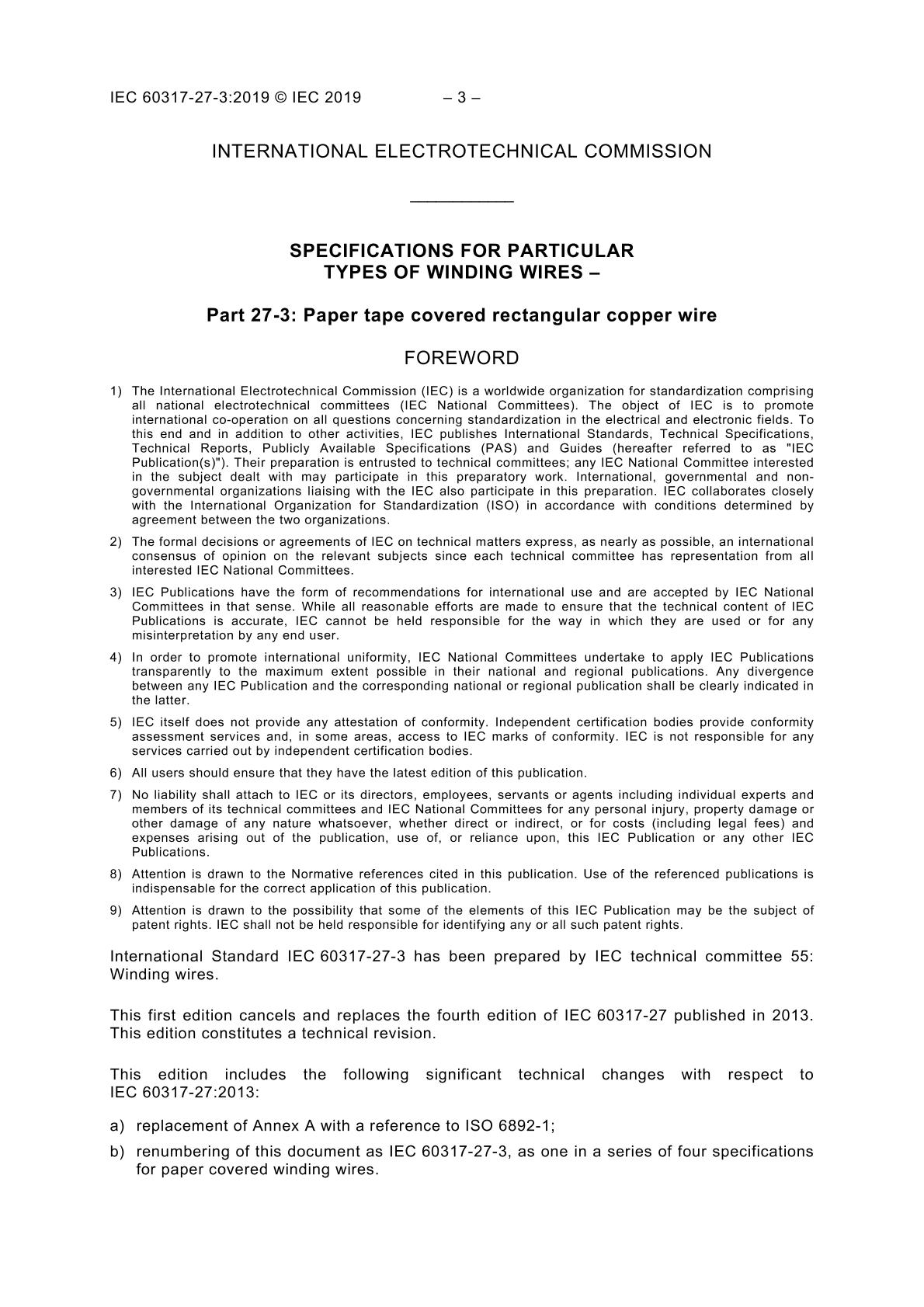

PDF Preview

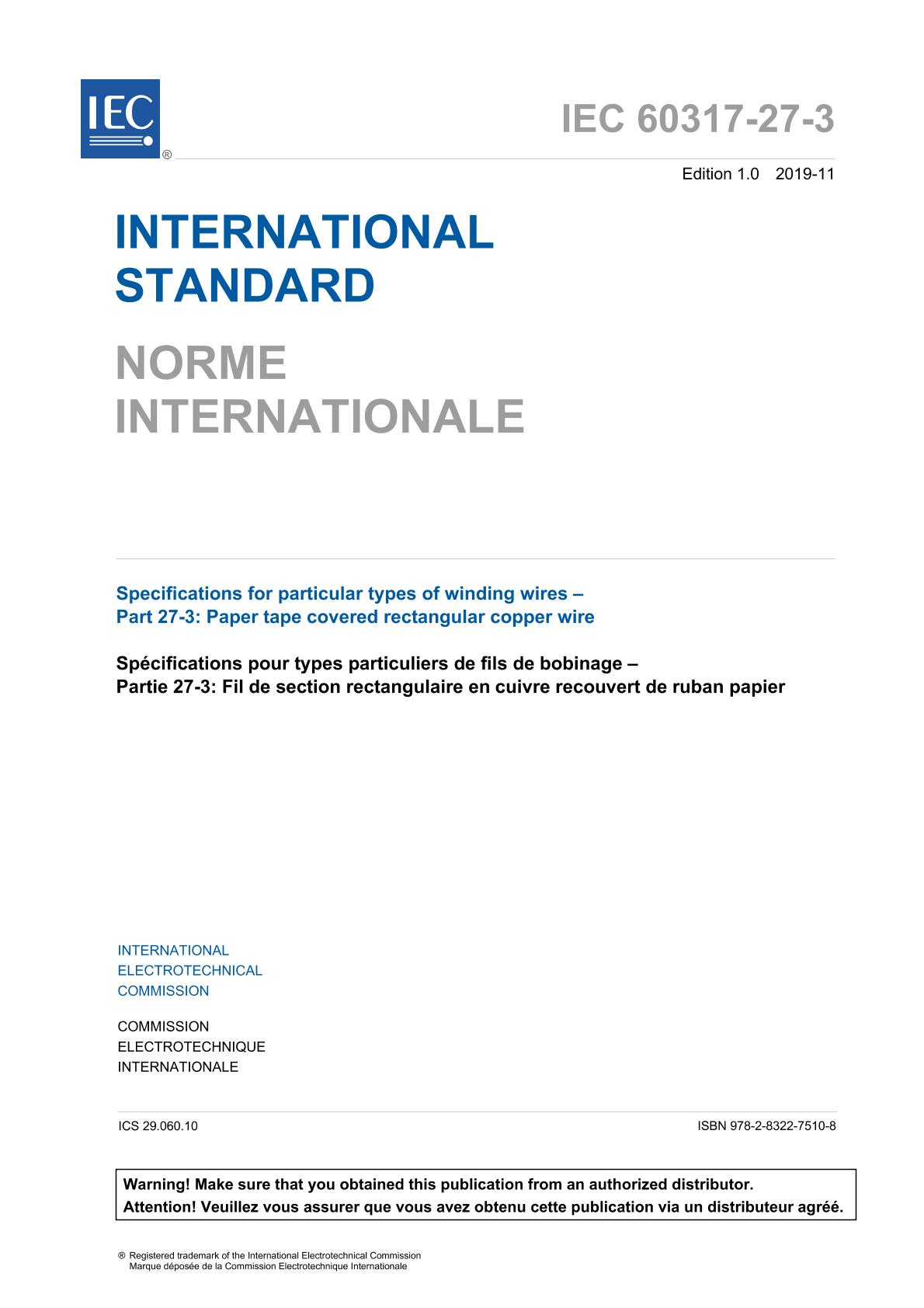

IEC 60317-27-3 Ed. 1.0 b:2019

Specifications for particular types of winding wires - Part 27-3: Paper tape covered rectangular copper wire

International Electrotechnical Commission, 11/13/2019

Publisher: IEC

File Format: PDF

$25.00$51.00


Published:13/11/2019

Pages:21

File Size:1 file , 1000 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 60317-27-3:2019 specifies the requirements of paper tape covered rectangular copper winding wires. This covering consists of two or more layers of paper tape and is primarily intended for winding coils for oil immersed transformers. The range of nominal conductor dimensions covered by this document is
- width: min. 2,0 mm max. 31,5 mm;
- thickness: min. 0,80 mm max. 10,0 mm.
The paper tapes included in this document are restricted to those specified in IEC 60554-1 and IEC 60554-3-5.
Keywords: paper tape covered rectangular copper winding wires
