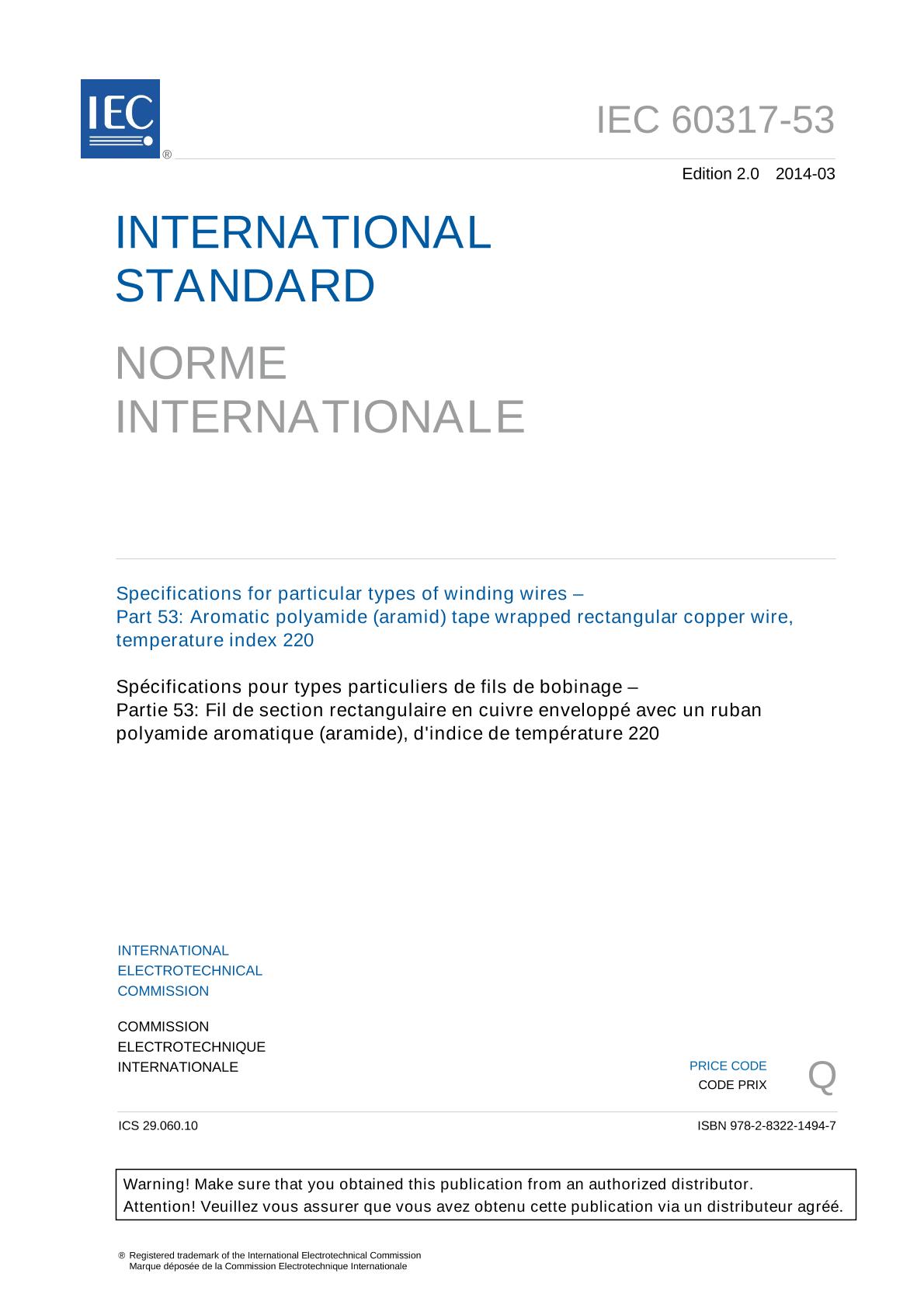

IEC 60317-53 Ed. 2.0 b:2014

Specifications for particular types of winding wires - Part 53: Aromatic polyamide (aramid) tape wrapped rectangular copper wire, temperature index 220

International Electrotechnical Commission, 03/27/2014

Publisher: IEC

File Format: PDF

$72.00$145.00


Published:27/03/2014

Pages:33

File Size:1 file , 640 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 60317-53:2014 specifies requirements for tape wrapped rectangular copper winding wire of temperature index 220. The insulation consists of one or more wrappings of aromatic polyamide (aramid) tape of various thicknesses. The range of nominal conductor dimensions covered by this standard is: width: min. 2,00 mm max. 16,00 mm; thickness: min.0,80 mm max. 5,60 mm. This second edition cancels and replaces the first edition published in 1999. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- new 3.2.2 containing general notes on winding wire, formerly a part of the scope;
- new 3.3, containing requirements for appearance;
- modification to Clause 15 to delete the note on revisions to IEC 60172;
- new Clause 23, Pin hole test. Keywords: tape wrapped rectangular copper winding wire of temperature index 220, aromatic polyamide (aramid) tape
