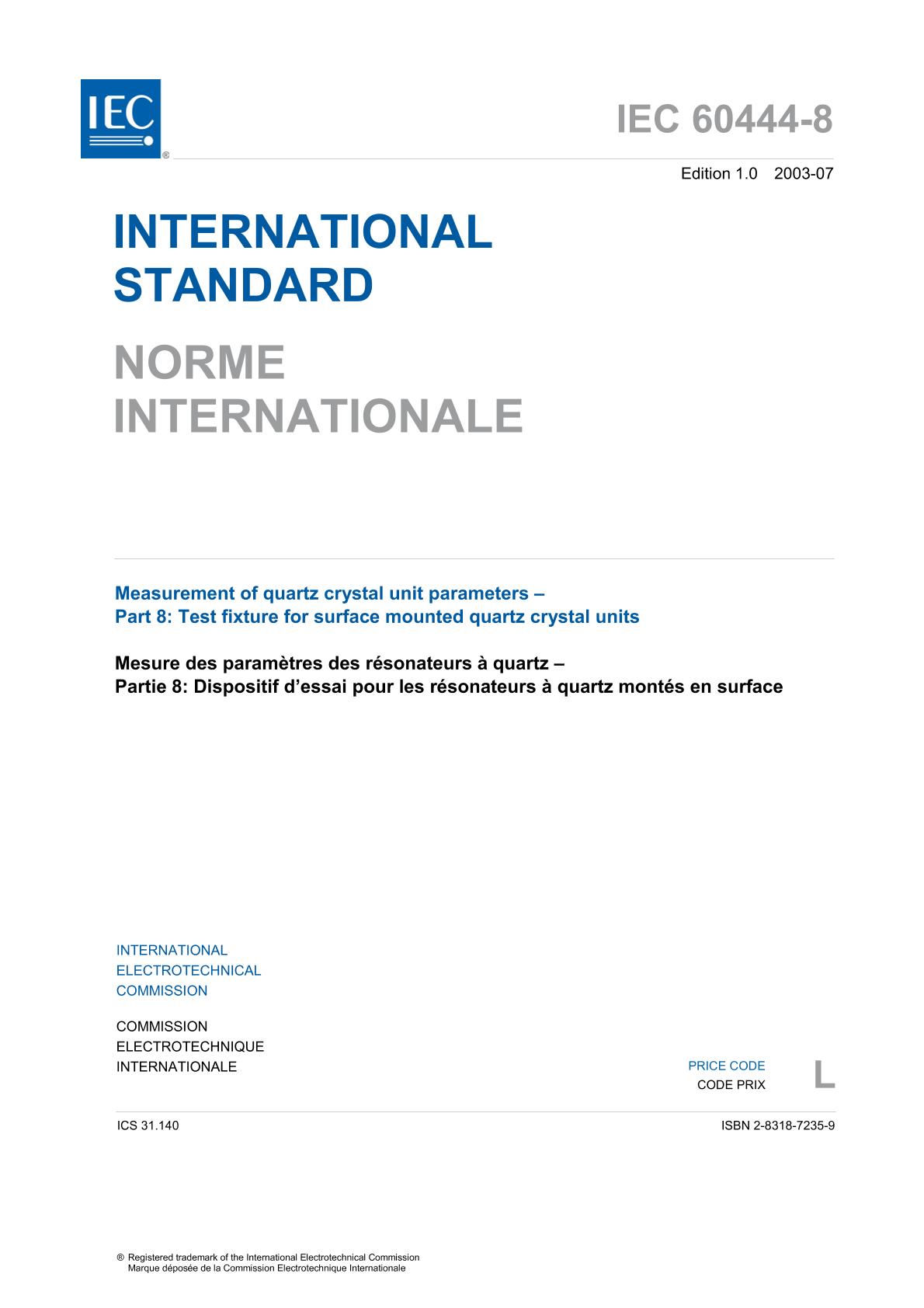

IEC 60444-8 Ed. 1.0 b:2003

Measurement of quartz crystal unit parameters - Part 8: Test fixture for surface mounted quartz crystal units

International Electrotechnical Commission, 07/04/2003

Publisher: IEC

File Format: PDF

$27.00$55.00


Published:04/07/2003

Pages:21

File Size:1 file , 590 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

Explains the test fixture that allows the accurate measurement of resonance frequency, resonance resistance, and equivalent electrical circuit parameters of a leadless surface mounted quartz crystal units over the frequency range from 1 MHz to 150 MHz using zero phase technique as specified in IEC 60444-4 and IEC 60444-5.
