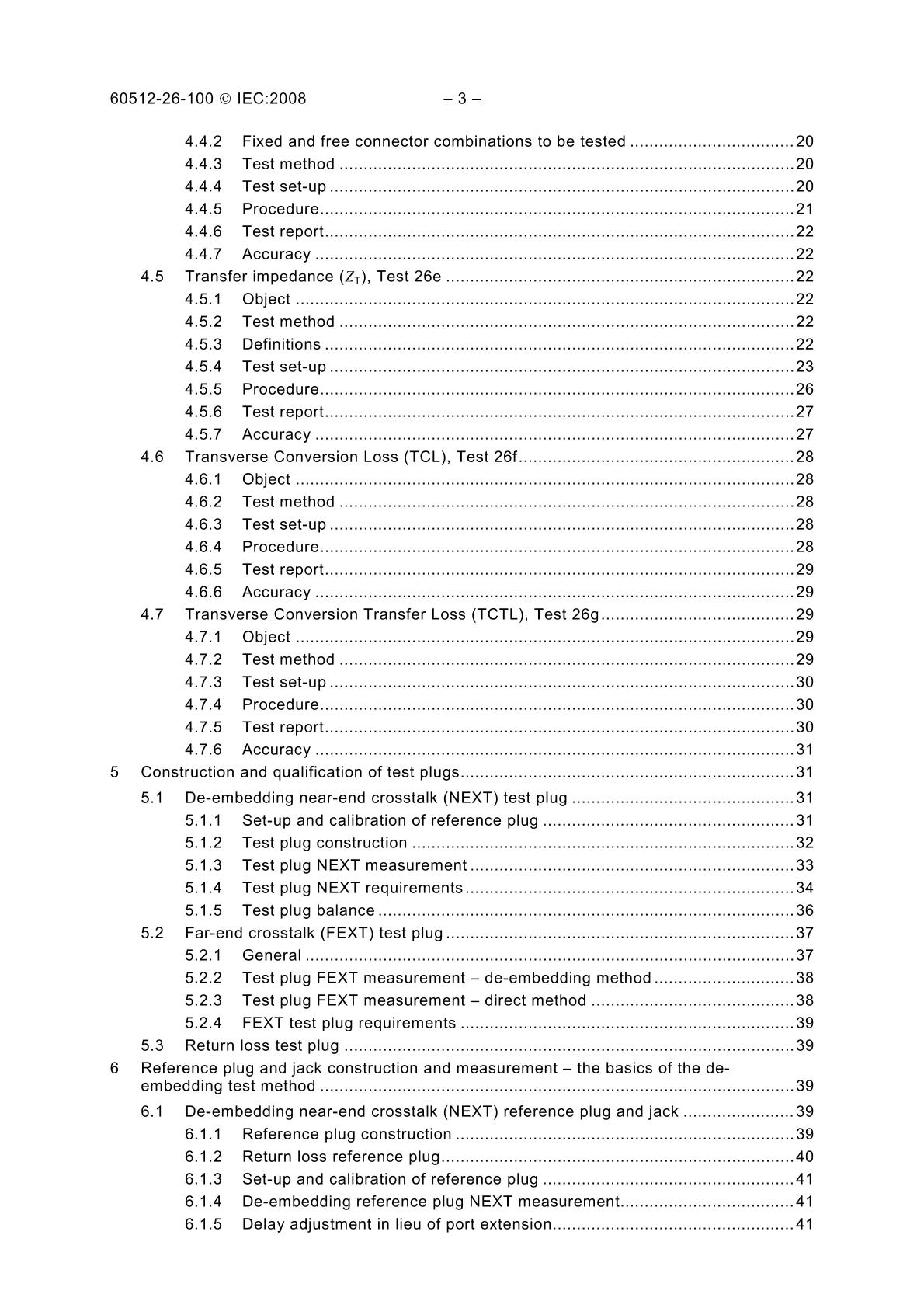

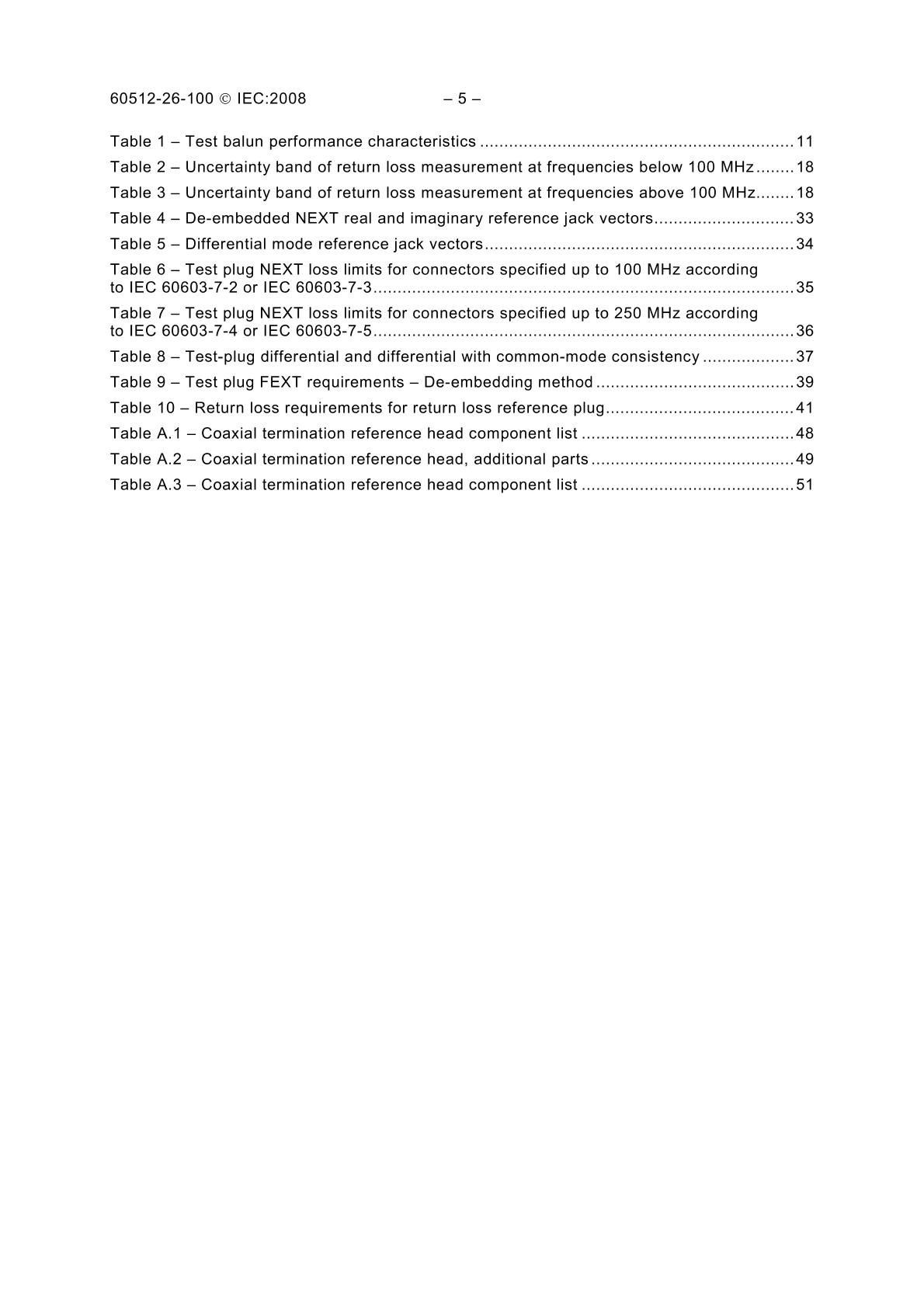

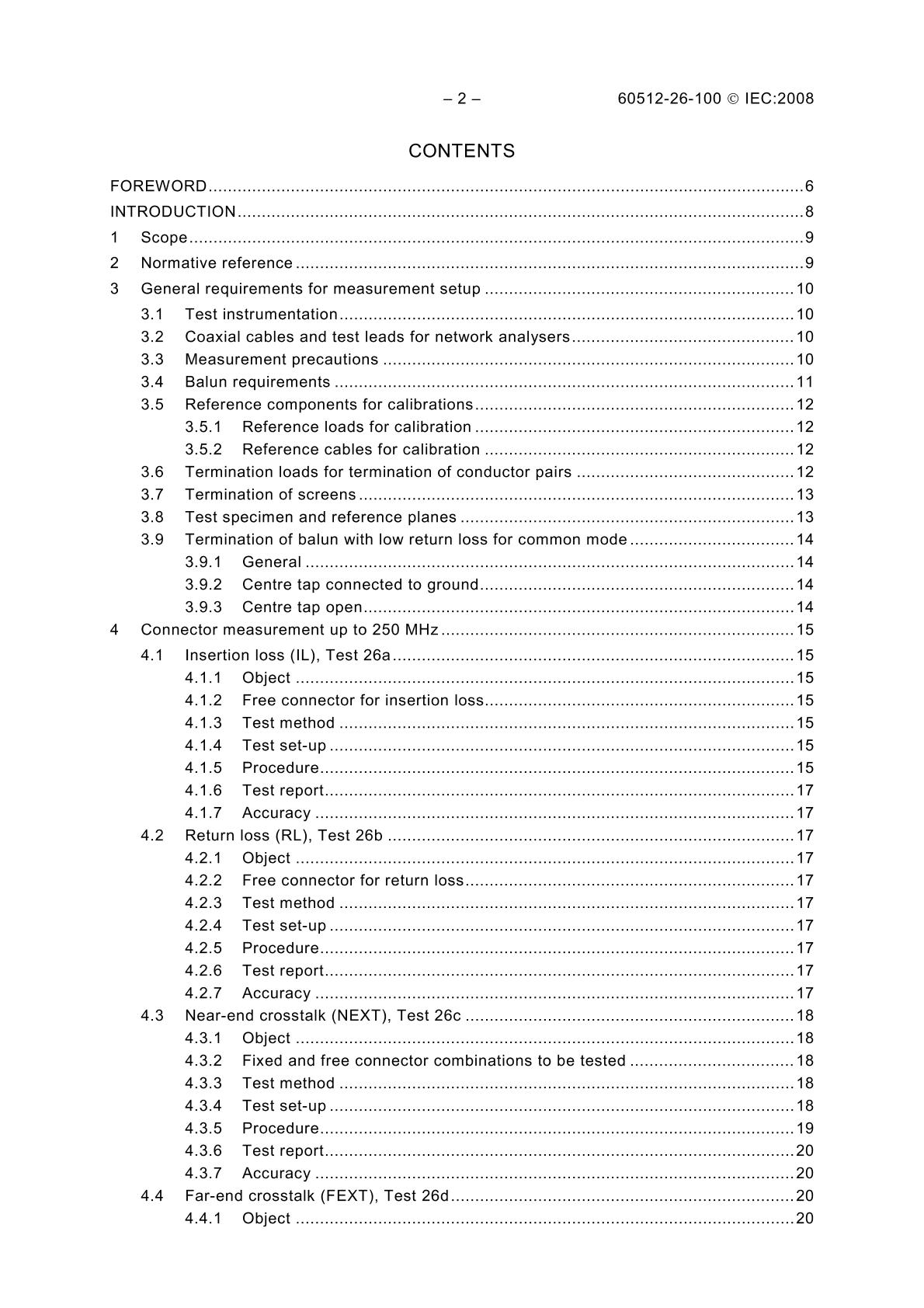

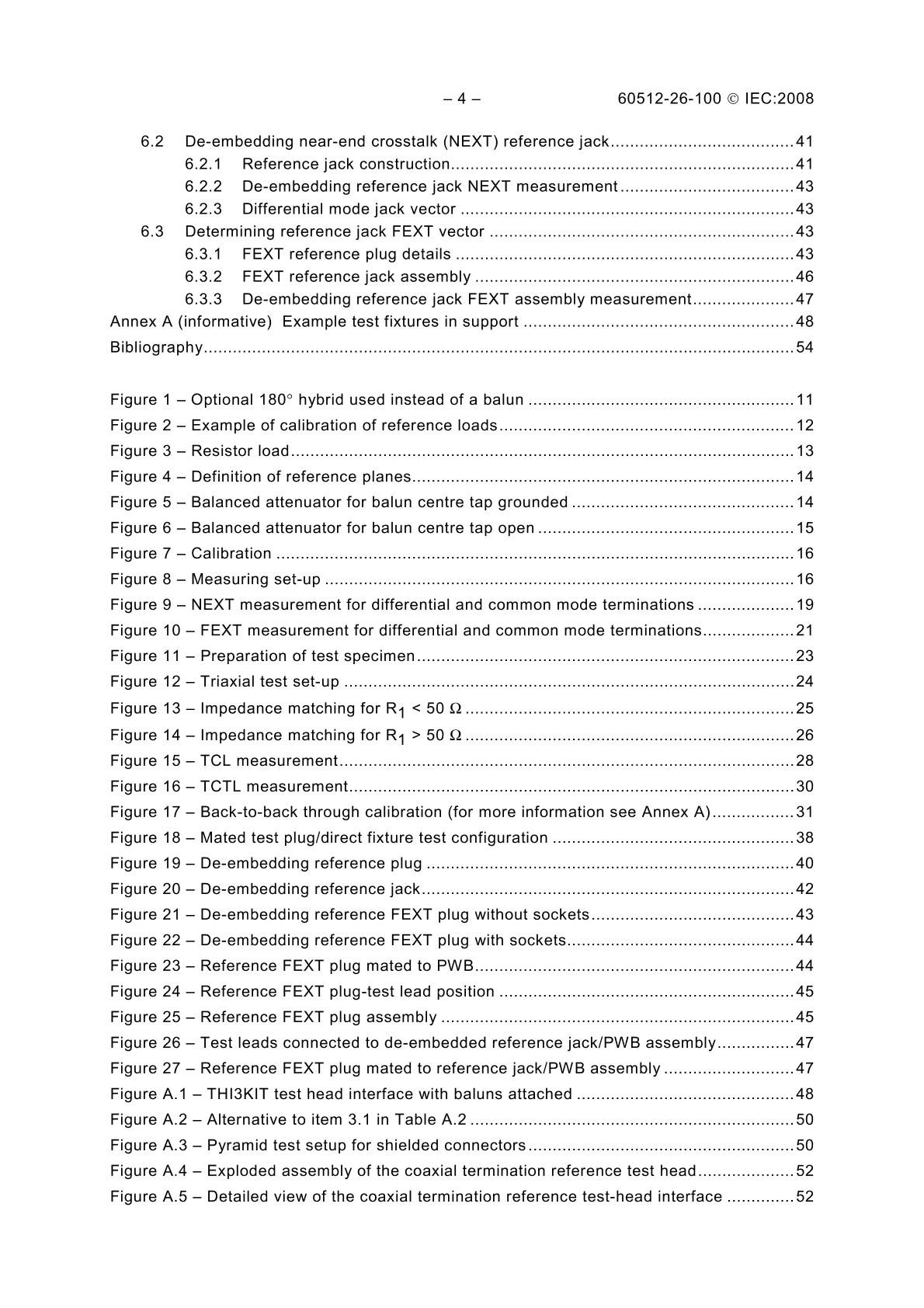

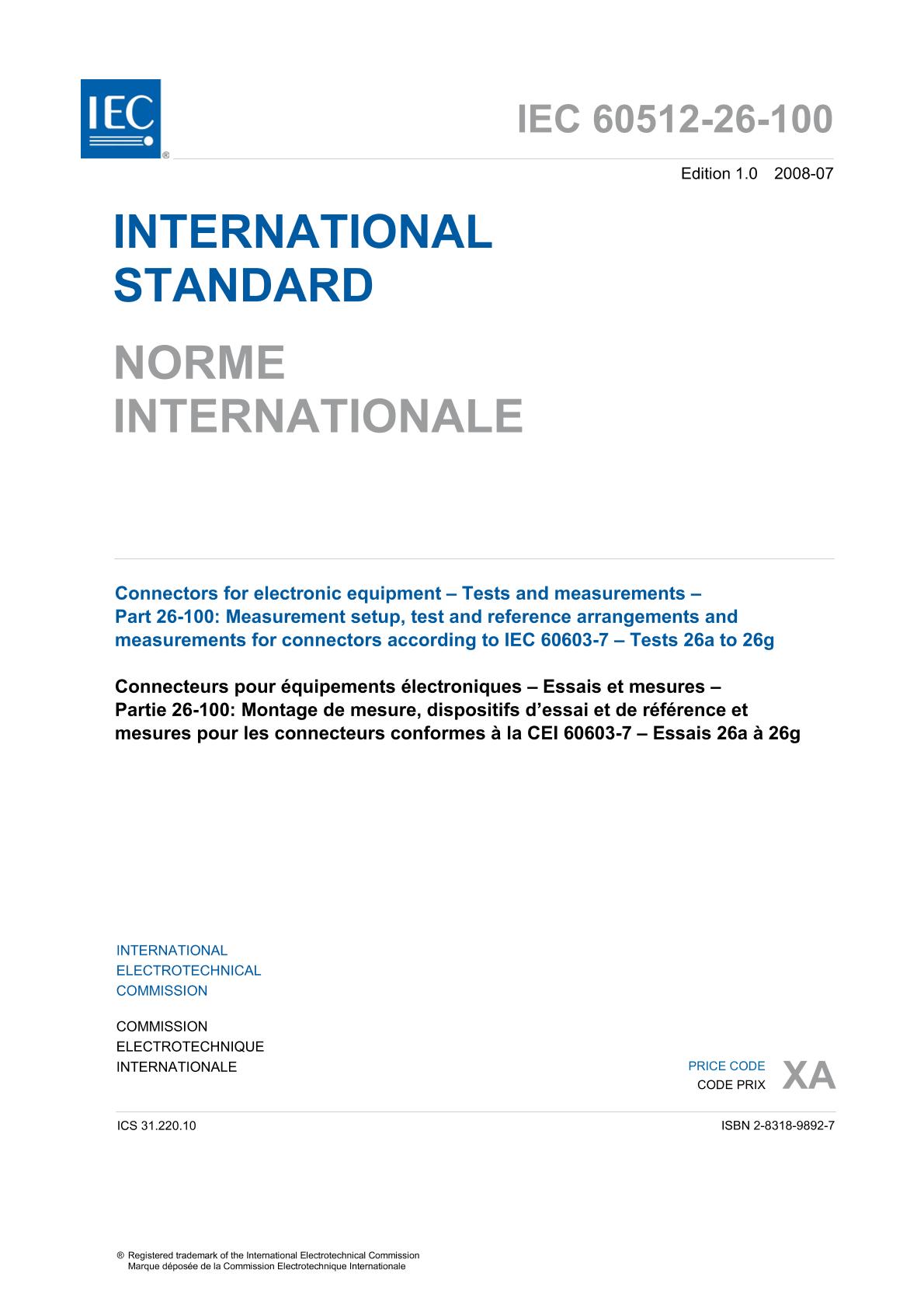

PDF Preview

IEC 60512-26-100 Ed. 1.0 b:2008

Connectors for electronic equipment - Tests and measurements - Part 26-100: Measurement setup, test and reference arrangements and measurements for connectors according to IEC 60603-7 - Tests 26a to 26g

International Electrotechnical Commission, 07/21/2008

Publisher: IEC

File Format: PDF

$183.00$367.00


Published:21/07/2008

Pages:113

File Size:1 file , 2.2 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 60512-26-100:2008 specifies the test and measurements and the related measurement setup and reference arrangements for interoperability and backward compatibility tests for the development and qualification of 8-way, free and fixed connectors for data transmission. The following test methods are provided: insertion loss, test 26a; return loss, test 26b; near-end crosstalk (NEXT), test 26c; far-end crosstalk (FEXT), test 26d; transfer impedance, test 26e; transverse conversion loss (TCL), test 26f; transverse conversion transfer loss (TCTL), test 26g.
