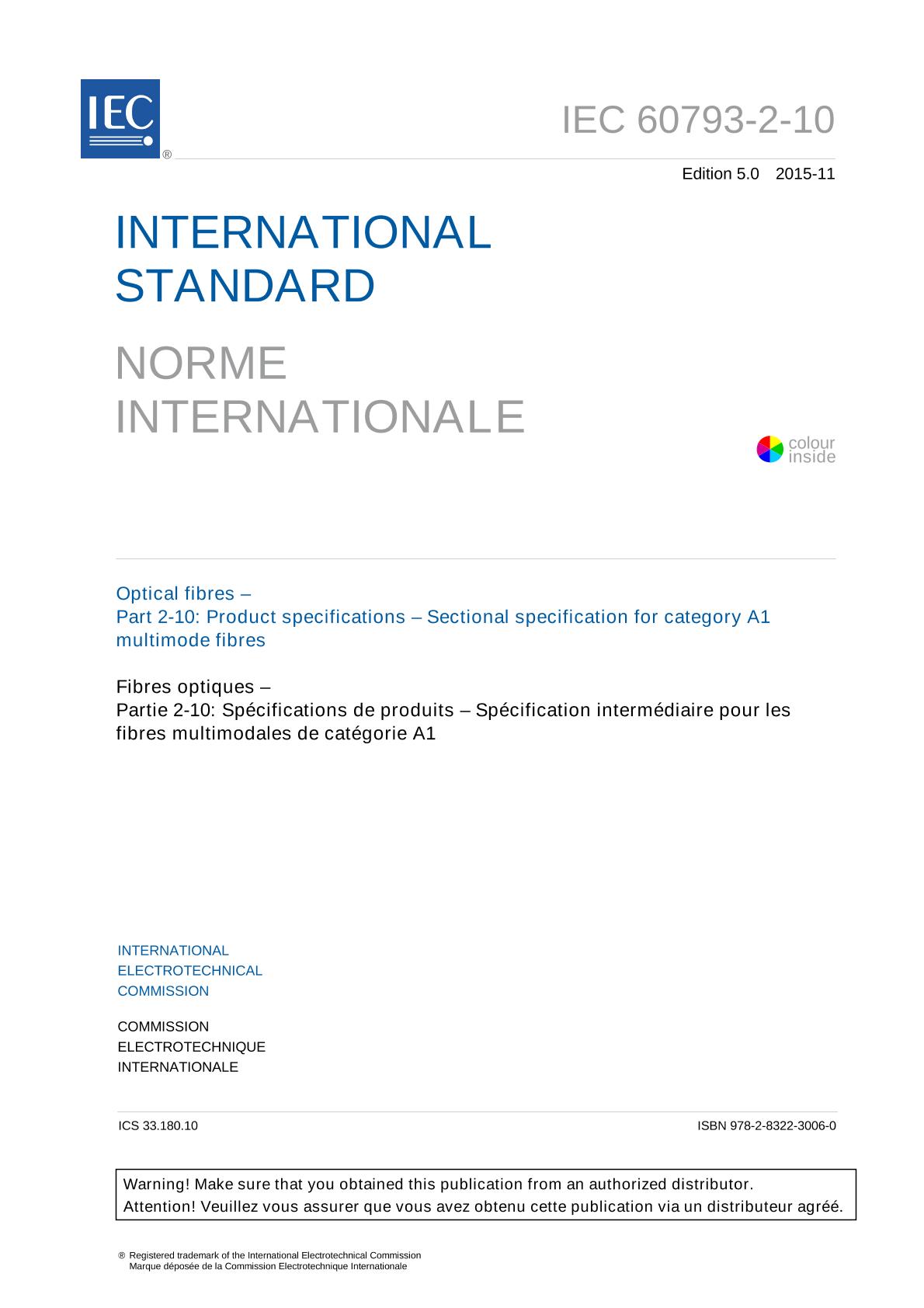

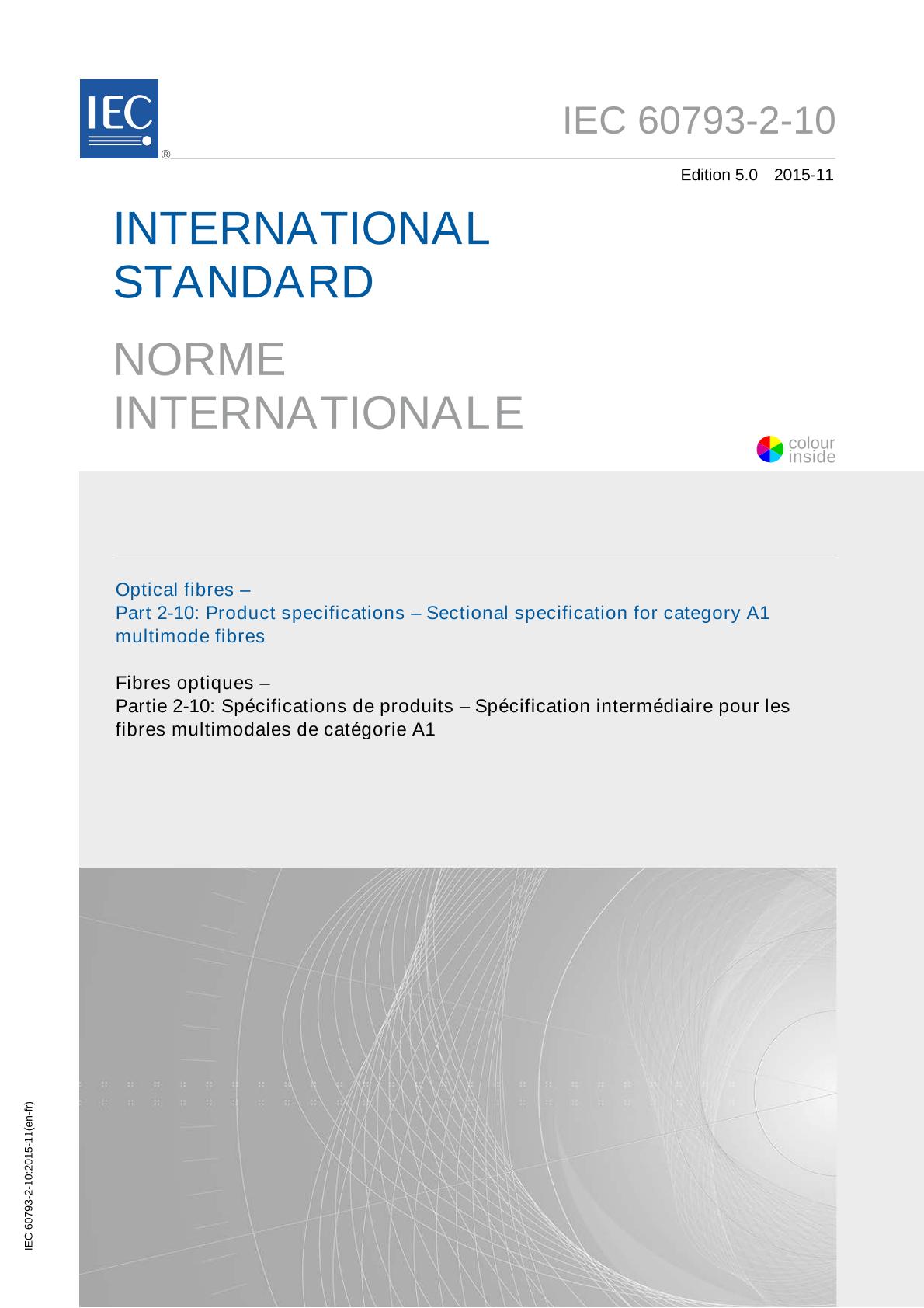

IEC 60793-2-10 Ed. 5.0 b:2015

IEC 60793-2-10:2015 is applicable to optical fibre types A1a, A1b, and A1d. These fibres are used or can be incorporated in information transmission equipment and optical fibre cables. Type A1a applies to 50/125 μm graded index fibre. Three bandwidth grades are defined as A1a.1, A1a.2 and A1a.3. Each of these bandwidth grades is defined for two levels of macrobend loss performance that are distinguished by "a" or "b" suffix. Those with suffix "a" are specified to meet traditional macrobend loss performance levels. Those with suffix "b" are specified to meet enhanced macrobend loss (i.e. lower loss) performance levels. Type A1b applies to 62,5/125 μm graded index fibre and A1d applies to 100/140 μm graded index fibre. Other applications include, but are not restricted to, the following:
- short reach, high bit-rate systems in telephony, distribution and local networks carrying data, voice and/or video services;
- on-premises intra-building and inter-building fibre installations including data centres, local area networks (LANs), storage area networks (SANs), private branch exchanges (PBXs), video, various multiplexing uses, outside telephone cable plant use, and miscellaneous related uses.
Three types of requirements apply to these fibres:
- general requirements, as defined in IEC 60793-2;
- specific requirements common to the category A1 multimode fibres covered in this standard and which are given in Clause 3;
- particular requirements applicable to individual fibre types or specific applications, which are defined in the normative family specification annexes. This fifth edition cancels and replaces the fourth edition published in 2011. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- addition of enhanced macrobending multimode fibres A1a.1b, A1a.2b and A1a.3b;
- inclusion of the specified test wavelength and specimen length for core diameter (CD), numerical aperture (NA), differential mode delay (DMD) and threshold values for CD and NA;
- addition of a specimen length for 850 nm bandwidth of A1a and A1b fibres. Keywords: optical fibre types A1a, A1b, and A1d
