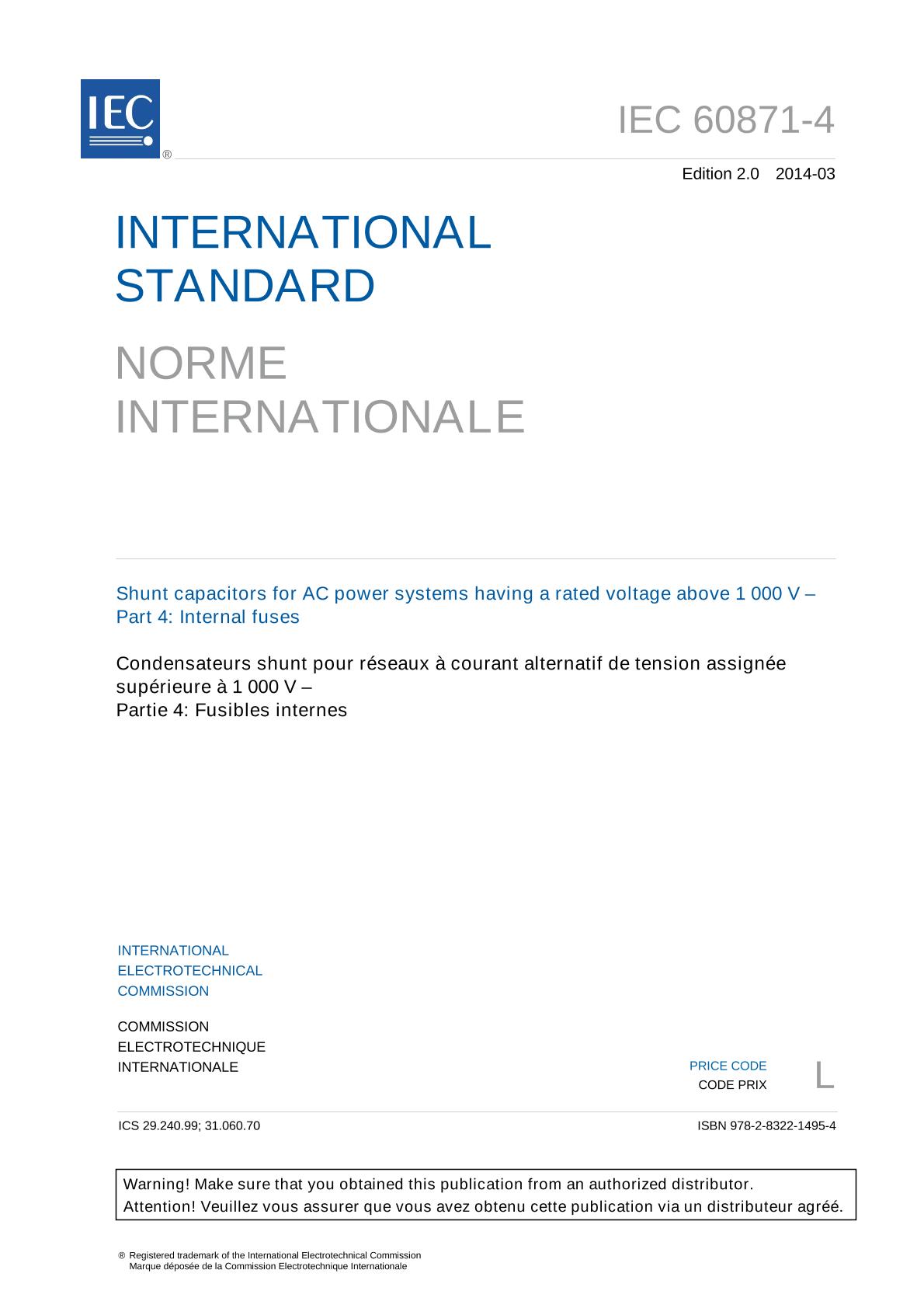

IEC 60871-4 Ed. 2.0 b:2014

Shunt capacitors for AC power systems having a rated voltage above 1 000 V - Part 4: Internal fuses

International Electrotechnical Commission, 03/27/2014

Publisher: IEC

File Format: PDF

$25.00$51.00


Published:27/03/2014

Pages:21

File Size:1 file , 240 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

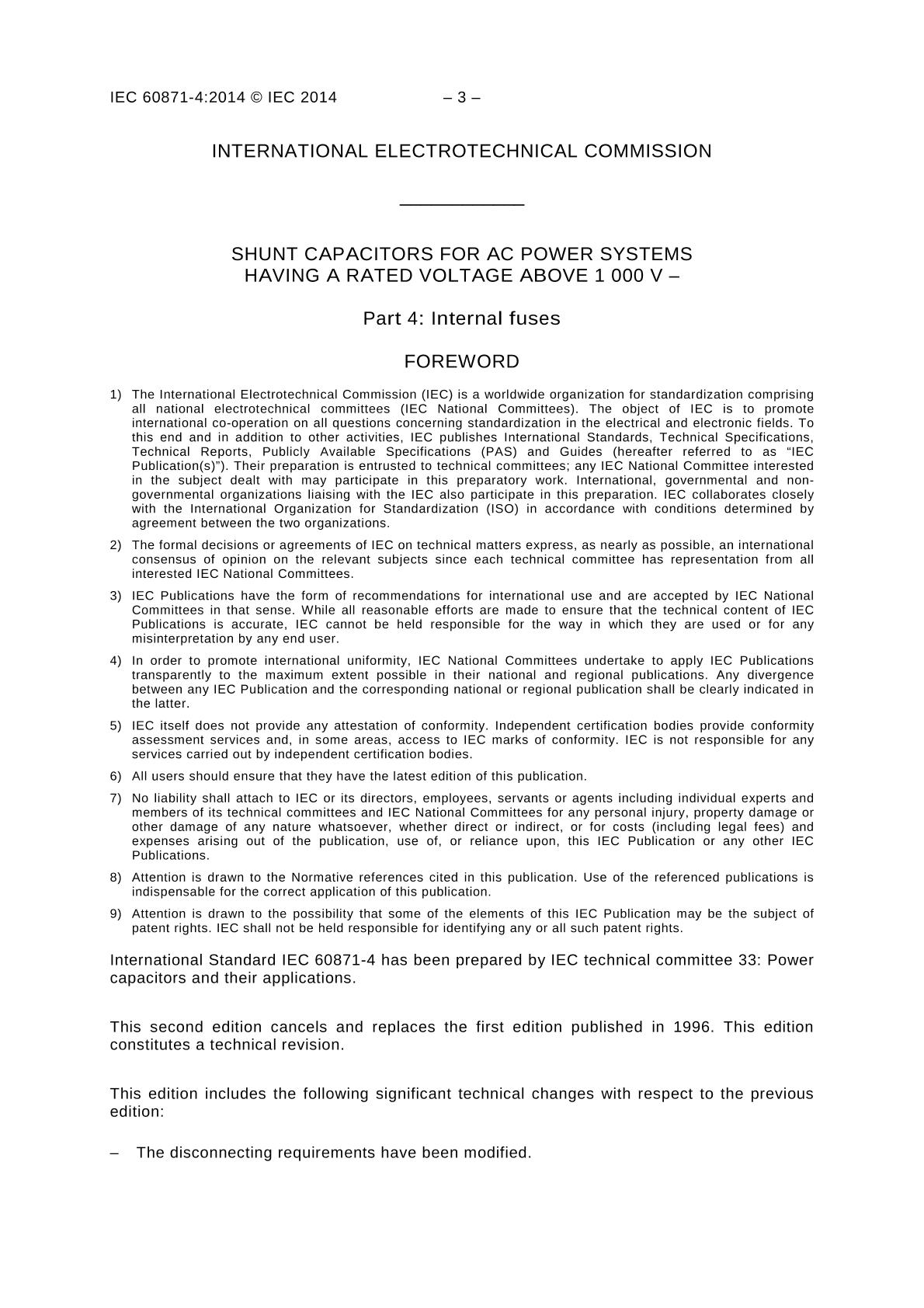

IEC 60871-4:2014 applies to internal fuses which are designed to isolate faulty capacitor elements, in order to allow operation of the remaining parts of that capacitor unit and the bank in which the capacitor unit is connected. Such fuses are not a substitute for a switching device such as a circuit-breaker, or for external protection of the capacitor bank or any part thereof. The object of this part of IEC 60871 is to formulate requirements regarding performance and testing and to provide a guide for coordination of fuse protection. This second edition cancels and replaces the first edition published in 1996. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: The disconnecting requirements have been modified. Keywords: internal fuses, faulty capacitor elements, fuse protection
