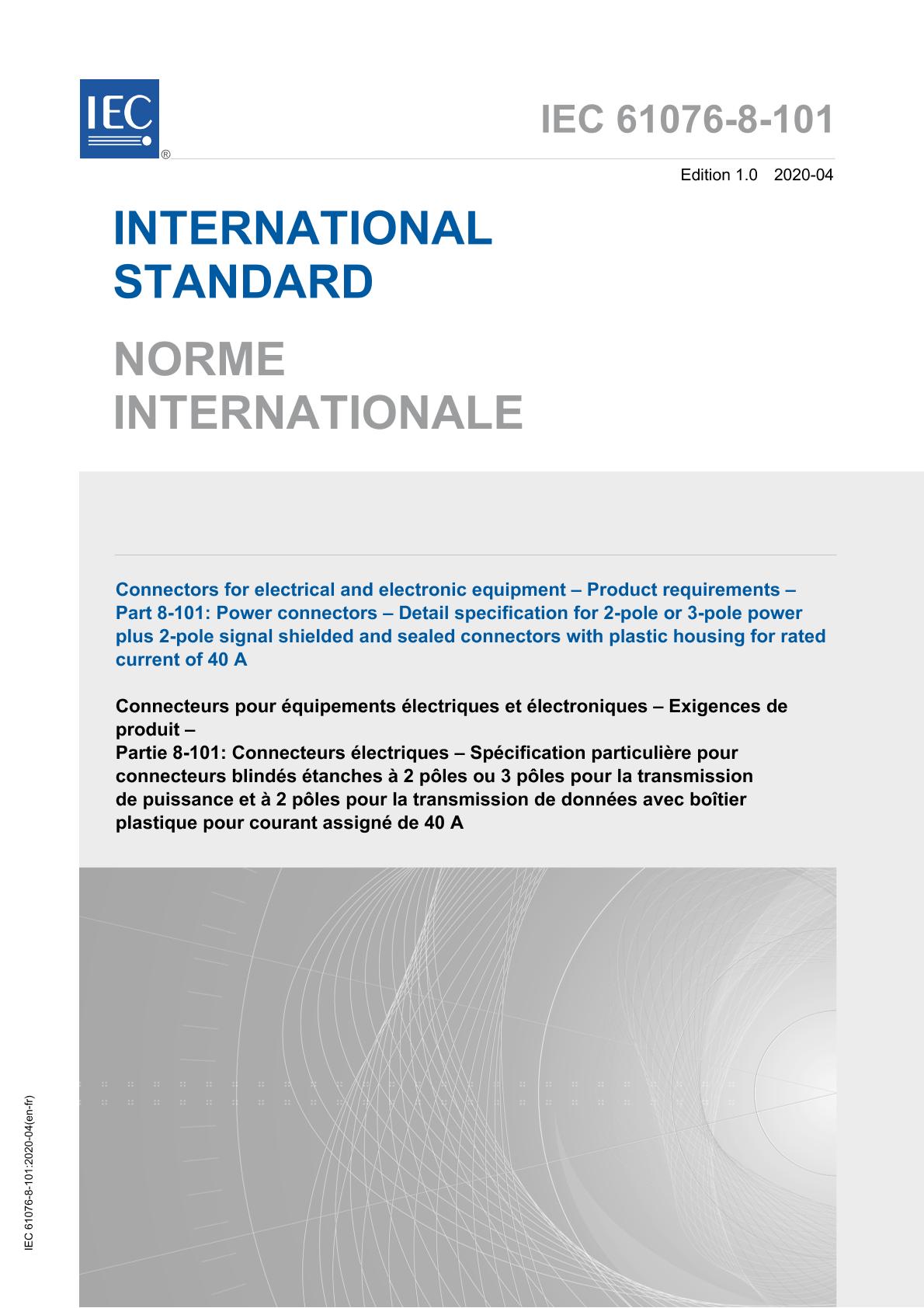

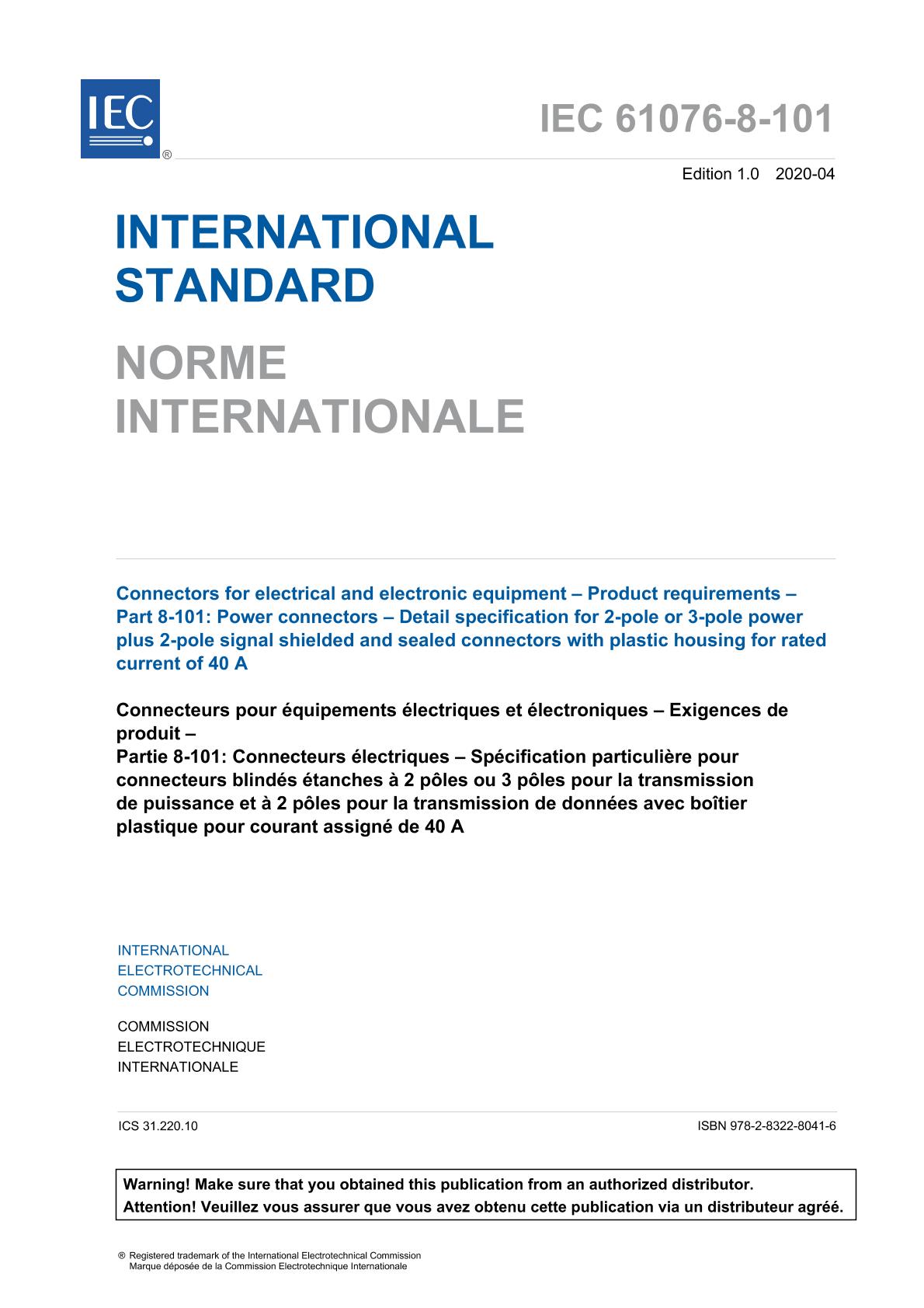

IEC 61076-8-101 Ed. 1.0 b:2020

Connectors for electrical and electronic equipment - Product requirements - Part 8-101: Power connectors - Detail specification for 2-pole or 3-pole power plus 2-pole signal shielded and sealed connectors with plastic housing for rated current of 40 A

International Electrotechnical Commission, 04/09/2020

Publisher: IEC

File Format: PDF

$139.00$278.00


Published:09/04/2020

Pages:80

File Size:1 file , 3.4 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 61076-8-101:2020 describes 2-pole or 3-pole power plus 2-pole signal shielded and sealed connectors with plastic housing (hereinafter referred to as a connector) for electrical and electronic equipment, including overall dimensions, interface dimensions, technical characteristics, performance requirements and test methods. This document is applicable to electrical connectors with sealing and shielding requirements meeting this document, with a rated voltage up to and including 750 V a.c. or 1 000 V d.c. and a current rating of 40 A, in the field of electrical and electronic equipment.
