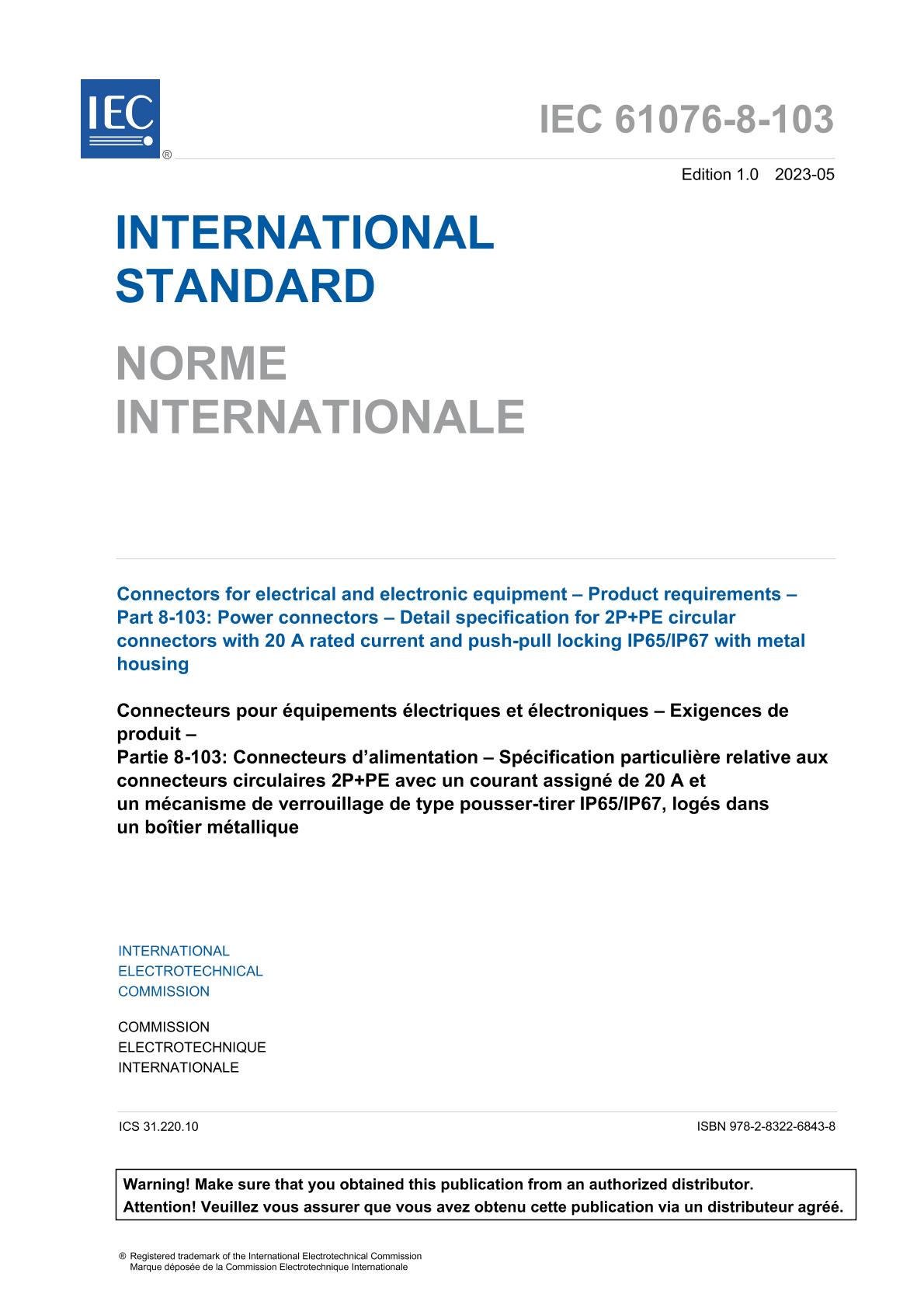

IEC 61076-8-103 Ed. 1.0 b:2023

Connectors for electrical and electronic equipment – Product requirements – Part 8-103: Power connectors – Detail specification for 2P+PE circular connectors with 20 A rated current and push-pull locking IP65/IP67 with metal housing

International Electrotechnical Commission, 05/01/2023

Publisher: IEC

File Format: PDF

$139.00$278.00

Description

Published:01/05/2023

Pages:72

File Size:1 file , 2 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

This part of IEC 61076-8 describes free and fixed 2-pole power (1P+N) plus PE circular connectors with 20 A rated current, rated voltage up to and including 300 V AC, IP65/IP67 metal housing with push-pull locking (hereinafter referred to as a connectors) for use in electrical and electronic equipment. It includes overall dimensions, interface dimensions, technical characteristics, performance requirements and test methods.
