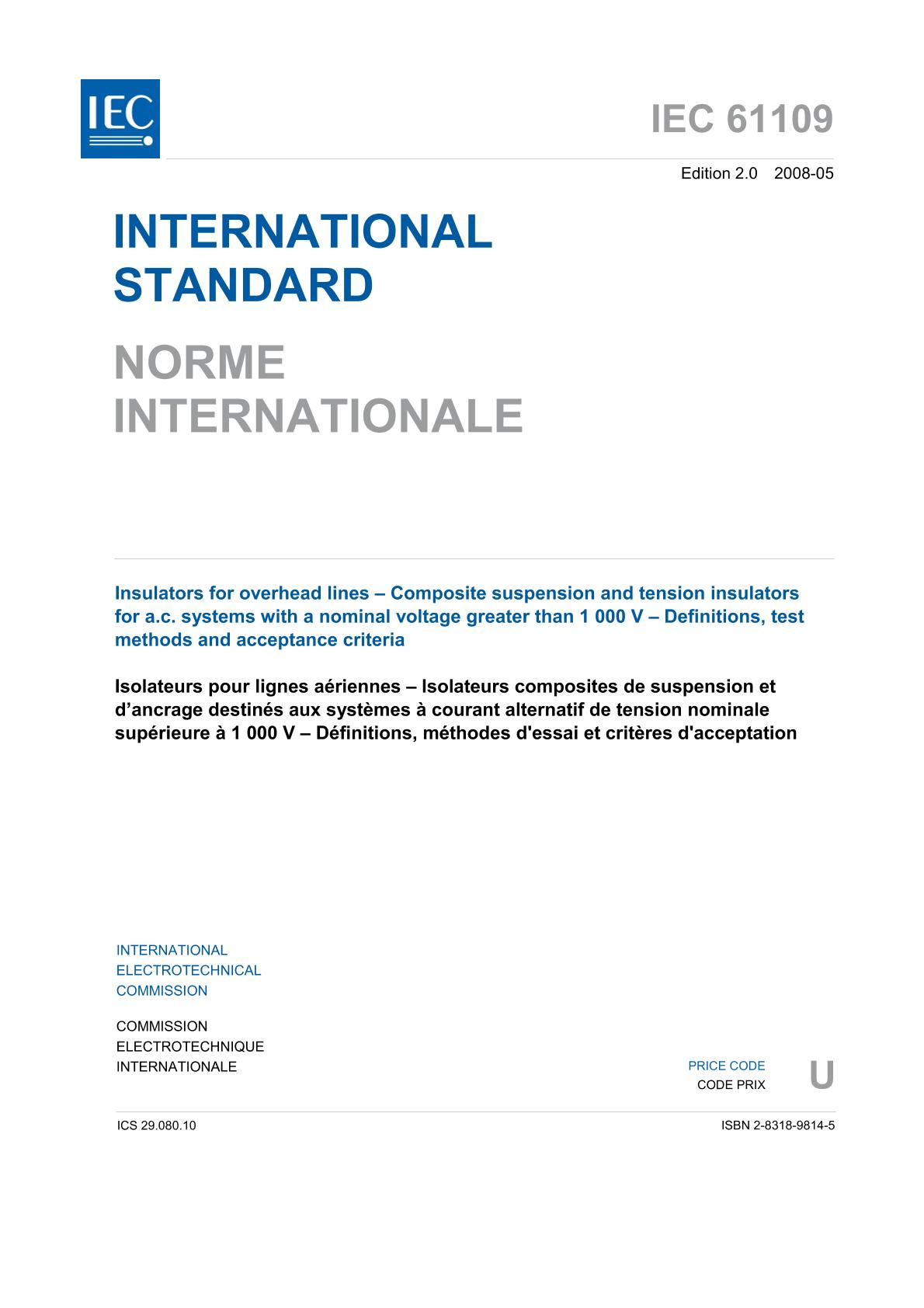

IEC 61109 Ed. 2.0 b:2008

Insulators for overhead lines - Composite suspension and tension insulators for a.c. systems with a nominal voltage greater than 1 000 V - Definitions, test methods and acceptance criteria

International Electrotechnical Commission, 05/27/2008

Publisher: IEC

File Format: PDF

$117.00$234.00

Description

Published:27/05/2008

Pages:57

File Size:1 file , 1.1 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

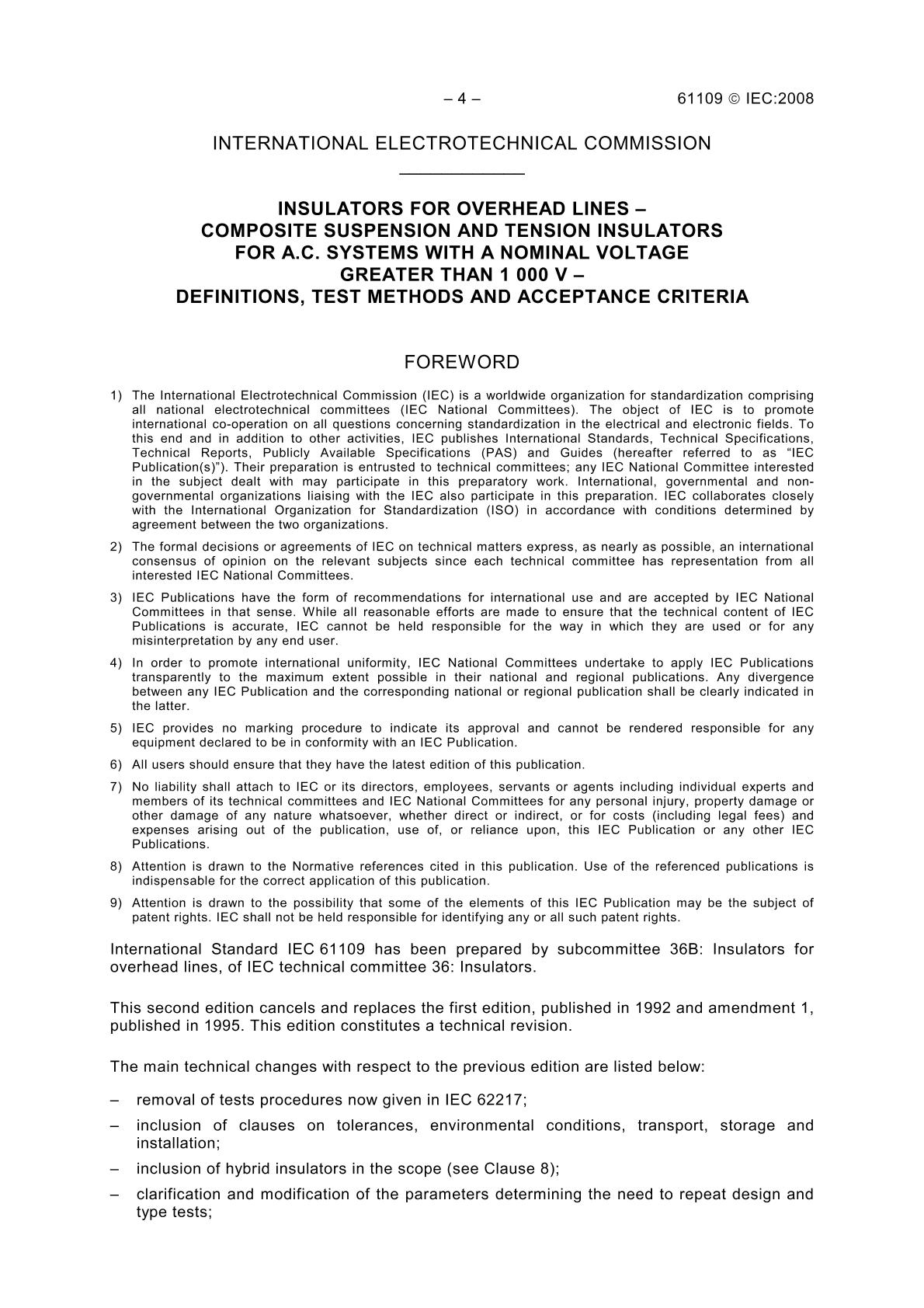

IEC 61109:2008 applies to composite suspension/tension insulators consisting of a load-bearing cylindrical insulating solid core consisting of fibres - usually glass - in a resin-based matrix, a housing (outside the insulating core) made of polymeric material and end fittings permanently attached to the insulating core. The main technical changes with respect to the previous edition are
- removal of tests procedures now given in IEC 62217;
- inclusion of clauses on tolerances, environmental conditions, transport, storage and installation;

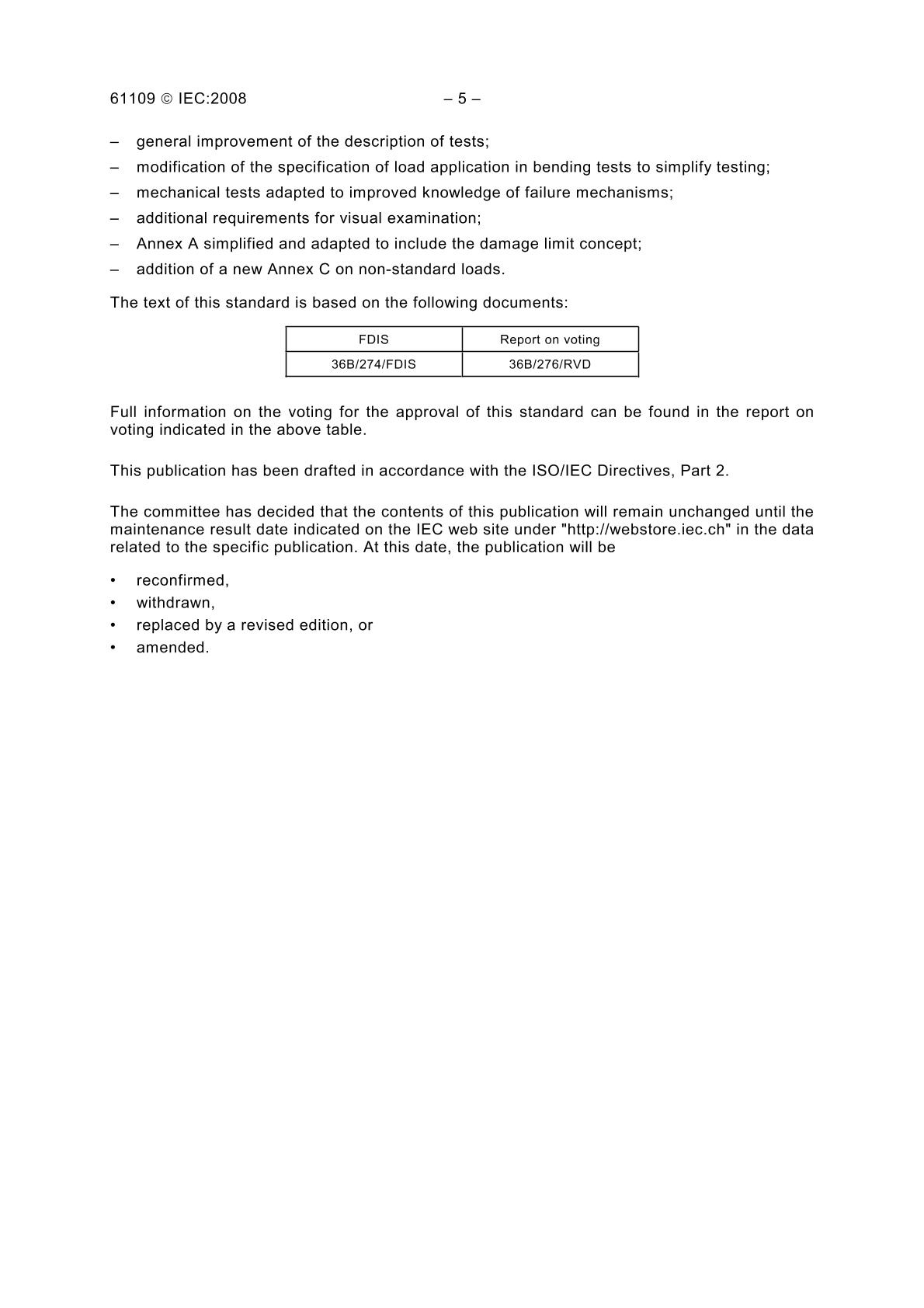

- general improvement of the description of tests and addition of a new Annex C on non-standard loads.

IEC 61109 Ed. 2.0 b:2008

Insulators for overhead lines - Composite suspension and tension insulators for a.c. systems with a nominal voltage greater than 1 000 V - Definitions, test methods and acceptance criteria
