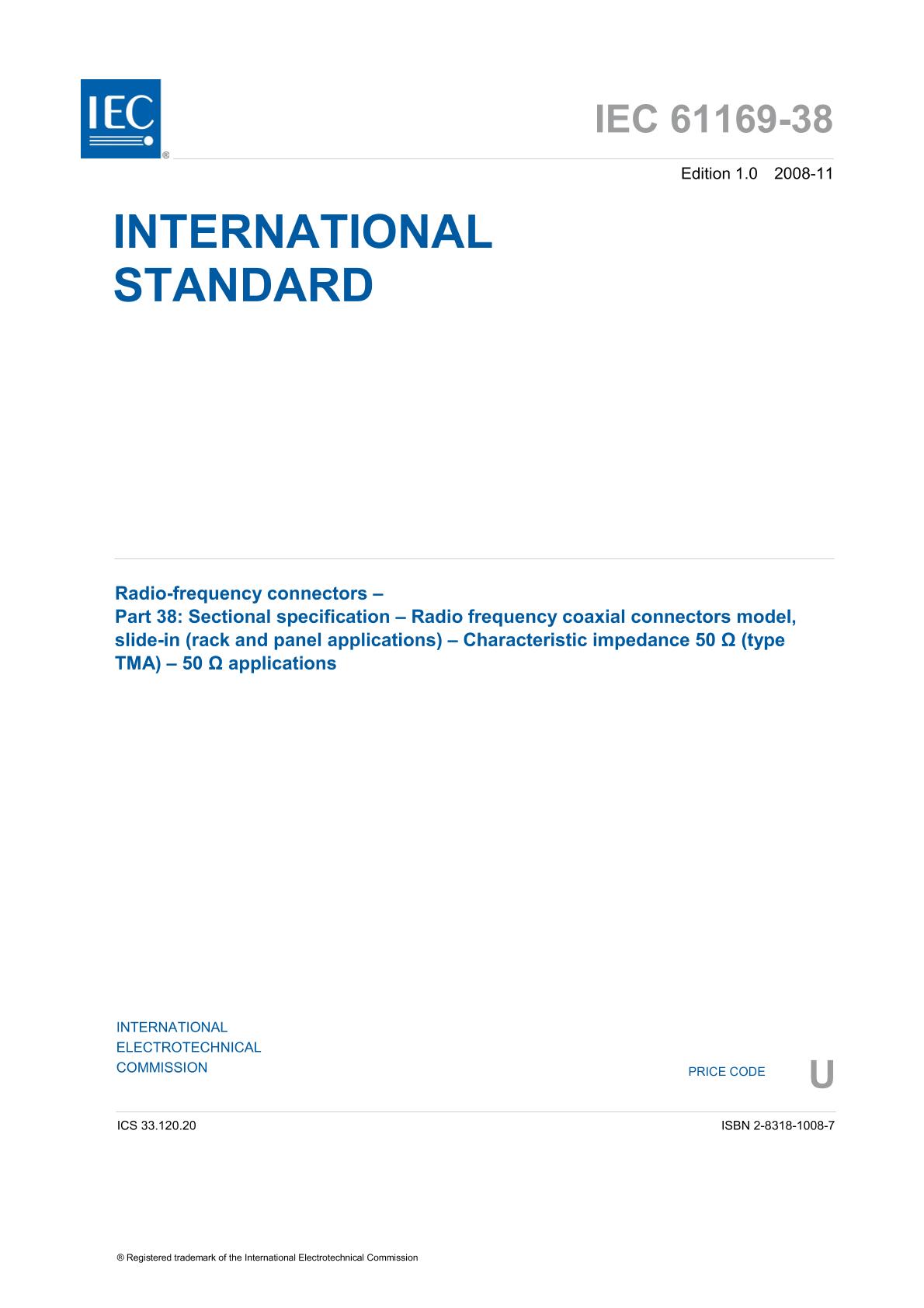

IEC 61169-38 Ed. 1.0 en:2008

Radio-frequency connectors - Part 38: Sectional specification - Radio frequency coaxial connectors model, slide-in (rack and panel applications) - Characteristic impedance 50 ¿¿ (type TMA) - 50 ¿¿ applications

International Electrotechnical Commission, 11/13/2008

Publisher: IEC

File Format: PDF

$103.00$206.00

Description

Published:13/11/2008

Pages:27

File Size:1 file , 1.1 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 61169-38:2008(E) which is a sectional specification, provides information and rules for the preparation of detail specifications for series TMA r.f. connectors together with the pro forma blank detail specification. Series TMA connectors have a characteristic impedance of 50 Ω and are normally used with R.F cables or with microstrip in microwave fields that has a blind-entry and middle low-power. The connectors are usable up to a frequency of at least 6 GHz.
