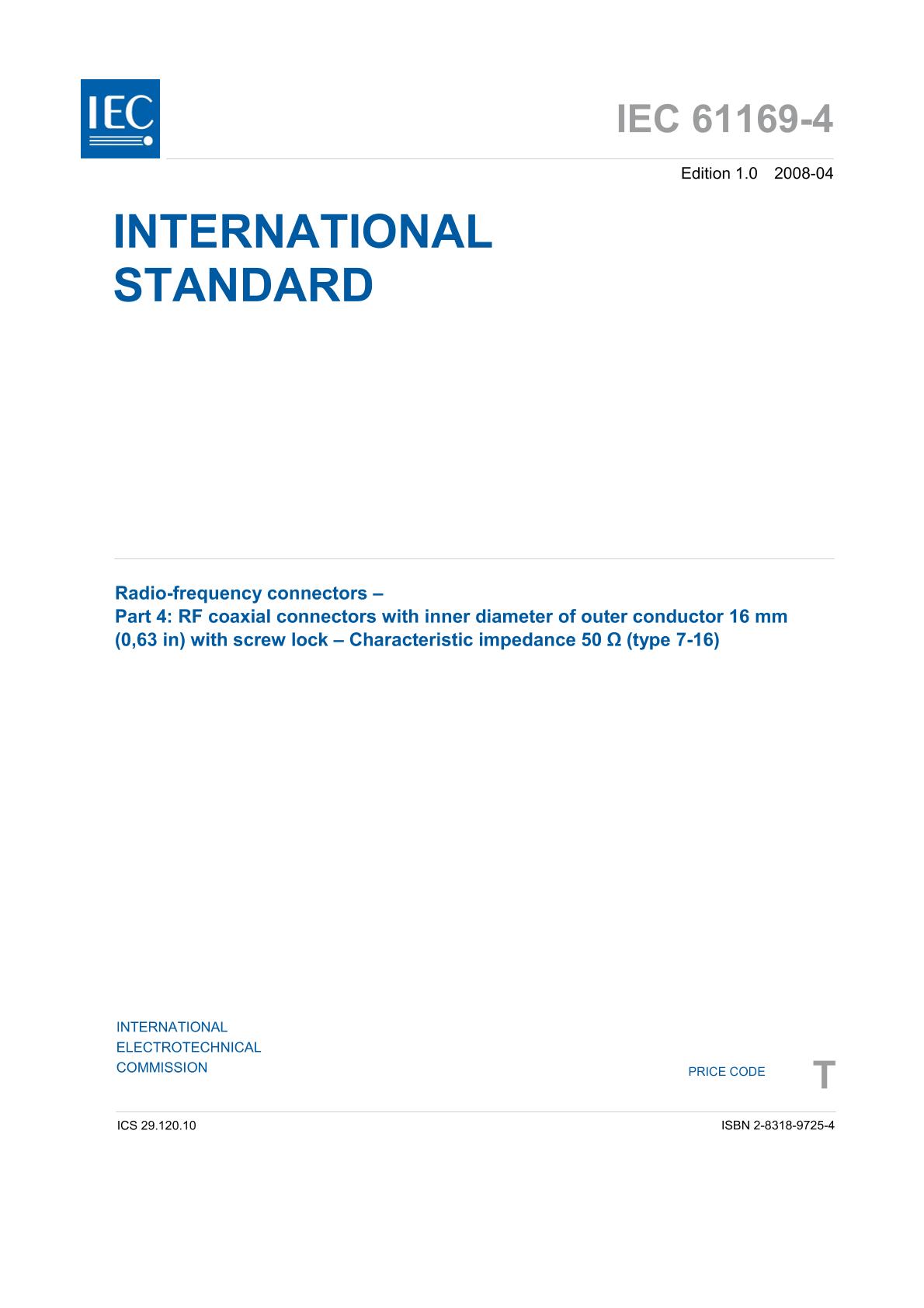

IEC 61169-4 Ed. 1.0 en:2008

Radio-frequency connectors - Part 4: RF coaxial connectors with inner diameter of outer conductor 16 mm (0,63 in) with screw lock - Characteristic impedance 50 ¿¿ (type 7-16)

International Electrotechnical Commission, 04/29/2008

Publisher: IEC

File Format: PDF

$91.00$182.00


Published:29/04/2008

Pages:23

File Size:1 file , 980 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 61169-4:2008(E) provides information and rules for the preparation of detail specifications (DS) for type 7-16 R.F. coaxial connectors with screw lock. It describes the interface dimensions for general purpose grade 2 connectors, dimensional details for standard test connectors, grade 0, together with gauging information and the mandatory tests selected from QC 22000 (IEC 61169-1), applicable to all DS relating to type 7-16 connectors.
