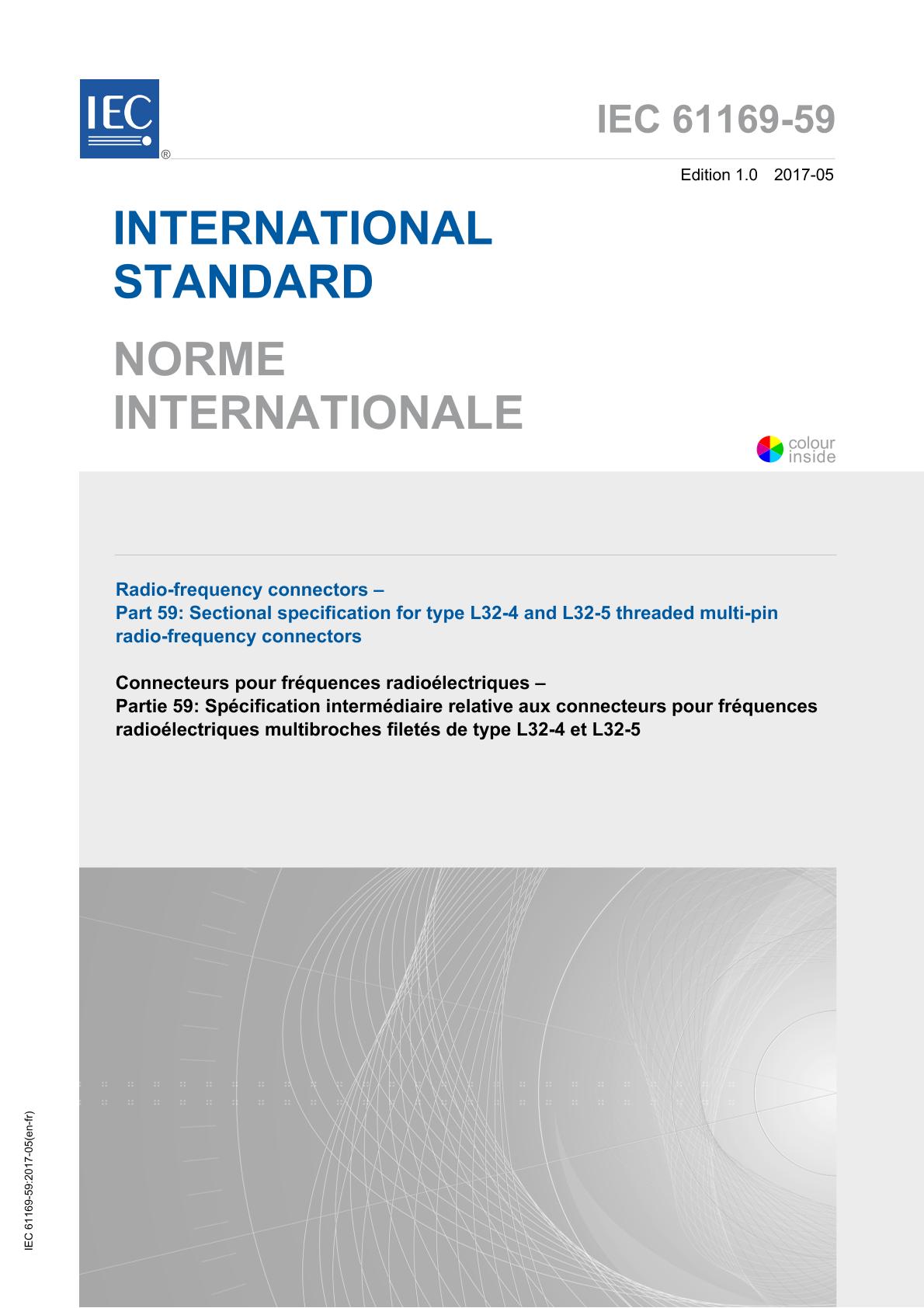

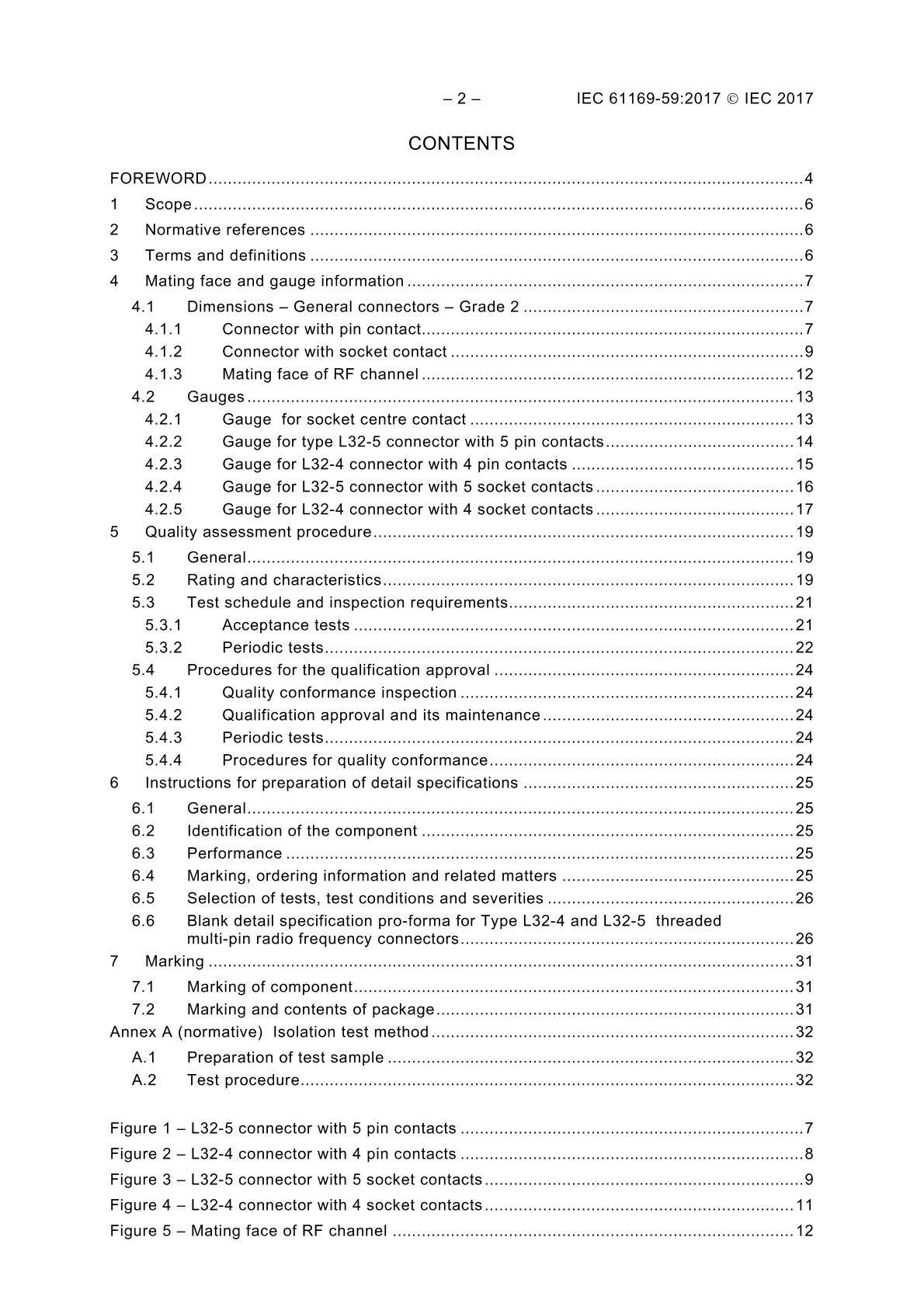

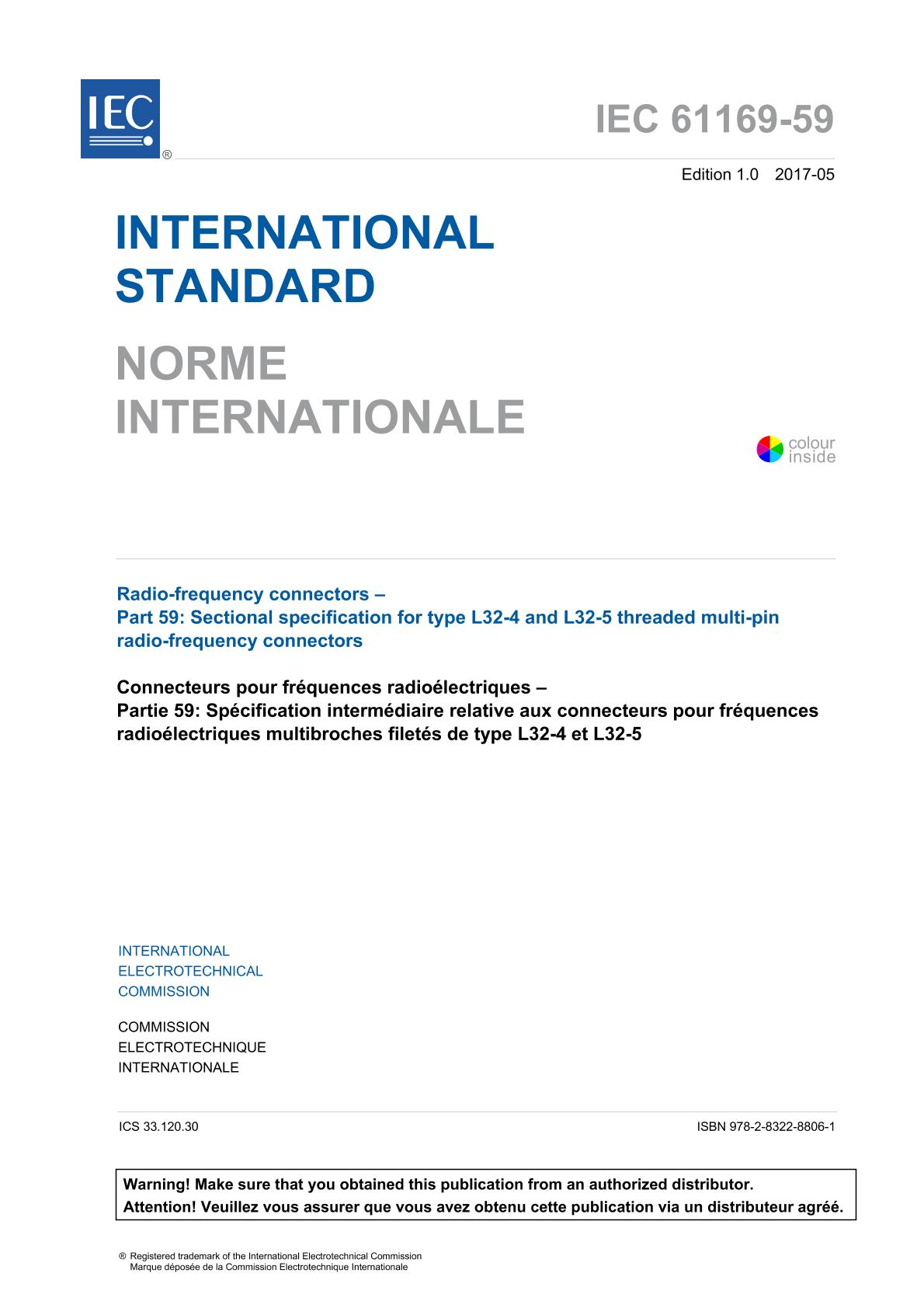

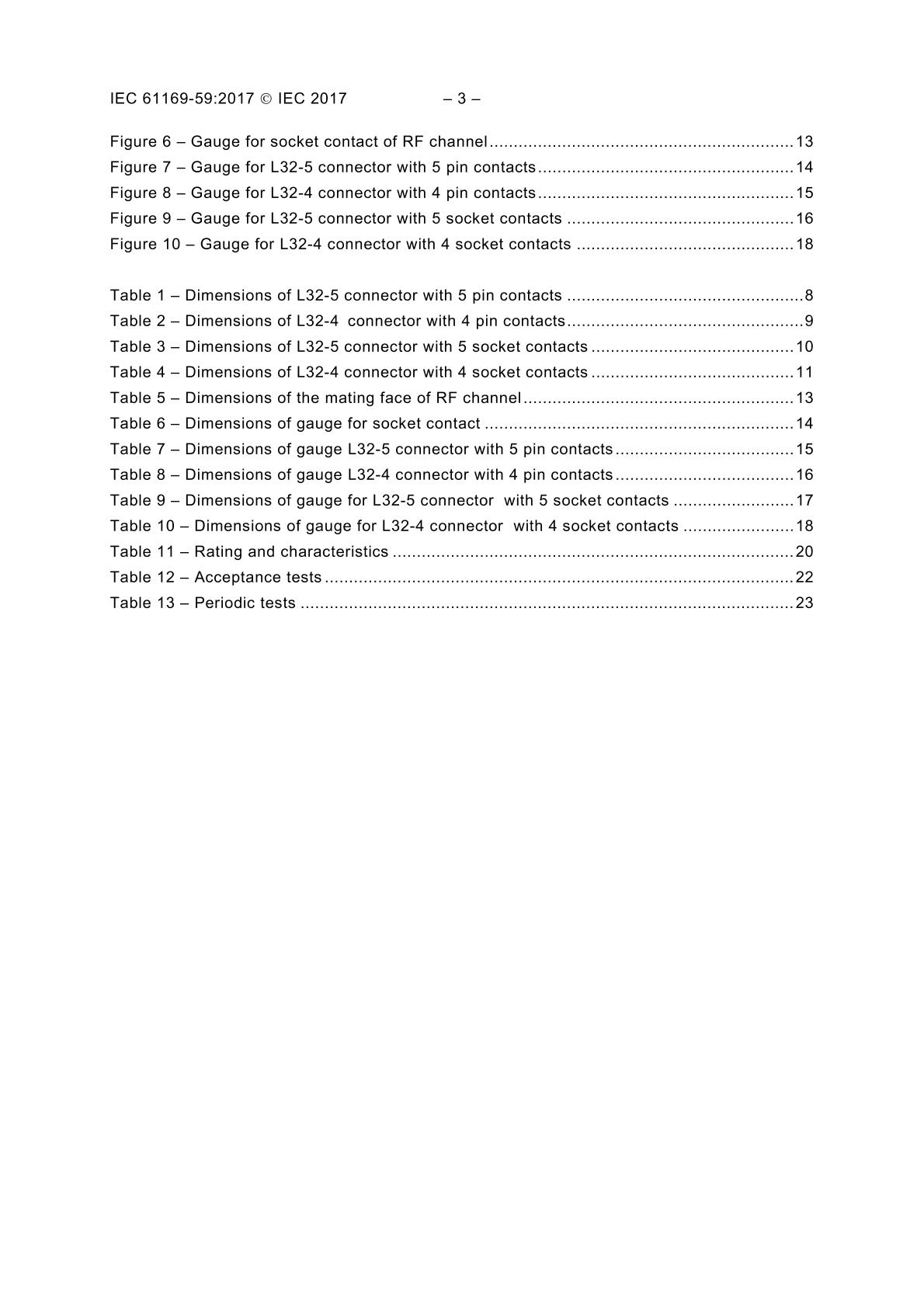

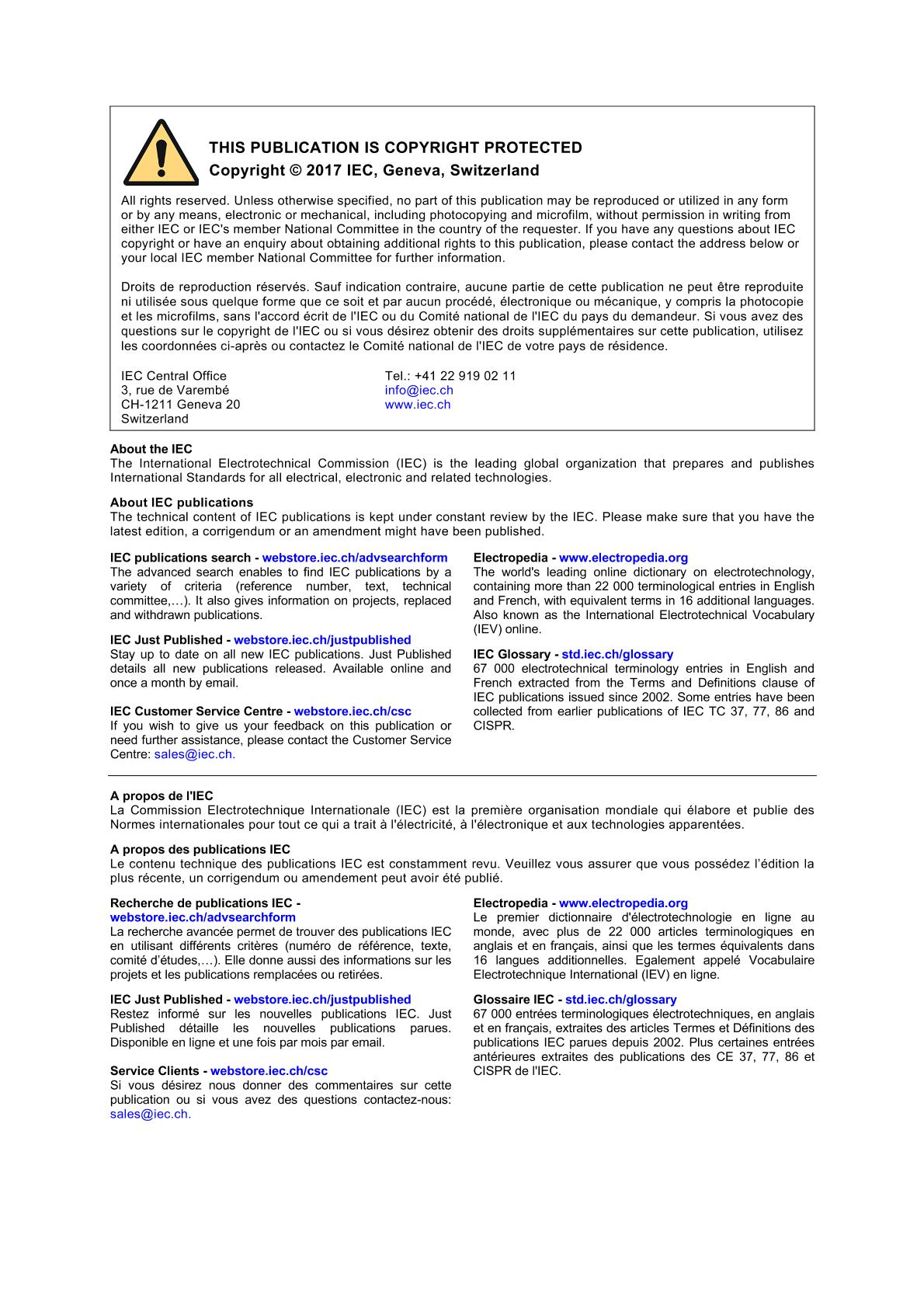

IEC 61169-59 Ed. 1.0 b:2017

Radio-frequency connectors - Part 59: Sectional specification for type L32-4 and L32-5 threaded multi-pin radio-frequency connectors

International Electrotechnical Commission, 05/22/2017

Publisher: IEC

File Format: PDF

$139.00$278.00


Published:22/05/2017

Pages:69

File Size:1 file , 2.4 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 61169-59:2017, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for type L32-4 and L32-5 threaded multi-pin radio frequency connectors with anti mismating mechanism, 50 Ω nominal  impedance. The operating frequency of each channel is up to 4 GHz. These connectors have been widely used in mobile communication system like TD-SCDMA and TD-LTE, and can also be used in some similar equipment.
It also prescribes mating face dimensions for general connectors-grade 2, gauging information and tests selected from IEC 61169-1, applicable to all detail specifications relating to type L32-4 and L32-5 multi-pin connectors.
This sectional specification provides information and rules for the preparation of detail specifications for type L32-4 and L32-5 multi-pin connectors together with the pro forma blank detail specification.
This specification indicates the recommended performance characteristics to be considered when writing a detail specification and it covers test schedules and inspection requirements for assessment levels M and H.
