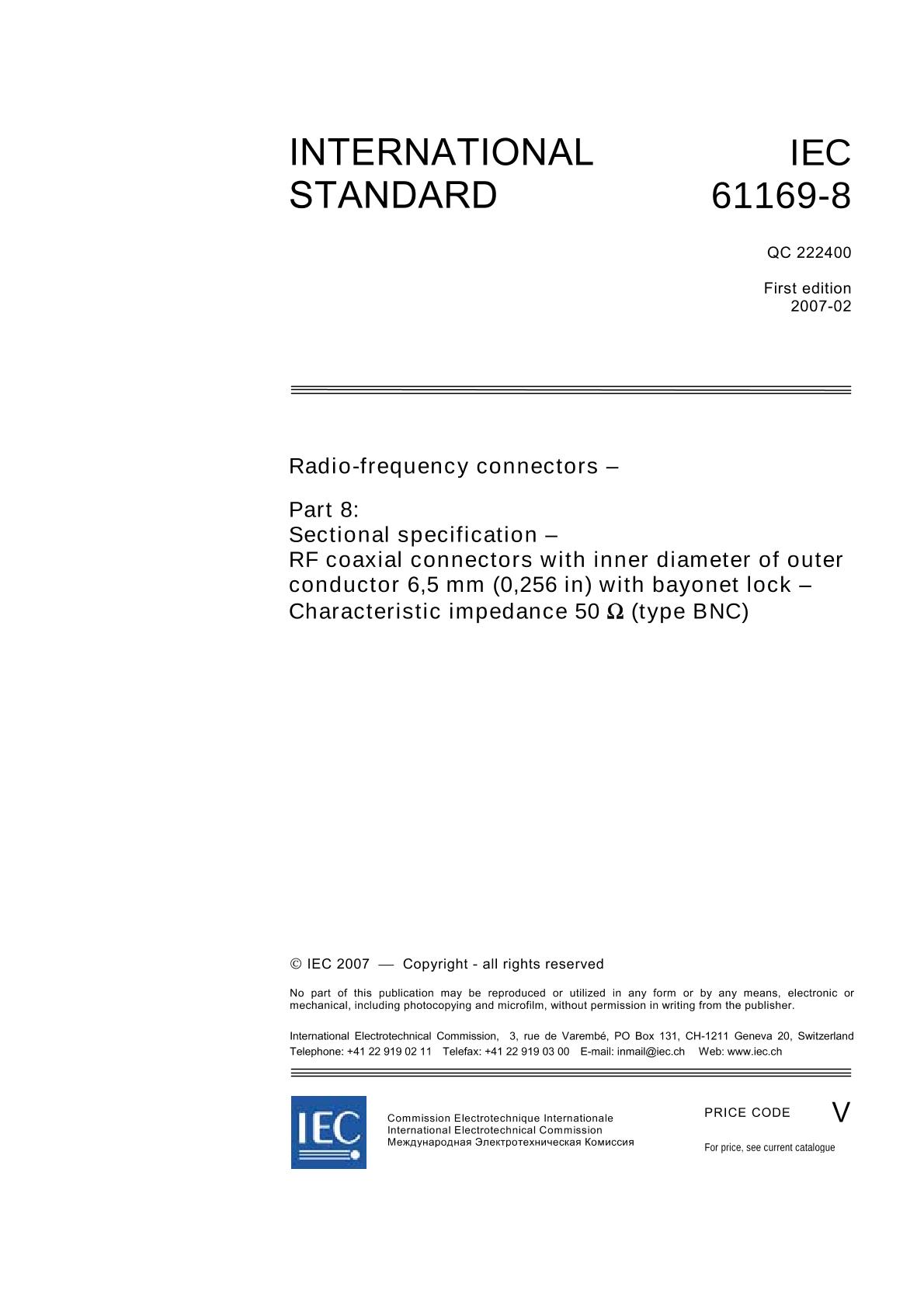

IEC 61169-8 Ed. 1.0 en:2007

Radio-frequency connectors - Part 8: Sectional specification - RF coaxial connectors with inner diameter of outer conductor 6,5 mm (0,256 in) with bayonet lock - Characteristic impedance 50 ¿¿ (type BNC)

International Electrotechnical Commission, 02/16/2007

Publisher: IEC

File Format: PDF

$115.00$230.00

Description

Published:16/02/2007

Pages:35

File Size:1 file , 280 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

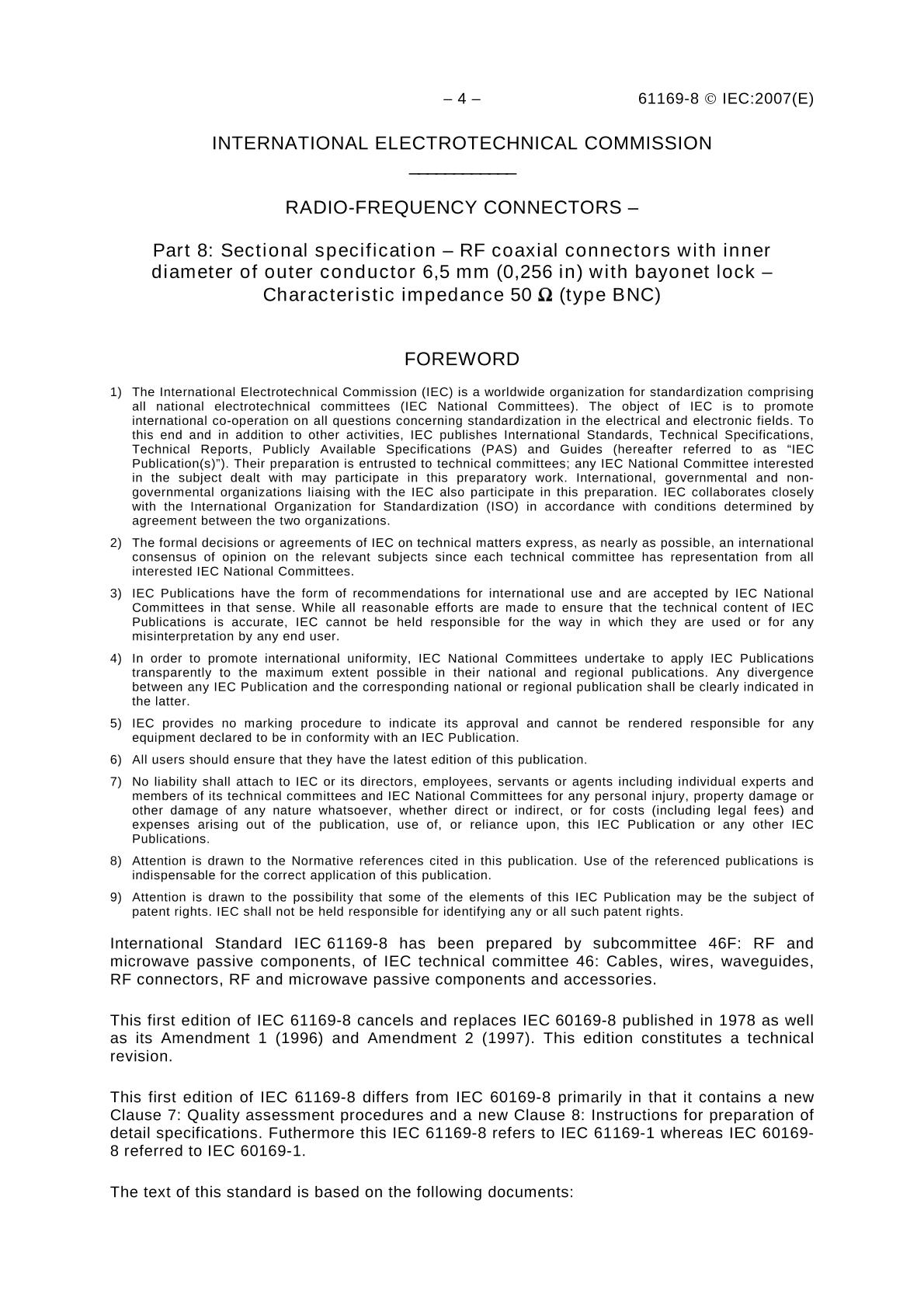

It is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for RF coaxial connectors which may preferably be used with RF cables 60096 IEC 50-3 of IEC 60096-2. These connector patterns are for low power, quick connect/disconnect applications using a bayonet type coupling mechanism and are commonly known as type "BNC". It constitutes a technical revision. It differs from IEC 60169-8 primarily in that it contains a new Clause 7: Quality assessment procedures and a new Clause 8: Instructions for preparation of detail specifications. Futhermore this IEC 61169-8 refers to IEC 61169-1 whereas IEC 60169-8 referred to IEC 60169-1.

IEC 61169-8 Ed. 1.0 en:2007

Radio-frequency connectors - Part 8: Sectional specification - RF coaxial connectors with inner diameter of outer conductor 6,5 mm (0,256 in) with bayonet lock - Characteristic impedance 50 ¿¿ (type BNC)
