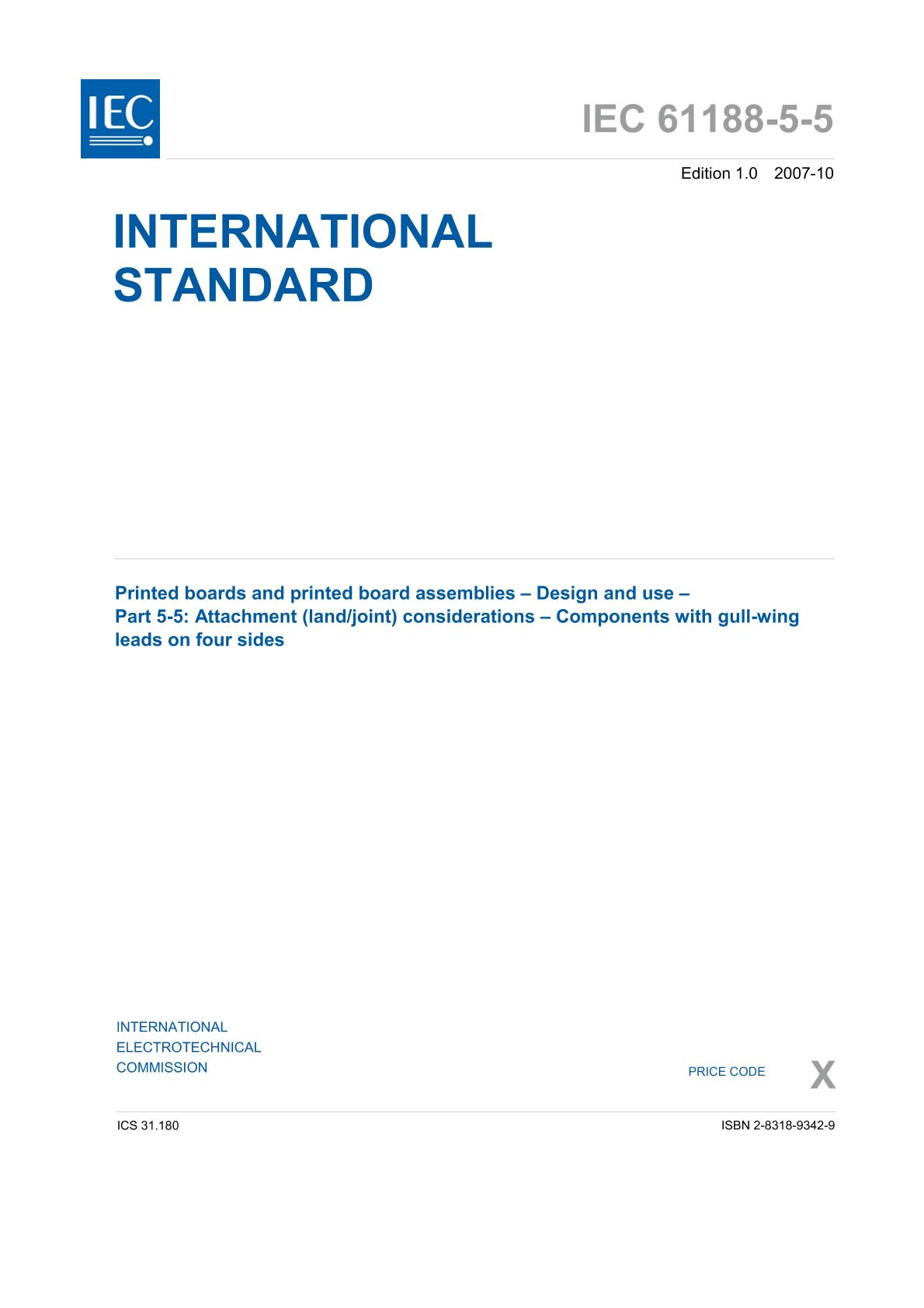

IEC 61188-5-5 Ed. 1.0 en:2007

Printed boards and printed board assemblies - Design and use - Part 5-5: Attachment (land/joint) considerations - Components with gull-wing leads on four sides

International Electrotechnical Commission, 10/30/2007

Publisher: IEC

File Format: PDF

$53.00$107.00


Published:30/10/2007

Pages:43

File Size:1 file , 1 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

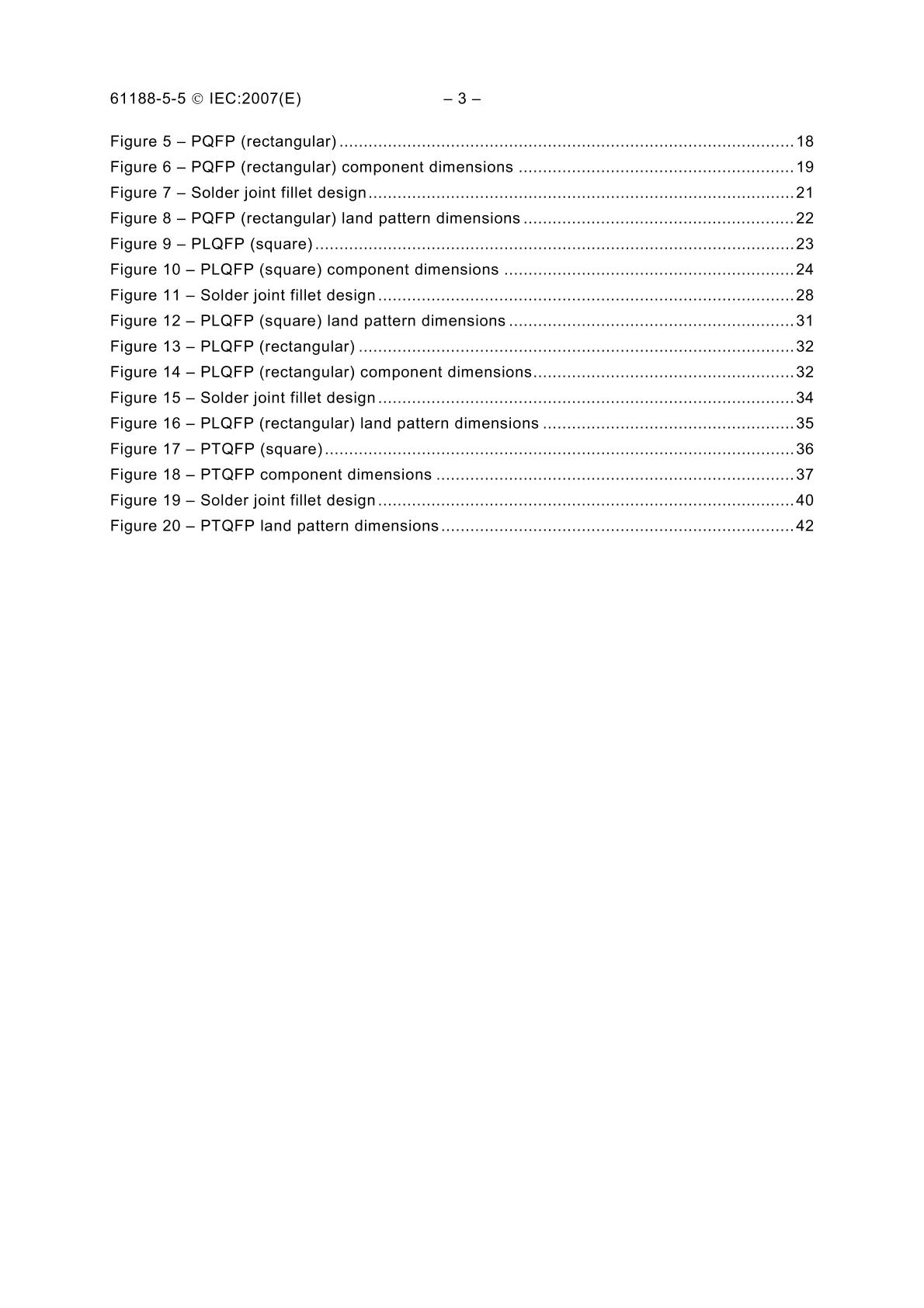

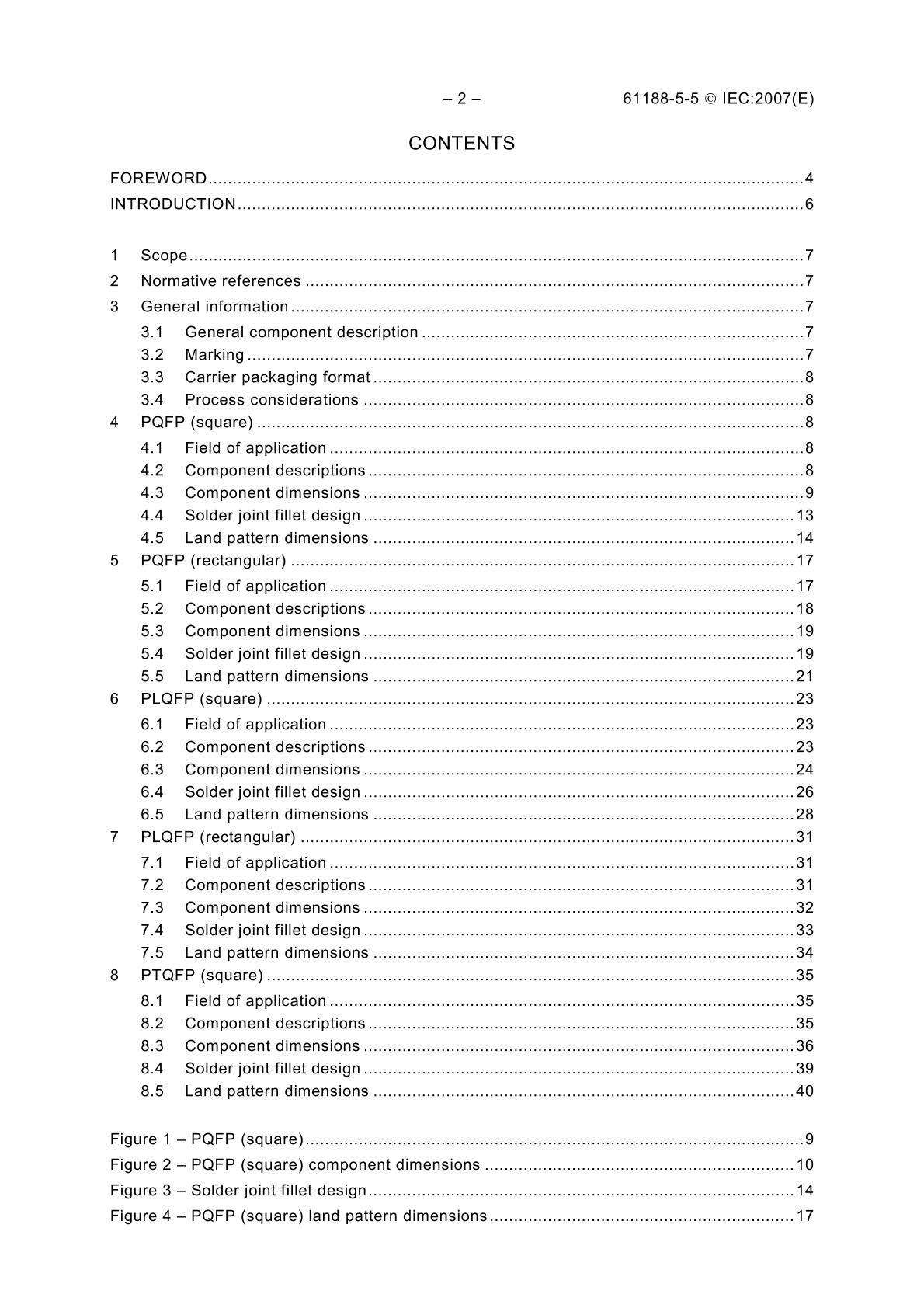

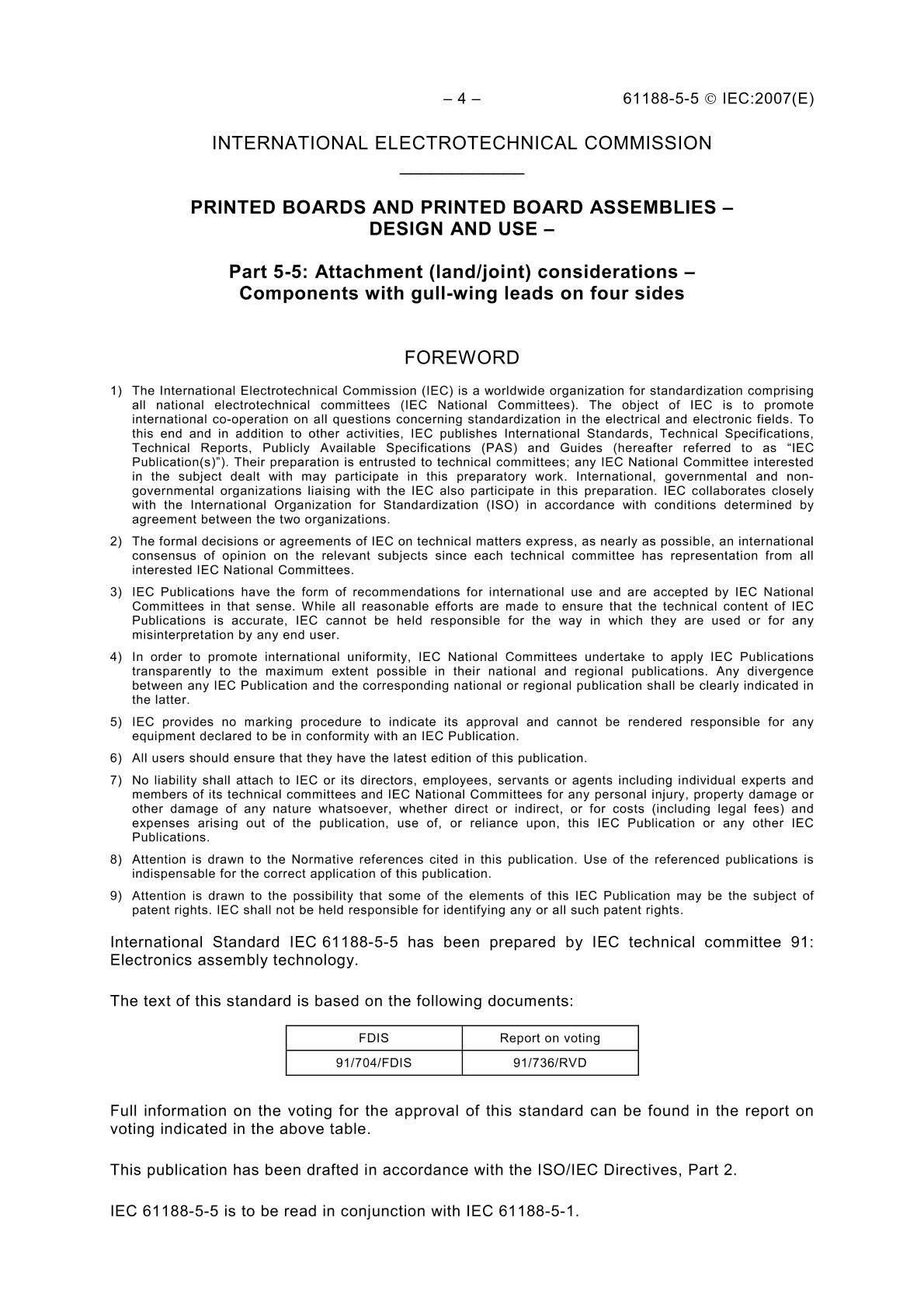

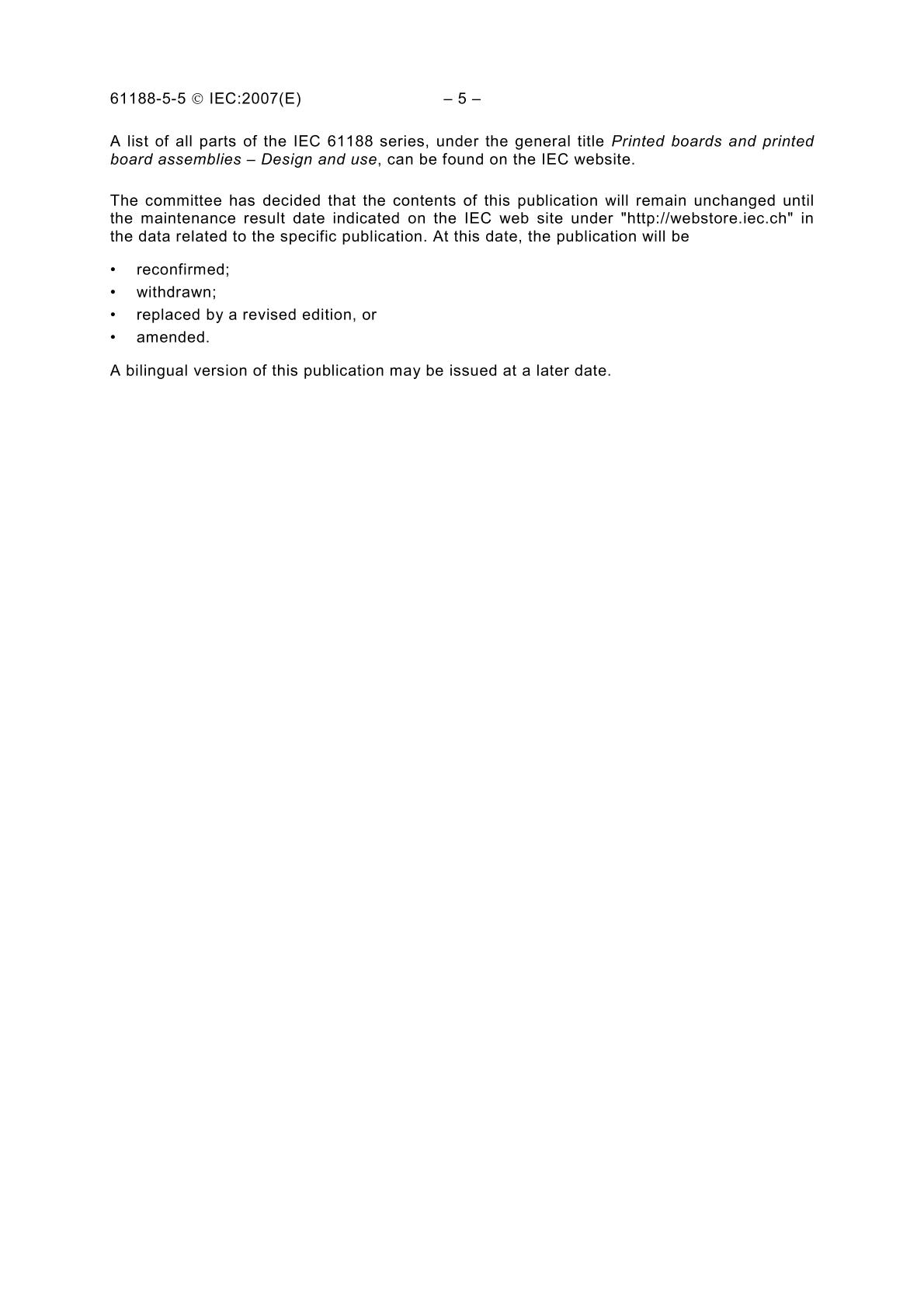

Provides information on land pattern geometries used for the surface attachment of electronic components with gull-wing leads on four sides. The intent of the information presented herein is to provide the appropriate size, shape and tolerances of surface mount land patterns to ensure sufficient area for the appropriate solder fillet, and also allow for inspection, testing and reworking of those solder joints.
