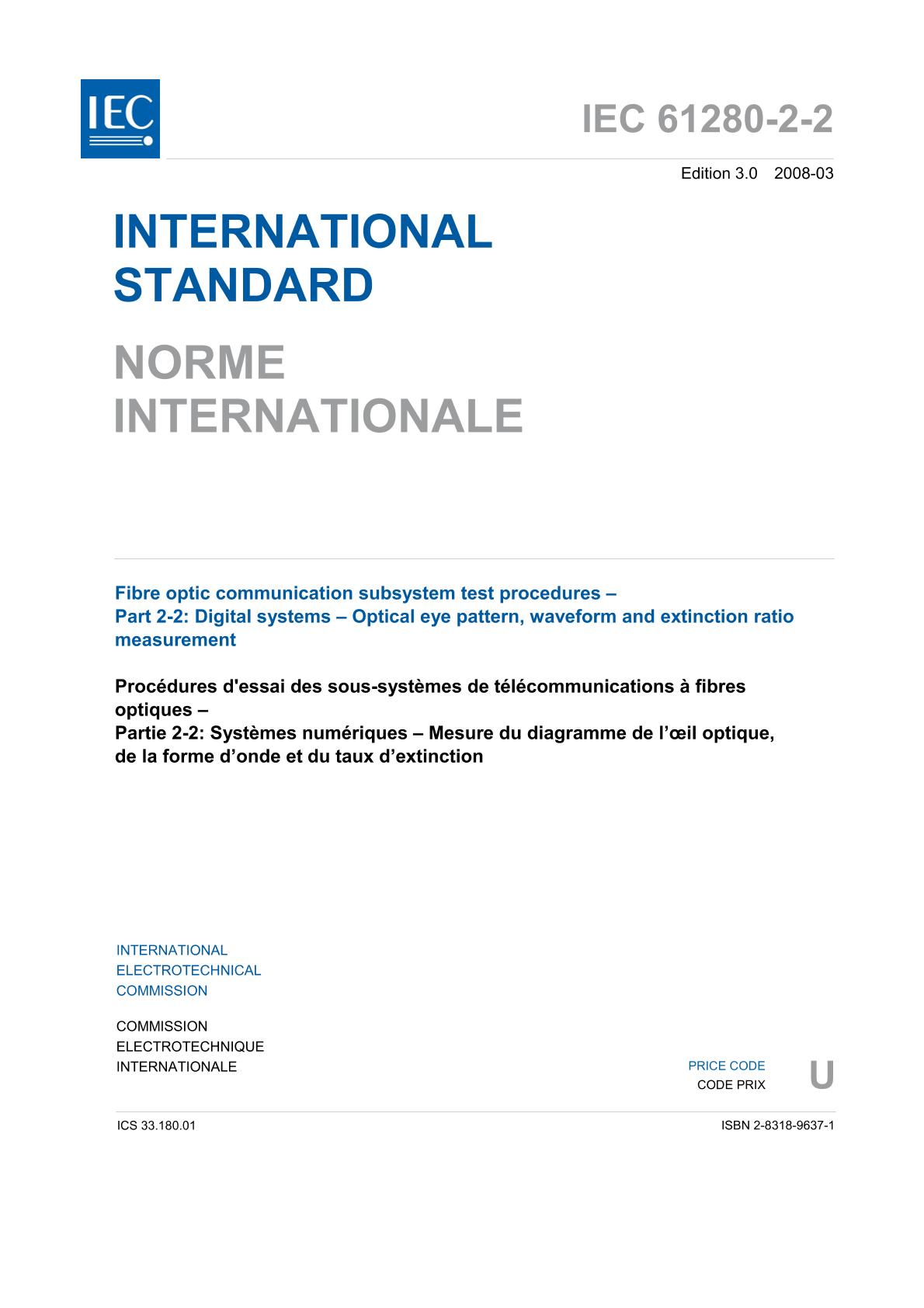

IEC 61280-2-2 Ed. 3.0 b:2008

Fibre optic communication subsystem test procedures - Part 2-2: Digital systems - Optical eye pattern, waveform and extinction ratio measurement

International Electrotechnical Commission, 03/11/2008

Publisher: IEC

File Format: PDF

$77.00$154.00


Published:11/03/2008

Pages:53

File Size:1 file , 1.1 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

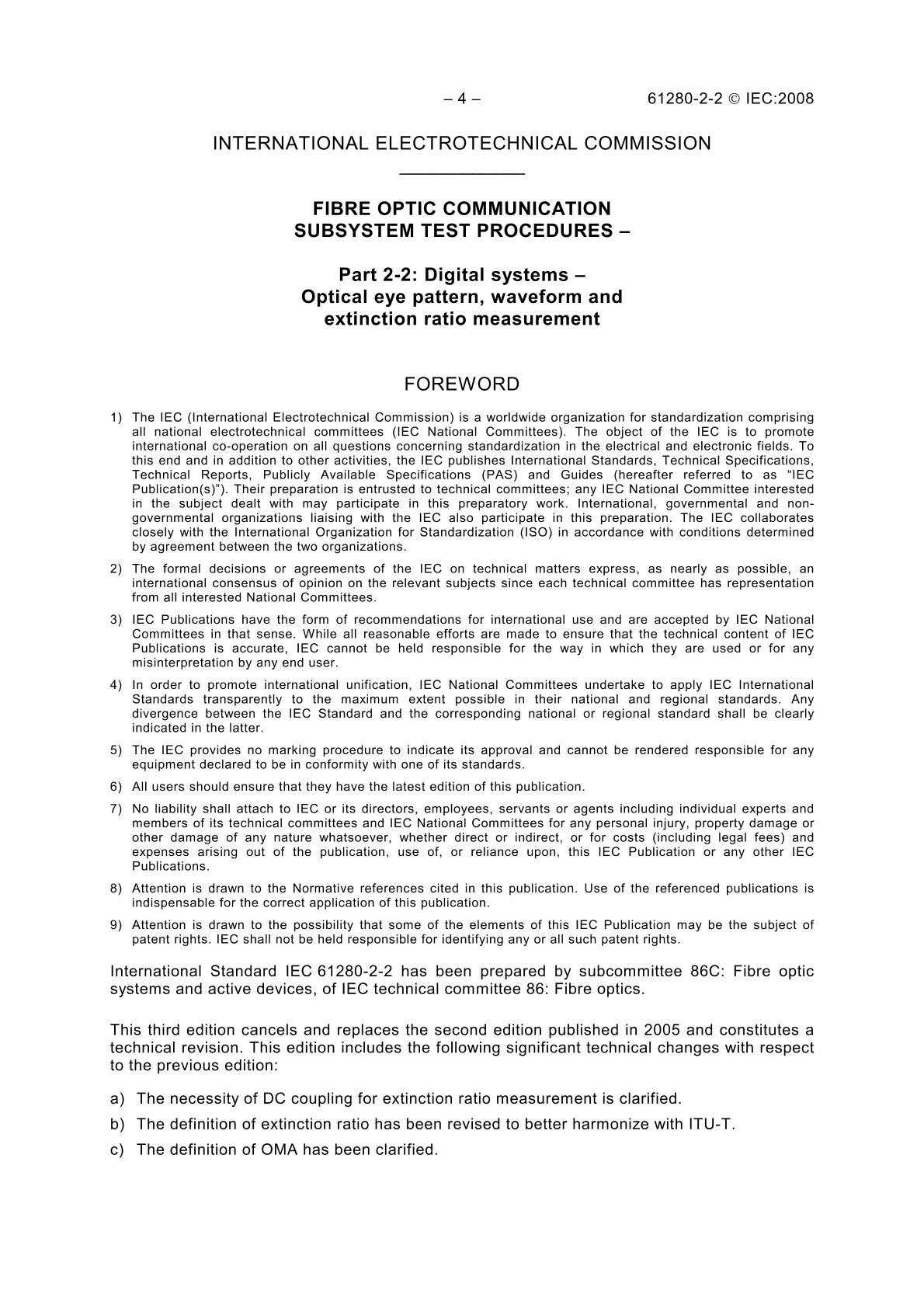

This part of IEC 61280 is to describe a test procedure to measure the eye pattern and waveform parameters such as rise time, fall time, overshoot, and extinction ratio. Alternatively, the waveform may be tested for compliance with a predetermined waveform mask. This edition includes the following significant technical changes with respect to the previous edition:
- the necessity of DC coupling for extinction ratio measurement is clarified;
- the definition of extinction ratio has been revised to better harmonize with ITU-T; and
- the definition of OMA has been clarified.
