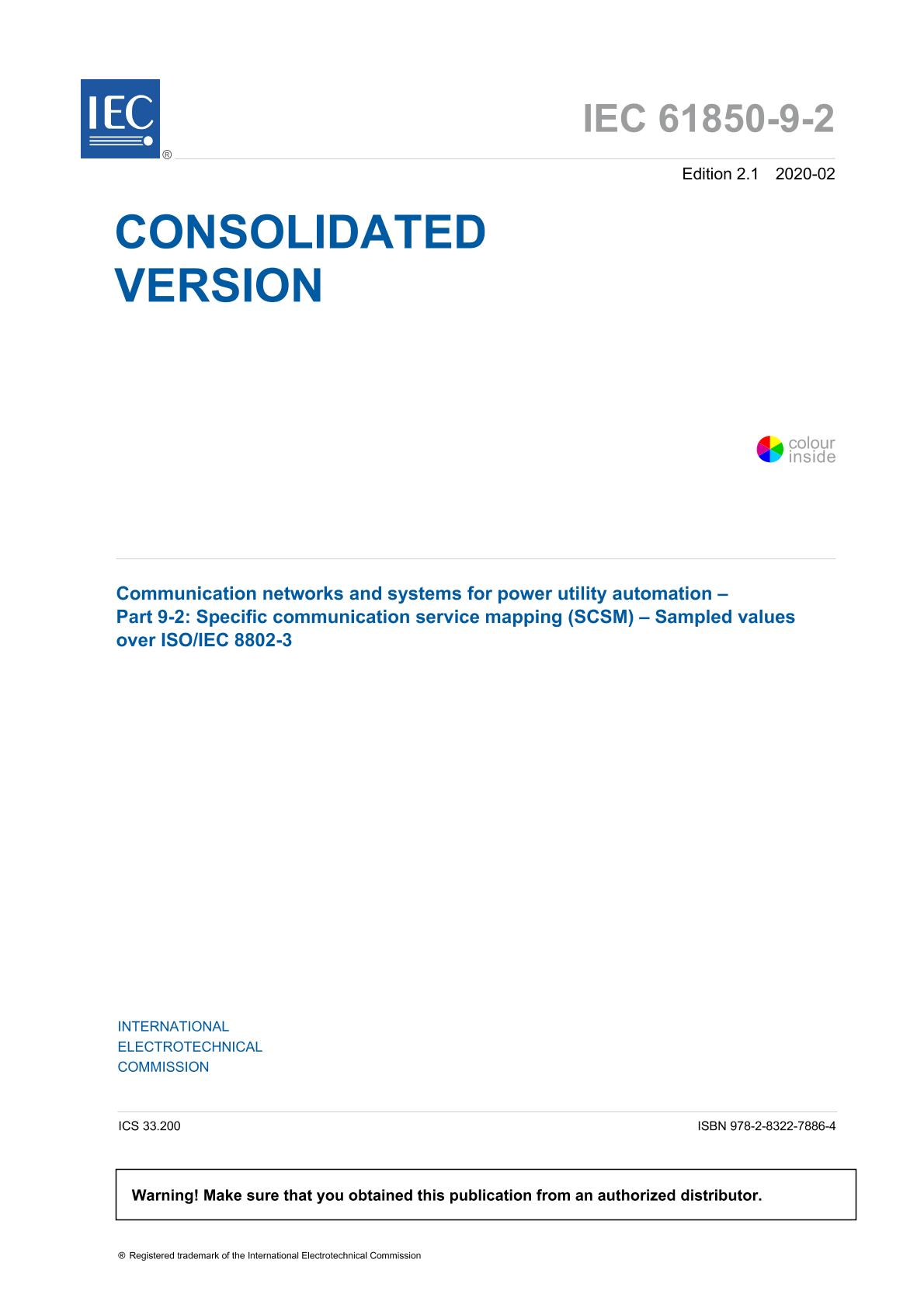

IEC 61850-9-2 Ed. 2.1 en:2020

Communication networks and systems for power utility automation - Part 9-2: Specific communication service mapping (SCSM) - Sampled values over ISO/IEC 8802-3 CONSOLIDATED EDITION

International Electrotechnical Commission, 02/12/2020

Publisher: IEC

File Format: PDF

$291.00$582.00

Description

Published:12/02/2020

Pages:34

File Size:1 file , 1.3 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 61850-9-2:2020 defines the specific communication service mapping for the transmission of sampled values according to the abstract specification in IEC 61850-7-2. The mapping is that of the abstract model on a mixed stack using direct access to an ISO/IEC 8802-3 link for the transmission of the samples in combination with IEC 61850-8-1. Main changes with respect to the first edition are:
- addition of an optional link redundancy layer;
- redefinition of "reserved" fields in link layer;
- evolution of USVCB and MSVCB components;
- evolution of encoding for the transmission of the sampled value buffer.

IEC 61850-9-2 Ed. 2.1 en:2020

Communication networks and systems for power utility automation - Part 9-2: Specific communication service mapping (SCSM) - Sampled values over ISO/IEC 8802-3 CONSOLIDATED EDITION
