IEC 62317-4 Ed. 1.0 en:2005

Ferrite cores - Dimensions - Part 4: RM-cores and associated parts

International Electrotechnical Commission, 09/23/2005

Publisher: IEC

File Format: PDF

$60.00$121.00

Description

Published:23/09/2005

Pages:22

File Size:1 file , 550 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

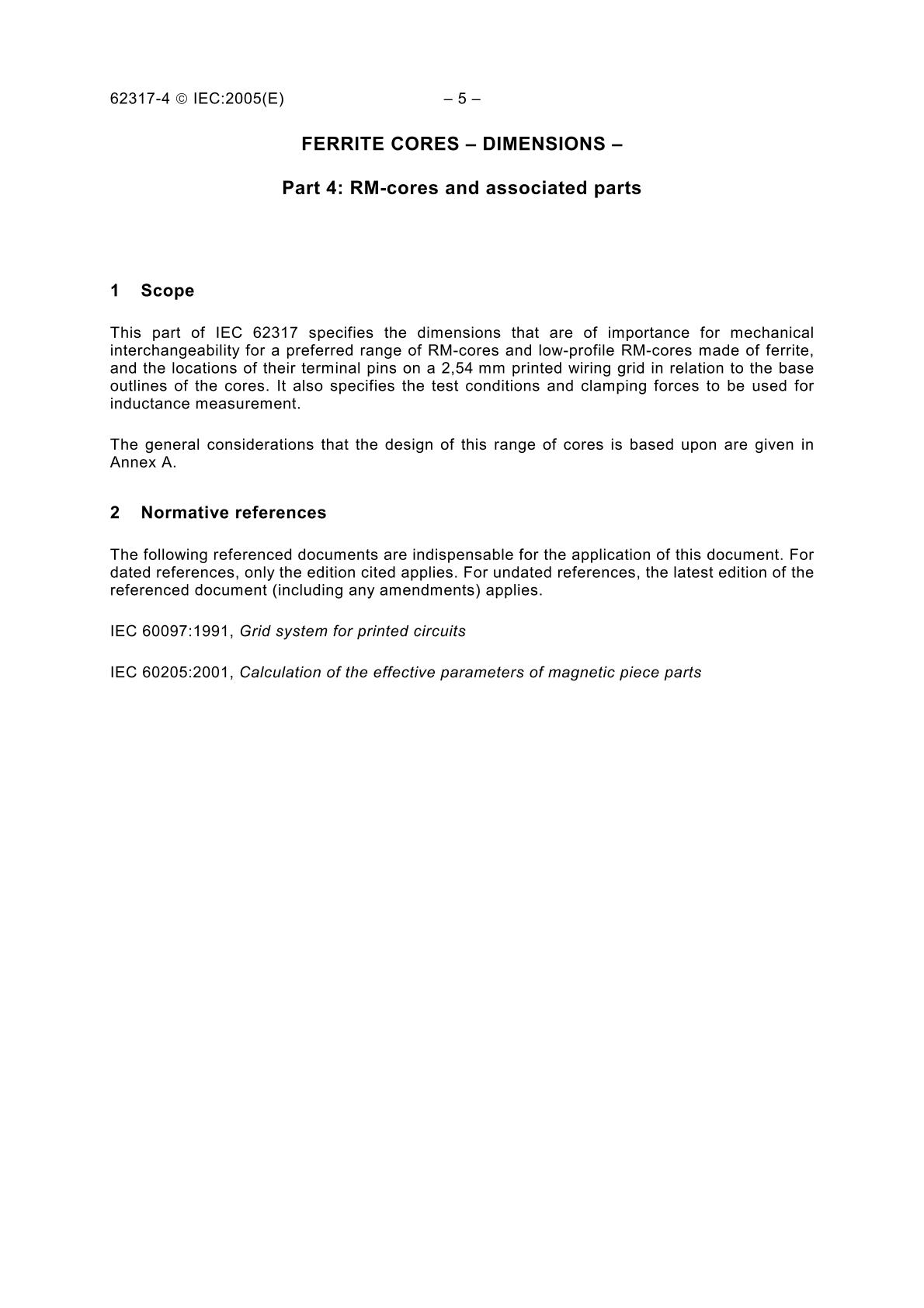

Specifies the dimensions that are of importance for mechanical interchangeability for a preferred range of RM-cores and low-profile RM-cores made of ferrite, and the locations of their terminal pins on a 2,54 mm printed wiring grid in relation to the base outlines of the cores. Also specifies the test conditions and clamping forces to be used for inductance measurement.
