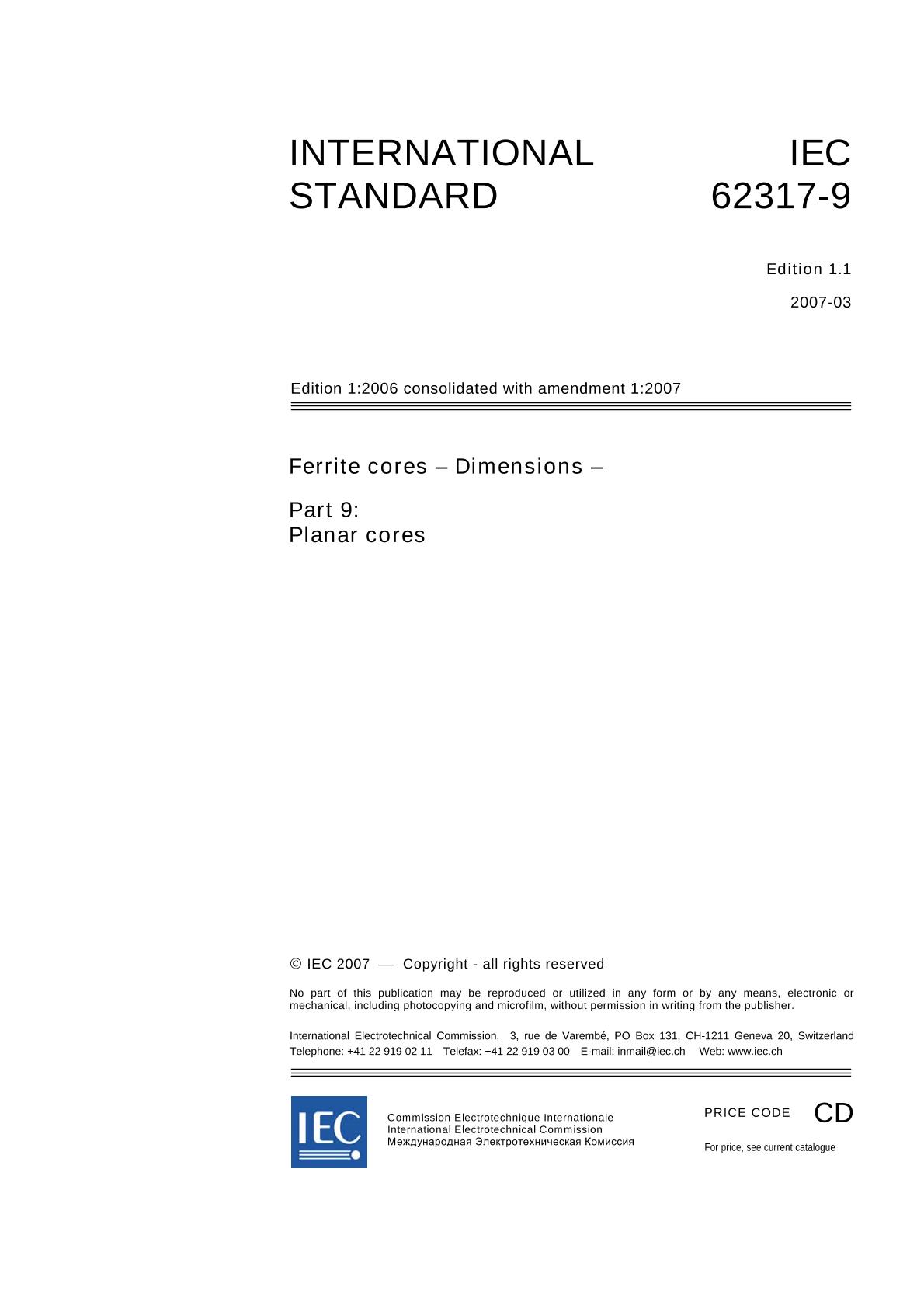

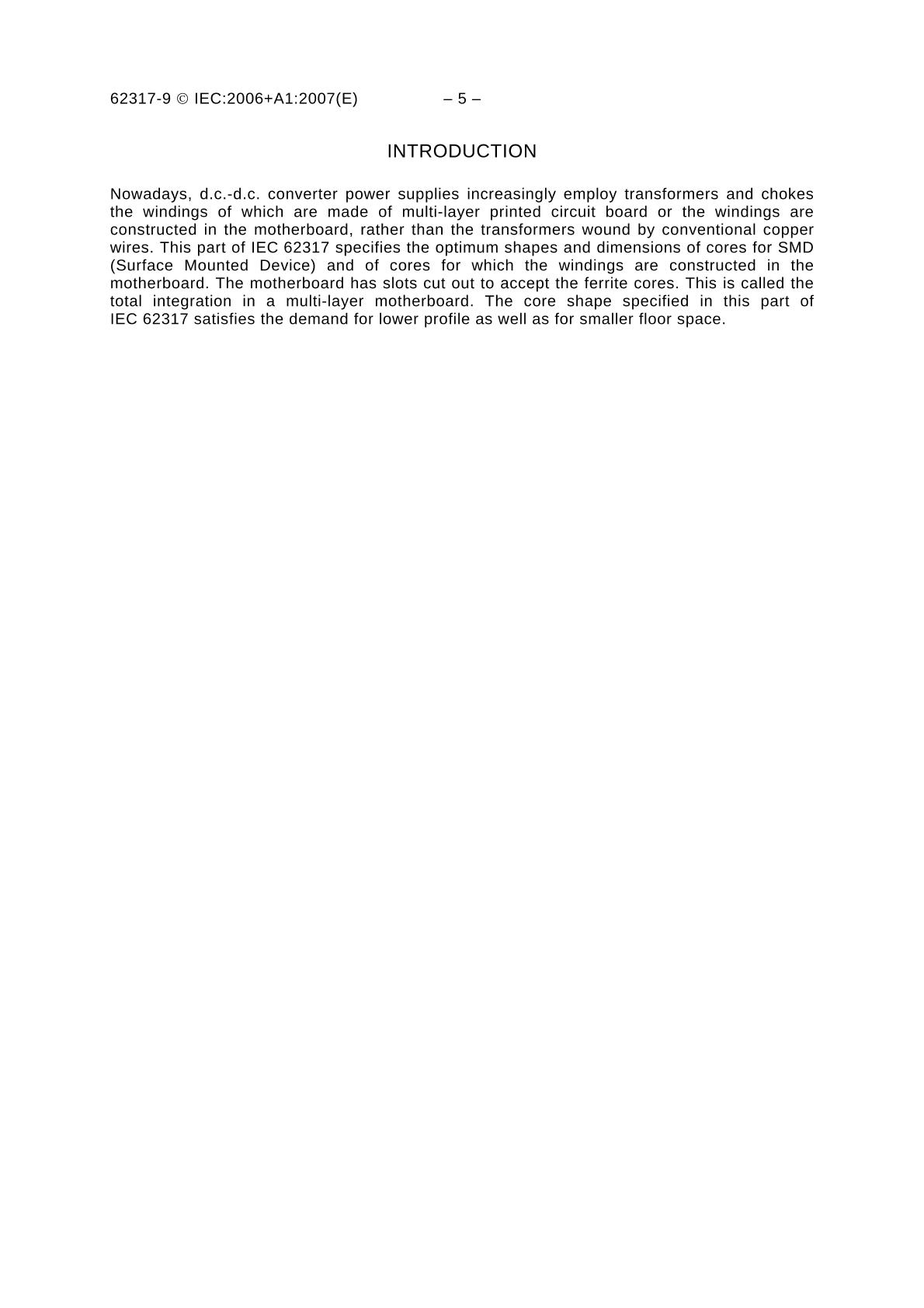

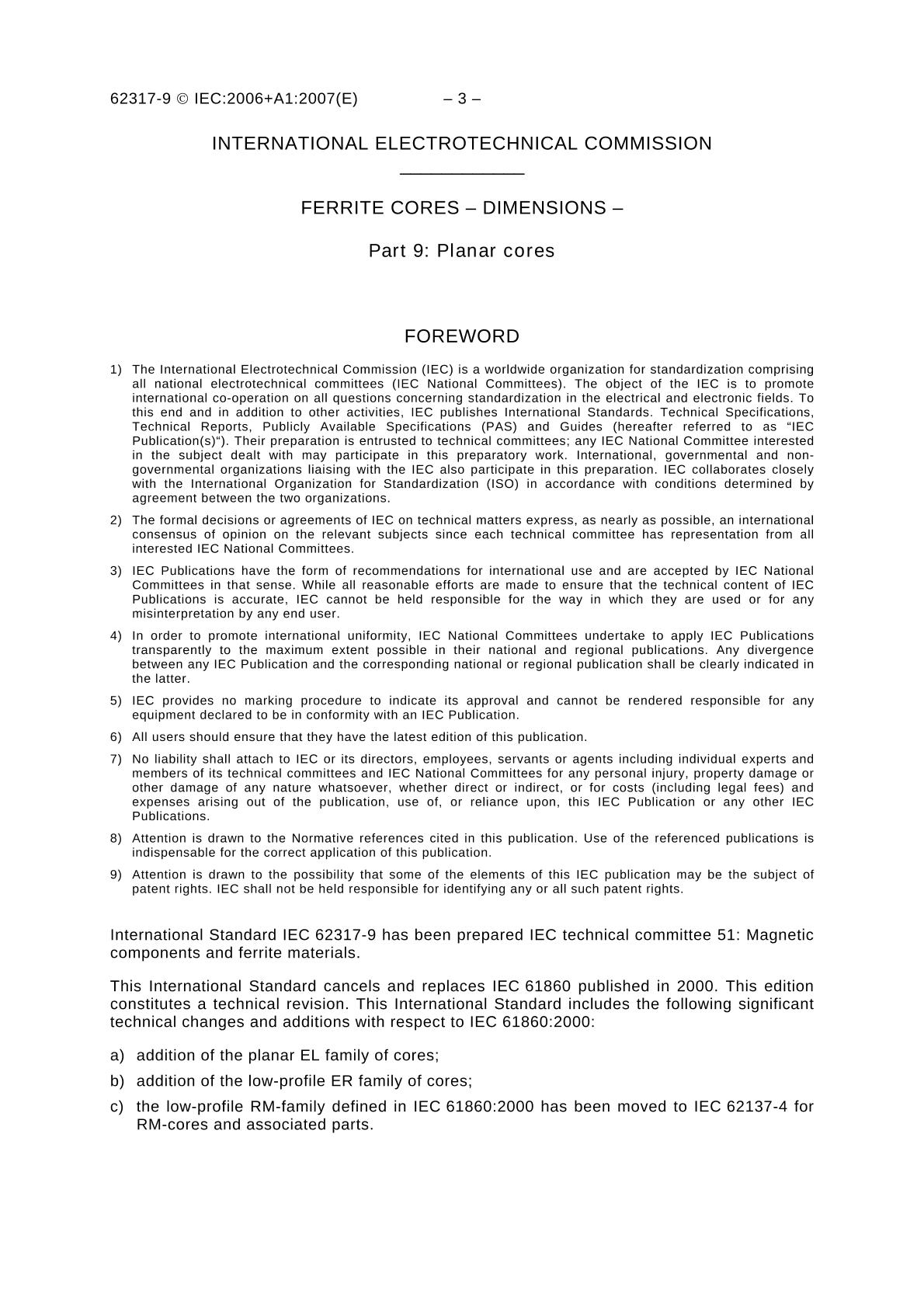

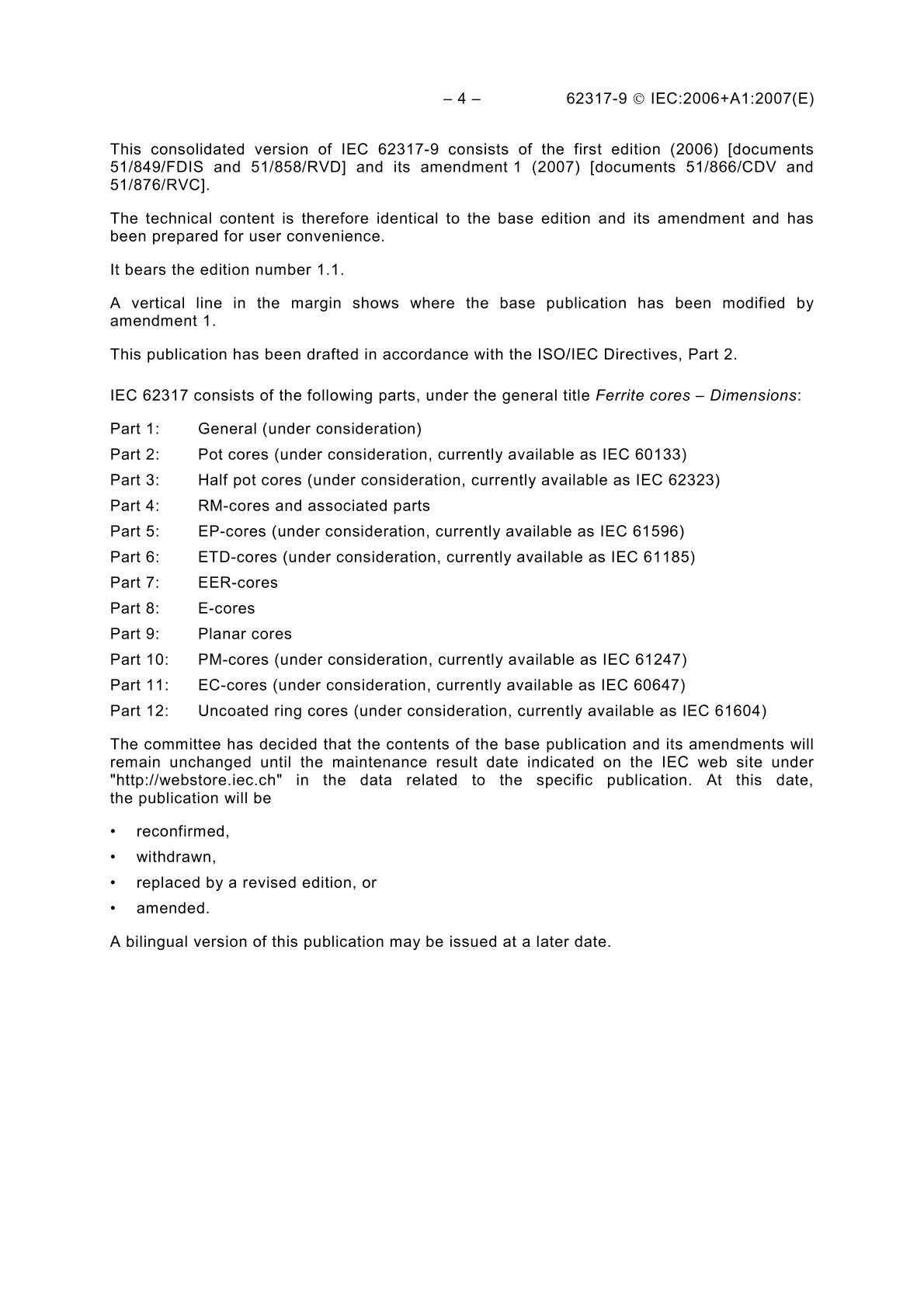

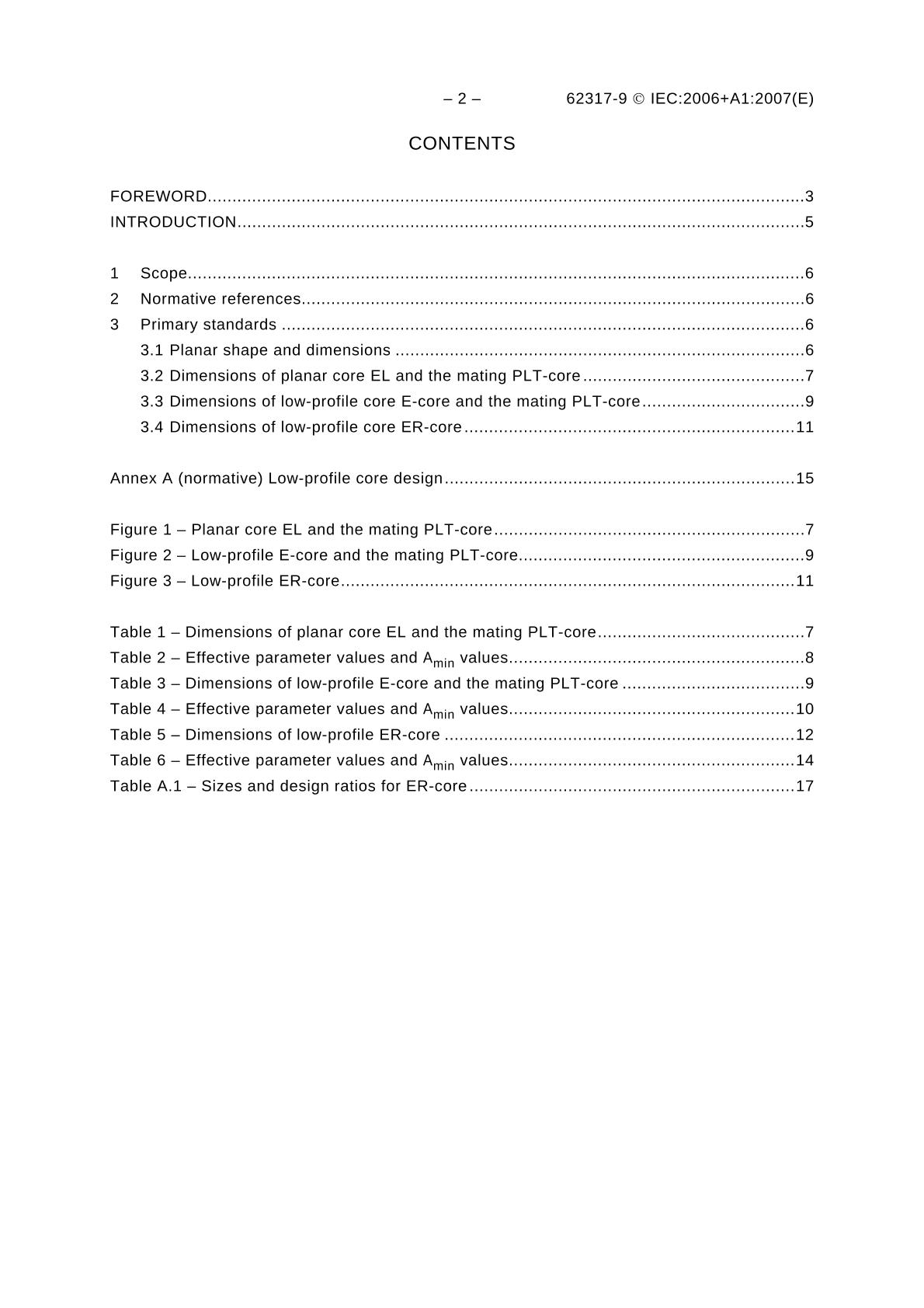

PDF Preview

IEC 62317-9 Ed. 1.1 en:2007

Ferrite cores - Dimensions - Part 9: Planar cores CONSOLIDATED EDITION

International Electrotechnical Commission, 03/29/2007

Publisher: IEC

File Format: PDF

$88.00$176.00


Published:29/03/2007

Pages:17

File Size:1 file , 150 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

Specifies the shapes and dimensions of ferrite cores for inductive components (transformers and chokes). Their coil is typically constructed by multi-layer board or is part of the motherboard. Also provides general considerations upon which the design of this range of cores is based.
