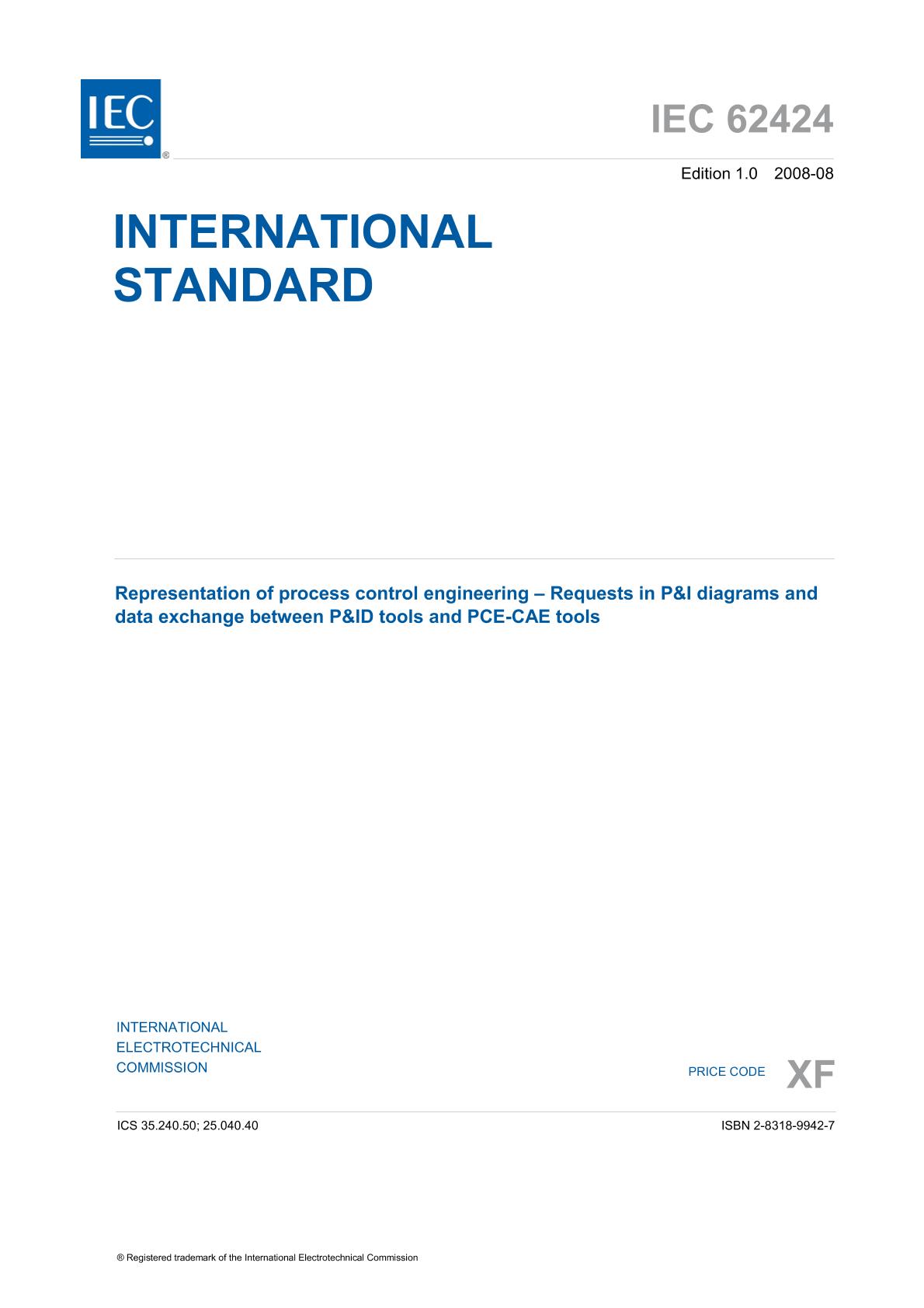

IEC 62424 Ed. 1.0 en:2008

Representation of process control engineering - Requests in P&I diagrams and data exchange between P&ID tools and PCE-CAE tools

International Electrotechnical Commission, 08/12/2008

Publisher: IEC

File Format: PDF

$161.00$322.00

Description

Published:12/08/2008

Pages:135

File Size:1 file , 1.7 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 62424:2008(E) specifies how process control engineering requests are represented in a P&ID for automatic transferring data between P&ID and PCE tool and to avoid misinterpretation of graphical P&ID symbols for PCE. It also defines the exchange of process control engineering request relevant data between a process control engineering tool and a P&ID tool by means of a data transfer language (called CAEX). These provisions apply to the export/import applications of such tools.
