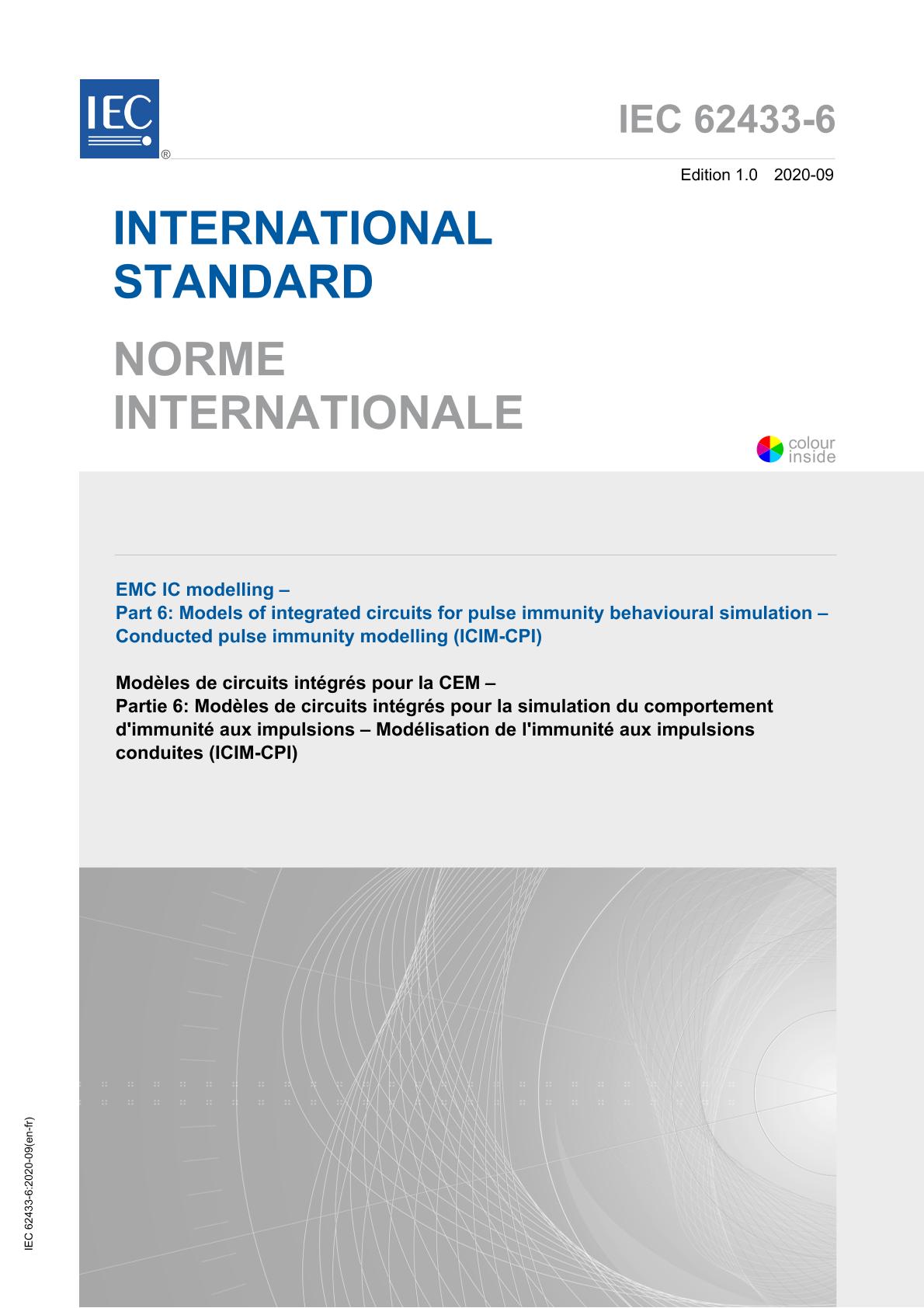

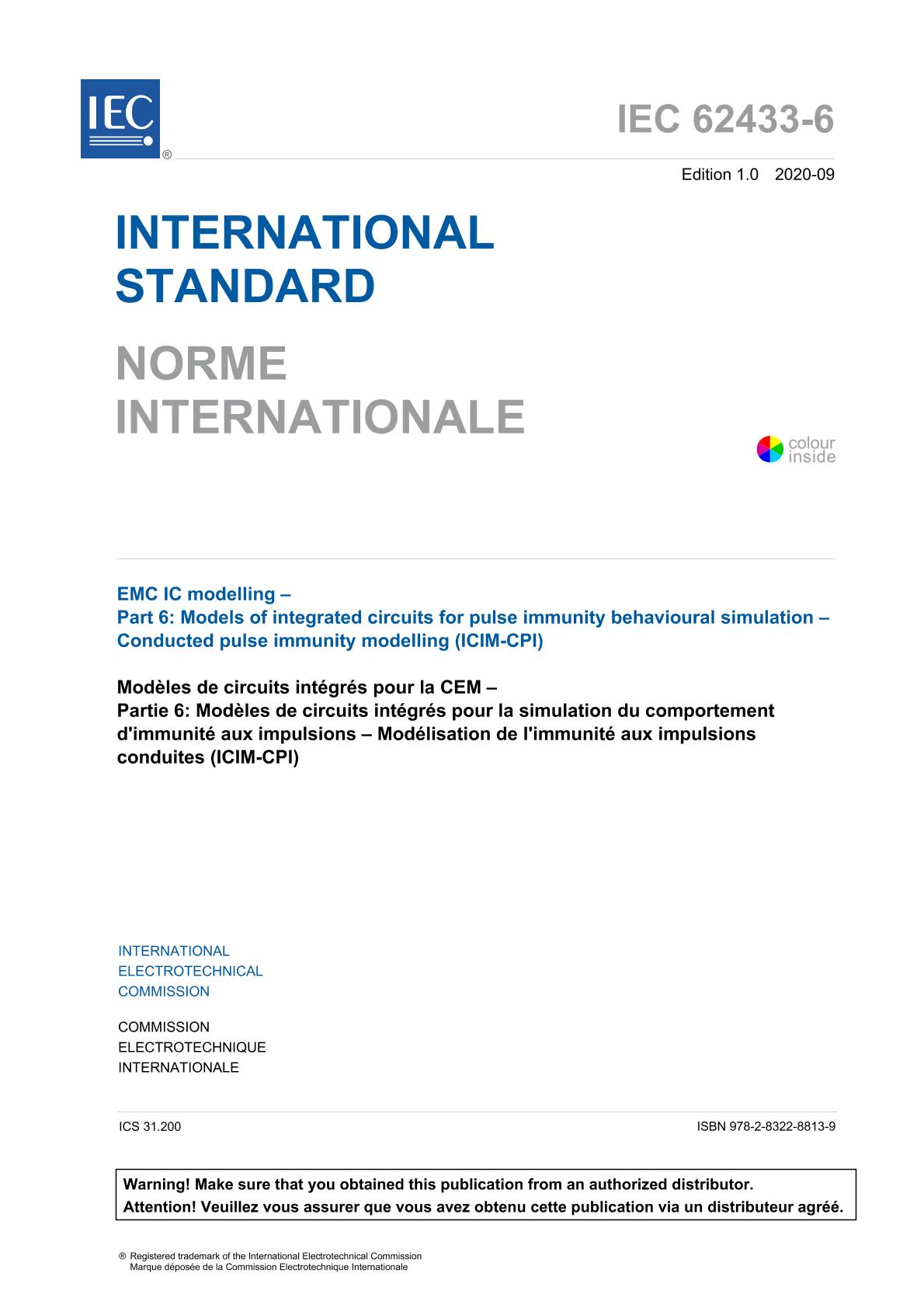

IEC 62433-6 Ed. 1.0 b:2020

EMC IC modelling - Part 6: Models of integrated circuits for pulse immunity behavioural simulation - Conducted pulse immunity modelling (ICIM-CPI)

International Electrotechnical Commission, 09/22/2020

Publisher: IEC

File Format: PDF

$183.00$367.00

Description

Published:22/09/2020

Pages:110

File Size:1 file , 4.8 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 62433-6:2020 describes the extraction flow for deriving an immunity macro-model of an Integrated Circuit (IC) against conducted Electrostatic Discharge (ESD) according to IEC 61000-4-2 and Electrical Fast Transients (EFT) according to IEC 61000-4-4.
