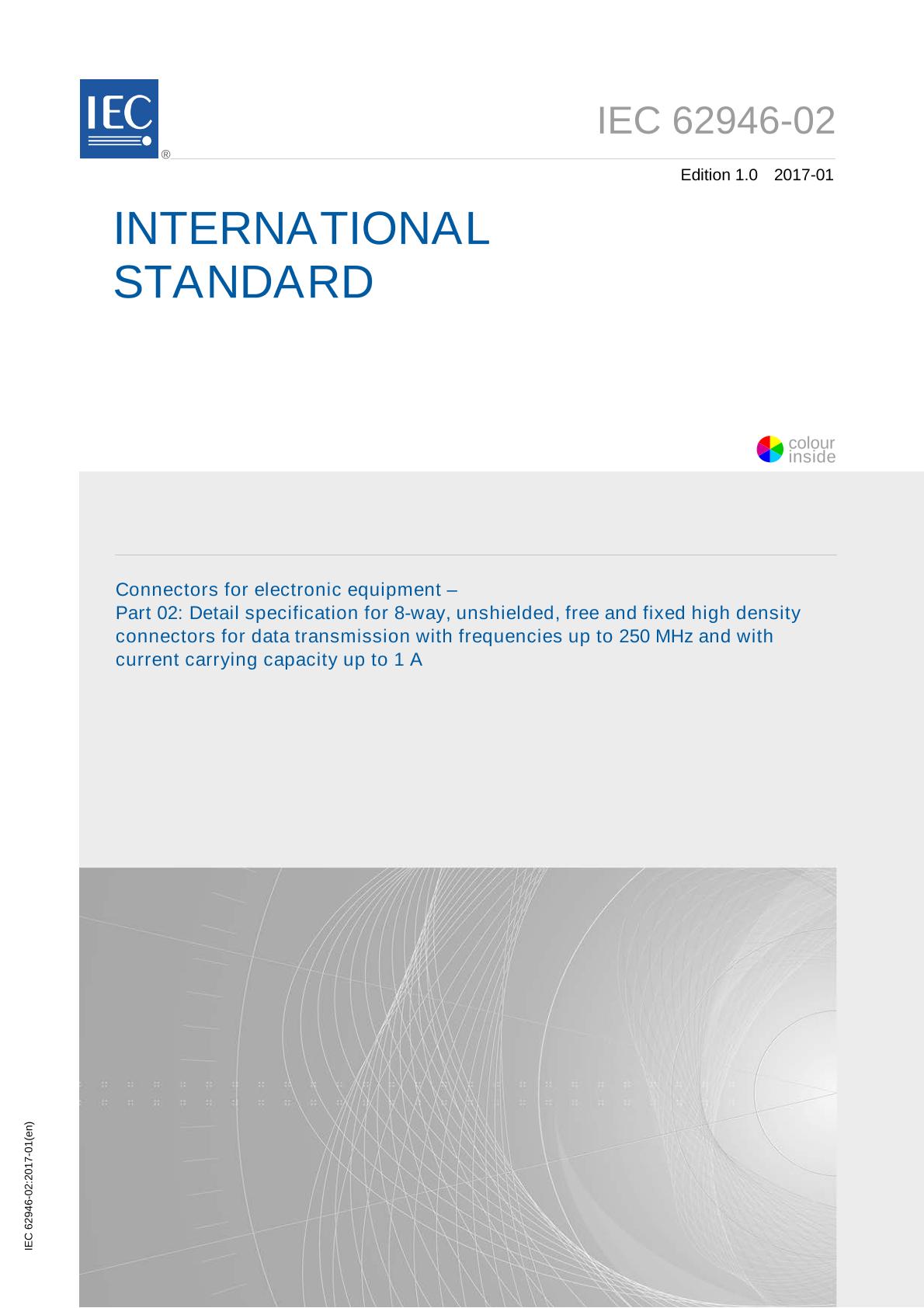

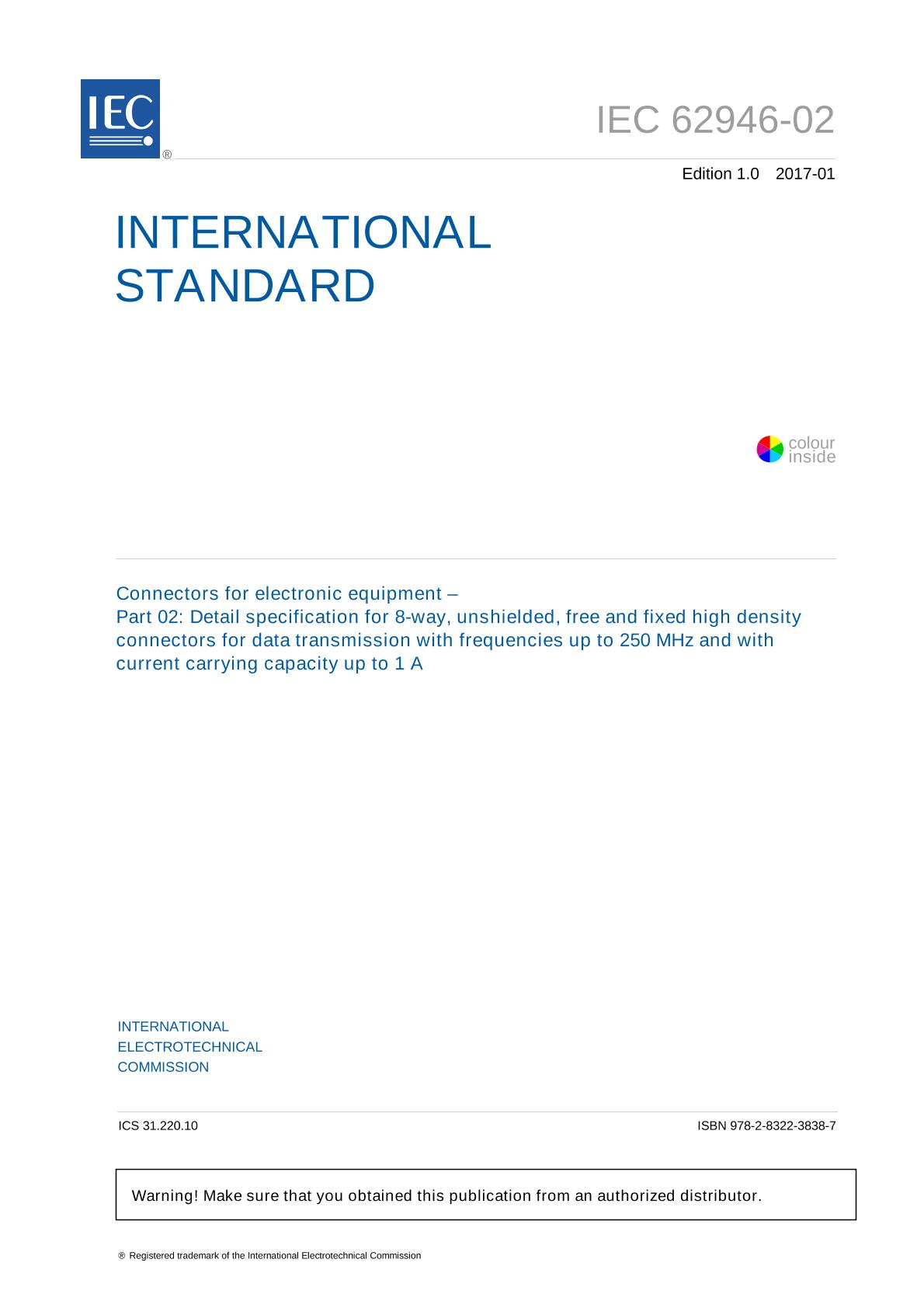

IEC 62946-02 Ed. 1.0 en:2017

Connectors for electronic equipment - Part 02: Detail specification for 8-way, unshielded, free and fixed high density connectors for data transmission up to 250 MHz and with current carrying capacity up to 1 A

International Electrotechnical Commission, 01/20/2017

Publisher: IEC

File Format: PDF

$117.00$234.00

Description

Published:20/01/2017

Pages:28

File Size:1 file , 790 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 62946-02:2017(E) covers 8-way, unshielded free and fixed high density connectors for data transmission with frequencies up to 250 MHz and with extra low voltage current carrying capabilities up to 1 A, and is intended to specify the common dimensions, mechanical, electrical, signal integrity and environmental characteristics and tests for these connectors.

Key words: Connectors, 8-way. Shielded Free and Fixed High density, Data Transmission
