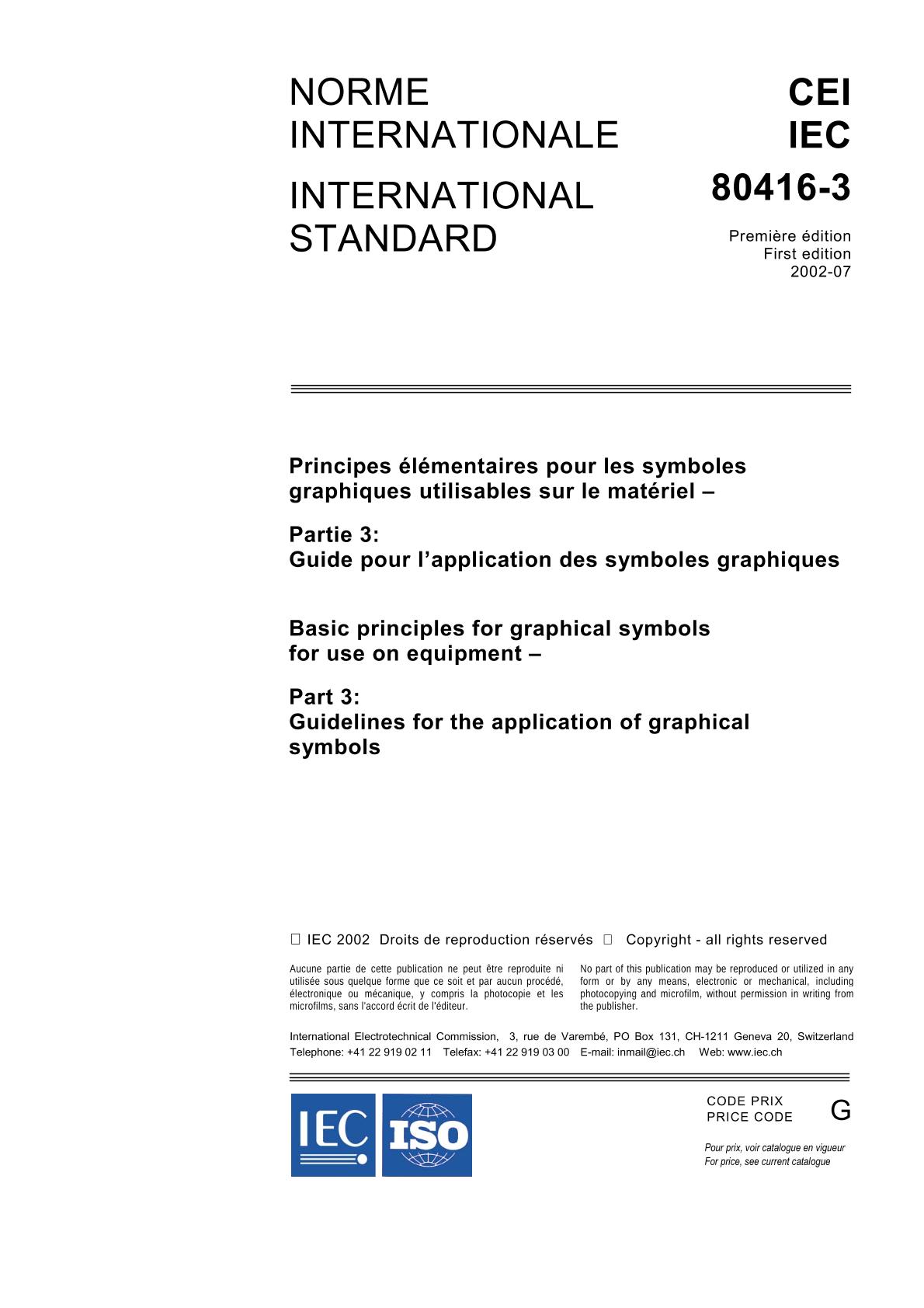

IEC 80416-3 Ed. 1.0 b:2002

Basic principles for graphical symbols for use on equipment - Part 3: Guidelines for the application of graphical symbols

International Electrotechnical Commission, 07/19/2002

Publisher: IEC

File Format: PDF

$25.00$51.00


Published:19/07/2002

Pages:23

File Size:1 file , 650 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

Provides guidelines for the application of graphical symbols for use on equipment in order to maintain visual clarity and overall consistency when such graphical symbols are applied. It stipulates the permissible extent by which a symbol original may be modified in reproduction for actual use on equipment
