IEEE 1110-2019

IEEE Guide for Synchronous Generator Modeling Practices and Parameter Verification with Applications in Power System Stability Analyses

IEEE, 03/02/2020

Publisher: IEEE

File Format: PDF

$49.00$99.00


Published:02/03/2020

Pages:91

File Size:1 file , 2.3 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

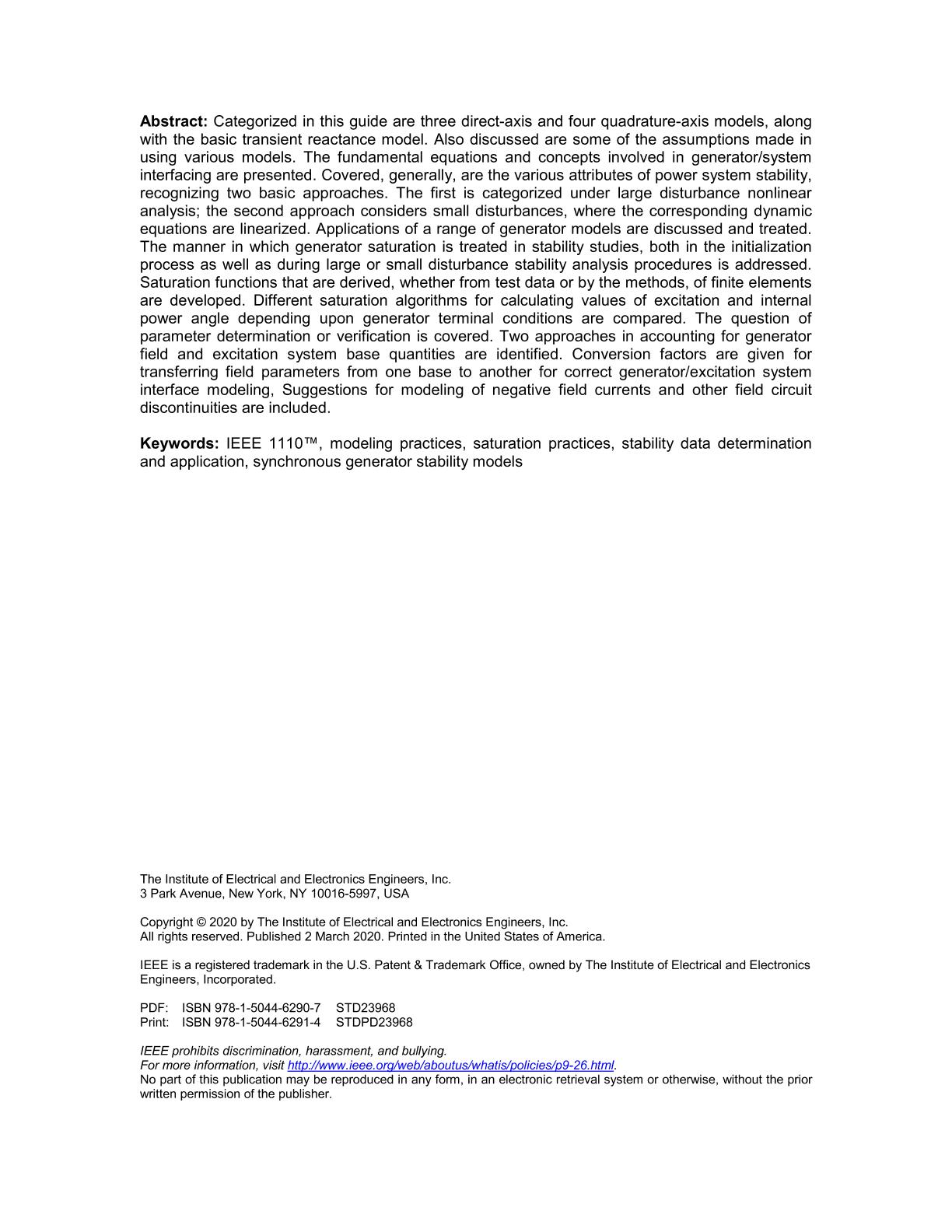

This guide contains instructions for modeling synchronous machines in direct- and quadrature-axis equivalent circuits, along with the basic transient and subtransient reactance/time-constants model in view of stability studies. It discusses assumptions made in using various models and presents the fundamental equations and concepts involved in generator/system interfacing. The manner in which generator saturation is treated in network studies, both in the initialization process as well as during large or small disturbance stability analysis procedures is addressed. Approaches for improving the accuracy of field and excitation system quantities are identified and conversion factors are given for transferring field parameters from one base to another for correct generator/excitation system interface modeling. Parameter determination and translation from equivalent-circuits to operational impedances or vice-versa is covered. Data analysis methods for obtaining these parameters using measurements from field tests or finite-element computations are explained and illustrated with a wide range of generator and test data. However, this guide refers to applicable standards (such as IEEE Std 115) or contract specification for scheduling such tests. Also, this guide does not attempt to recommend specific procedures for machine representation in non-standard or atypical cases such as generator tripping and overspeed operation or models for harmonics or unbalanced operation.
