IEEE 1870-2019

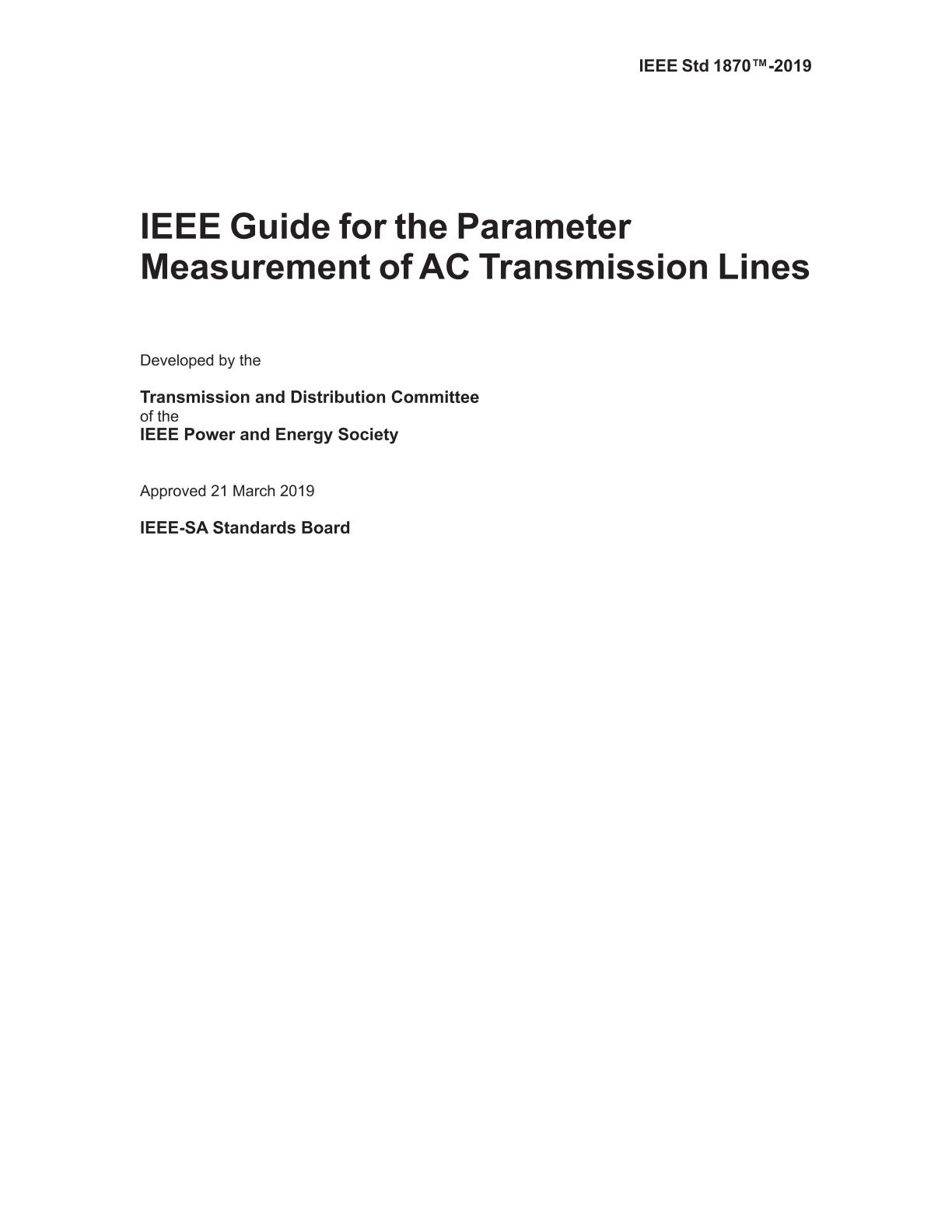

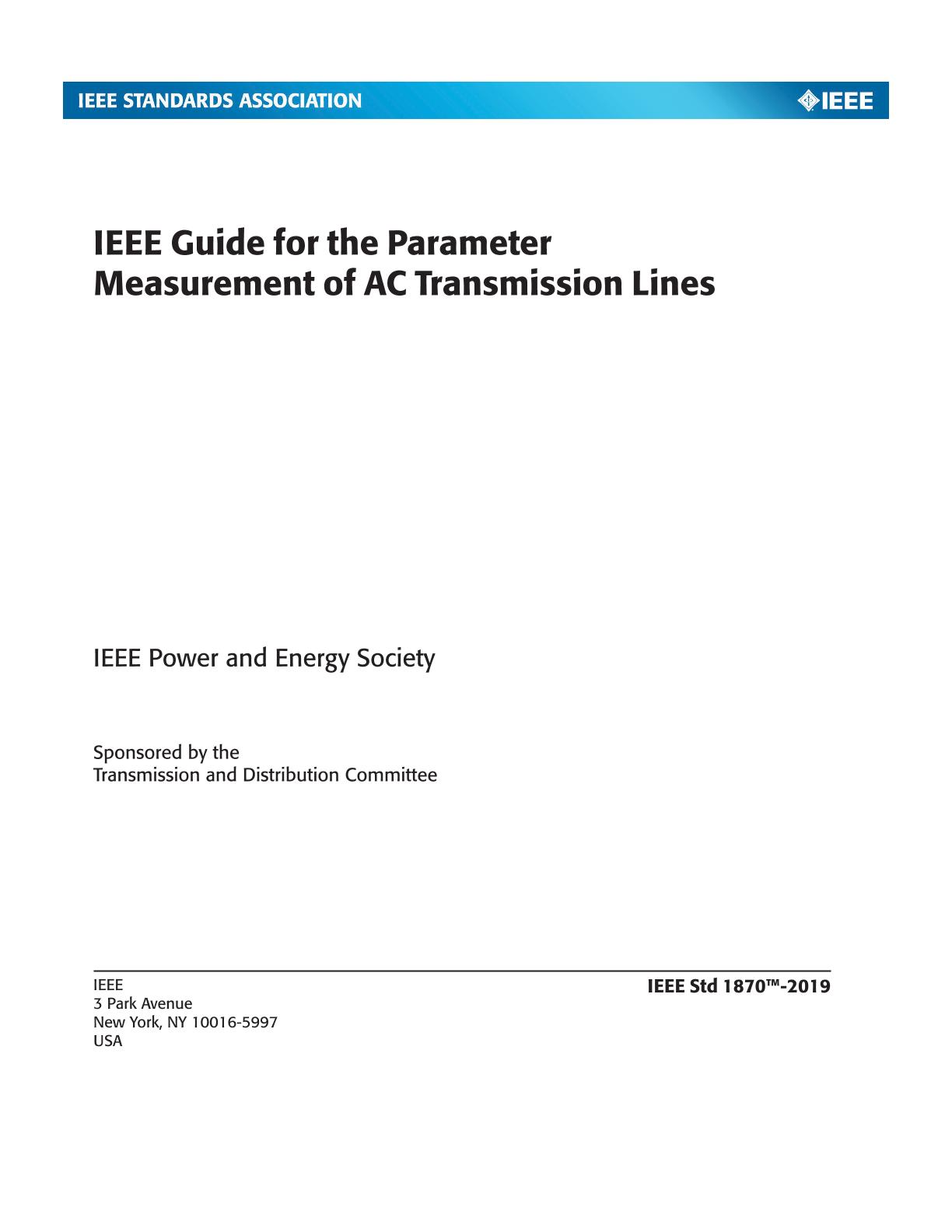

IEEE Guide for the Parameter Measurement of AC Transmission Lines

IEEE, 07/08/2019

Publisher: IEEE

File Format: PDF

$50.00$100.00


Published:08/07/2019

Pages:90

File Size:1 file , 2.7 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

This guide will provide testing methods for impedance measurement of alternating current (AC) transmission line and calculating methods for the RLC (Resistance, Inductance, and Capacitance) distribution parameters of the tested line. It will also provide testing and calculating methods to obtain mutual inductance and coupling capacitance between double circuit lines on same tower. This guide will outline the measuring instruments and the safety of the measurement. In addition, it will include test procedures to obtain the open circuit impedances of the tested line as well as the formulas to get the distributed parameters from impedance measurements.
