IEEE 43-2000

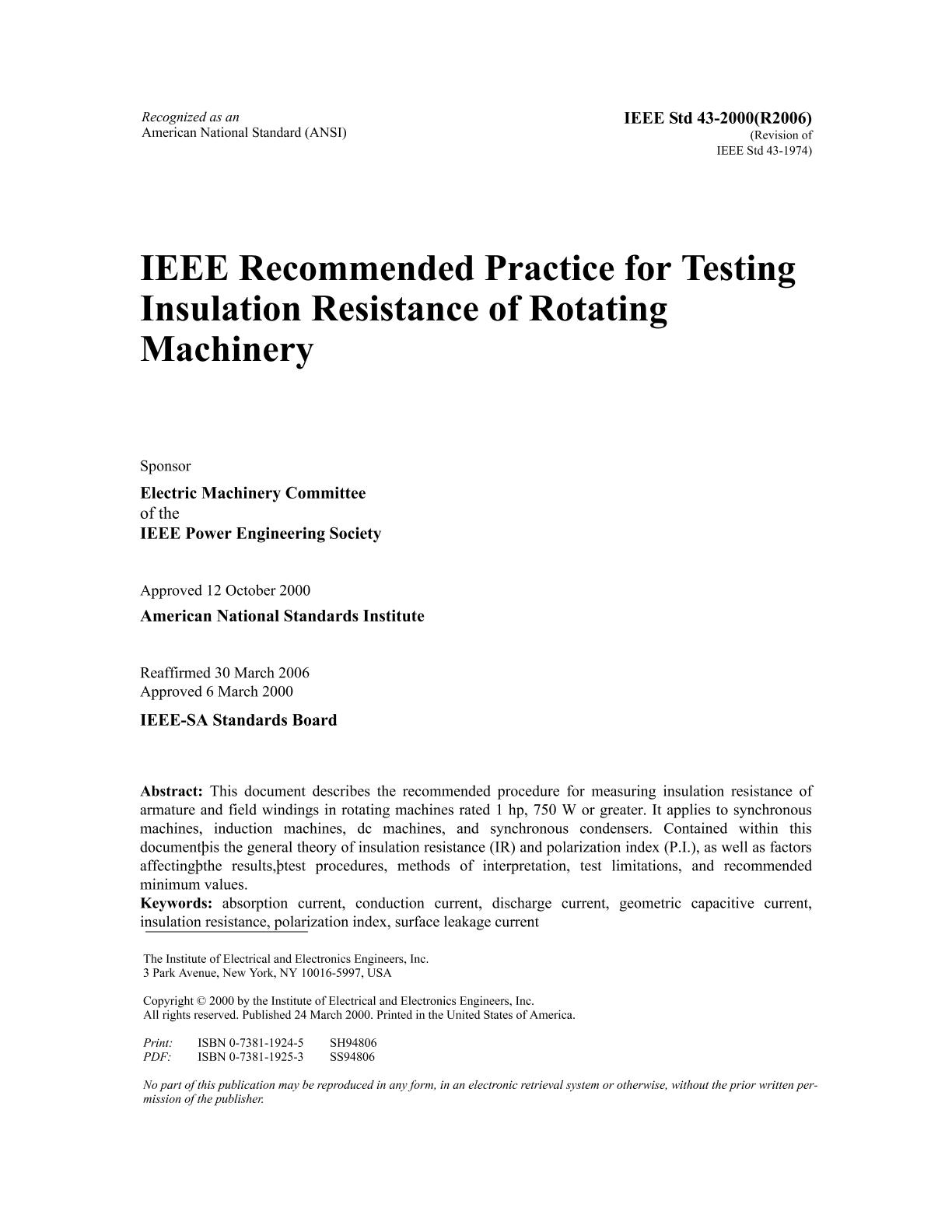

IEEE Recommended Practice for Testing Insulation Resistance of Rotating Machinery

IEEE, 03/23/2000

Publisher: IEEE

File Format: PDF

$56.00$112.00


Published:23/03/2000

Pages:28

File Size:1 file , 880 KB

Note:This product is unavailable in Russia, Belarus

This document describes a recommended procedure for measuring insulation resistance of armature and field windings in rotating machines rated 1 hp, 750 W or greater. It applies to synchronous machines, induction machines, dc machines, and synchronous condensers. It does not apply to fractional-horsepower machines. The document also describes typical insulation resistance characteristics of rotating machine windings and how these characteristics indicate winding condition. It recommends minimum acceptable values of insulation resistance for ac and dc rotating machine windings. Othere IEEE standards that include information on insulation resistance measurement are listed in Clause 2.
