IEEE 638-2013

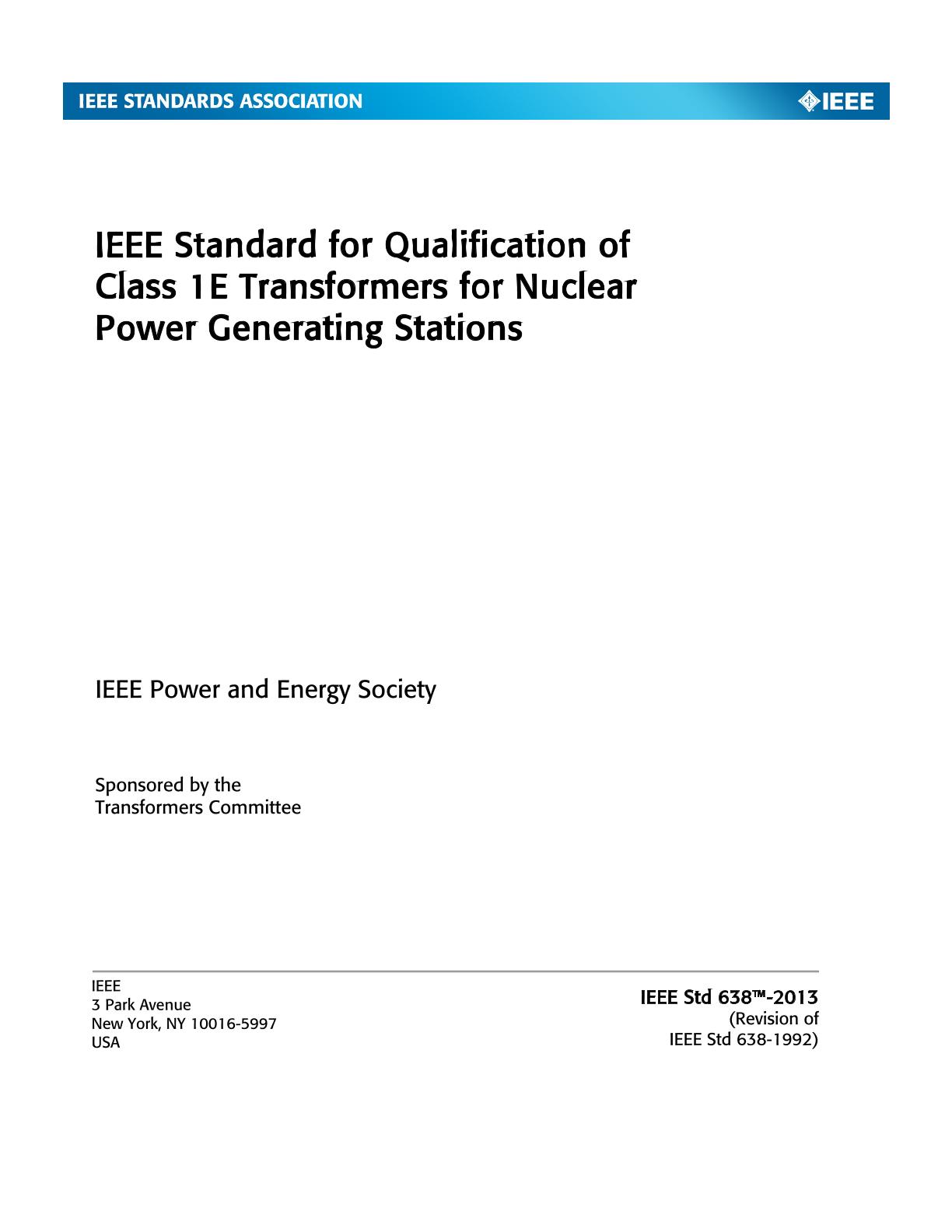

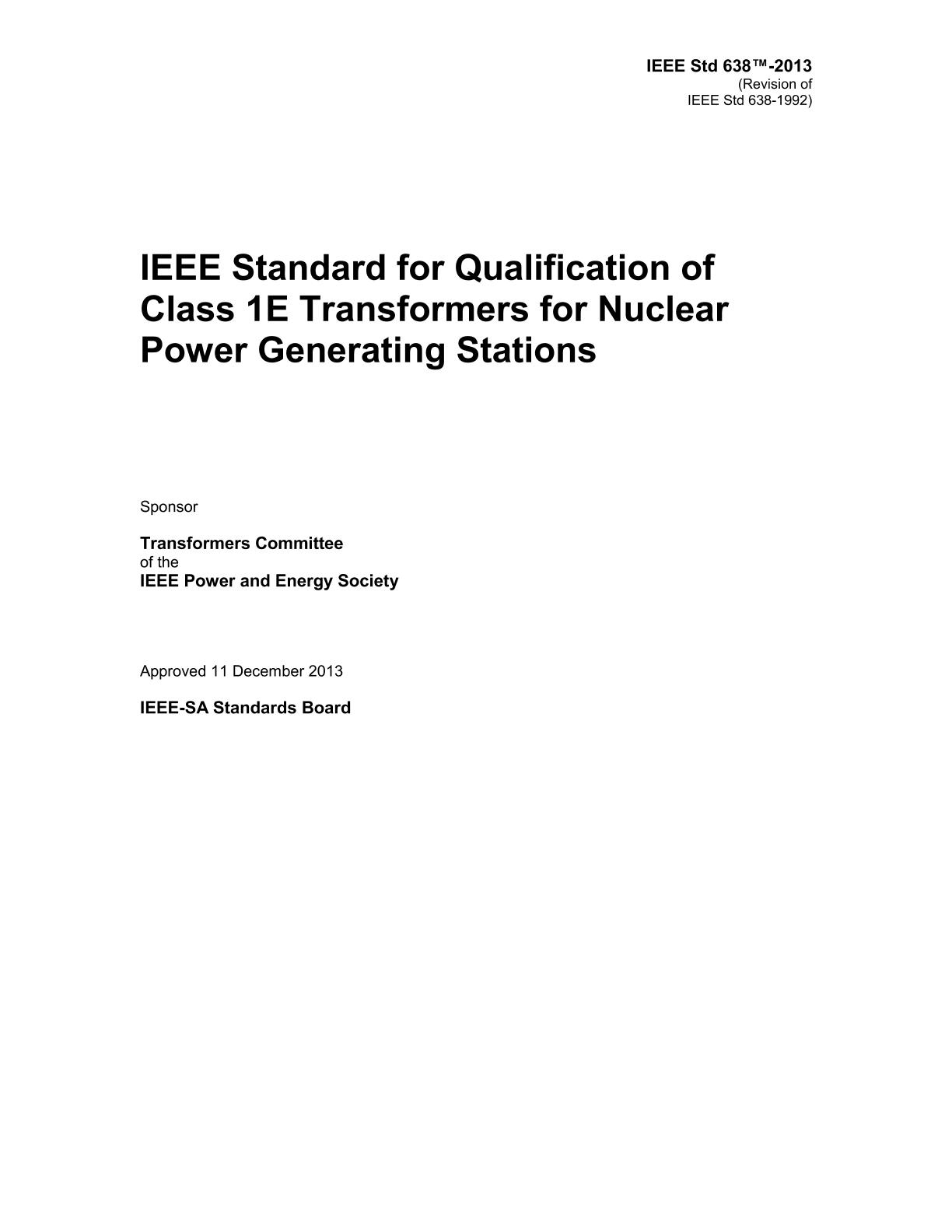

IEEE Standard for Qualification of Class 1E Transformers for Nuclear Power Generating Stations

IEEE, 03/11/2014

Publisher: IEEE

File Format: PDF

$26.00$53.00

Description

Published:11/03/2014

Pages:21

File Size:1 file , 440 KB

Note:This product is unavailable in Russia, Ukraine, Belarus

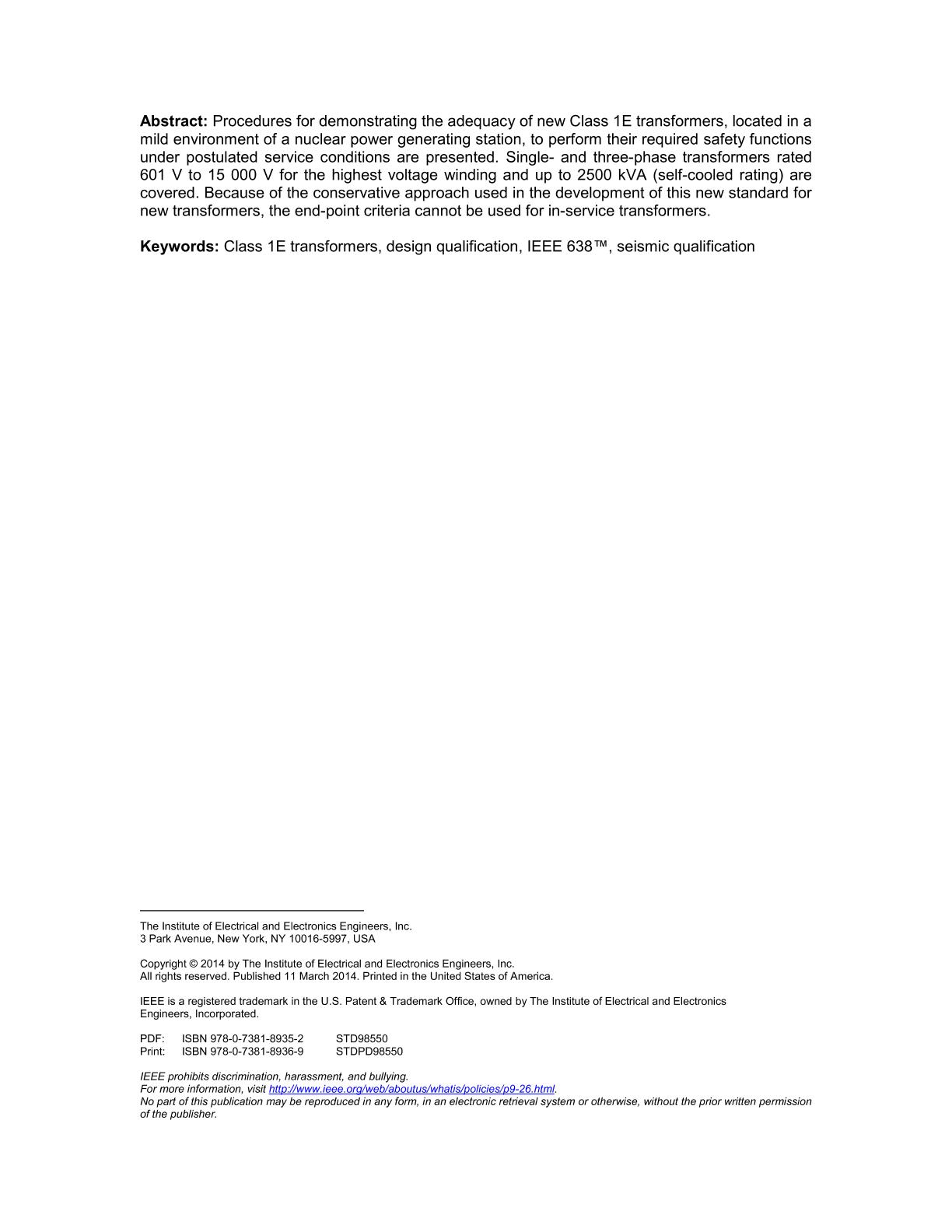

This standard provides requirements to demonstrate the adequacy of new Class IE transformers, located in a mild environment of a nuclear power generating station as defined in IEEE Std 323¿¿¿1, to perform their required safety functions under postulated service conditions. This standard applies to single- and threephase transformers rated 601 V to 15 000 V for the highest voltage winding and up to 2500 kVA (base rating).
