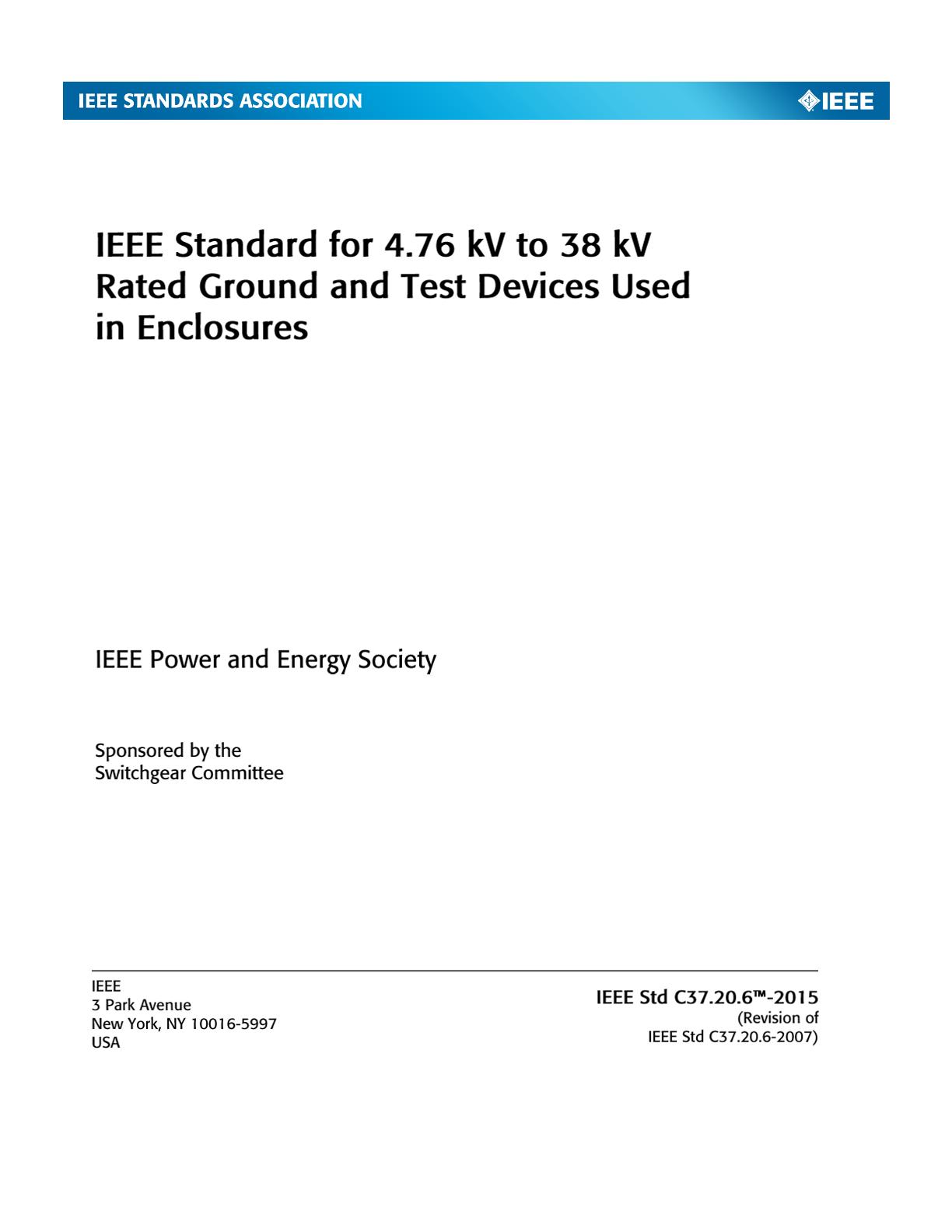

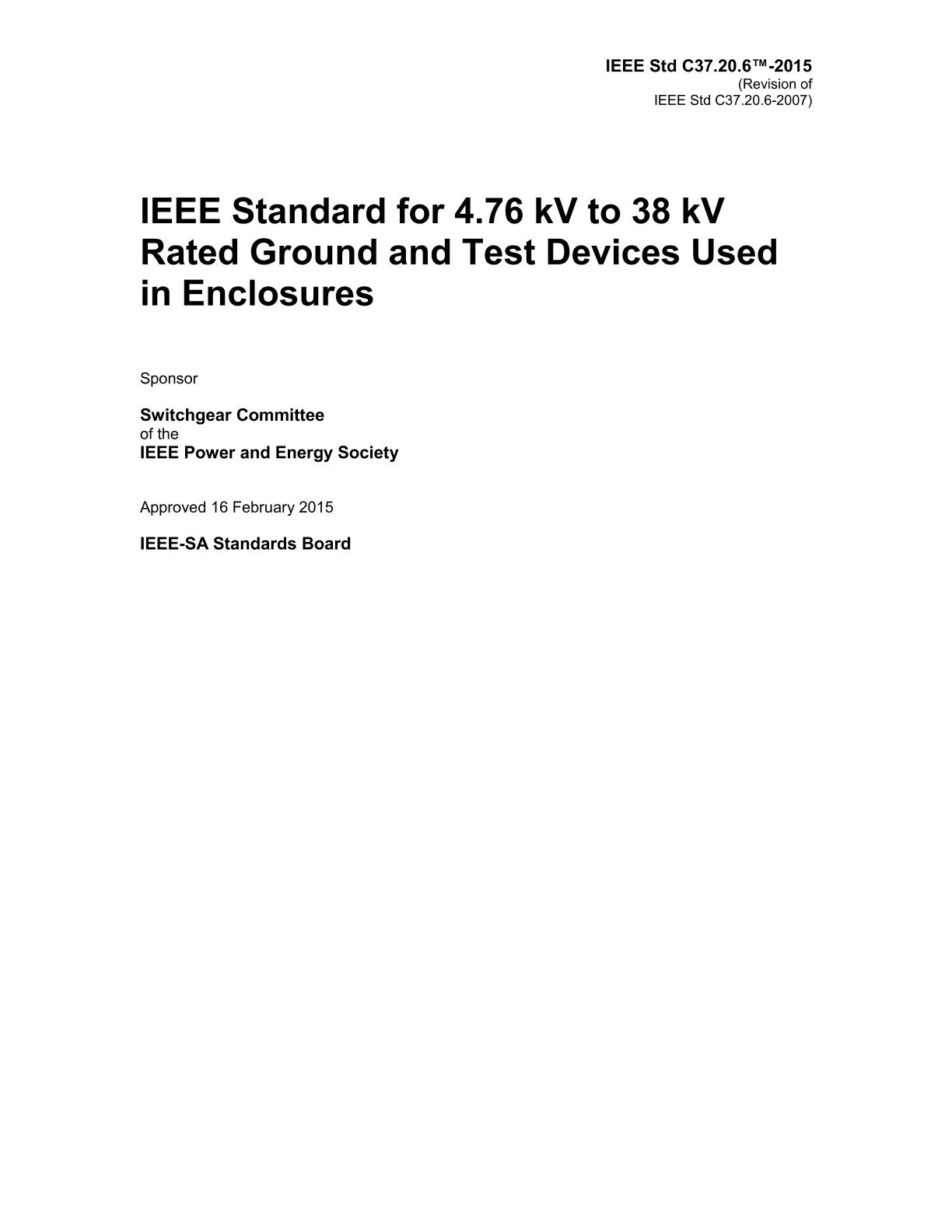

IEEE C37.20.6-2015

IEEE Standard for 4.76 kV to 38 kV Rated Ground and Test Devices Used in Enclosures

IEEE, 04/10/2015

Publisher: IEEE

File Format: PDF

$38.00$77.00


Published:10/04/2015

Pages:31

File Size:1 file , 2.5 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

This standard covers drawout-type, indoor, medium-voltage ground and test (G&T) devices for use in drawout metal-clad switchgear rated 4.76 kV through 38 kV as described in IEEE Std C37.20.2(TM). Four G&T device types are generally supplied for temporary circuit maintenance procedures for insertion in place of the circuit breaker as follows: a) Simple manual devices b) Complex manual devices c) Simple electrical devices d) Complex electrical devices There may be more complicated G&T devices that may include current and/or voltage transformers, glow tubes, or other accessory components. These more complex devices are not covered by this standard. Due to their complexity, additional testing and interlocking are required, and manufacturers should be consulted for the availability and ratings of these types of devices.
