IEEE C57.13.5-2009

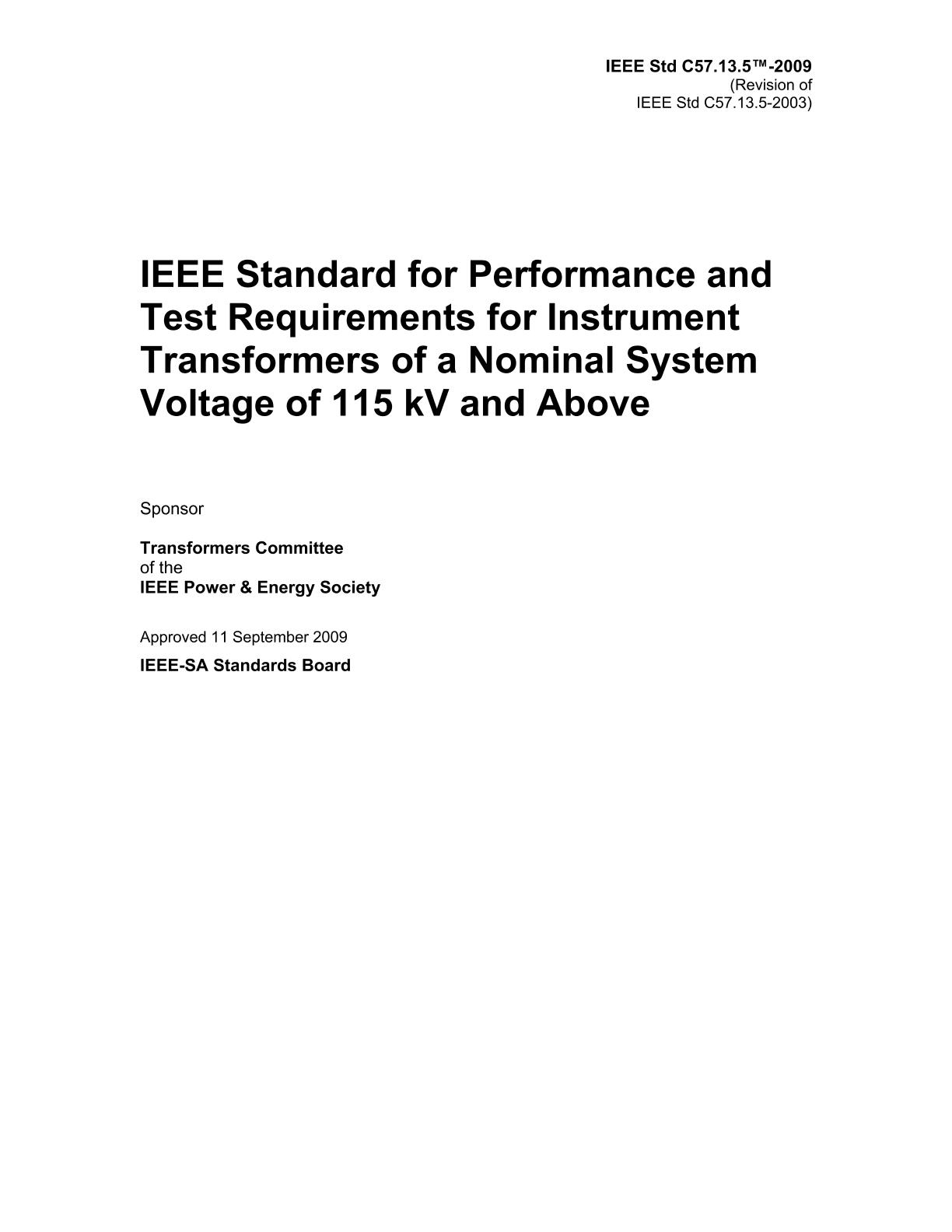

IEEE Standard of Performance and Test Requirements for Instrument Transformers of a Nominal System Voltage of 115 kV and Above

IEEE, 12/30/2009

Publisher: IEEE

File Format: PDF

$42.00$84.00


Published:30/12/2009

Pages:77

File Size:1 file , 1.2 MB

Note:This product is unavailable in Russia, Belarus

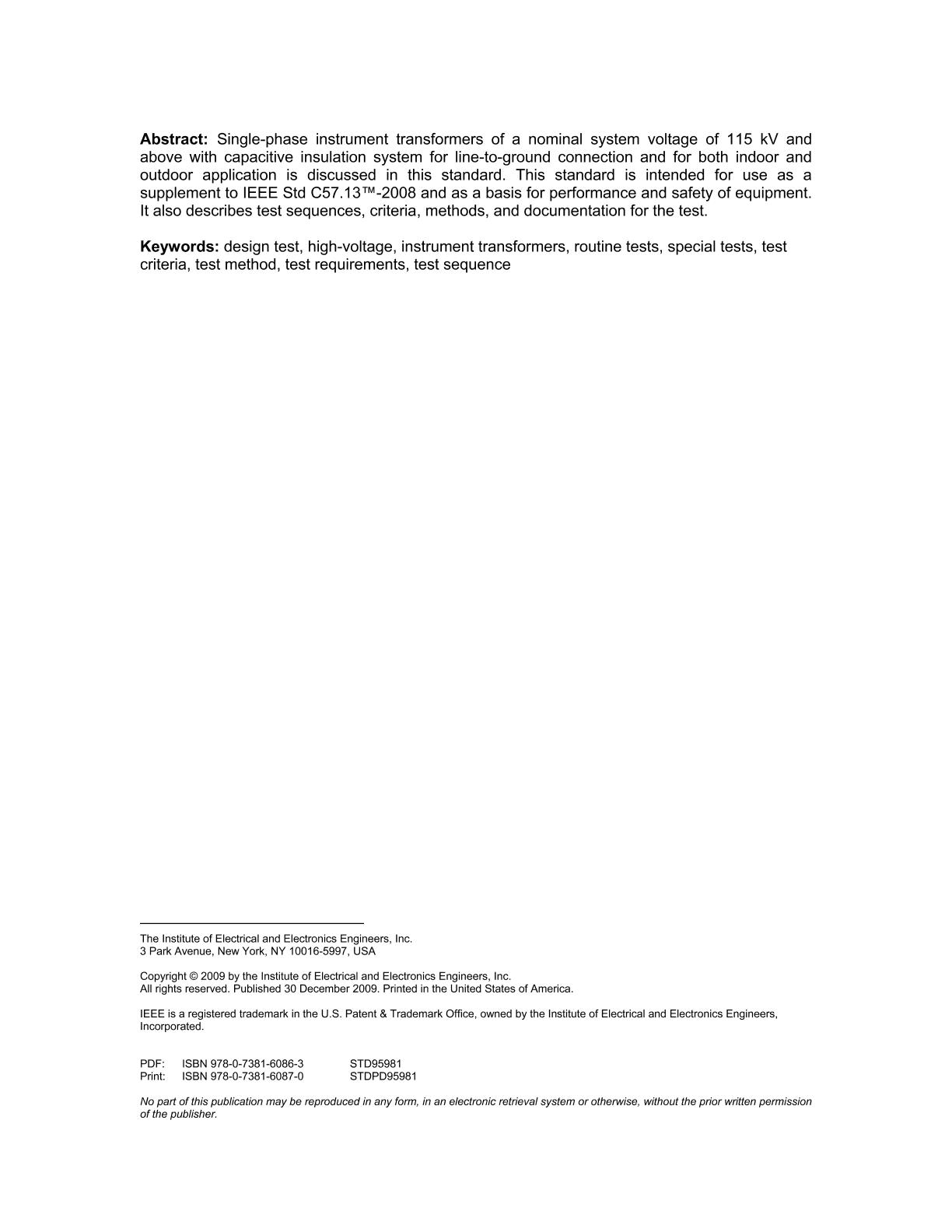

This standard applies to single-phase instrument transformers of a nominal system voltage of 115 kV and above with capacitive insulation system for line-to-ground connection and for both indoor and outdoor application. This standard is intended for use as a supplement to IEEE Std C57.13 and as a basis for performance and safety of equipment. It also describes test sequences, criteria, methods and documentation for the test.
