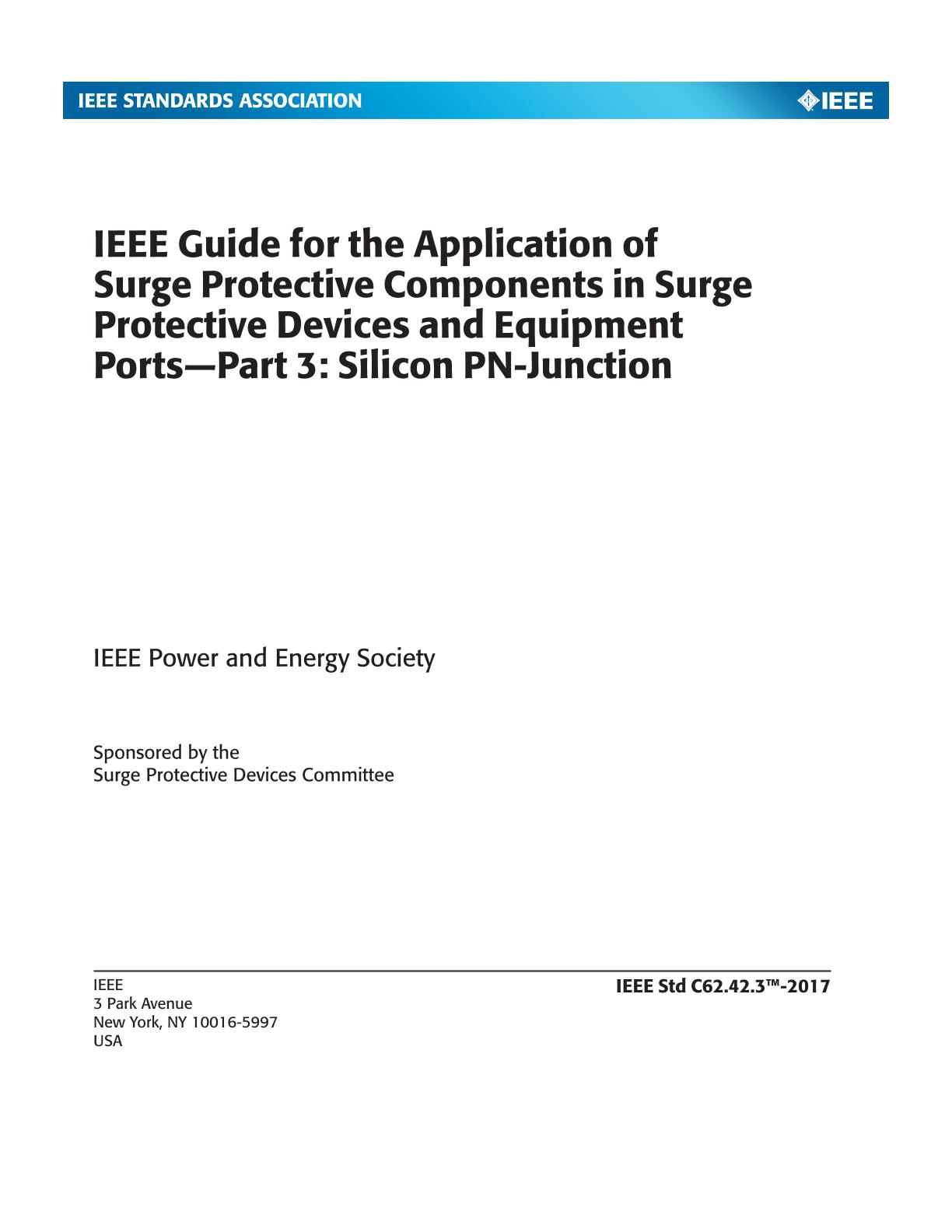

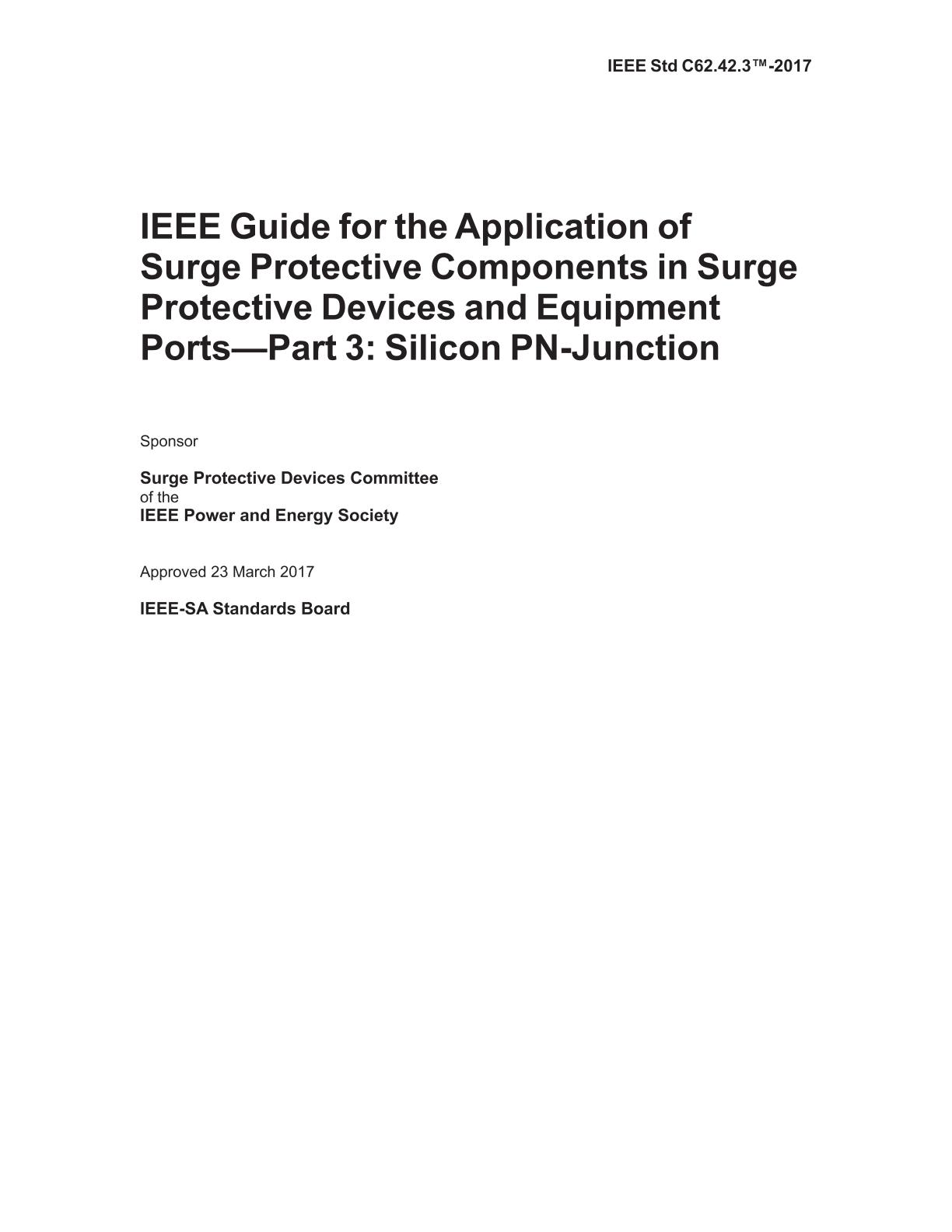

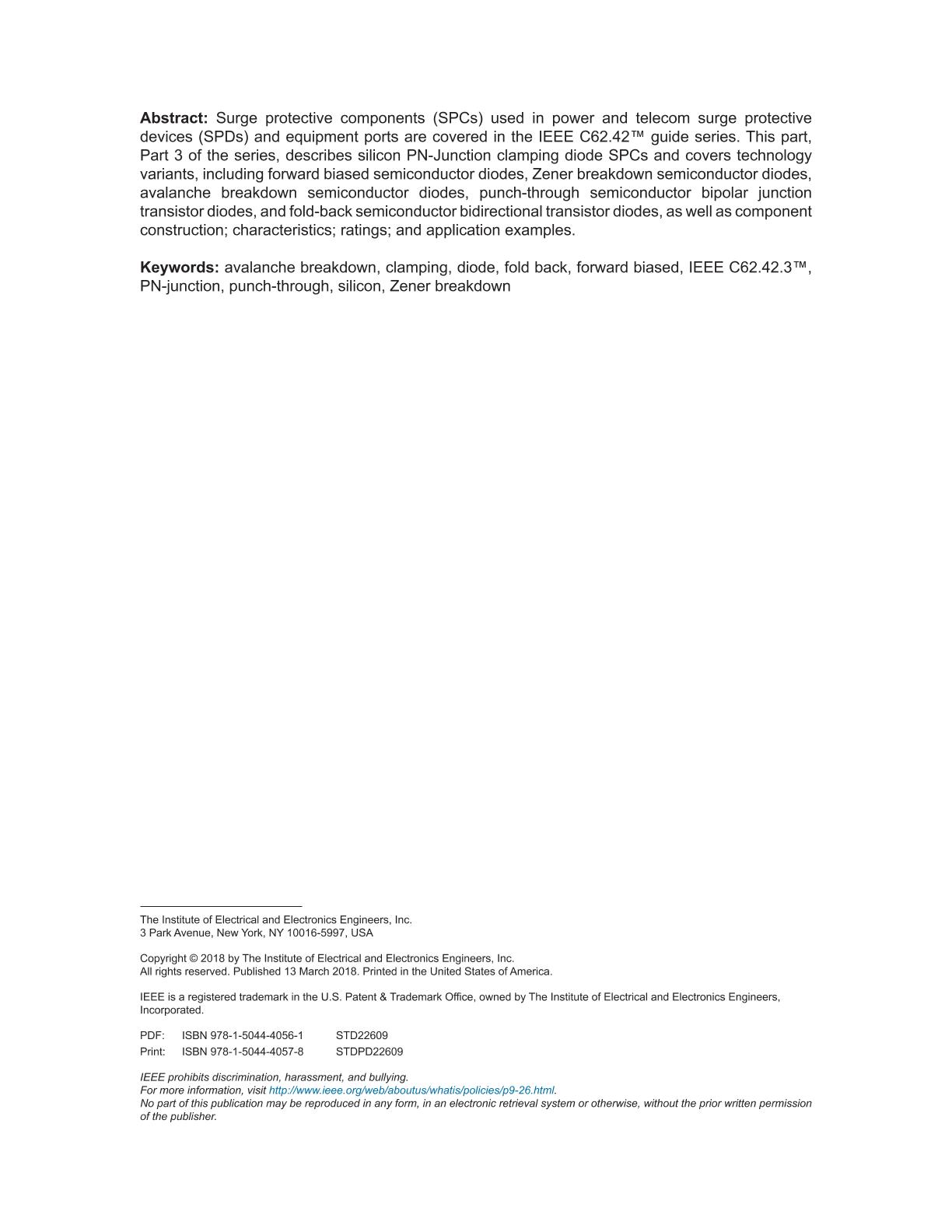

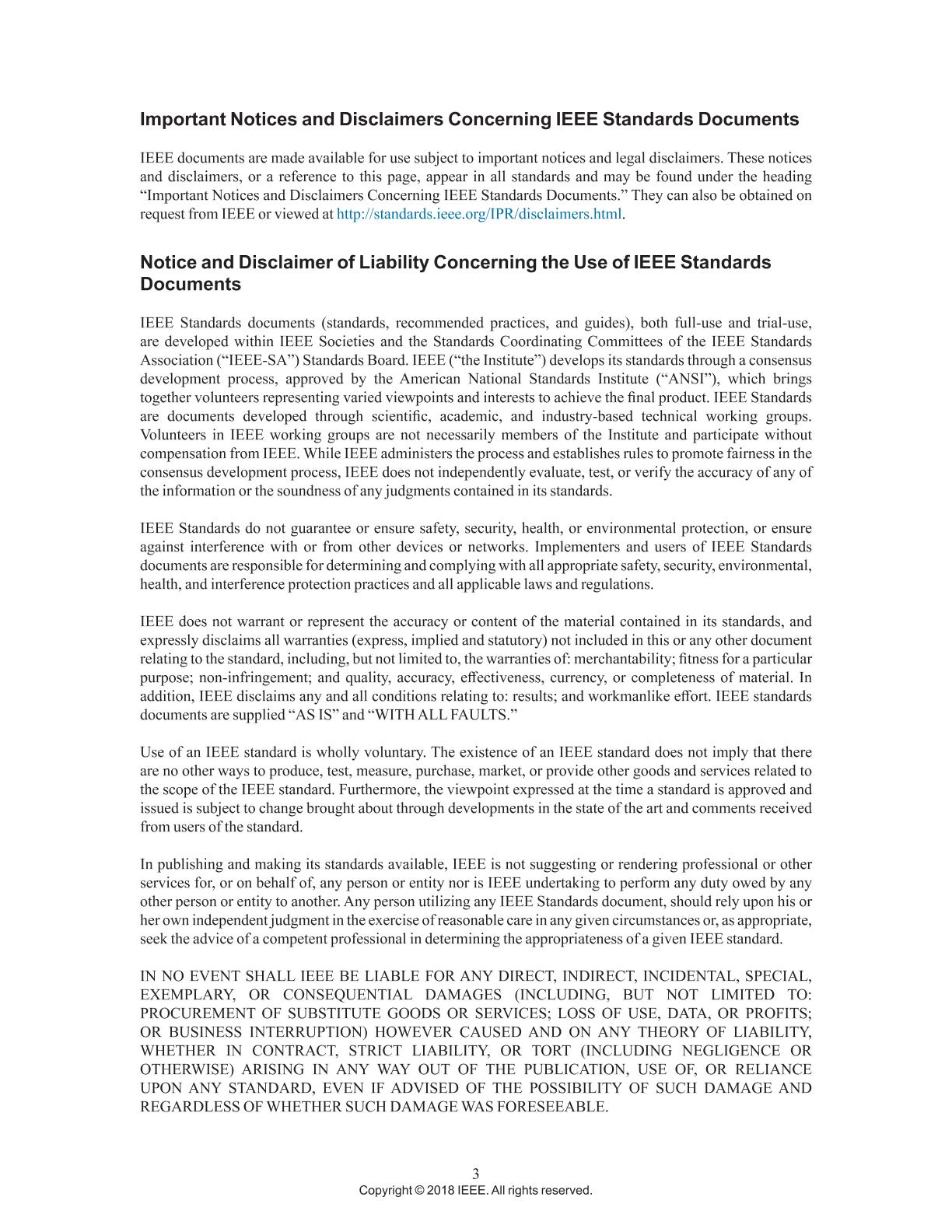

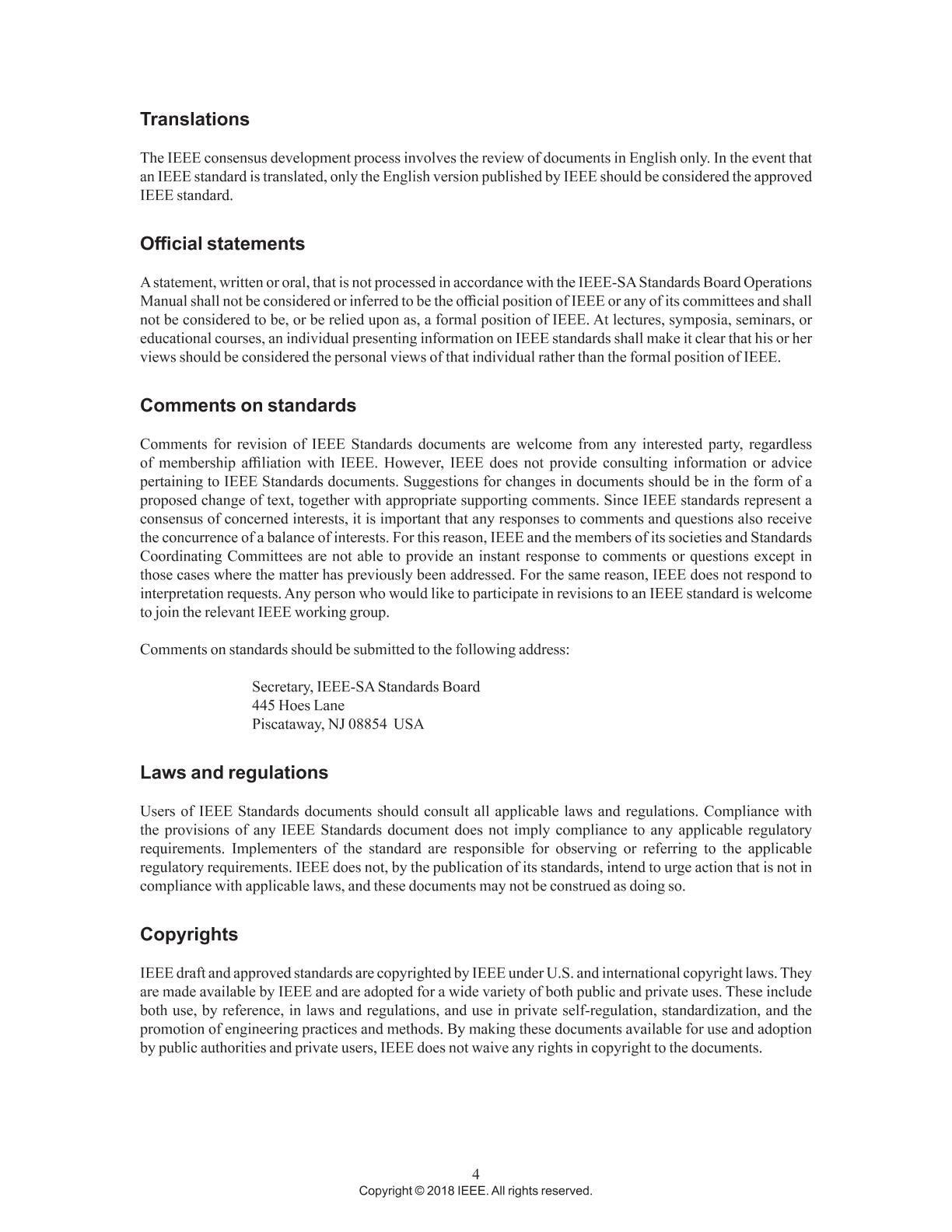

PDF Preview

IEEE C62.42.3-2017

IEEE Guide for the Application of Surge Protective Components in Surge Protective Devices and Equipment Ports -- Part 3: Silicon PN-Junction

IEEE, 03/13/2018

Publisher: IEEE

File Format: PDF

$31.00$63.00


Published:13/03/2018

Pages:37

File Size:1 file , 4 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

The C62.42(TM) guide series covers surge protective components (SPCs) used in power and telecom surge protective devices (SPDs) and equipment ports. This part, Part 3 of the C62.42 series, describes Silicon PN-Junction Clamping Diode SPCs and covers: -Technology variants ----Forward biased semiconductor diodes ----Zener breakdown semiconductor diodes ----Avalanche breakdown semiconductor diodes ----Punch-through semiconductor bipolar junction transistor diodes ----Fold-back semiconductor bidirectional transistor diodes -Component construction -Characteristics -Ratings -Application examples
