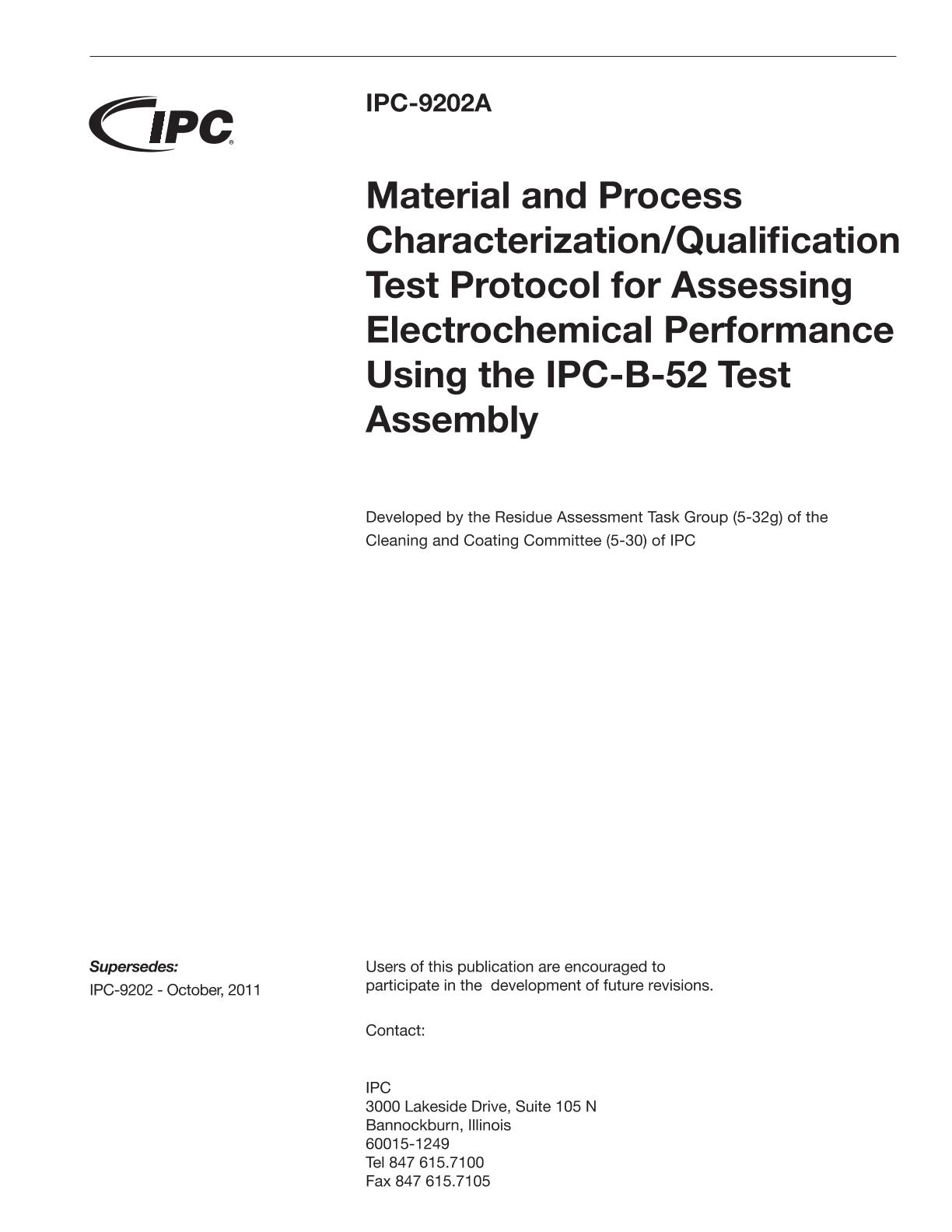

IPC 9202A

Material and Process Characterization/Qualification Test Protocol for Assessing Electrochemical Performance Using the IPC-B-52 Test Assembly

Association Connecting Electronics Industries, 10/01/2022

Publisher: IPC

File Format: PDF

$50.00$101.00

Description

Published:01/10/2022

Pages:20

File Size:1 file , 1.9 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

This Material and Process Characterization/Qualification Test records changes in Surface Insulation Resistance (SIR) on a representative sample of a printed circuit assembly (PCA). It quantifies any deleterious effects that might arise from solder flux or other process residues left on external surfaces after soldering, which can cause unwanted electro-chemical reactions that grossly affect reliability.
