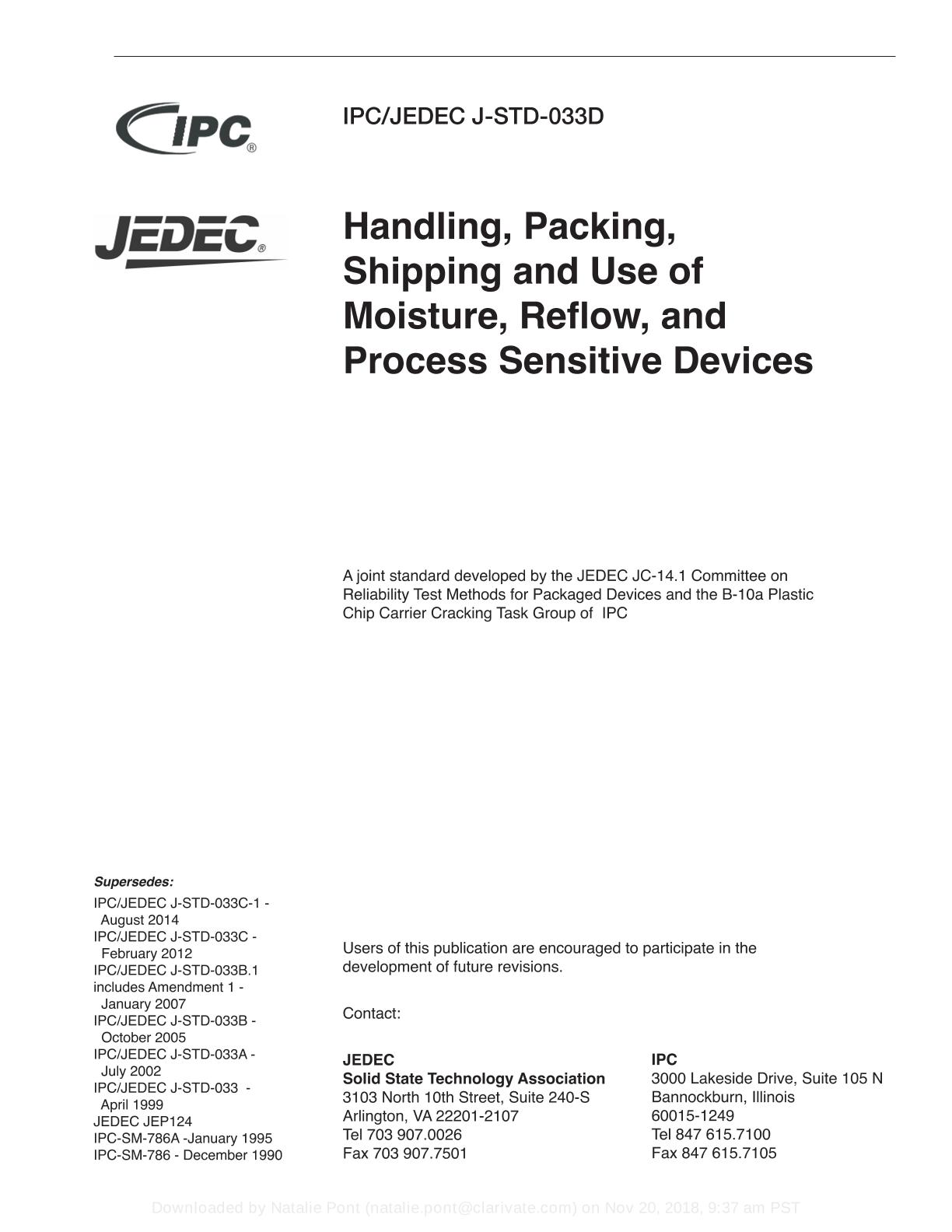

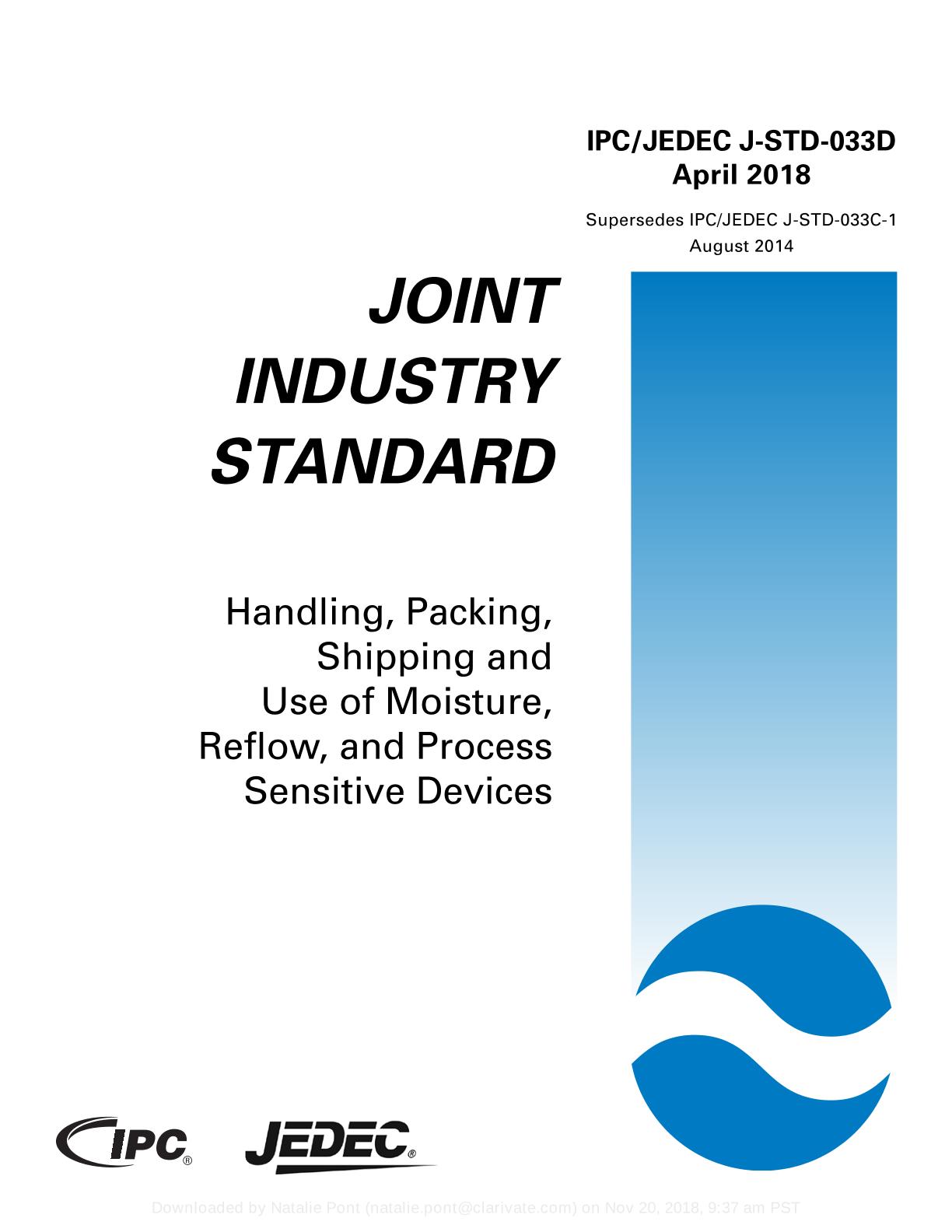

JEDEC J-STD-033D

Handling, Packing, Shipping, and Use of Moisture/Reflow Sensitive Surface-Mount Devices

JEDEC Solid State Technology Association, 04/02/2018

Publisher: JEDEC

File Format: PDF

$44.00$89.00


Published:02/04/2018

Pages:31

File Size:1 file , 1.1 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

The purpose of this document is to provide manufacturers and users with standardized methods for handling, packing, shipping, and use of moisture/reflow and process sensitive devices that have been classified to the levels defined in J-STD-020 or J-STD-075. These methods are provided to avoid damage from moisture absorption and exposure to solder reflow temperatures that can result in yield and reliability degradation. By using these procedures, safe and damage-free reflow can be achieved. The dry-packing process defined herein provides a minimum shelf life of 12 months from the seal date.
