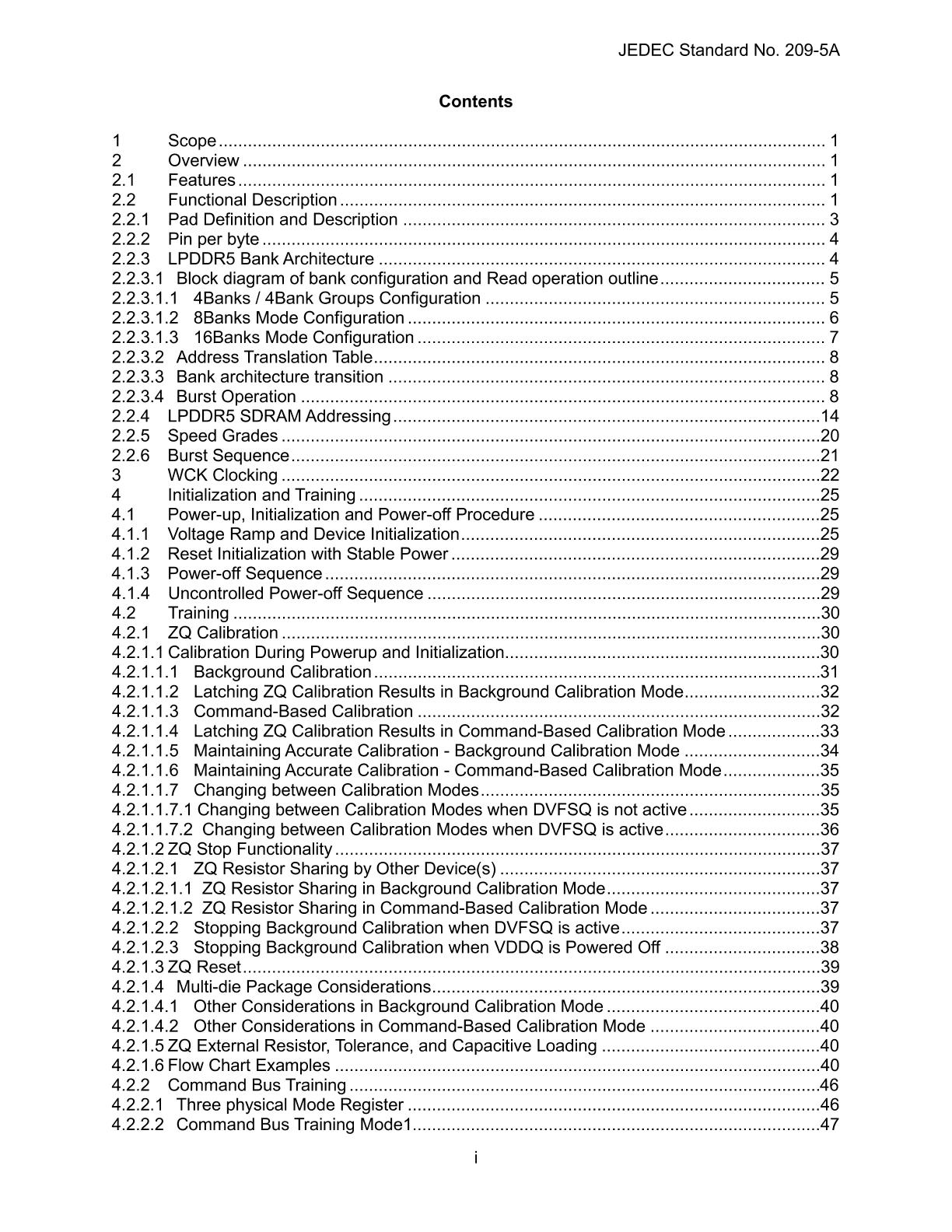

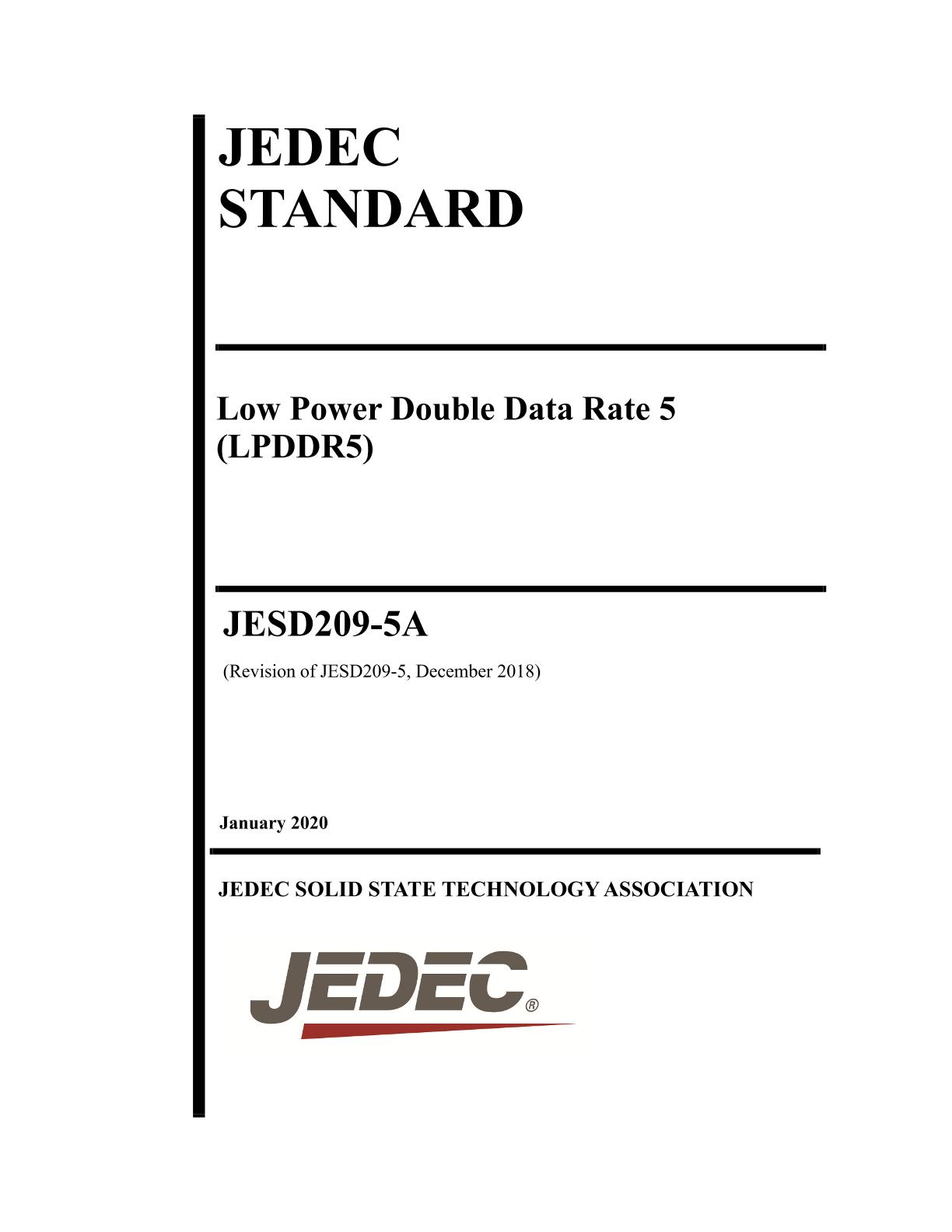

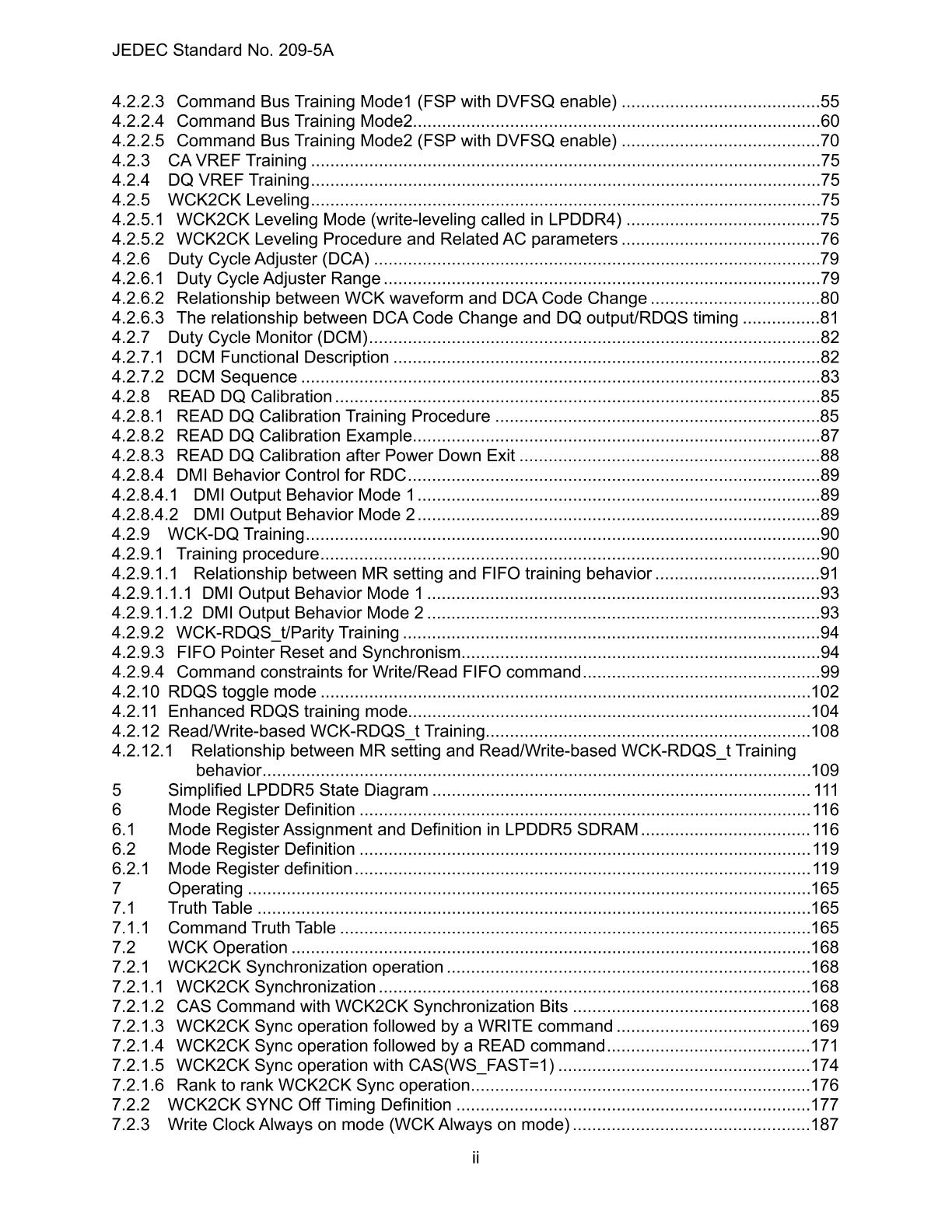

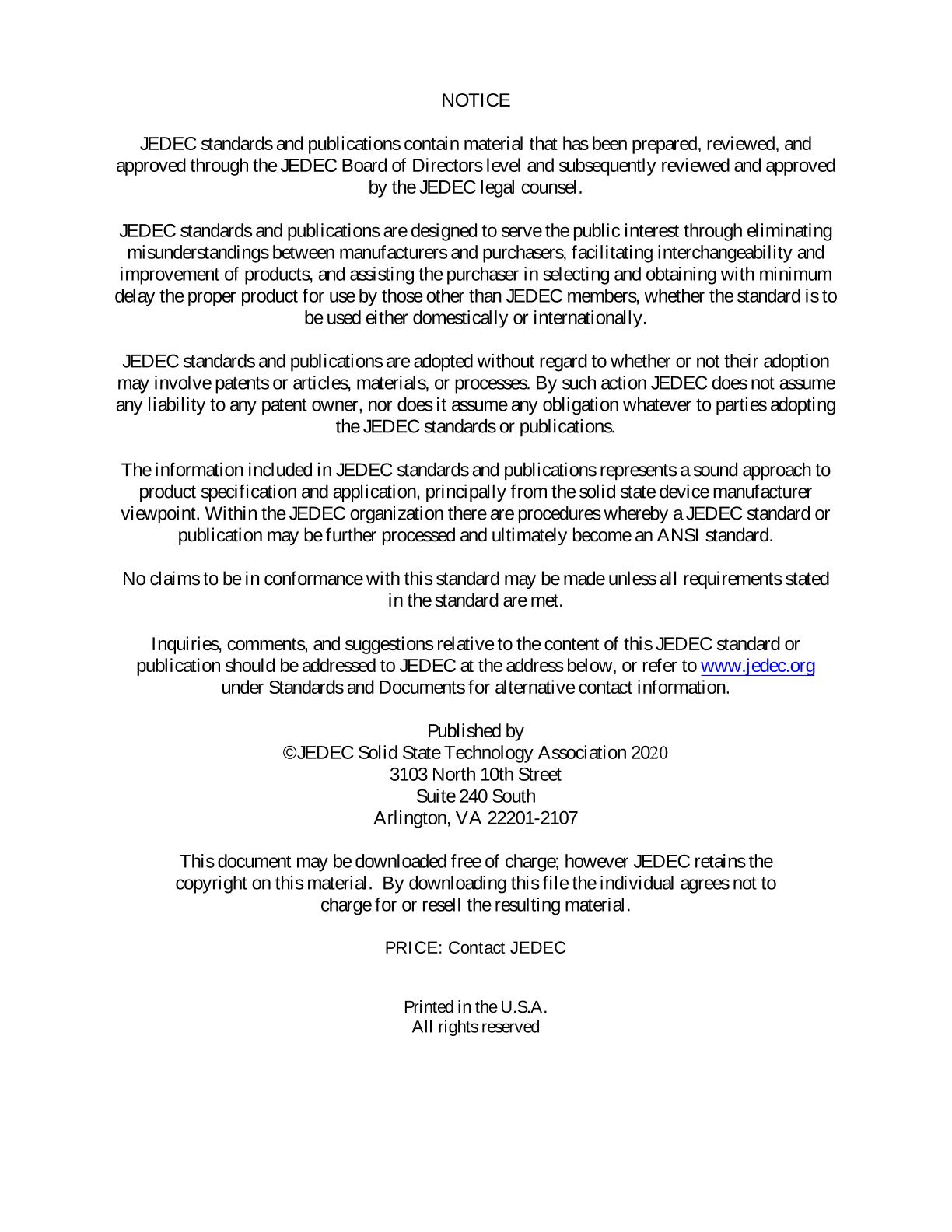

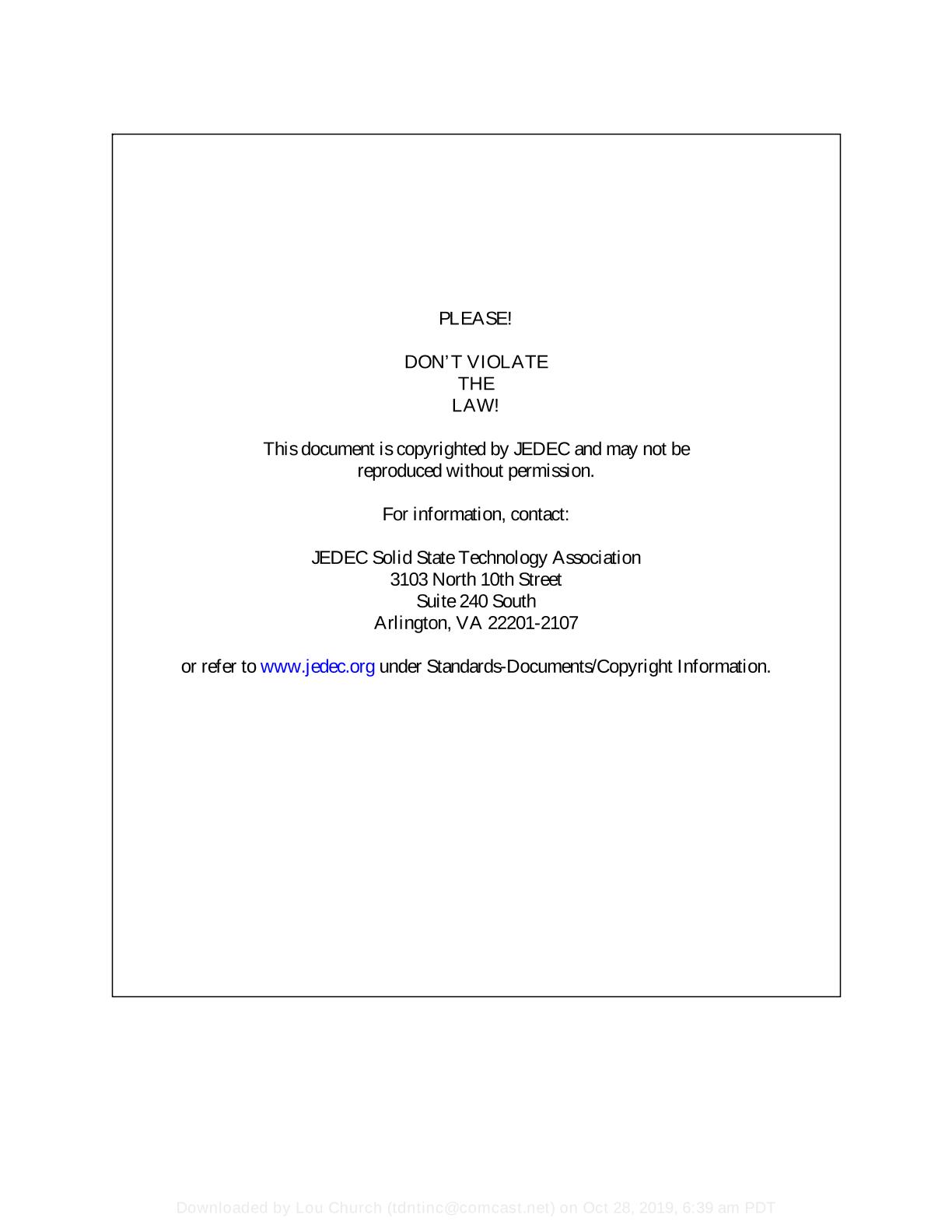

PDF Preview

JEDEC JESD209-5A

Low Power Double Data Rate 5 (LPDDR5)

JEDEC Solid State Technology Association, 01/01/2020

Publisher: JEDEC

File Format: PDF

$184.00$369.00


Published:01/01/2020

Pages:546

File Size:1 file , 12 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

This document defines the LPDDR5 standard, including features, functionalities, AC and DC characteristics, packages, and ball/signal assignments. The purpose of this specification is to define the minimum set of requirements for a JEDEC compliant x16 one channel SDRAM device and x8 one channel SDRAM device. LPDDR5 device density ranges from 2 Gb through 32 Gb. This document was created using aspects of the following standards: DDR2 (JESD79-2), DDR3 (JESD79-3), DDR4 (JESD79-4), LPDDR (JESD209), LPDDR2 (JESD209-2), LPDDR3 (JESD209-3) and LPDDR4 (JESD209-4). Item 1854.99A
