JEDEC JESD22-A113H

PRECONDITIONING OF NONHERMETIC SURFACE MOUNT DEVICES PRIOR TO RELIABILITY TESTING

JEDEC Solid State Technology Association, 11/01/2016

Publisher: JEDEC

File Format: PDF

$29.00$59.00


Published:01/11/2016

Pages:18

File Size:1 file , 65 KB

Note:This product is unavailable in Russia, Ukraine, Belarus

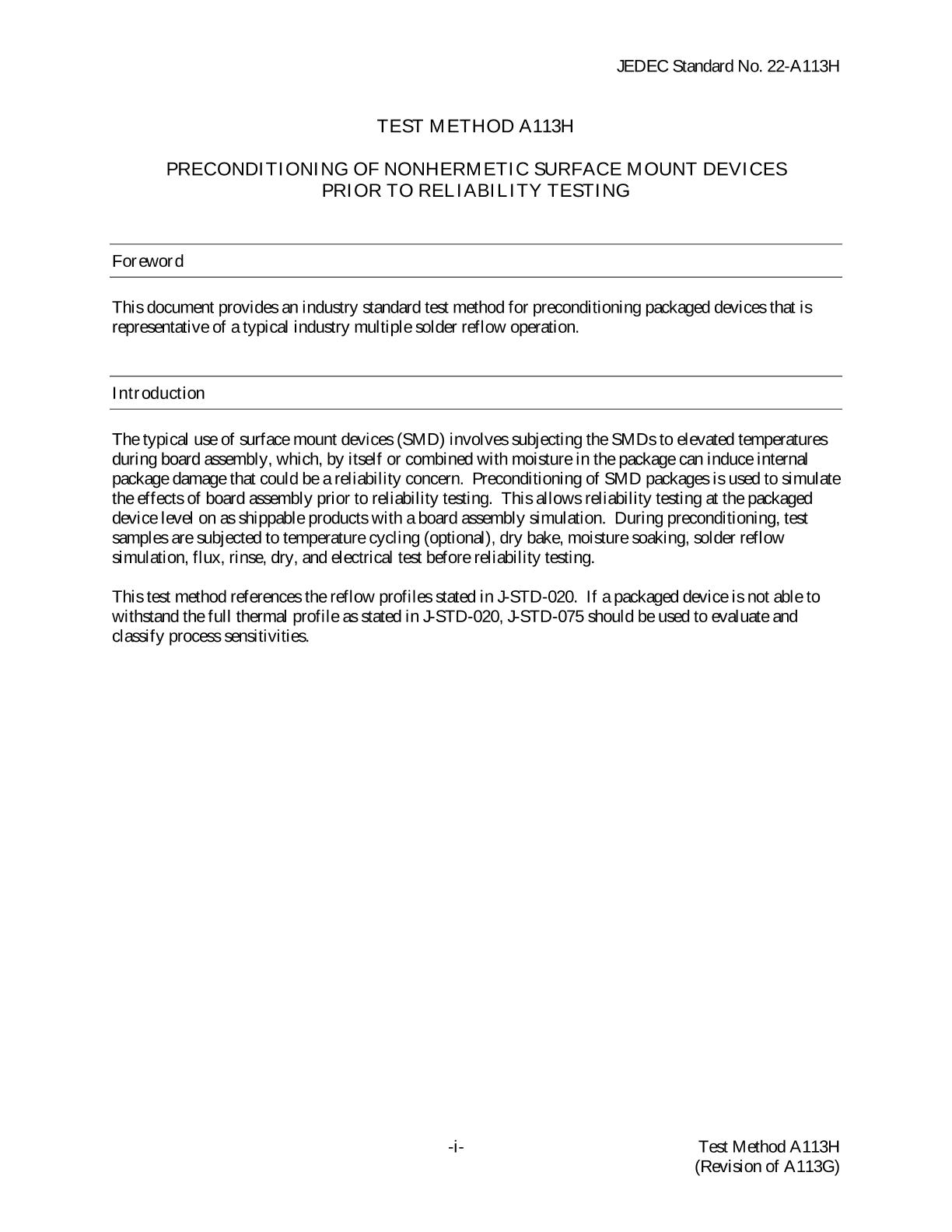

This Test Method establishes an industry standard preconditioning flow for nonhermetic solid state SMDs (surface mount devices) that is representative of a typical industry multiple solder reflow operation. These SMDs should be subjected to the appropriate preconditioning sequence of this document by the semiconductor manufacturer prior to being submitted to specific in-house reliability testing (qualification and reliability monitoring) to evaluate long term reliability (which might be impacted by solder reflow).
