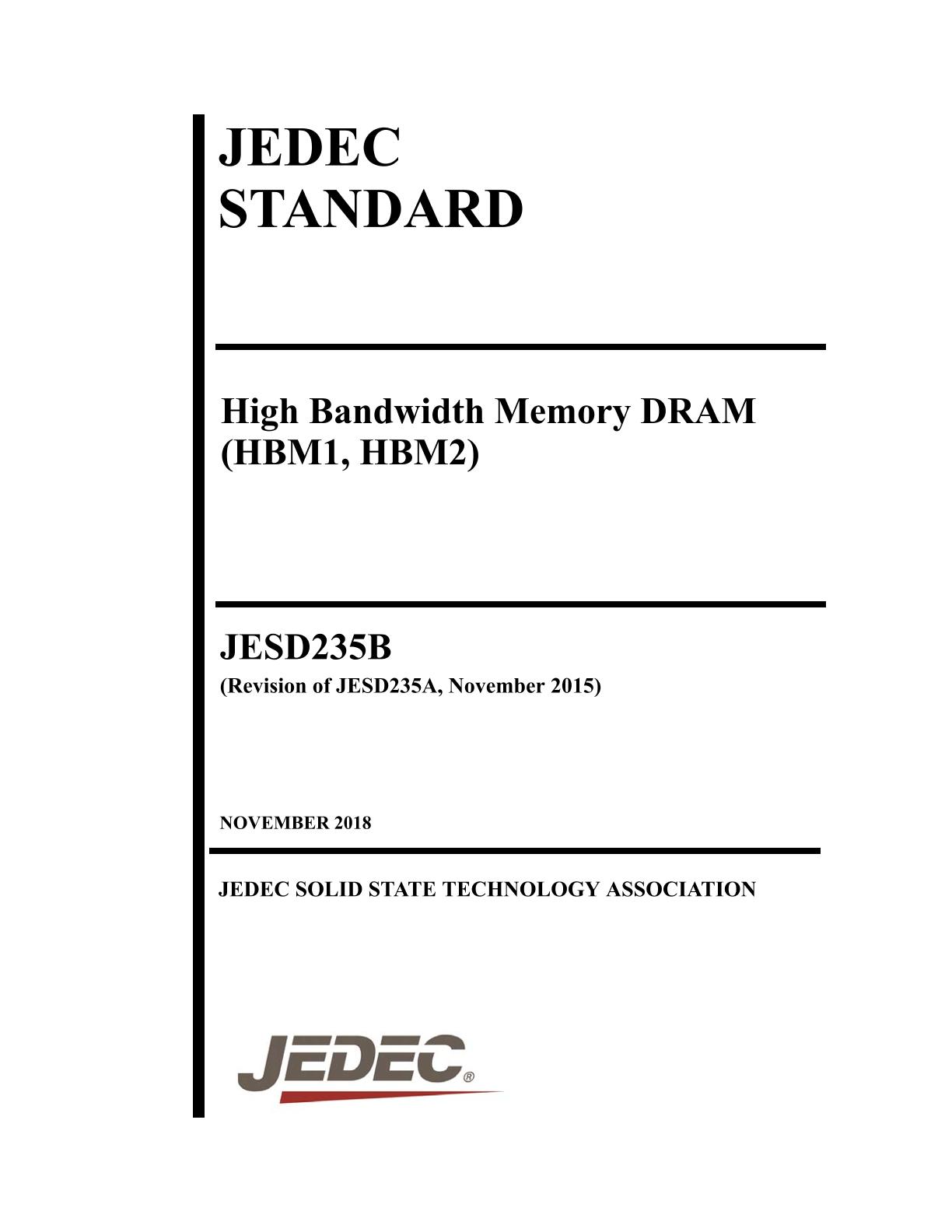

JEDEC JESD235B

HIgh Bandwidth Memory DRAM (HBM1, HBM2)

JEDEC Solid State Technology Association, 11/01/2018

Publisher: JEDEC

File Format: PDF

$114.00$228.00


Published:01/11/2018

Pages:207

File Size:1 file , 4 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

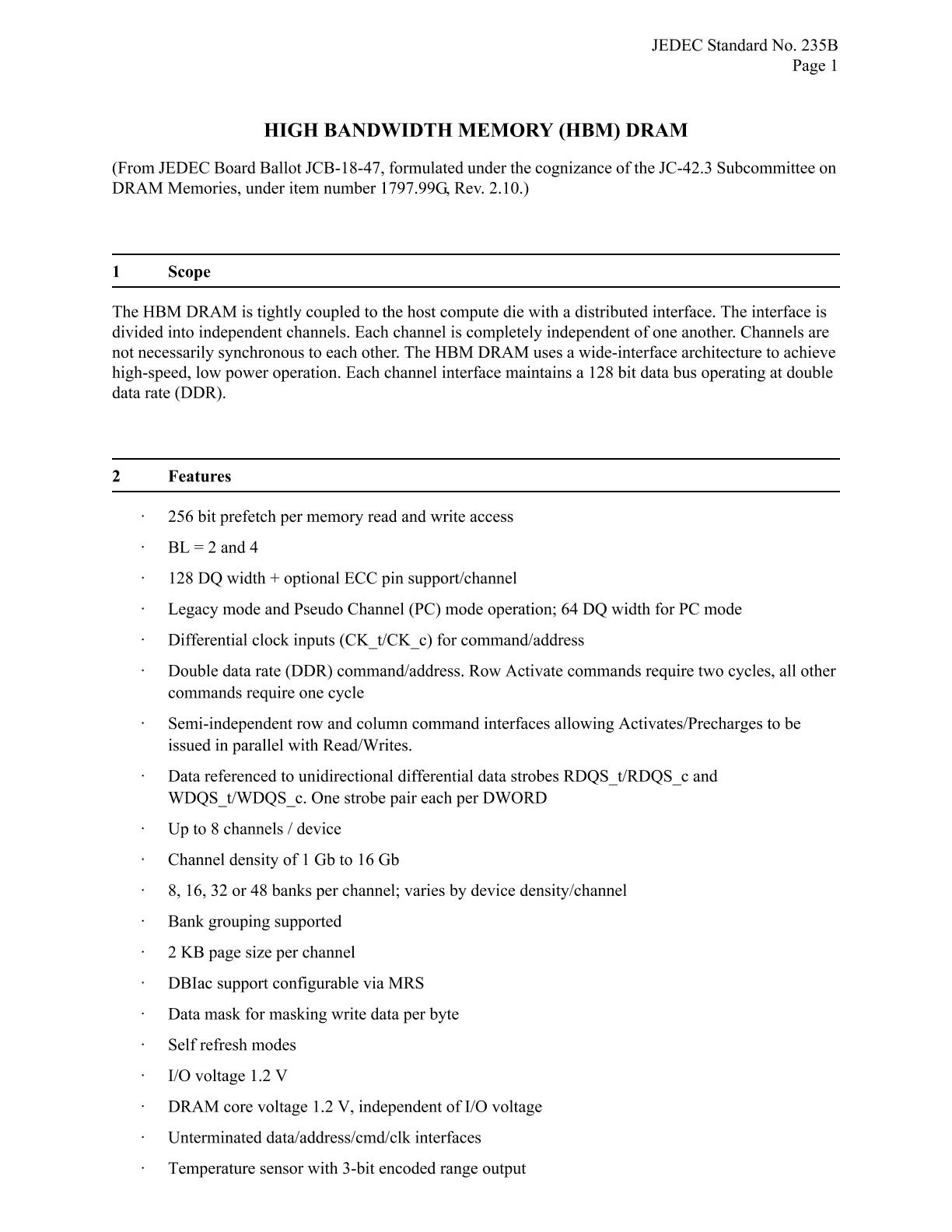

The HBM DRAM is tightly coupled to the host compute die with a distributed interface. The interface is divided into independent channels. Each channel is completely independent of one another. Channels are not necessarily synchronous to each other. The HBM DRAM uses a wide-interface architecture to achieve high-speed, low power operation. Each channel interface maintains a 128 bit data bus operating at double data rate (DDR).
