PDF Preview

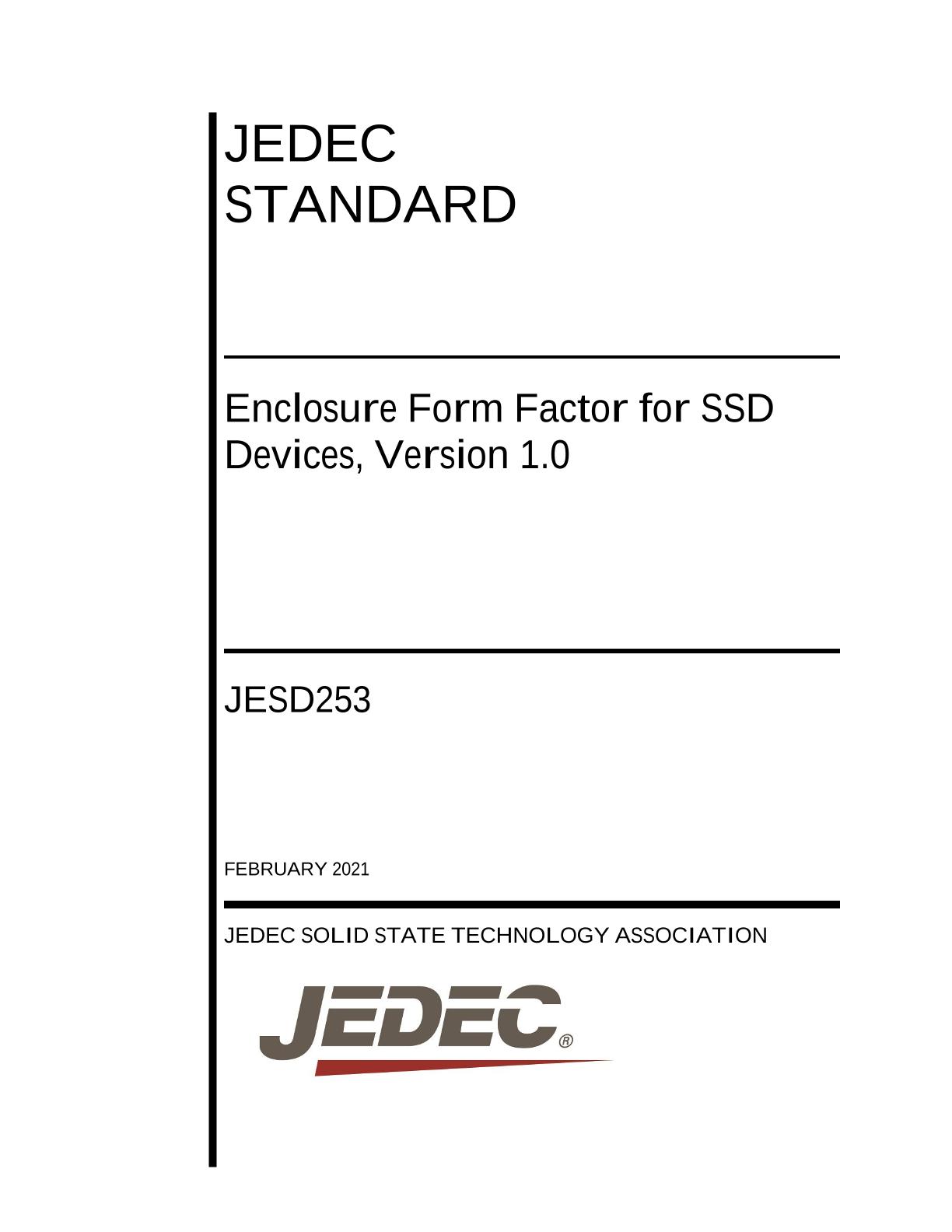

JEDEC JESD253

Enclosure Form Factor For SSD Devices, Version 1.0

JEDEC Solid State Technology Association, 02/01/2021

Publisher: JEDEC

File Format: PDF

$30.00$60.00


Published:01/02/2021

Pages:20

File Size:1 file , 1.2 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

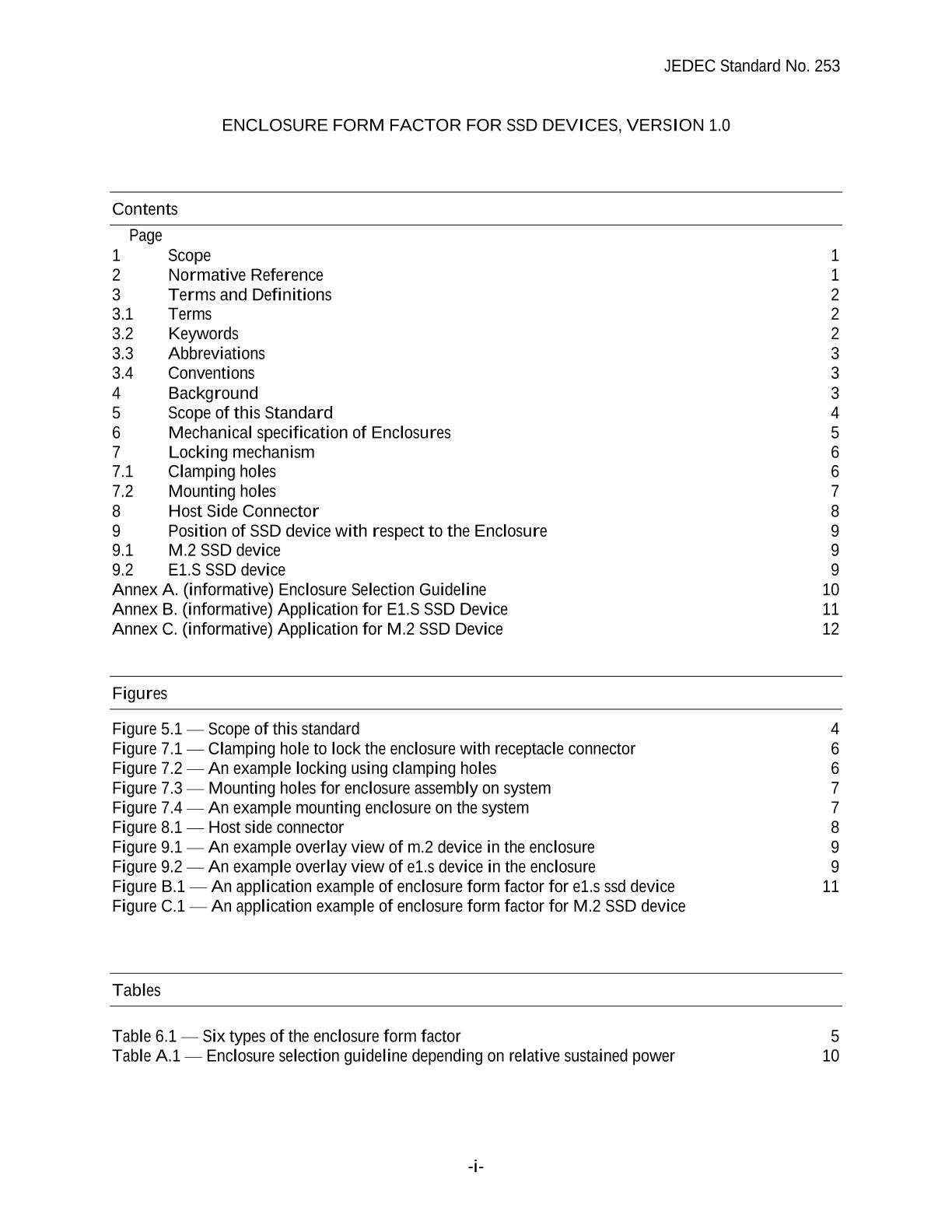

This document specifies the enclosure form factor which can be used with various type of SSD devices: outline of the top and bottom enclosure, three screw holes to mount the enclosure on the system, and two clamping holes in the top enclosure to lock to the connector. Item 318.06.
