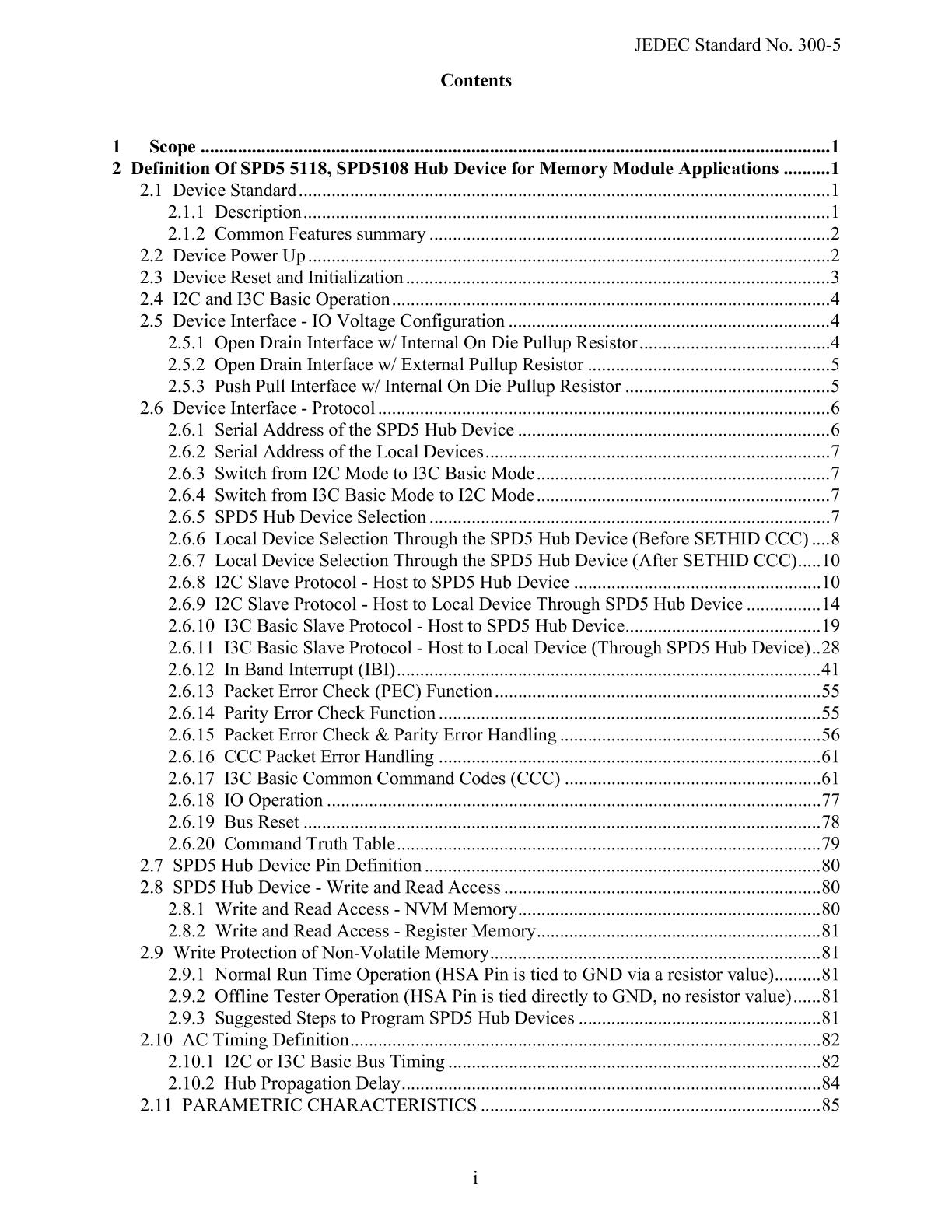

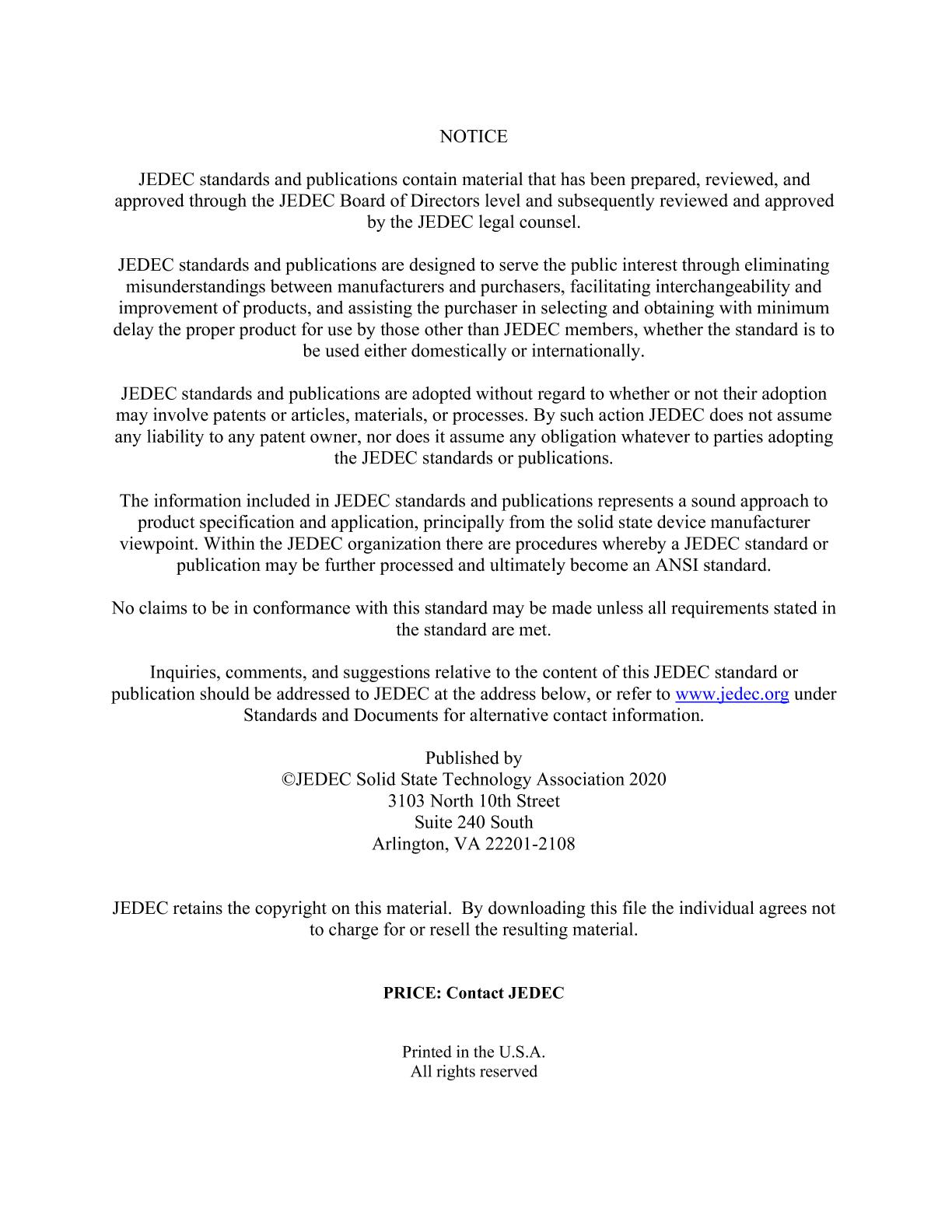

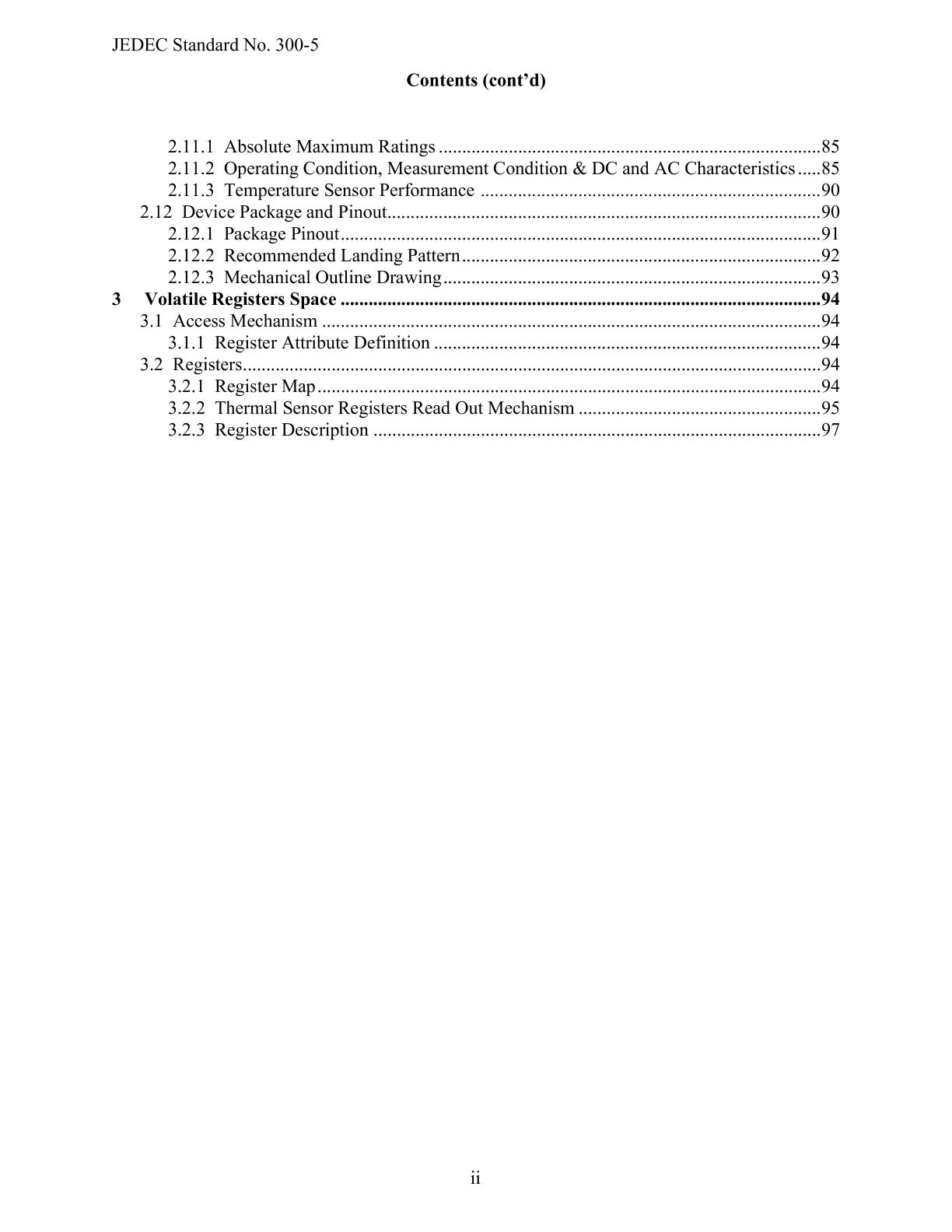

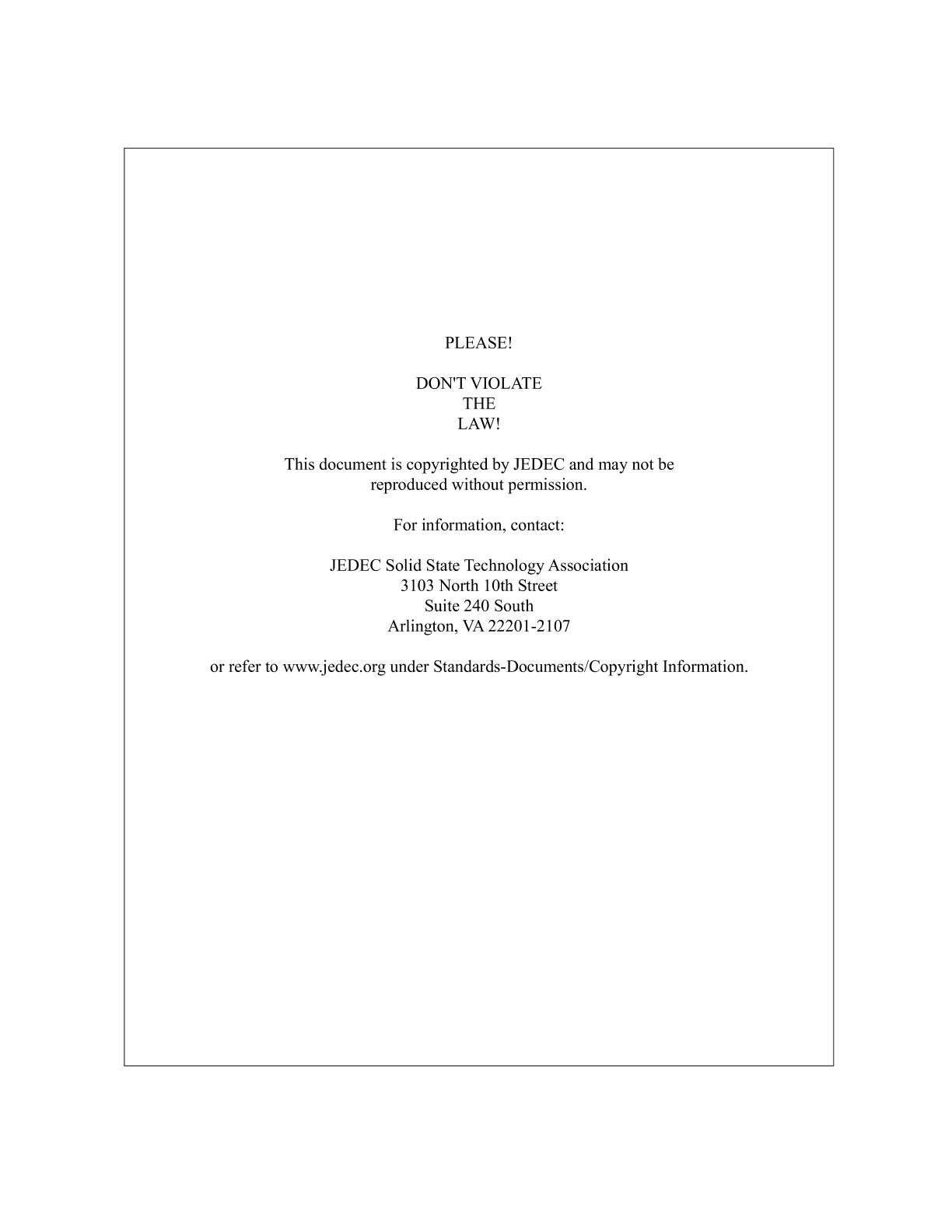

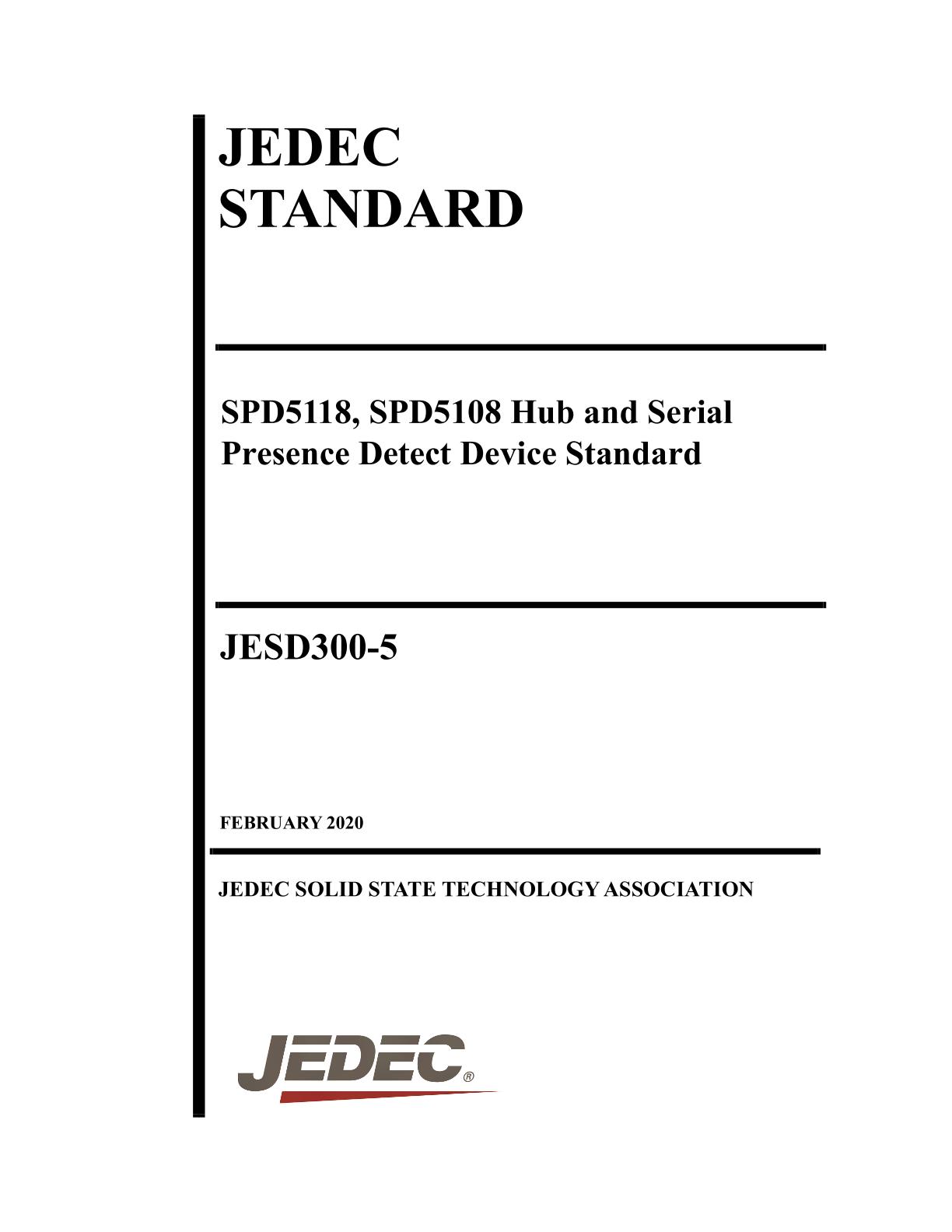

PDF Preview

JEDEC JESD300-5

SPD5118, SPD5108 Hub and Serial Presence Detect Device Standard

JEDEC Solid State Technology Association, 02/01/2020

Publisher: JEDEC

File Format: PDF

$95.00$191.00


Published:01/02/2020

Pages:122

File Size:1 file , 1.1 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

This standard defines the specifications of interface parameters, signaling protocols, and features for DDR5 Serial Presence Detect EEPROM with Hub function (SPD5 Hub) and integrated Temperature Sensor (TS) as used for memory module applications. The Hub feature allows isolation of a local bus from a master host bus. The designations SPD5118 and SPD5108 refer to the families of devices specified by this document. The term SPD5 Hub refers generically to both devices in the family.
