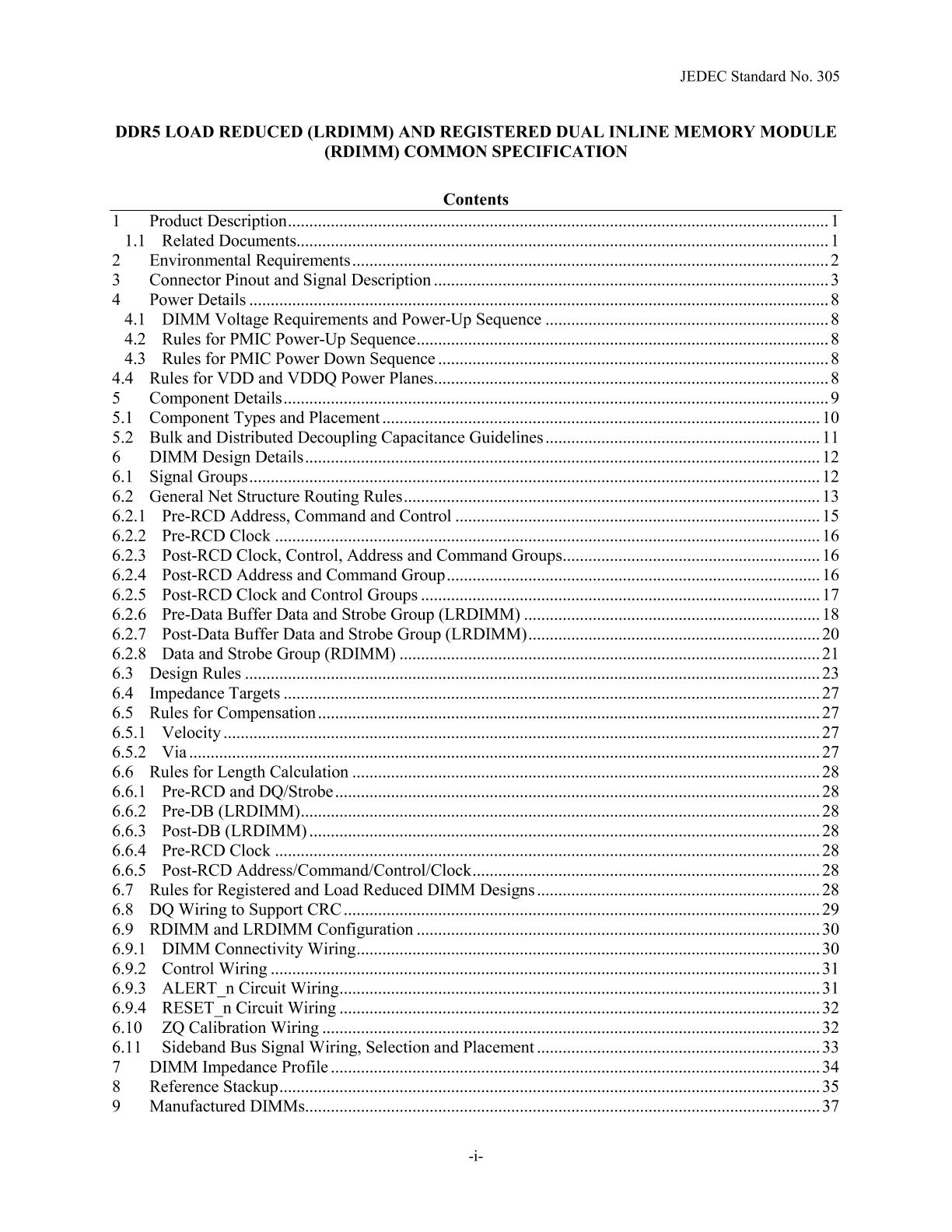

JEDEC JESD305

DDR5 Load Reduced (LRDIMM) and Registered Dual Inline Memory Module (RDIMM) Common Specification

JEDEC Solid State Technology Association, 01/01/2022

Publisher: JEDEC

File Format: PDF

$43.00$87.00

Description

Published:01/01/2022

Pages:46

File Size:1 file , 1.1 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

This standard defines the electrical and mechanical requirements for 288-pin, 1.1 Volt (VDD and VDDQ), DDR5 Registered (RDIMM) and Load Reduced (LRDIMM), Double Data Rate (DDR), Synchronous DRAM Dual In-Line Memory Modules (DIMM). These 288-pin Registered and Load Reduced DDR5 SDRAM DIMMs are intended for use in server, workstation, and database environments. Item 2273.07.
