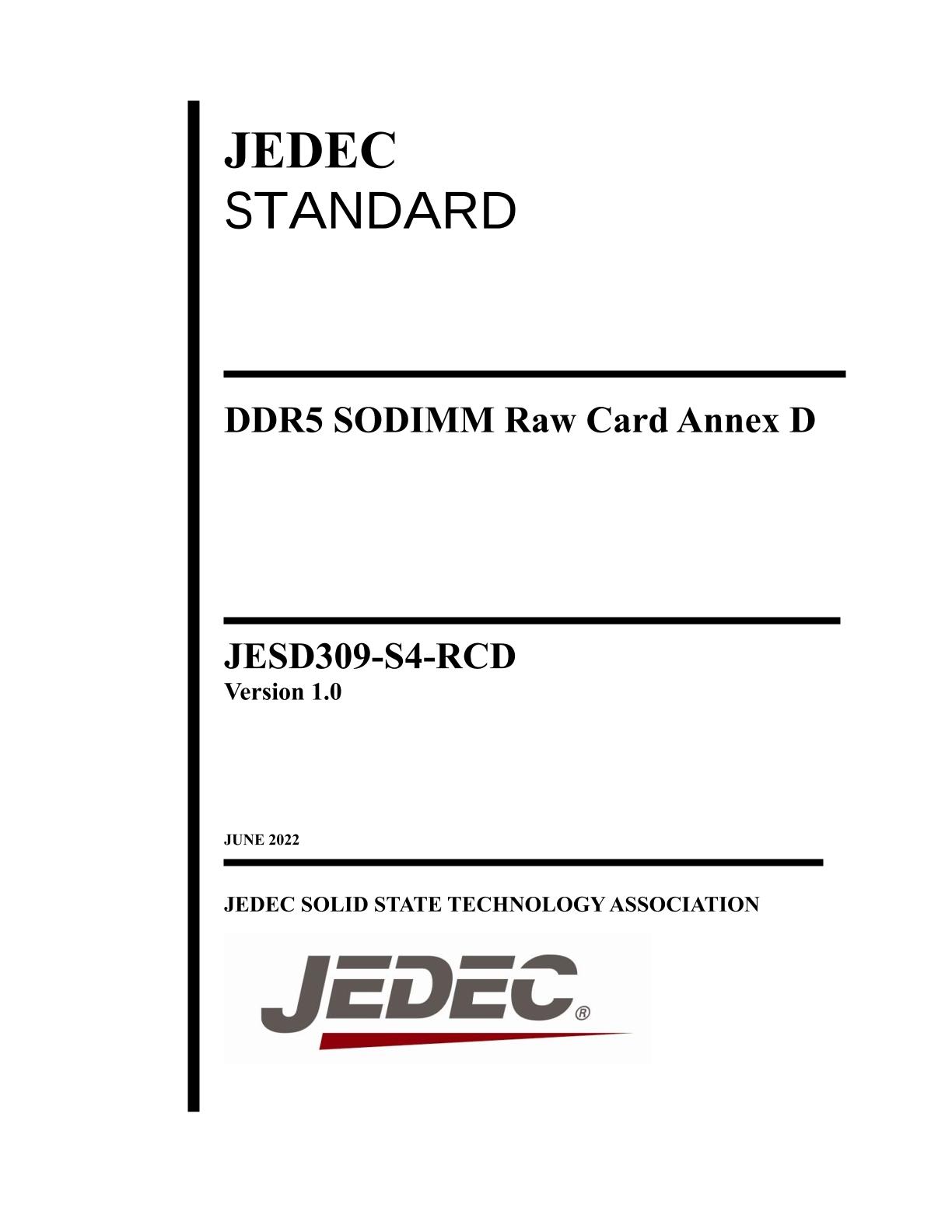

JEDEC JESD309-S4-RCD

DDR5 SODIMM Raw Card Annex D. Version 1.0

JEDEC Solid State Technology Association, 06/01/2022

Publisher: JEDEC

File Format: PDF

$122.00$245.53


Published:01/06/2022

Pages:24

File Size:1 file , 560 KB

Note:This product is unavailable in Russia, Ukraine, Belarus

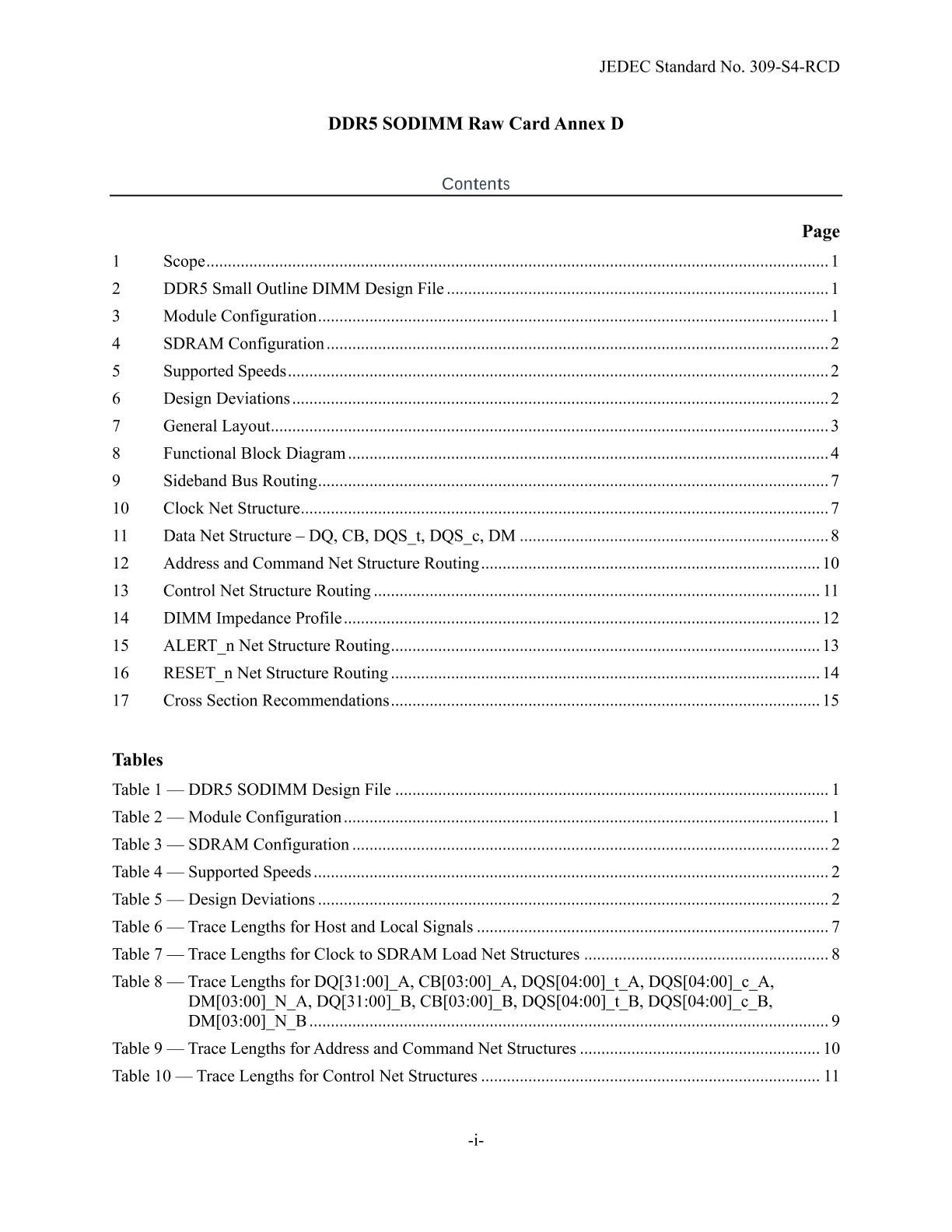

This annex JESD309-S4-RCD, DDR5 Small Outline Dual Inline Memory Module with 4-bit ECC (EC4 SODIMM) Raw Card D Annex defines the design detail of x8, 1 Package Rank DDR5 SODIMM with 4-bit ECC. The common feature of DDR5 SODIMM such as the connector pinout can be found in the JESD309, DDR5 Small Outline Dual Inline Memory Module (SODIMM) Common Standard.
